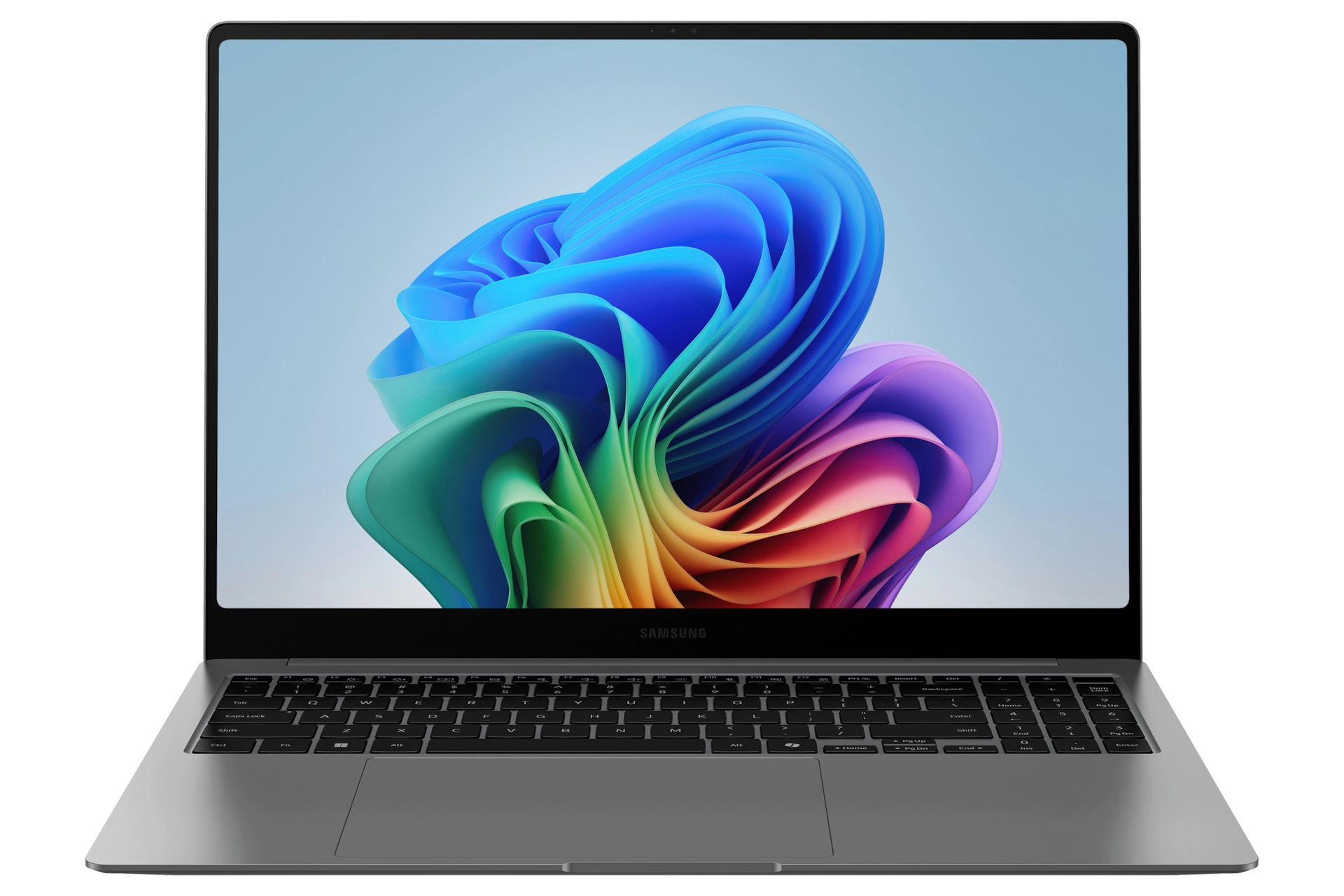

Samsung NP960XHAA-EXP. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 256V. Display diagonal: 40.6 cm (16"), HD type: 2.8K, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 16 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics 140V. Operating system installed: Windows 11 Home. Product colour: Grey

Specification

Product
Product id	984848
Brand	Samsung
Partnr	NP960XHA-KG2NL
EAN/UPC code	8806097002918
Design
Product type	Notebook
Product colour	Grey
Form factor	Clamshell
Display
Display diagonal	16 inch
Display resolution	2880 x 1800 Pixels
Touchscreen	Y
Panel type	AMOLED
HD type	2.8K
Native aspect ratio	16:10
Anti-glare screen	Y
Display brightness	400 cd/m²
Maximum display brightness (HDR)	500 cd/m²
Maximum refresh rate	120 Hz
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor model	256V
Processor generation	Intel Core Ultra (Series 2)
Processor boost frequency	4.8 GHz
Processor cores	8
Processor threads	8
Low Power Efficient-cores	4
Low Power Efficient-core Max Turbo Frequency	3.7 GHz
Processor cache	12 MB
Performance-core base frequency	2.2 GHz
Performance-core Max Turbo Frequency	4.8 GHz
Low Power Efficient-core Base Frequency	2.2 MHz
Processor cache type	Smart Cache
Tjunction	100 °C
Processor base power	17 W
Maximum turbo power	37 W
Performance cores	4
Memory
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Y
Windows Studio effects support	Y
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, WebNN, Windows ML
NPU performance up to	47 TOPs
Storage
Total storage capacity	1000 GB
Storage media	SSD
Total SSDs capacity	1000 GB
Number of SSDs installed	1
SSD capacity	1000 GB
NVMe	Y
Optical drive type	N
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Graphics
On-board graphics adapter	Y
Discrete graphics adapter	N
Discrete graphics adapter model	Not available
On-board graphics adapter family	Intel Arc Graphics
On-board graphics adapter model	Intel Arc Graphics 140V
On-board graphics adapter DirectX version	12.2
On-board graphics adapter OpenGL version	4.6
On-board graphics card 8K support	Y
Audio
Audio system	Dolby Atmos
Number of built-in speakers	4
Built-in subwoofer	Y
Built-in microphone	Y
Number of microphones	2
Camera
Front camera	Y
Front camera resolution (numeric)	2 MP
Network
Bluetooth	Y
Mobile network connection	N
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Antenna type	2x2
Ethernet LAN	Y
Bluetooth version	5.4
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Intel® Thunderbolt 4	Y
Combo headphone/mic port	Y
Thunderbolt 4 ports quantity	2
Keyboard
Pointing device	Touchpad
Keyboard backlit	Y
Numeric keypad	Y
Software
Operating system installed	Windows 11 Home
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Execute Disable Bit	Y
CPU configuration (max)	1
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Intel Virtualization Technology (VT-x)	Y
Intel® Smart Sound Technology	Y
Intel® OS Guard	Y
Intel® Secure Key	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Intel Trusted Execution Technology	Y
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity (Watt-hours)	73.9 Wh
Battery life (max)	25 uur
Power
AC adapter power	65 W
USB Type-C charging port	Y
Security
Fingerprint reader	Y
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Weight & dimensions
Weight	1560 g
Width	355.4 mm
Depth	250.4 mm
Height	12.5 mm
