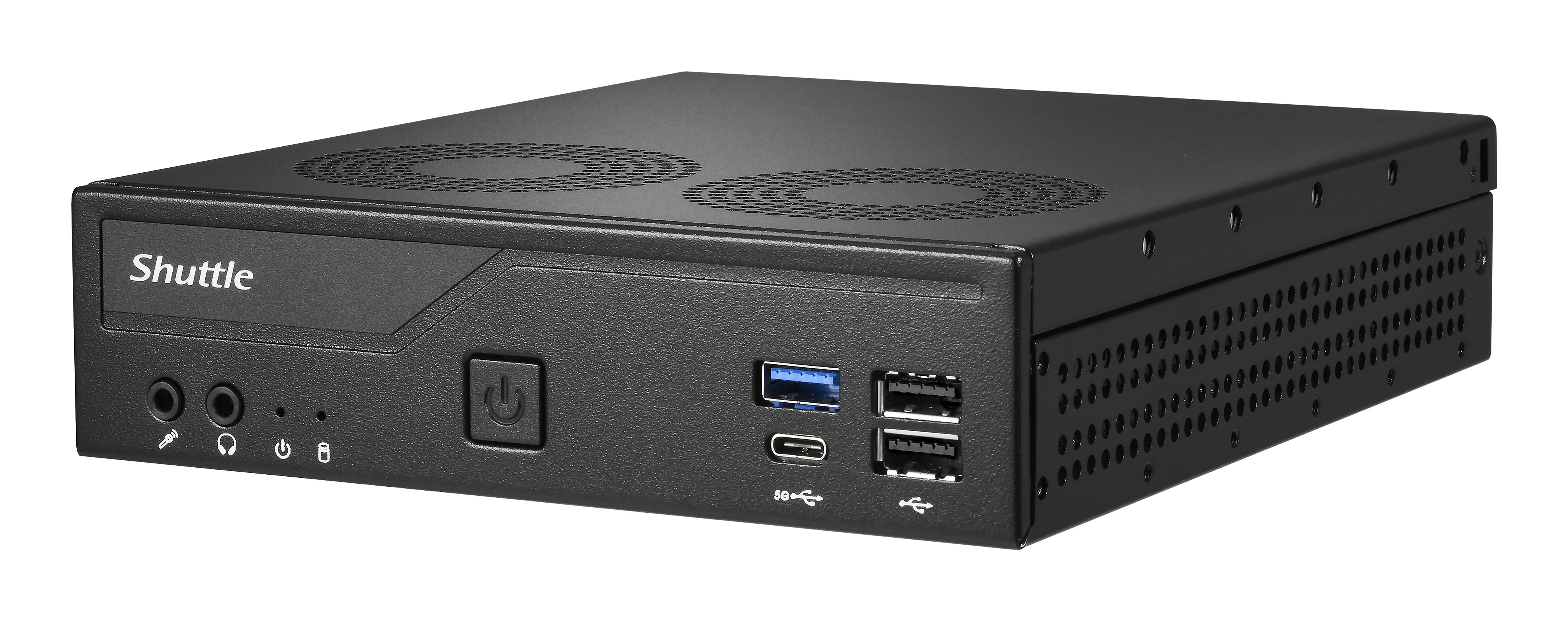

The Shuttle XPC slim Barebone DH610V2 with H610 chipset houses the performance of Intel's 12th/13th/14th generation Core desktop processors (codenamed Alder Lake-S and Raptor Lake-S [Refresh]) for socket LGA1700 in a compact 1.3-litre format. The DH610V2 allows for three Ultra HD displays to be operated at the same time via 1x HDMI and 2x DisplayPort. It also offers Dual Intel LAN (one supports 2.5G speed), eight USB ports and two COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.

Specification

Product
Product id	1018289
Brand	Shuttle
Partnr	SHU-DH610V2
EAN/UPC code	887993008950
Processor
Built-in processor	N
Memory
Memory slots type	SO-DIMM
Internal memory installed	N
Number of memory slots	2
Memory channels	Dual-channel
Memory voltage	1.1 V
Supported memory clock speeds	5600 MHz
Supported memory types	DDR5-SDRAM
Maximum internal memory	96 GB
ECC	N
Non-ECC	Y
Storage
Storage drives installed	N
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5, M.2 "
NVMe	Y
Graphics
On-board graphics adapter	Y
Audio
Built-in speaker(s)	N
Network
Ethernet LAN	Y
Wi-Fi	N
LAN controller	Intel I226, Intel I219V

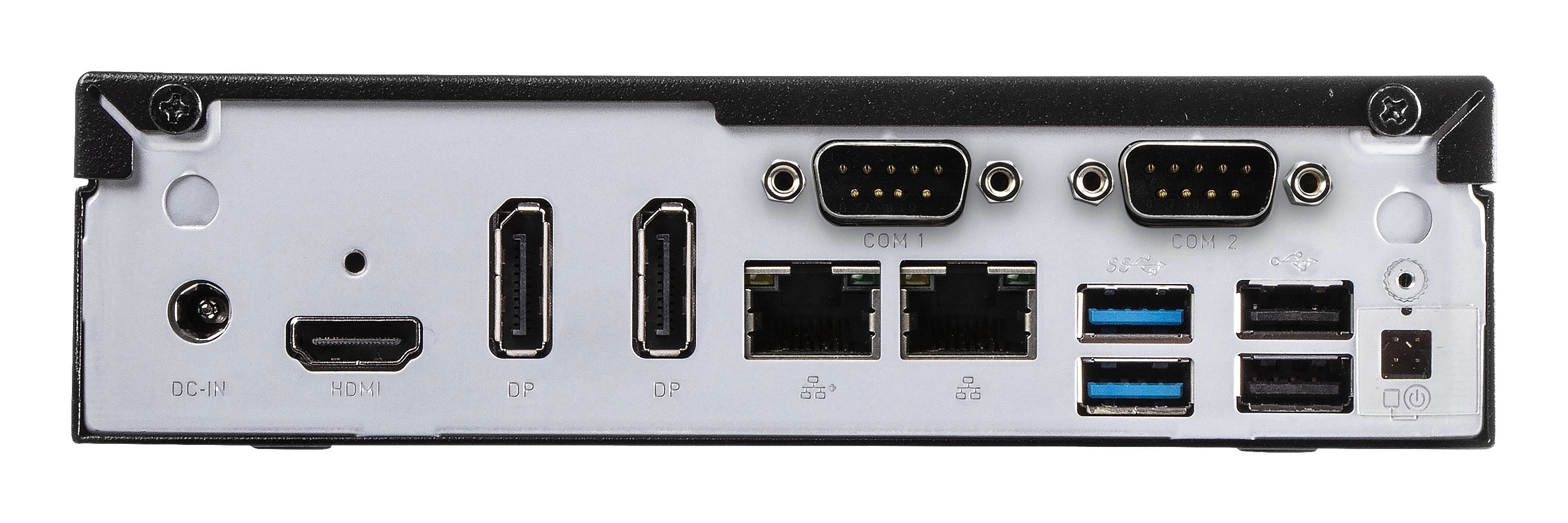

Ports & interfaces
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	2.0b
DisplayPorts quantity	2
DisplayPort version	1.4
Microphone in	Y
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2
Serial ports quantity	2
DC-in jack	Y
Design
Chassis type	1.35L sized PC
Product colour	Black
Cooling type	Active
On/off switch	Y
LED indicators	Power, HDD
Housing material	Metal
Cable lock slot	Y
Cable lock slot type	Kensington
VESA mounting	Y
Panel mounting interface	75 x 75, 100 x 100 mm
Product type	Mini PC (<= 3L) barebone
Performance

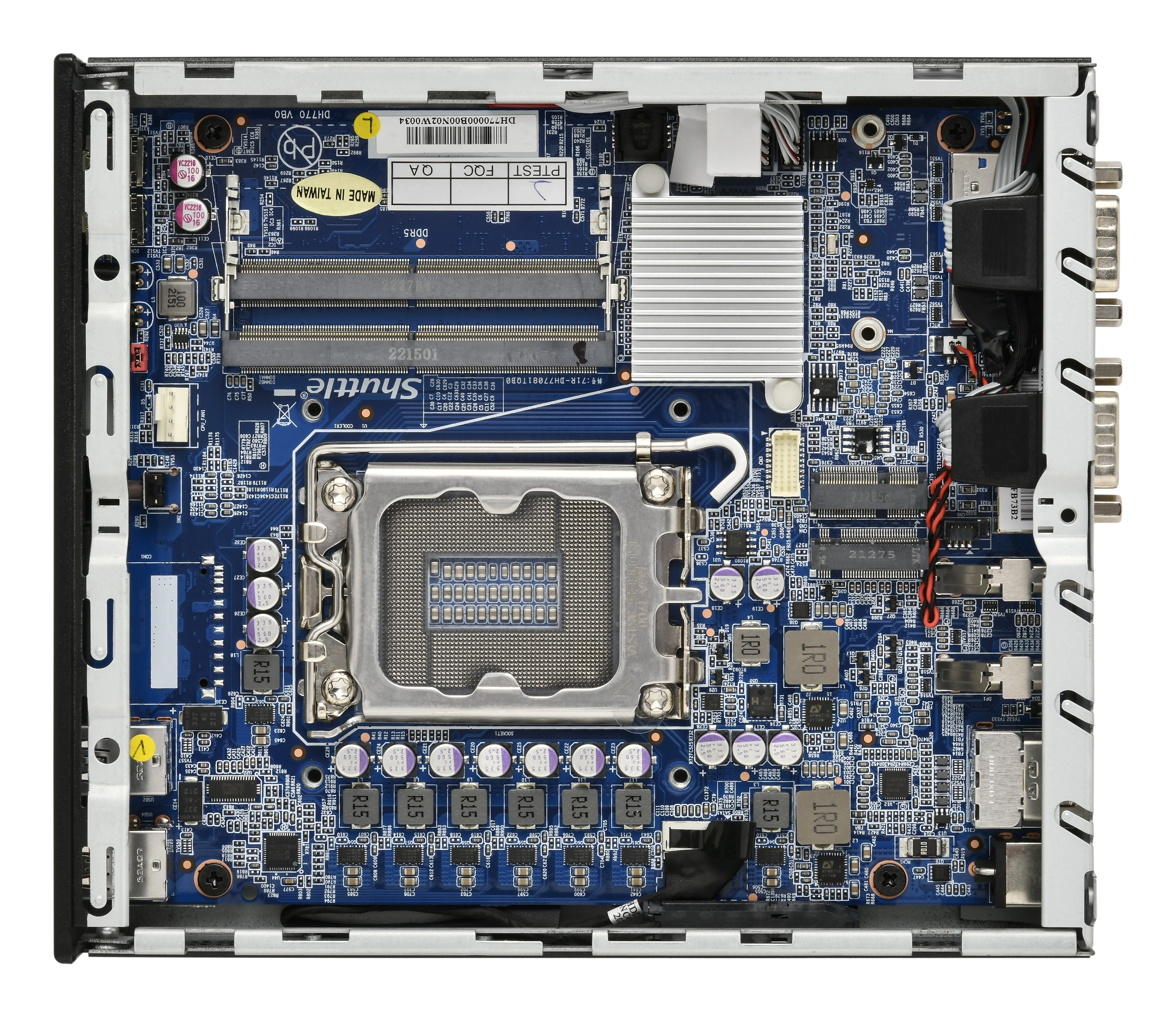

Motherboard chipset	Intel H610
Processor socket	LGA 1700
Number of processors supported	1
BIOS type	AMI
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Audio chip	Realtek ALC888S
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Y
Technical details
Sustainability certificates	ENERGY STAR, ErP
Compliance certificates	BSMI, CE, Federal Communications Commission (FCC), RCM, VCCI, ETL, CB, RoHS
Power
Power supply type	External AC adapter
Power supply	120 W
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
AC adapter output voltage	19 V
AC adapter output current	6.32 A
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 procent
Weight & dimensions
Width	165 mm
Depth	190 mm
Height	43 mm
Weight	1300 g
Package weight	2100 g
Packaging content
Power cord included	Y
AC adapter included	Y
Quick start guide	Y
Drivers included	Y
