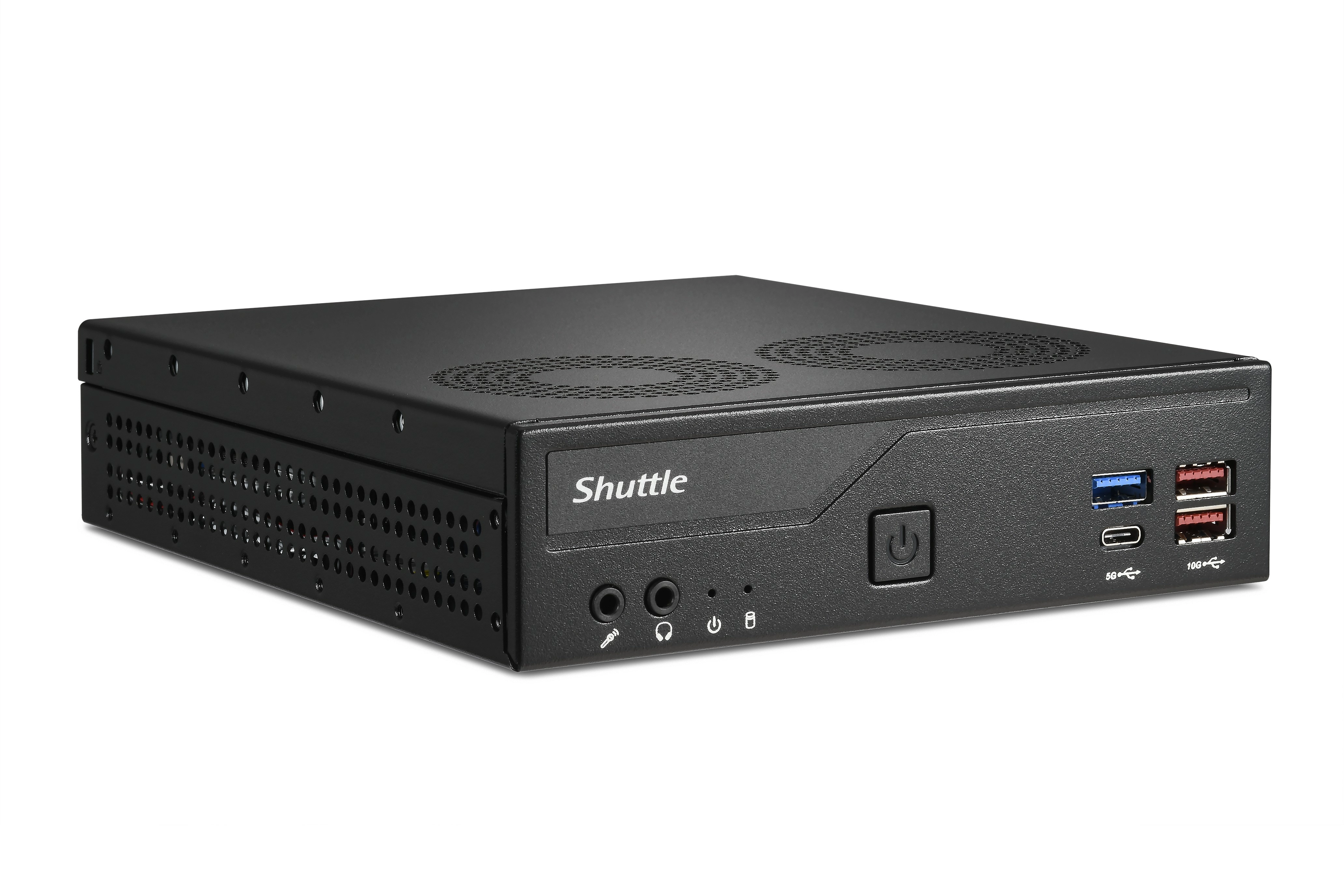

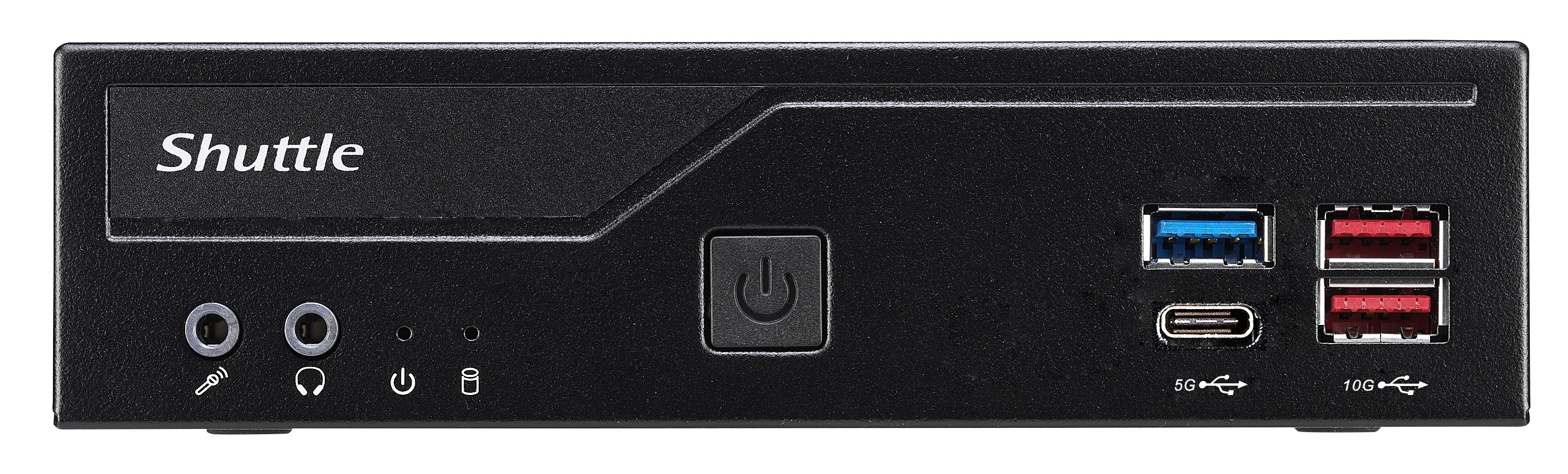

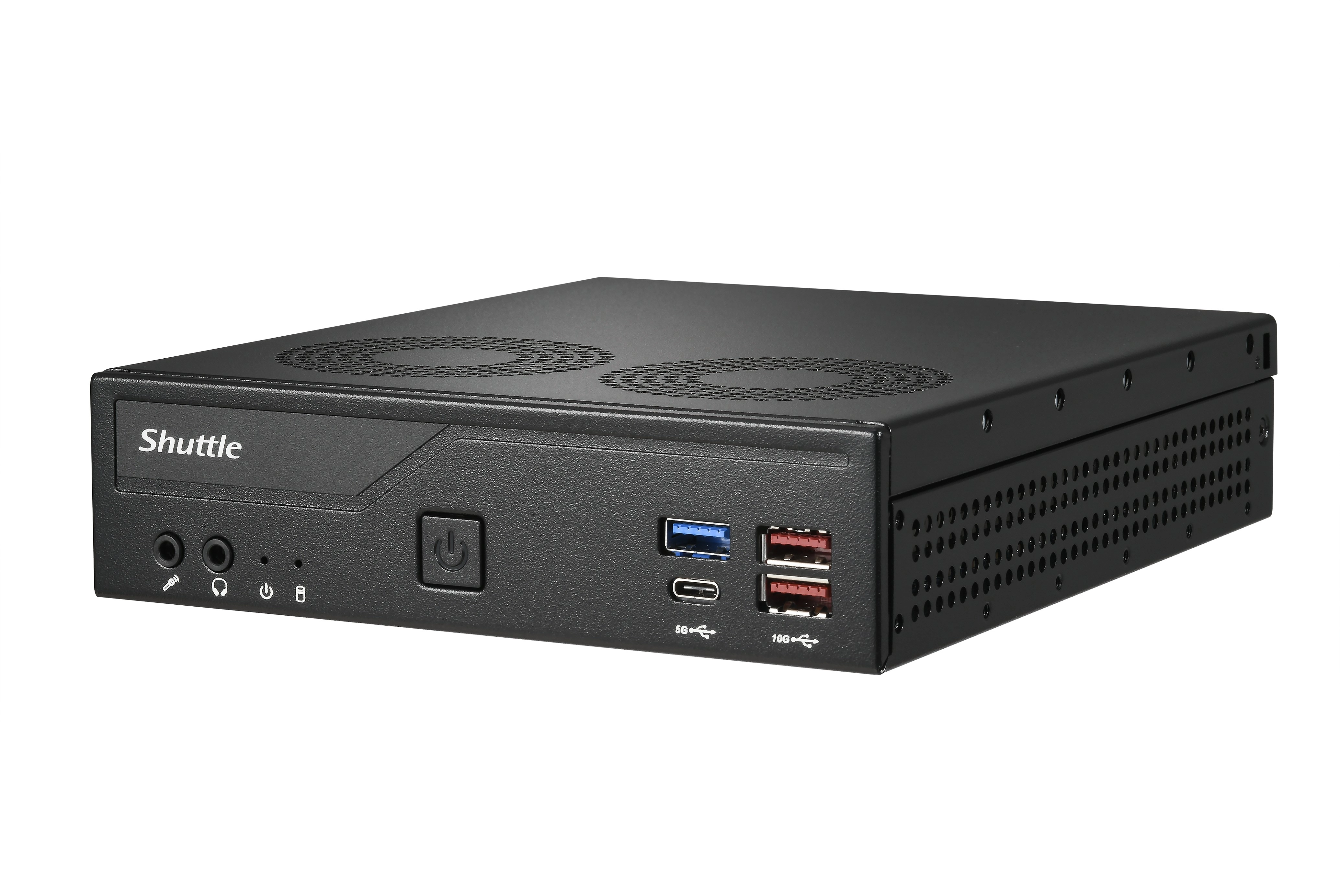

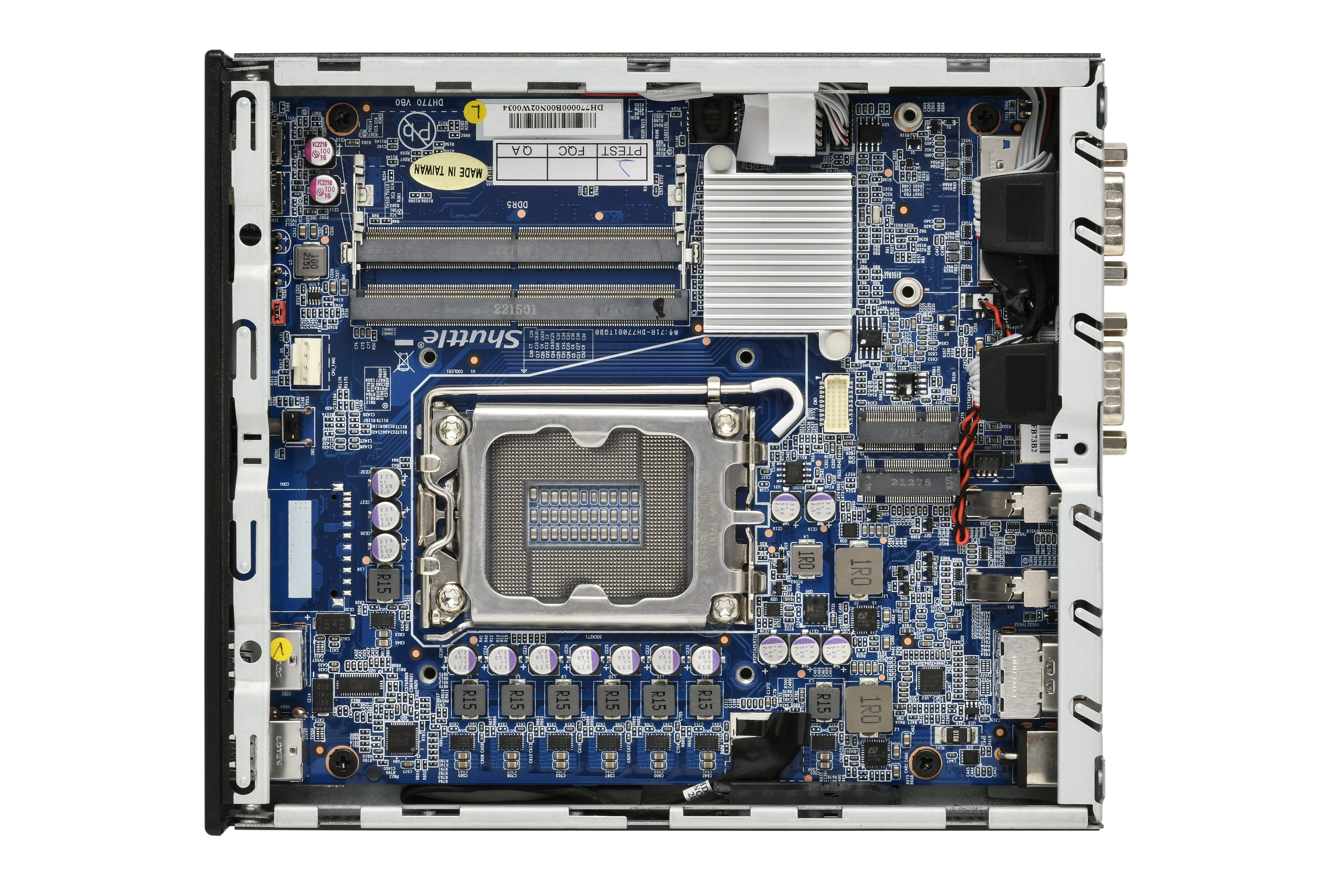

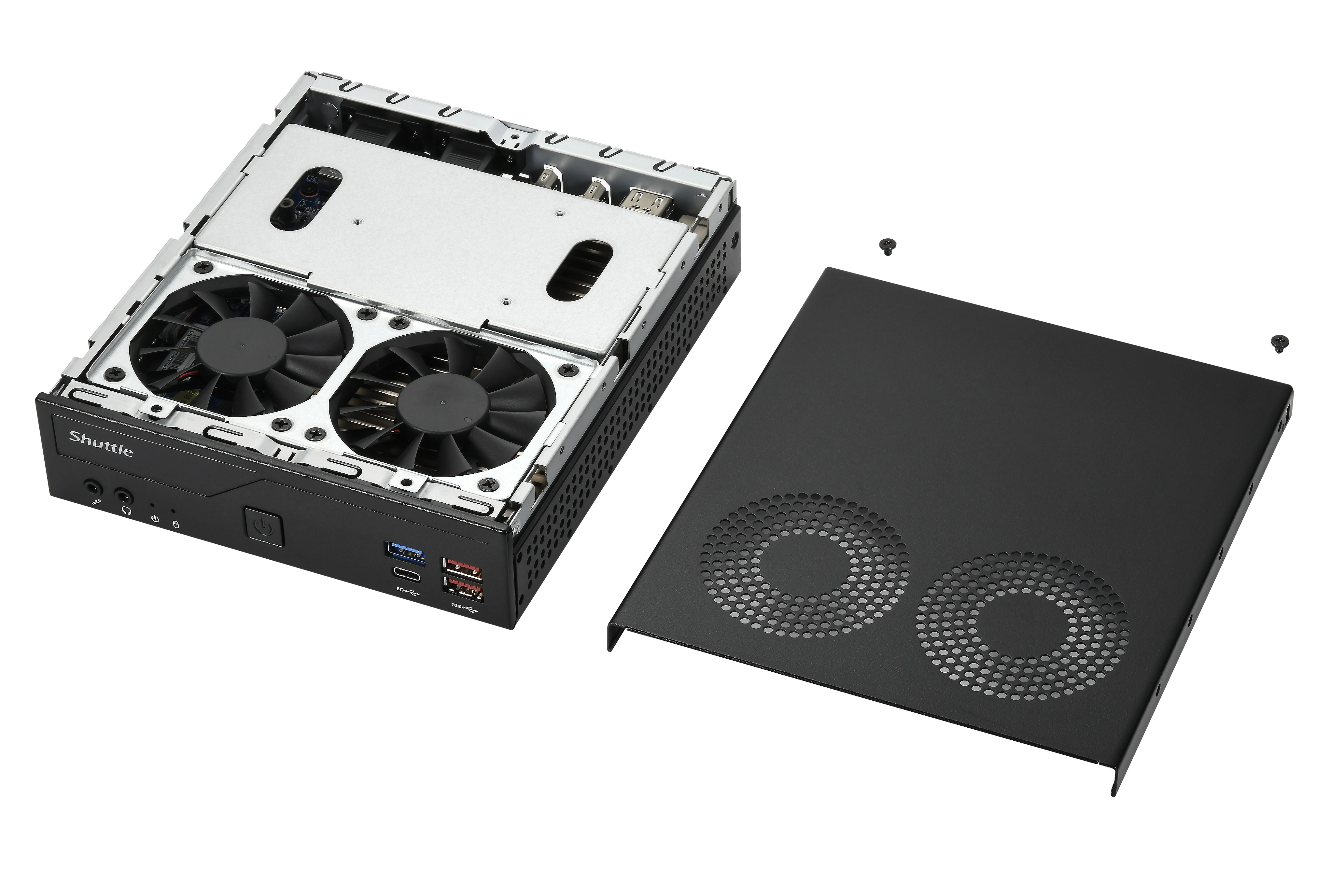

Robust 1.3-litre Slim PC supports Intel Core processors with Socket LGA1700 and four UHD displays
The Shuttle XPC slim Barebone DH770 with H770 chipset houses the performance of Intel's 12th/13th/14th generation Core desktop processors (codenamed Alder Lake-S and Raptor Lake-S [Refresh]) for socket LGA1700 in a compact 1.3-litre format. The DH770 allows for four Ultra HD displays to be operated at the same time via 2x HDMI and 2x DisplayPort. It also offers Dual Intel 2.5G LAN, four USB 3.2 Gen 2 and COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.

Specification

Product
Product id	975002
Brand	Shuttle
Partnr	DH770
EAN/UPC code	887993006918
Processor
Built-in processor	N
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
Memory voltage	1.1 V
Supported memory clock speeds	5600 MHz
Supported memory types	DDR5-SDRAM
Maximum internal memory	64 GB
ECC	N
Non-ECC	Y
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5, M.2 "
Storage drive interface	PCI Express, Serial ATA III
NVMe	Y
Graphics
On-board graphics adapter	N
Audio
Built-in speaker(s)	N
Network
Ethernet LAN	Y
Wi-Fi	N
LAN controller	Intel I226-LM
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
HDMI ports quantity	2
HDMI version	2.0b
DisplayPorts quantity	2
DisplayPort version	1.4
Microphone in	Y
Combo headphone/mic port	Y
Ethernet LAN (RJ-45) ports	2
Serial ports quantity	2
DC-in jack	Y
Design
Chassis type	1.35L sized PC
Product colour	Black
Cooling type	Active
On/off switch	Y
LED indicators	HDD, Power
Housing material	Metal
Cable lock slot	Y
Cable lock slot type	Kensington
VESA mounting	Y
Panel mounting interface	100 x 75 mm
Product type	Mini PC (<= 3L) barebone
Performance
Motherboard chipset	Intel H770
Processor socket	LGA 1700
Number of processors supported	1
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Gold
BIOS type	UEFI AMI
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Audio chip	Realtek ALC888S
Harmonized System (HS) code	84733080
Logistics data
Country of origin	China
Technical details
Sustainability certificates	ENERGY STAR, ErP
Compliance certificates	BSMI, CB, CE, ETL, Federal Communications Commission (FCC), RCM, RoHS, VCCI
Power
Power supply type	External AC adapter
Power supply	120 W
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
AC adapter output voltage	19 V
AC adapter output current	6.32 A
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 procent
Weight & dimensions
Width	190 mm
Depth	165 mm
Height	43 mm
Weight	1300 g
Package weight	2100 g
Packaging content
Power cord included	Y
AC adapter included	Y
Drivers included	Y
