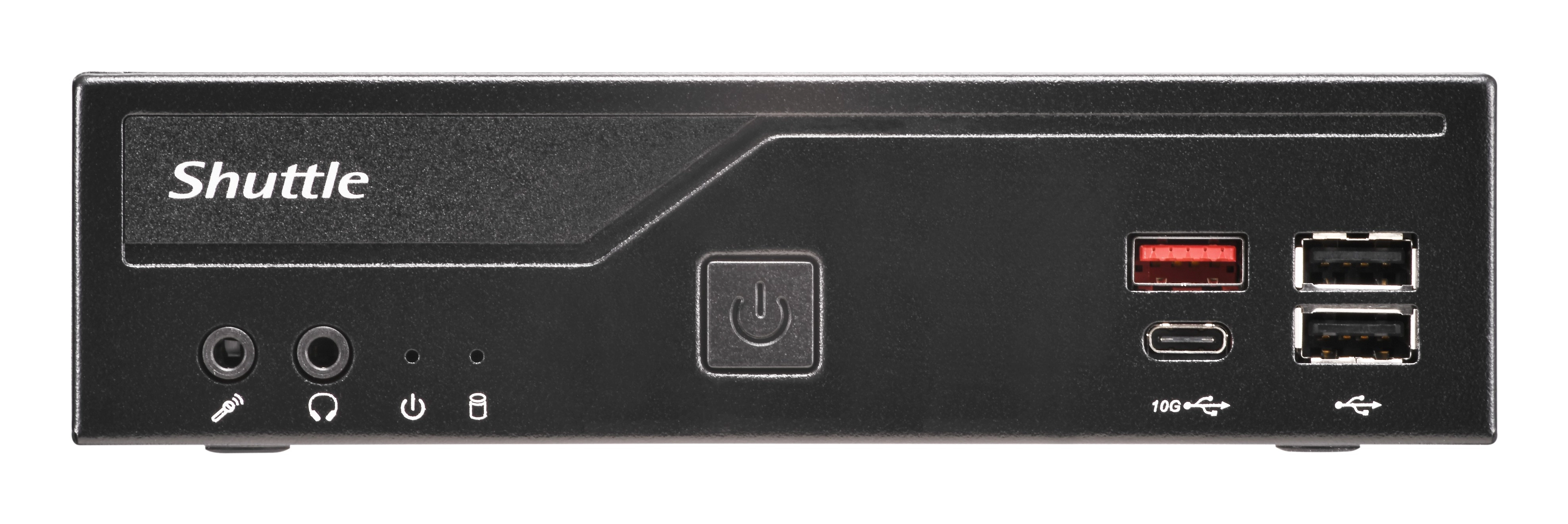

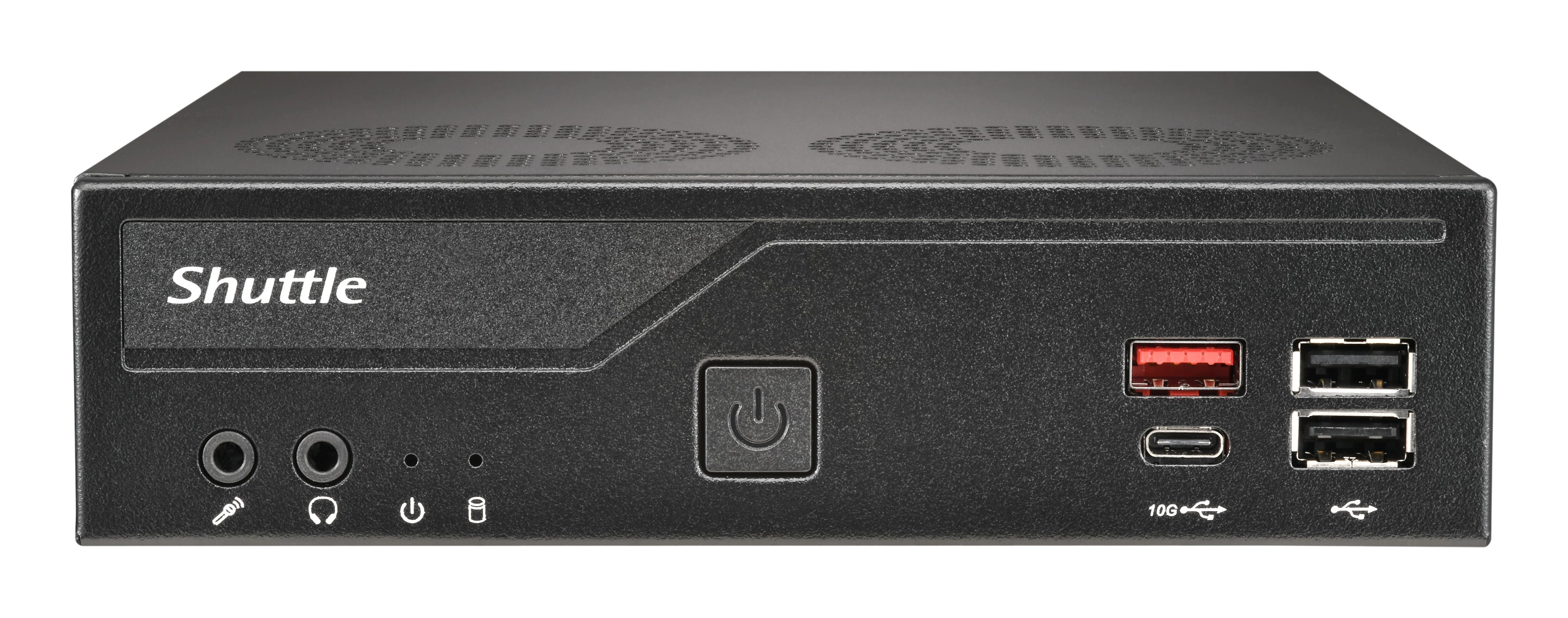

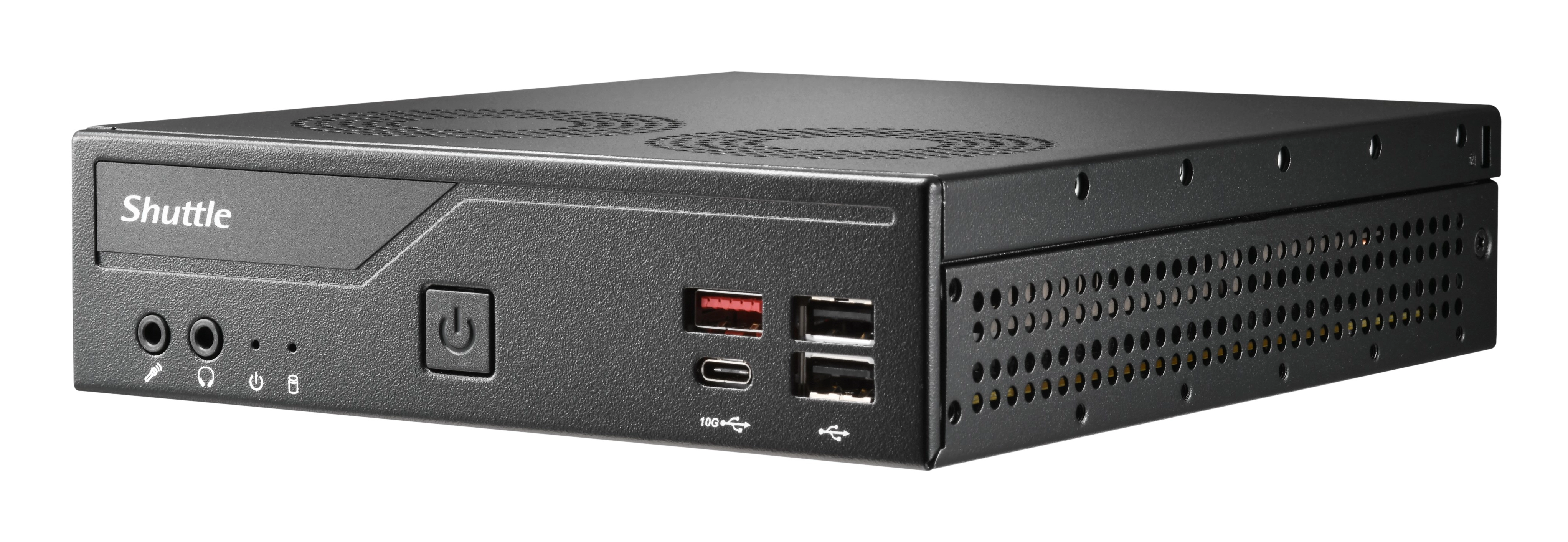

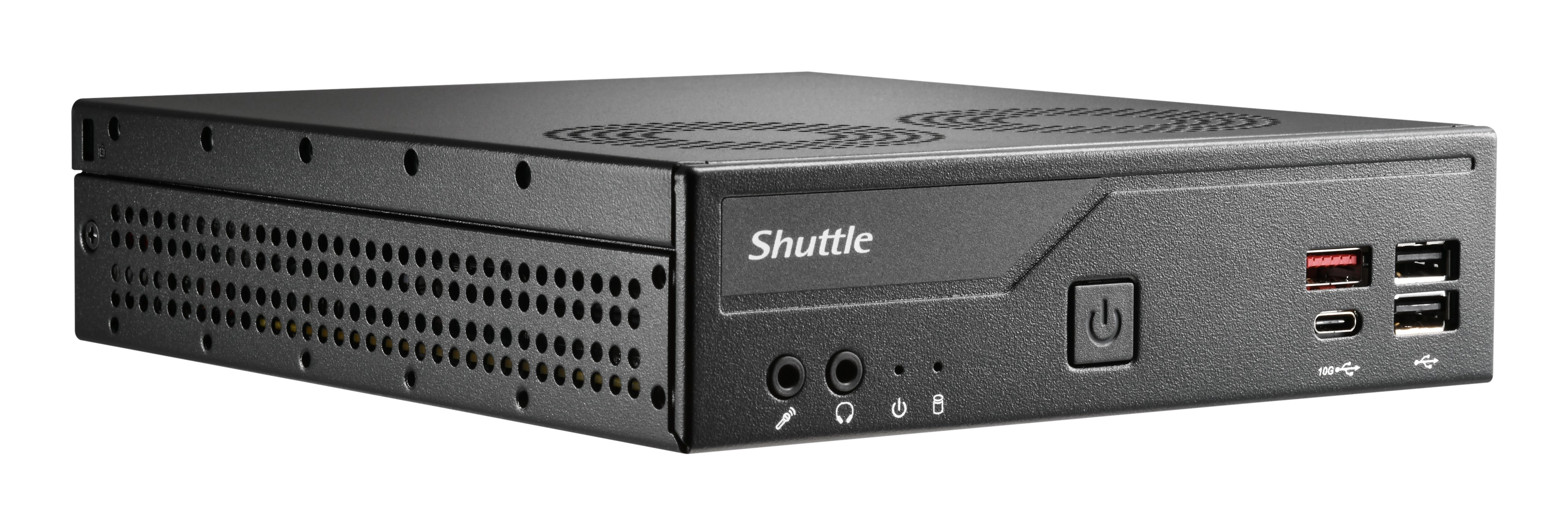

The Shuttle XPC slim Barebone DH810 is a robust 1.3-litre PC designed for powerful Intel Core Ultra 200 desktop processors (LGA1851 socket, “Arrow Lake-S”) with an integrated AI accelerator (NPU). Three independent display outputs – HDMI 2.1 supporting up to 8K/60 Hz, DisplayPort 1.4a, and USB-C with DisplayPort/USB4 – deliver stunning visuals for digital signage, entertainment, or office environments. Dual Intel LAN (2.5G + 1G), eight USB ports, two COM ports, and versatile storage options (M.2 PCIe 4.0 x4/SATA and 2.5" bay) provide maximum flexibility. Its slim metal chassis with VESA mount ensures reliable 24/7 operation at ambient temperatures up to 50 °C, making it ideal for demanding applications such as AI workloads, digital signage, POS/POI, gaming, healthcare, industry, and office.

Specification

Product
Product id	1003606
Brand	Shuttle
Partnr	DH810
EAN/UPC code	887993007816
Processor
Built-in processor	N
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
Memory voltage	1.1 V
Supported memory clock speeds	5600 MHz
Supported memory types	DDR5-SDRAM
Maximum internal memory	96 GB
ECC	N
Non-ECC	Y
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5 "
SSD form factor	M.2
Storage drive interface	M.2, PCI Express, Serial ATA
Number of storage drives supported	2
NVMe	Y
Graphics
On-board graphics adapter	Y
Audio
Built-in speaker(s)	N
Network
Ethernet LAN	Y
Wi-Fi	N
LAN controller	Intel I219, Intel I226

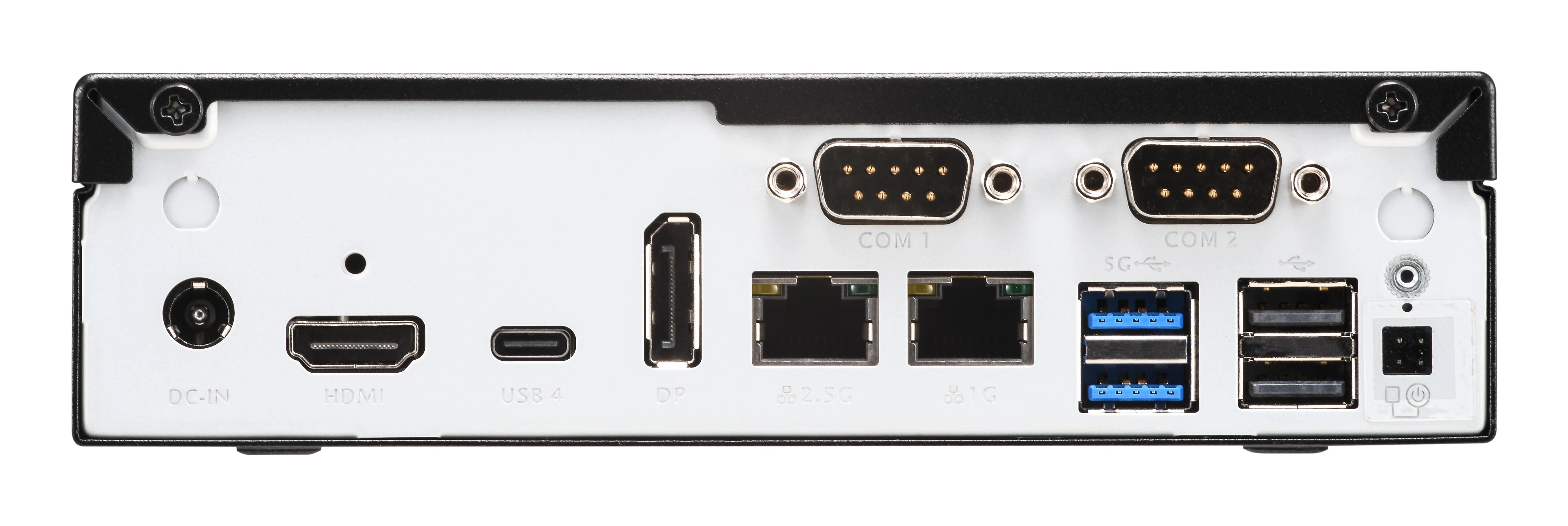

Ports & interfaces
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
USB4 Gen 2x2 ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4a
Microphone in	Y
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2
Serial ports quantity	2
DC-in jack	Y
Design
Chassis type	1.35L sized PC
Product colour	Black

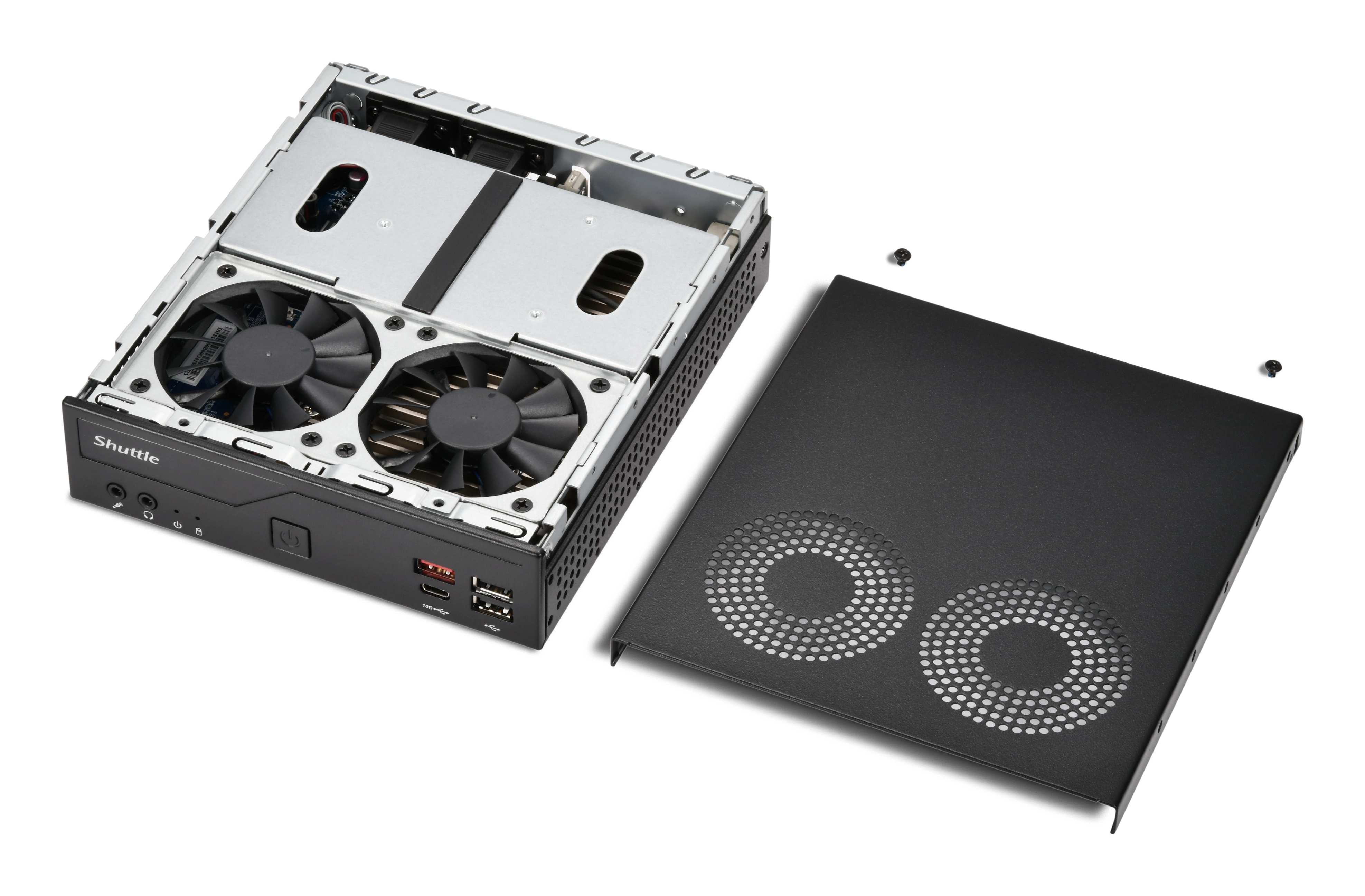

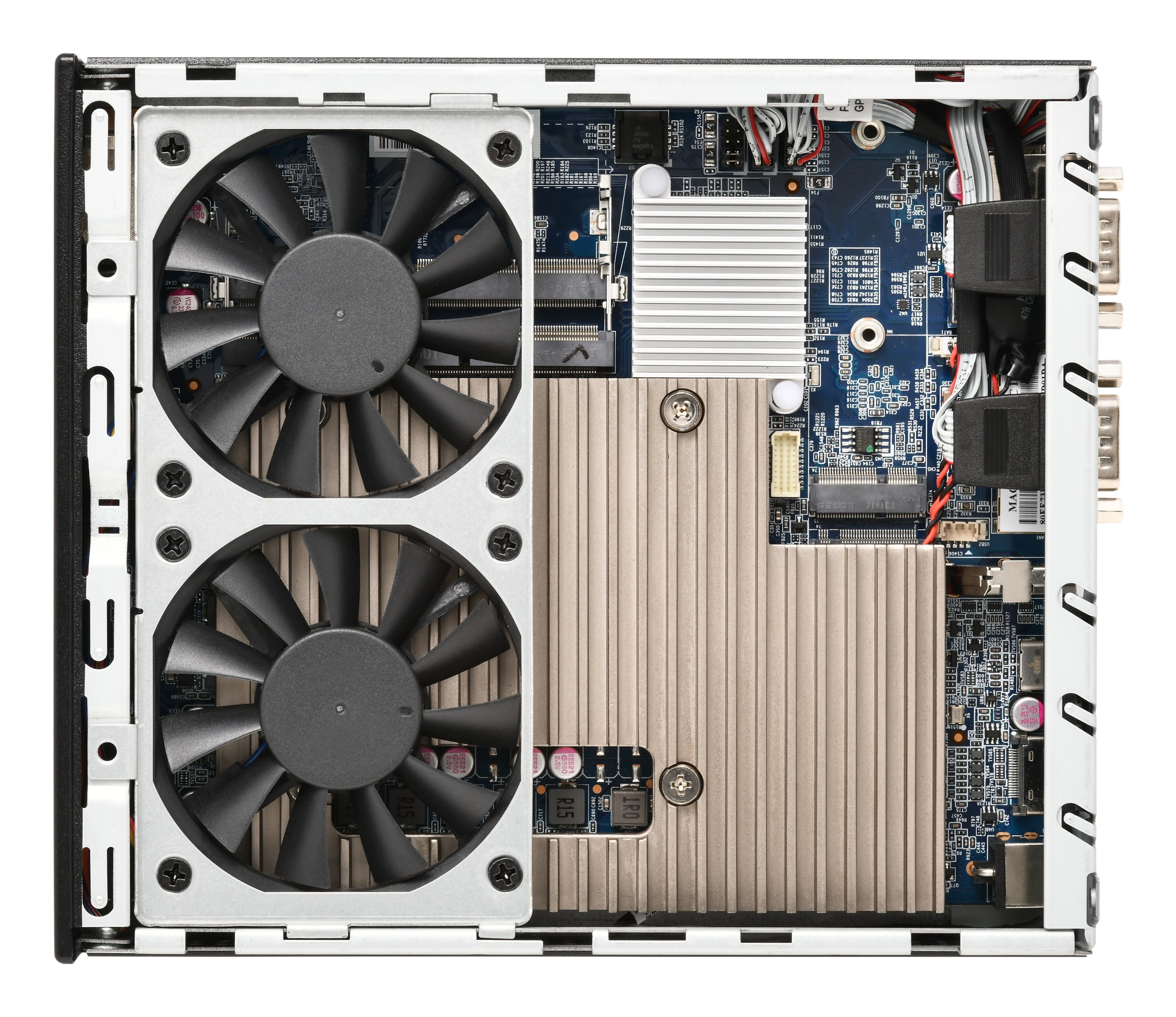

Cooling type	Active
LED indicators	HDD, Power
Housing material	Metal
Cable lock slot	Y
Cable lock slot type	Kensington
VESA mounting	Y
Product type	Mini PC (<= 3L) barebone
Performance
Processor socket	LGA 1851 (Socket V1)
Number of processors supported	1
BIOS type	EFI AMI
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Audio output channels	2.0 kanalen
Audio chip	Realtek ALC888S
Windows operating systems supported	Windows 11
Linux operating systems supported	Y
Harmonized System (HS) code	84733080
Technical details
Sustainability certificates	ENERGY STAR, ErP
Compliance certificates	BSMI, CB, CE, ETL, Federal Communications Commission (FCC), RCM, RoHS, VCCI
Power
Power supply type	External AC adapter
Power supply	120 W
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
AC adapter output voltage	19 V
AC adapter output current	6.32 A
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 procent
Weight & dimensions
Width	165 mm
Depth	190 mm
Height	43 mm
Weight	1300 g
Package weight	2100 g
Packaging content
Power cord included	Y
AC adapter included	Y
Quick start guide	Y
Drivers included	Y
