IoT P2500PA


Not in stock
€ 545,95
€ 660,59 incl 21% VAT

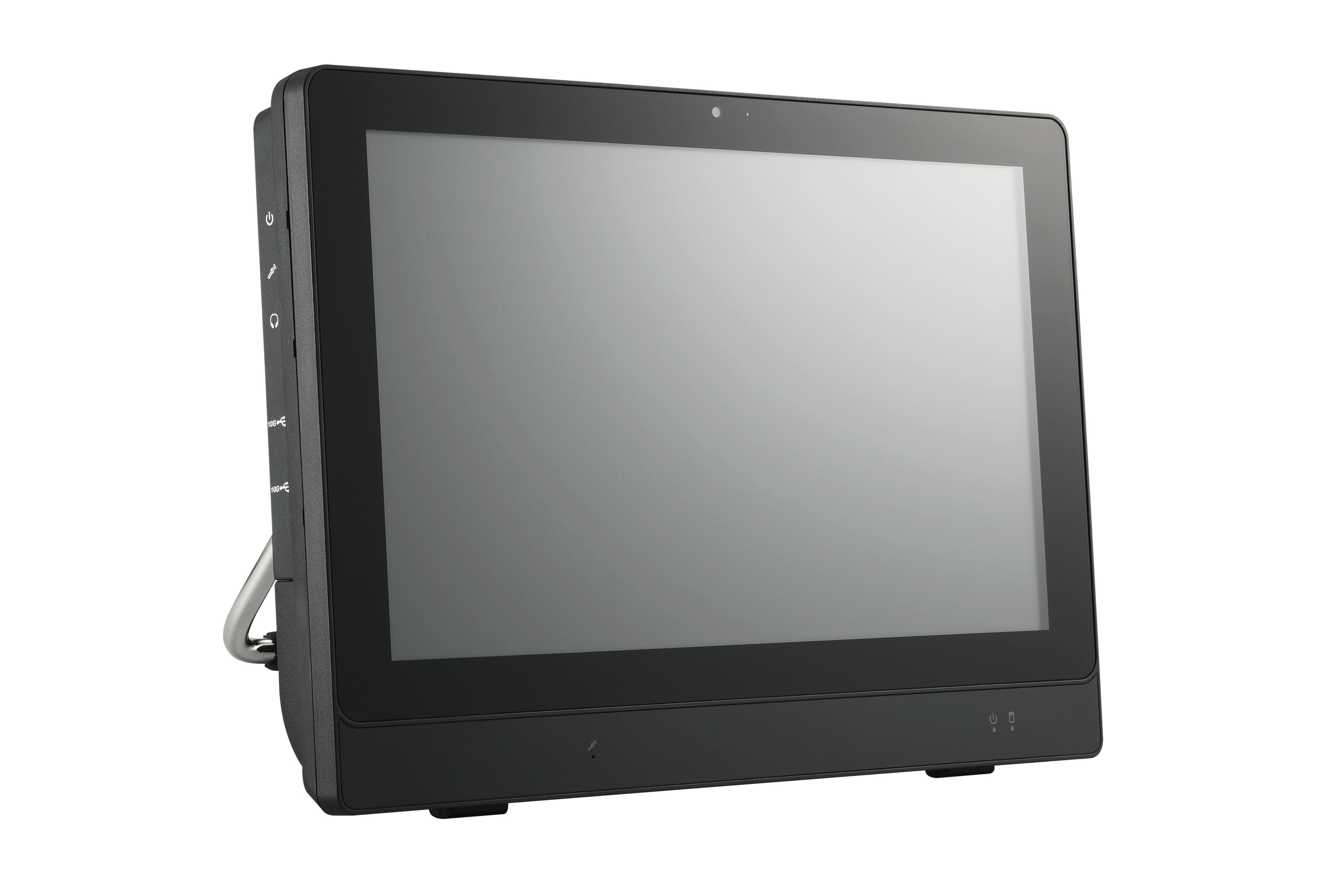

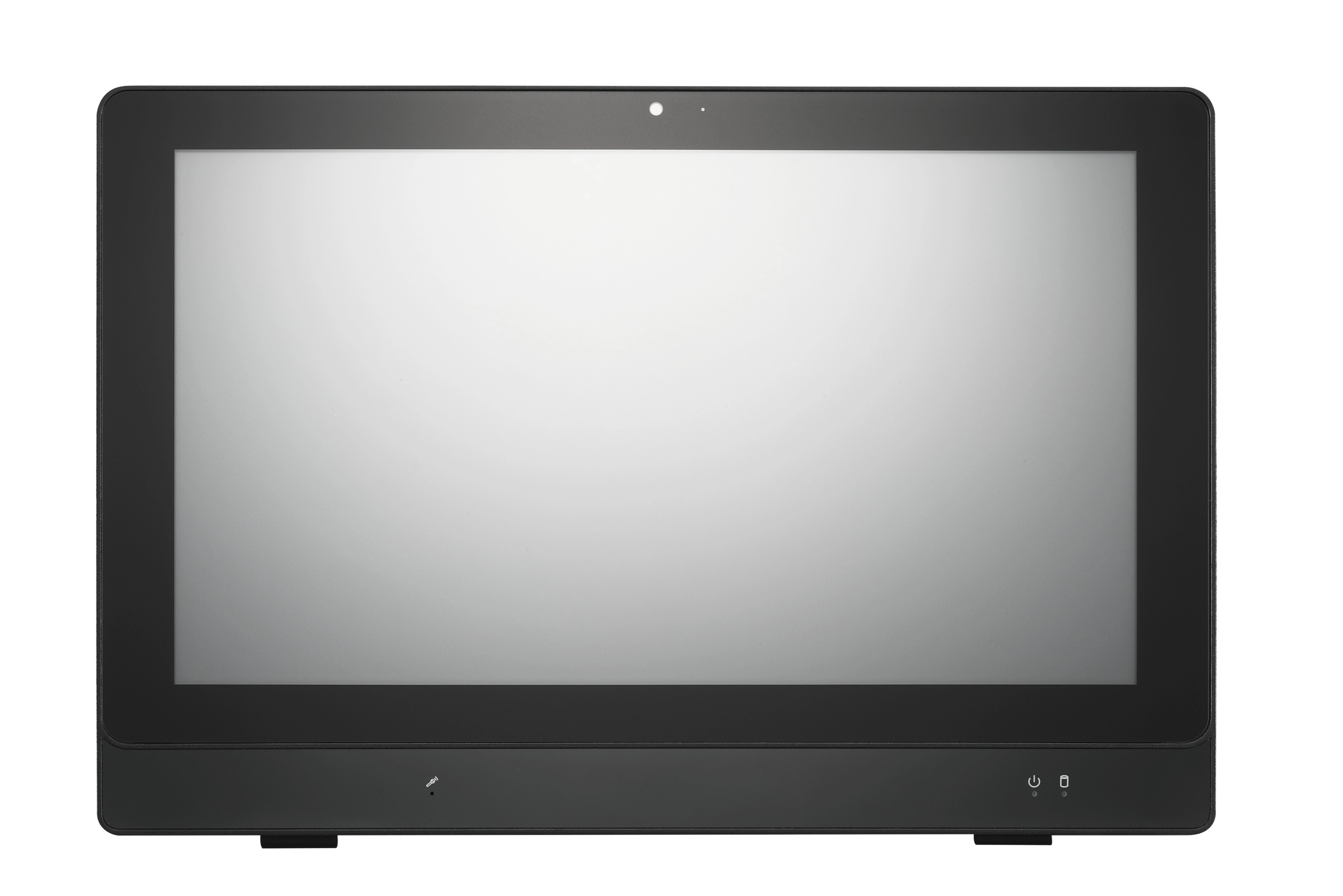

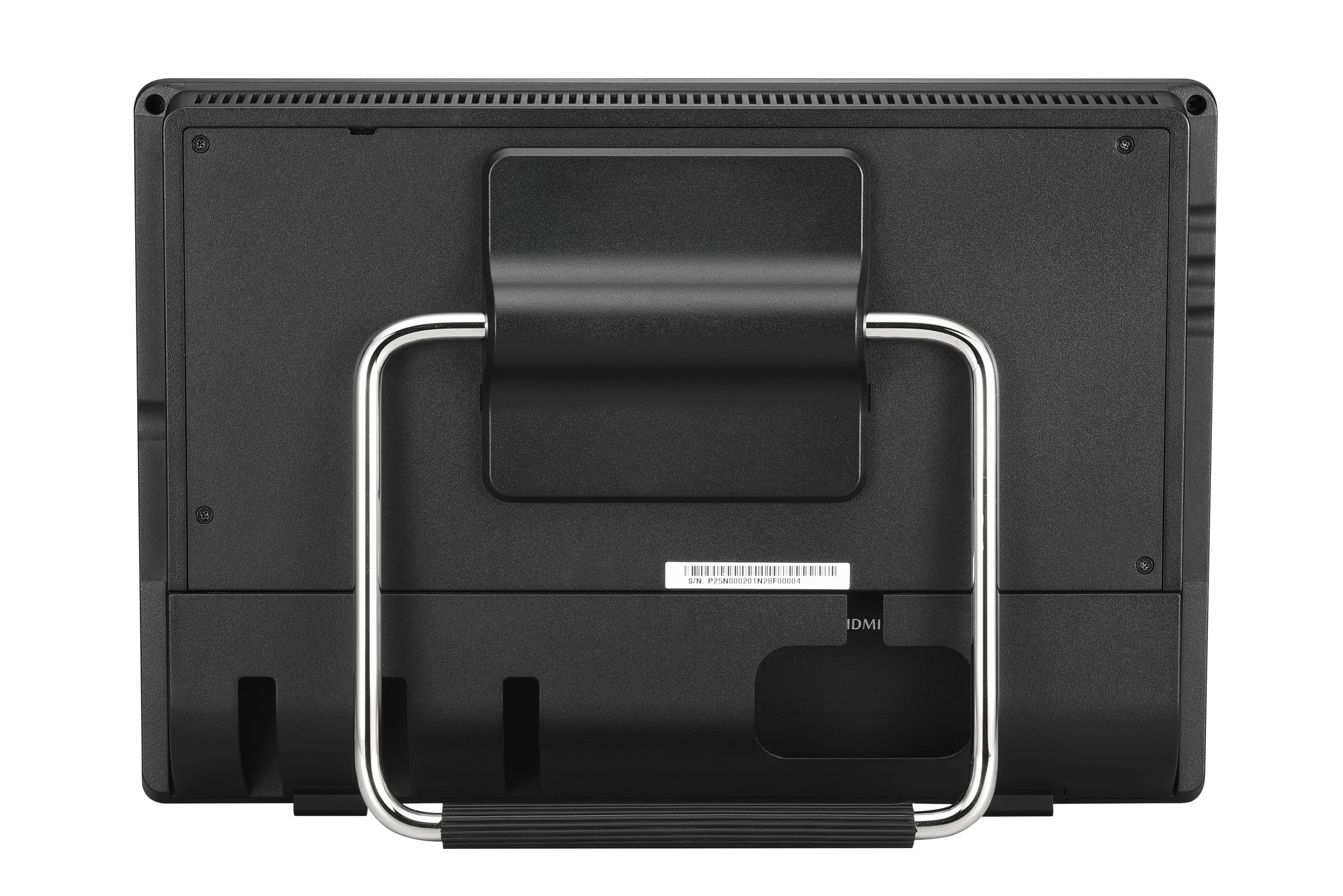

The Shuttle XPC all-in-one P25N with an 11.6" multi-touch display is positioned as a space-saving POS system or control device for media playback or automation. The adjustable stand allows for flexible viewing and operation angles, while it can also be VESA-mounted to appropriate stands or walls. The front panel is protected from splashing of water and dust according to the IP54 rating. A cable collector box on the back side helps avoid clutter. Thanks to its passive cooling, the system is virtually noise-less, maintenance-free and approved for 24/7 nonstop operation.


Product id 949777
Brand Shuttle
Partnr IOT P2500PA
EAN/UPC code 4046047104130
Display diagonal 11.6 inch
Display resolution 1366 x 768 Pixels
Touchscreen Y
HD type HD
Native aspect ratio 16:9
Display brightness 250 cd/m²
Panel type TN
Processor manufacturer Intel
Processor family Intel N
Processor model N100
Processor boost frequency 3.4 GHz
Processor cores 4
Processor cache 6 MB
Processor cache type Smart Cache
Motherboard chipset Intel SoC
Internal memory 8 GB
Internal memory type DDR5-SDRAM
Maximum internal memory 16 GB
Memory slots type SO-DIMM
Memory clock speed 4800 MHz
Total storage capacity 120 GB
Storage media SSD
Number of storage drives installed 1
Total SSDs capacity 120 GB
Number of SSDs installed 1
SSD capacity 120 GB
SSD interface PCI Express
SSD form factor M.2
Optical drive type N
Discrete graphics adapter N
Discrete graphics adapter model Not available
On-board graphics adapter Y
On-board graphics adapter family Intel UHD Graphics
On-board GPU manufacturer Intel
On-board graphics adapter model Intel UHD Graphics
Built-in speaker(s) Y
Number of speakers 1
RMS rated power 2 W
Built-in microphone Y
Audio chip Realtek ALC888S
Audio system HD
Built-in camera Y
Total megapixels 2 MP
Camera resolution 1920 x 1080 Pixels
Camera HD type Full HD
Wi-Fi Y
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
WLAN controller manufacturer Realtek
Wi-Fi standards 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller model Realtek RTL8821CE
Ethernet LAN Y
Ethernet LAN data rates 10, 1000, 2500 Mbit/s
Bluetooth Y
Bluetooth version 4.2

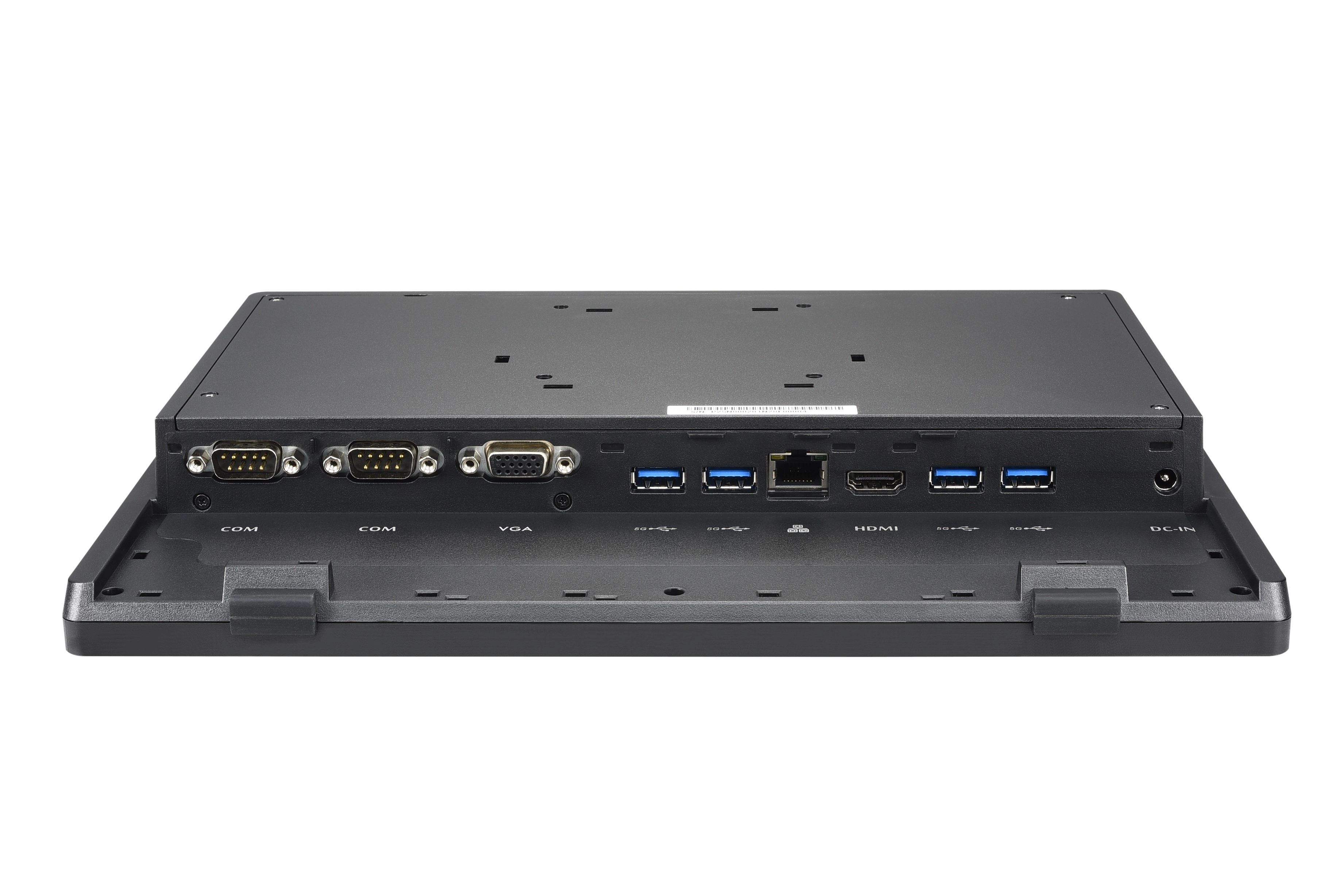

Ports & interfaces
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 6
HDMI ports quantity 1
HDMI version 2.0b
VGA (D-Sub) ports quantity 1
Headphone outputs 1
Microphone in Y
DC-in jack Y
Serial ports quantity 2

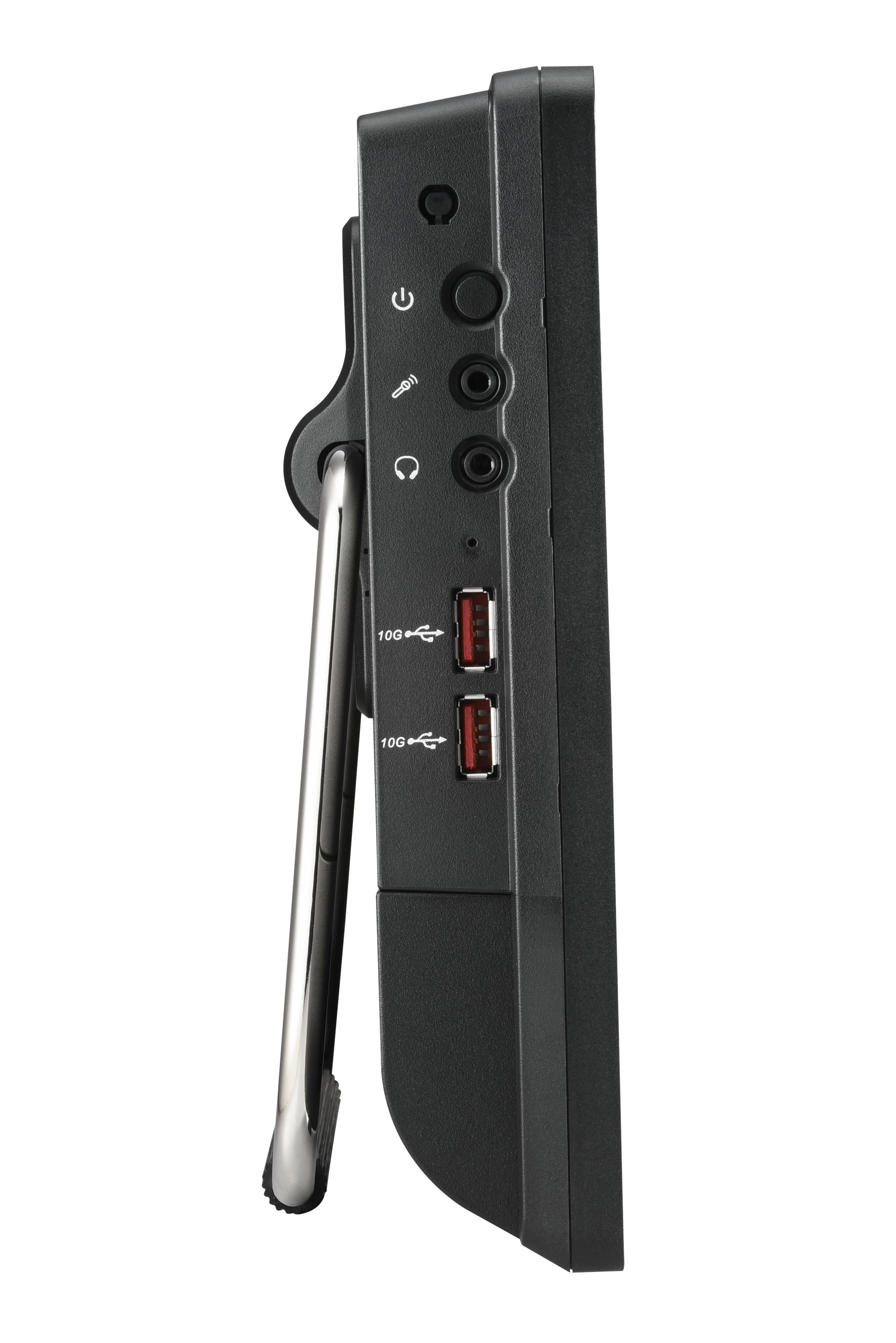

Number of side USB ports 2
Number of rear USB ports 4
Number of side audio ports 2
Product colour Black
Cable lock slot Y
Cable lock slot type Kensington
Wall mountable Y
VESA mounting Y
Panel mounting interface 75 x 75 mm
On/off button Y
Market positioning Business
Product type All-in-One PC
Trusted Platform Module (TPM) Y
Trusted Platform Module (TPM) version 2.0
Operating system installed Windows 10 IoT Enterprise
Operating system architecture 64-bit
AC adapter power 65 W
AC adapter frequency 50/60 Hz
AC adapter input voltage 100 - 240 V
AC adapter output voltage 19 V
Weight & dimensions
Width (with stand) 299 mm
Depth (with stand) 59 mm
Height (with stand) 207 mm
Weight (with stand) 1950 g
Package weight 3140 g
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90 procent
Sustainability compliance Y
Technical details
Sustainability certificates BSMI, CE, Federal Communications Commission (FCC), RCM, UKCA, VCCI
Other features
Harmonized System (HS) code 84714100
