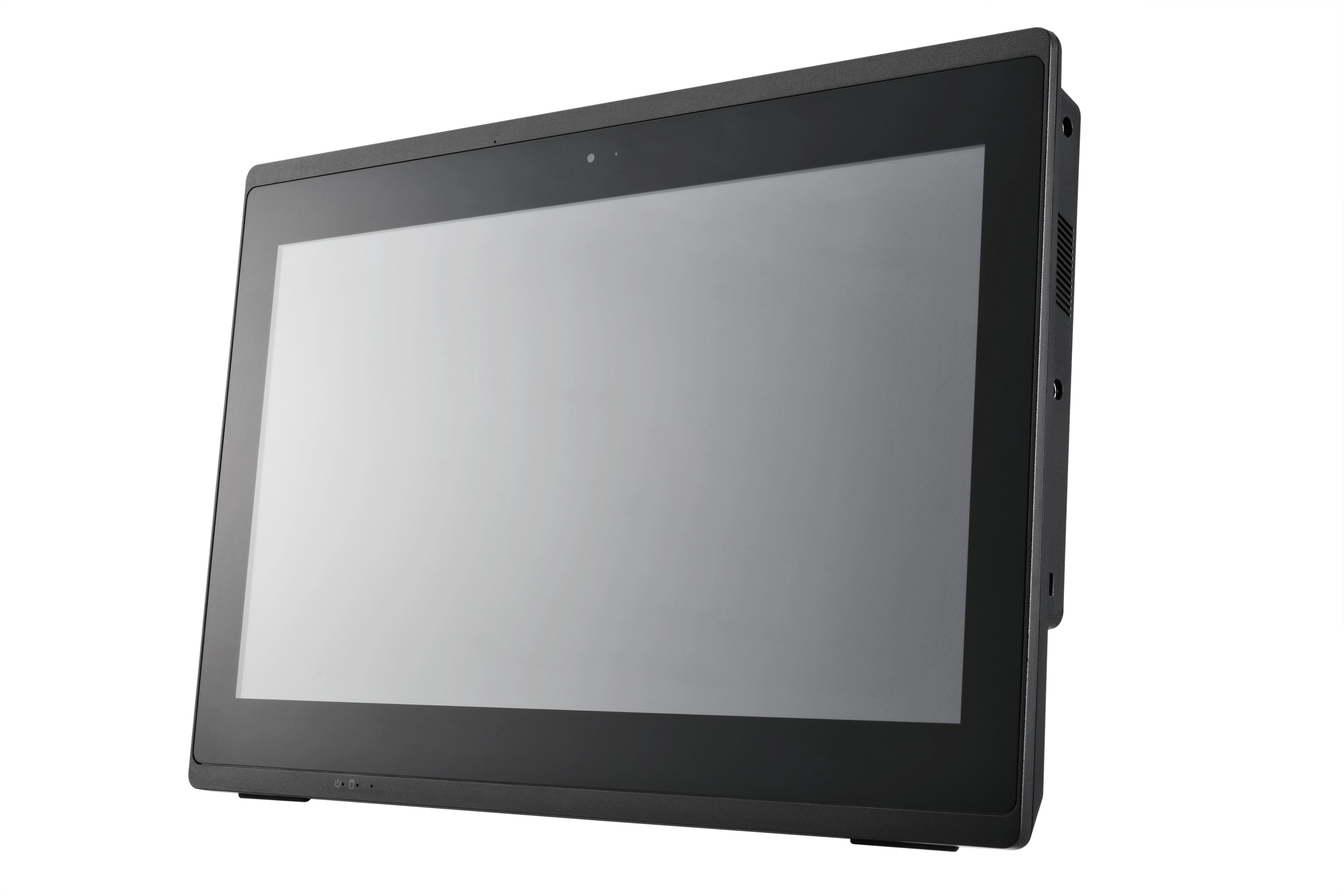

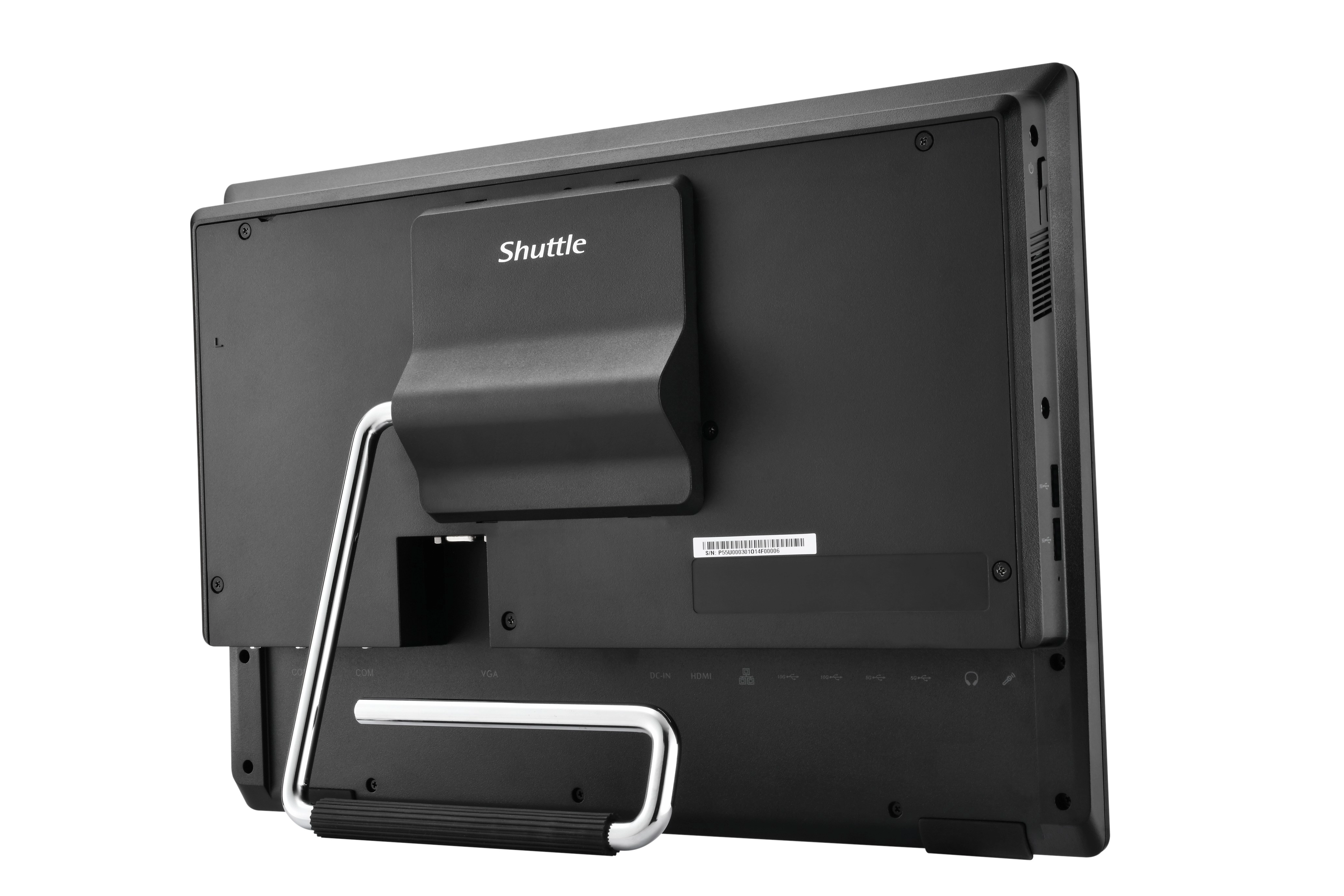

The Shuttle XPC all-in-one PC series P55U comes with a capacitive 15.6" multi-touchscreen in Full-HD resolution and is powered by a Gen12/13 Intel ULV processor. The modern processor architecture has a very positive effect on power consumption and computing performance. The existing WLAN function can optionally be supplemented with a 4G/5G function with up to 4 antennas. Thanks to its passive heatpipe cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.

Specification

Product
Product id	1003607
Brand	Shuttle
Partnr	IOT P5500PA
EAN/UPC code	4046047104437
Display
Display diagonal	15.6 inch
Display resolution	1920 x 1080 Pixels
Touchscreen	Y
HD type	Full HD
Native aspect ratio	16:9
Display brightness	250 cd/m²
Panel type	IPS
Processor
Processor manufacturer	Intel
Processor family	Intel Celeron
Processor model	7305
Processor cores	5
Processor threads	5
Processor cache	8 MB
Processor cache type	Smart Cache
Performance cores	1
Efficient cores	4
Processor base power	15 W
Maximum turbo power	55 W
Memory
Internal memory	8 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory form factor	DIMM/SO-DIMM
Memory data transfer rate	4800 MT/s
Storage
Total storage capacity	128 GB
Storage media	SSD
Number of storage drives supported	2
Number of storage drives installed	1
Total SSDs capacity	128 GB
Number of SSDs installed	1
SSD capacity	128 GB
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	N
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics adapter	N
Discrete graphics adapter model	Not available
On-board graphics adapter	Y
On-board graphics adapter family	Intel UHD Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel UHD Graphics
Audio
Built-in speaker(s)	Y
Number of speakers	2
RMS rated power	2 W
Audio chip	Realtek ALC888S
Camera
Built-in camera	Y
Camera resolution	1920 x 1080 Pixels
Camera HD type	Full HD
Network
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller manufacturer	Realtek
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller model	Realtek RTL8821CE
Antenna type	2x2
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Bluetooth	Y
Bluetooth version	4.2

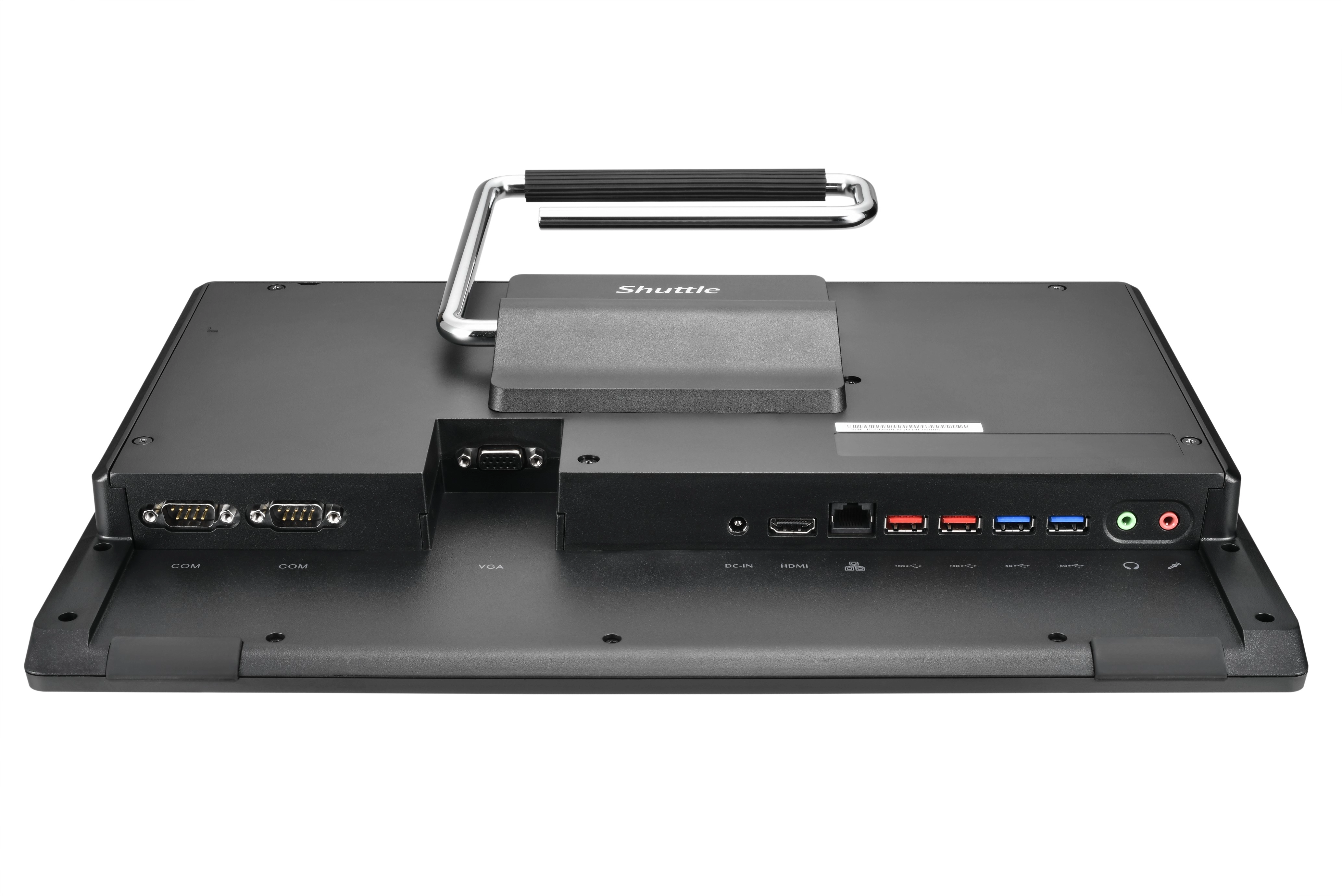

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI ports quantity	1
HDMI version	2.0b
VGA (D-Sub) ports quantity	1
Headphone outputs	1
Microphone in	Y
DC-in jack	Y
Serial ports quantity	2
Design
Product colour	Black
Cable lock slot	Y
Cable lock slot type	Kensington
Wall mountable	Y
VESA mounting	Y
Panel mounting interface	100 x 100 mm
On/off button	Y
Performance
Market positioning	Business
Cooling type	Passive
Product type	All-in-One PC
Software
Operating system installed	Windows 11 IoT Enterprise
Power
AC adapter power	90 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19 V
Weight & dimensions
Width (with stand)	393.6 mm
Depth (with stand)	39.8 mm
Height (with stand)	272.5 mm
Weight (with stand)	3250 g
Package weight	4500 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 procent
Certificates
Compliance certificates	BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI, cTUVus
Technical details
Sustainability certificates	ENERGY STAR, ErP
Other features
Harmonized System (HS) code	84714100
