This high-value Panel PC comes features a rugged Aluminium chassis with an anti-bacterial coating and IP65-rated front panel for superior hygiene and infection control. The display is Full-HD and sports a projected capacitive 10-point multi-touch function. With its passive cooling the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Compliant with IEC 60601-1 medical safety standards for electrical devices, this Panel PC is built for reliable operation in a wide range of healthcare environments.

Specification

Product
Product id	1007137
Brand	Shuttle
Partnr	M21AL01-I5
EAN/UPC code	887993007588
Processor
Built-in processor	Y
Processor manufacturer	Intel
Processor family	Intel Core i5
Performance-core Max Turbo Frequency	4.4 GHz
Processor model	i5-1235U
Processor generation	Intel Core i5-12xxx
Efficient-core Max Turbo Frequency	3.3 GHz
Processor cores	10
Processor threads	12
Processor boost frequency	4.4 GHz
Processor cache	12 MB
Performance cores	2
Efficient cores	8
Processor cache type	Smart Cache
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
Memory voltage	1.1 V
Supported memory clock speeds	4800 MHz
Supported memory types	DDR5-SDRAM
Maximum internal memory	64 GB
Storage
Supported storage drive types	SSD
Storage drive sizes supported	2.5, M.2 "
Storage drive interface	PCI Express, Serial ATA III
NVMe	Y
Graphics
On-board graphics adapter	Y
Graphics adapter family	Intel
On-board graphics adapter model	Intel Iris Xe Graphics
Display
Display diagonal	21.5 inch
Touchscreen	Y
Display resolution	1920 x 1080 Pixels
Panel type	TFT-LCD
HD type	Full HD
Aspect ratio	16:9
Display brightness	500 cd/m²
Audio
Built-in speaker(s)	Y
Number of speakers	2
RMS rated power	4 W
Network
Ethernet LAN	Y
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller model	Realtek RTL8821CE
Bluetooth version	4.2
Bluetooth	Y
LAN controller	Intel I226-LM, Intel I226-V

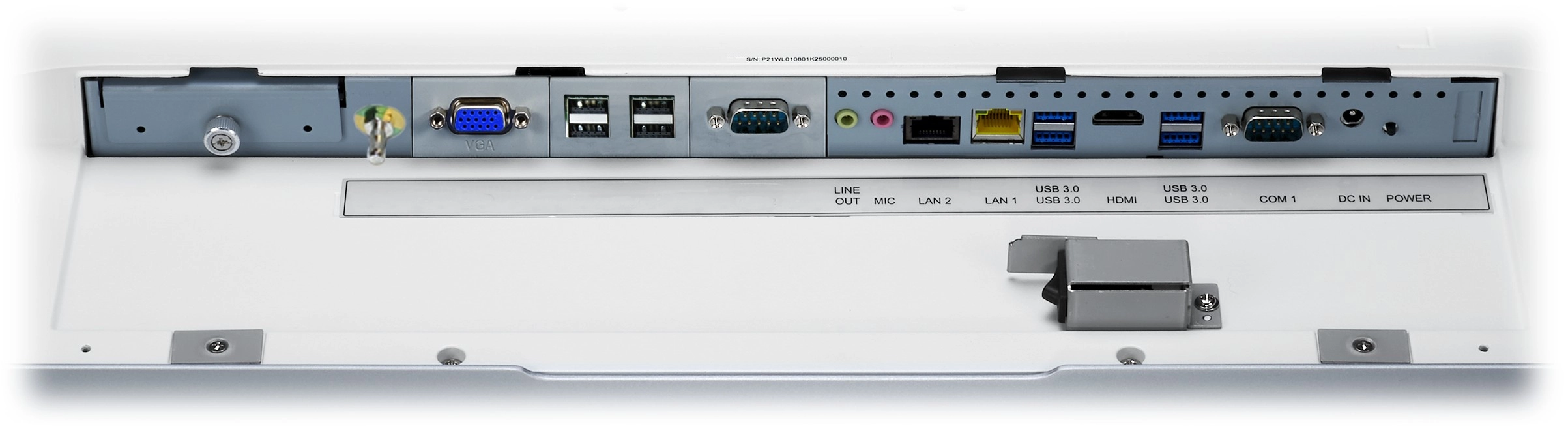

Ports & interfaces
USB 2.0 ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
HDMI ports quantity	1
HDMI version	2.0b
VGA (D-Sub) ports quantity	1
Microphone in	Y
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2
Serial ports quantity	2
DC-in jack	Y
Design
Chassis type	All-in-one
Product colour	White
Cooling type	Passive
On/off switch	Y
Housing material	Aluminium
VESA mounting	Y
Panel mounting interface	100 x 100 mm
Product type	All-in-One PC barebone
Performance
Motherboard chipset	Intel SoC
Number of processors supported	1
BIOS type	UEFI AMI
Built-in camera	Y
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Audio chip	Realtek ALC888S
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Y
Harmonized System (HS) code	84714100
Technical details
Compliance certificates	CB, CE, Federal Communications Commission (FCC), IECEx, cTUVus
Power
Power supply type	External AC adapter
Power supply	90 W
Number of power supply units	1
AC input voltage	90 - 264 V
AC input frequency	50/60 Hz
AC adapter output voltage	19 V
AC adapter output current	4.74 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 procent
Weight & dimensions
Width	543 mm
Depth	49.9 mm
Height	334 mm
Weight	7600 g
