The Shuttle NE1010XA is a fully configured PC system in Nano form factor based on Shuttle's fanless Barebone NE10N with RAM and SSD memory, but without operation system. It comes with a powerful and efficient 12th generation Intel N100 processor, codenamed "Alder Lake-N". Despite the nano format with only 600 ml volume, it offers enormous connection variety and expansion options. Thus, up to two UHD displays (4K/60Hz) and up to six USB devices can be connected. This PC system is ideal for Digital Signage, POS, control, office or even multimedia

Specification

Product
Product id	1003612
Brand	Shuttle
Partnr	NE1010XA
EAN/UPC code	4046047104413
Processor
Processor manufacturer	Intel
Processor family	Intel N
Processor model	N100
Processor cores	4
Processor boost frequency	3.4 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Processor threads	4
Memory
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	16 GB
Memory layout (slots x size)	1 x 8 GB
Memory slots	1x SO-DIMM
Memory channels	Single-channel
Memory data transfer rate	3200 MT/s
Storage
Total storage capacity	128 GB
Optical drive type	N
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	128 GB
Number of SSDs installed	1
SSD capacity	128 GB
SSD interface	SATA III
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics adapter	N
On-board graphics adapter	Y
Discrete graphics adapter model	Not available
On-board graphics adapter family	Intel UHD Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel UHD Graphics
Network
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller manufacturer	Intel
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX200
Bluetooth	Y
Antenna design	Internal
Bluetooth version	5.2

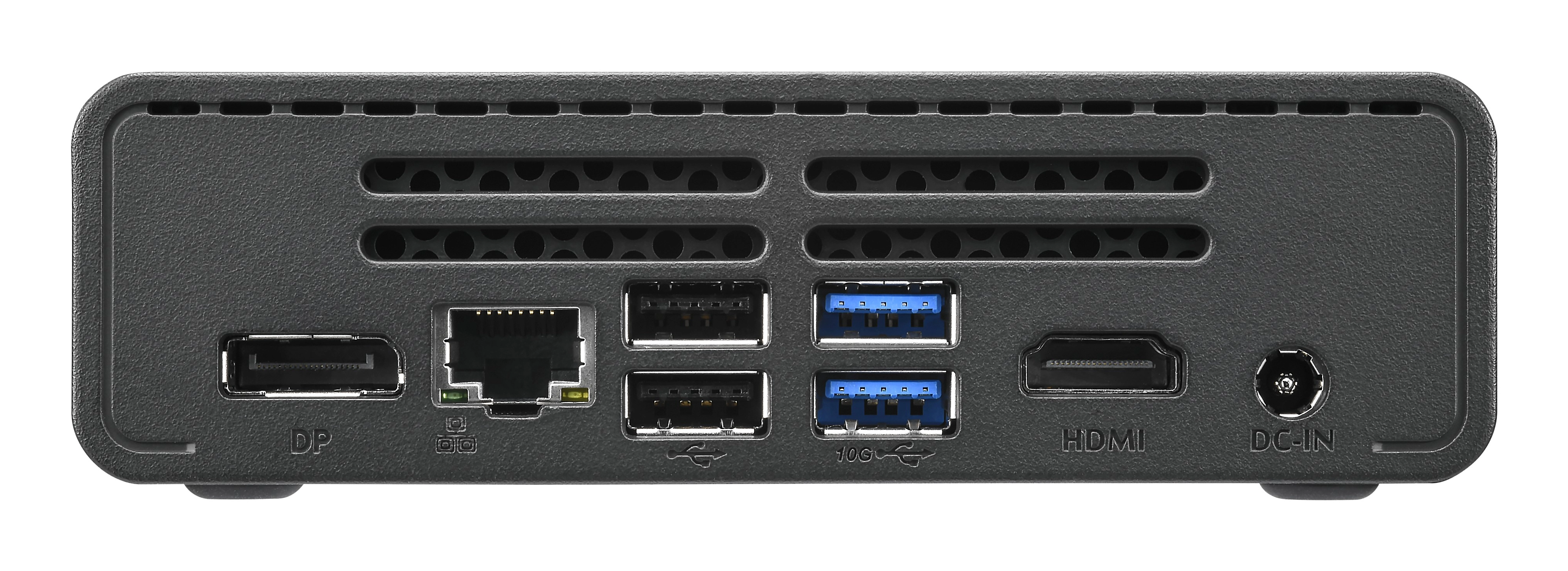

Ports & interfaces
USB 2.0 ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	1
DisplayPort version	1.4
Ethernet LAN (RJ-45) ports	1
Microphone in	Y
Headphone outputs	1
DC-in jack	Y
Design
Chassis type	Slim PC
Volume	0.6 l
VESA mounting	Y
Cable lock slot	Y
Cable lock slot type	Kensington
Product colour	Black
Housing material	Plastic
Performance
Product type	Mini PC (<= 3L)
Market positioning	Business
BIOS type	UEFI AMI
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	N
Power
Power supply	65 W
Power supply input voltage	100 - 240
Power supply input frequency	50/60 Hz
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 procent
Certificates
Compliance certificates	BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI, cTUVus
Weight & dimensions
Width	115 mm
Depth	135 mm
Height	39 mm
Weight	600 g
Package weight	1500 g
Packaging content
Display included	N
Technical details
Sustainability certificates	ENERGY STAR, ErP
Other features
Harmonized System (HS) code	84714900
