Robust Industry PC with VESA/DIN-Rail mount and various options

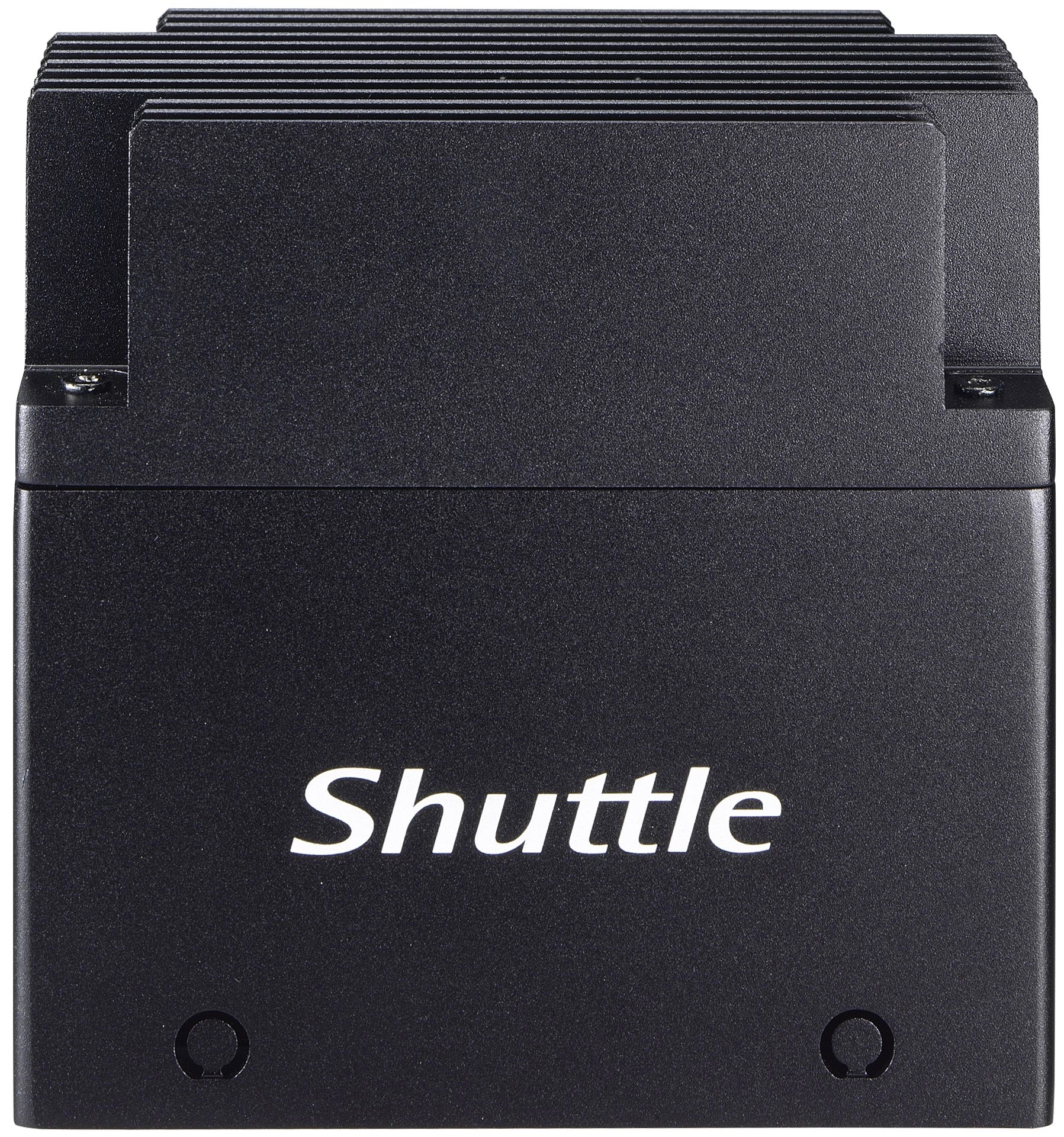

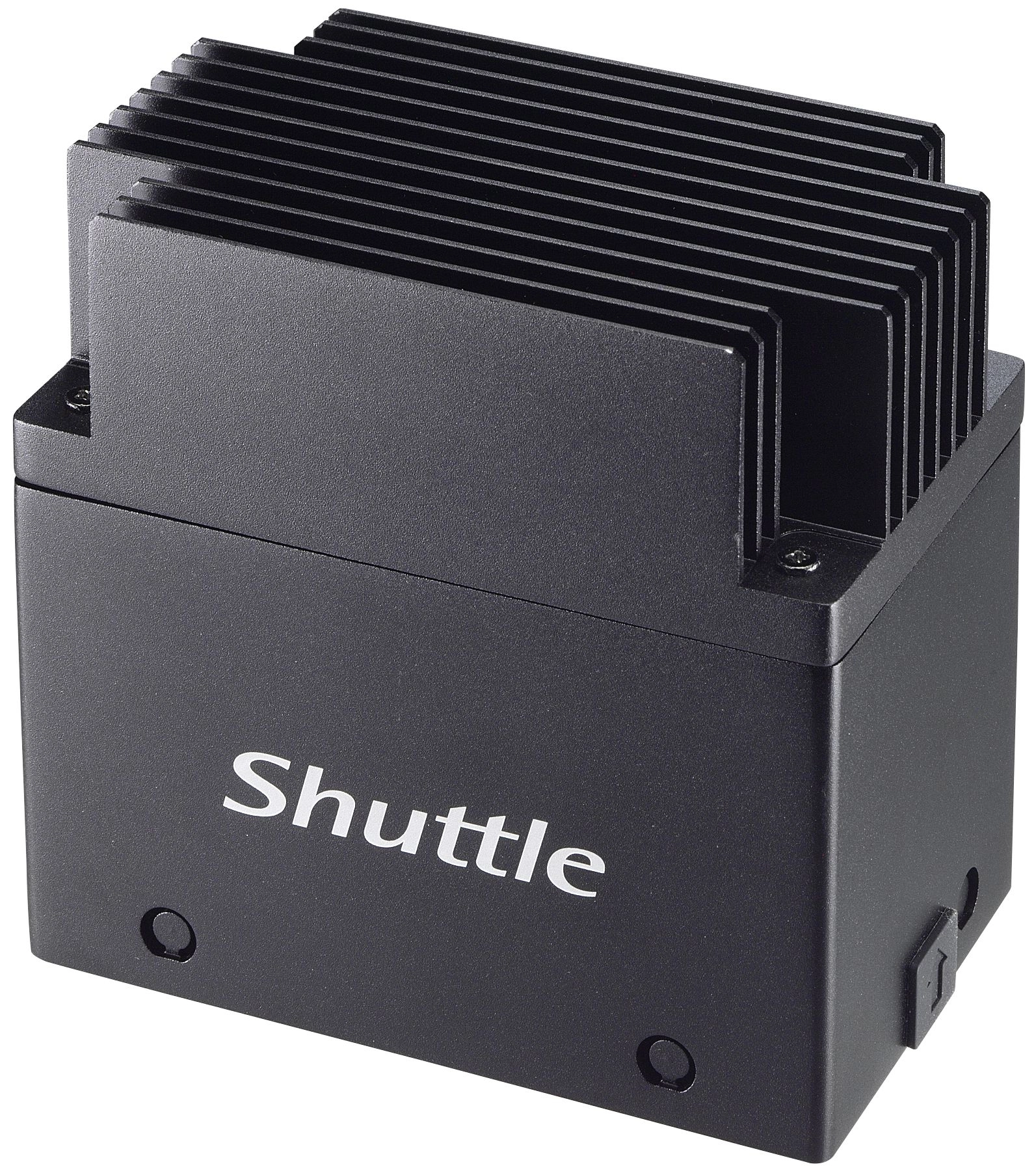

The Shuttle EN01J4 is a fanless IPC in a robust 450 ml metal chassis and intended for DIN-Rail or VESA mounting. It is flexible in use and designed for maintenance-free 24/7 operation at ambient temperatures of up to 50°C. Inside there is a CPU board with an Intel "Apollo Lake" processor and a carrierboard with several I/O ports and a card reader. Optional features comprise a second LAN port with PoE function, LTE/WLAN function and video capturing via HDMI. This product is targeted at professional applications such as edge computing (IoT gateway), automation, digital signage, control, data logging and video surveillance.

Suitable for constant operation
Work 24 hours a day, 7 days a week. As it does not use any moving parts, such as a fan, this Mini-PC is approved for constant operation. This means lower maintenance costs and a longer lifespan.

Fanless and whisper-quiet
The fanless technology used in this PC means it is incredibly quiet. Doing away with these mechanical components also reduces the number of wearing parts, making the machine more durable and stable.

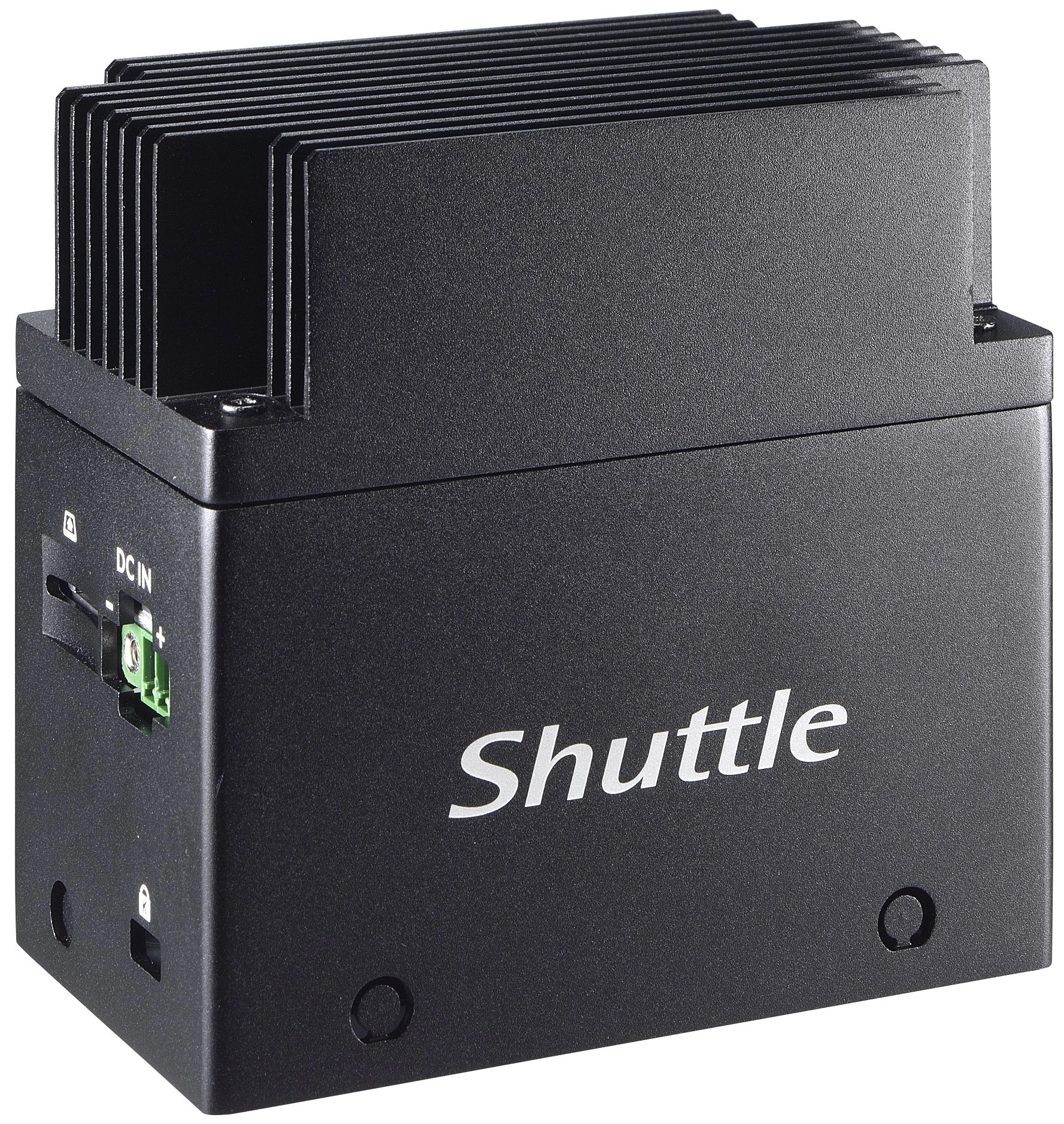

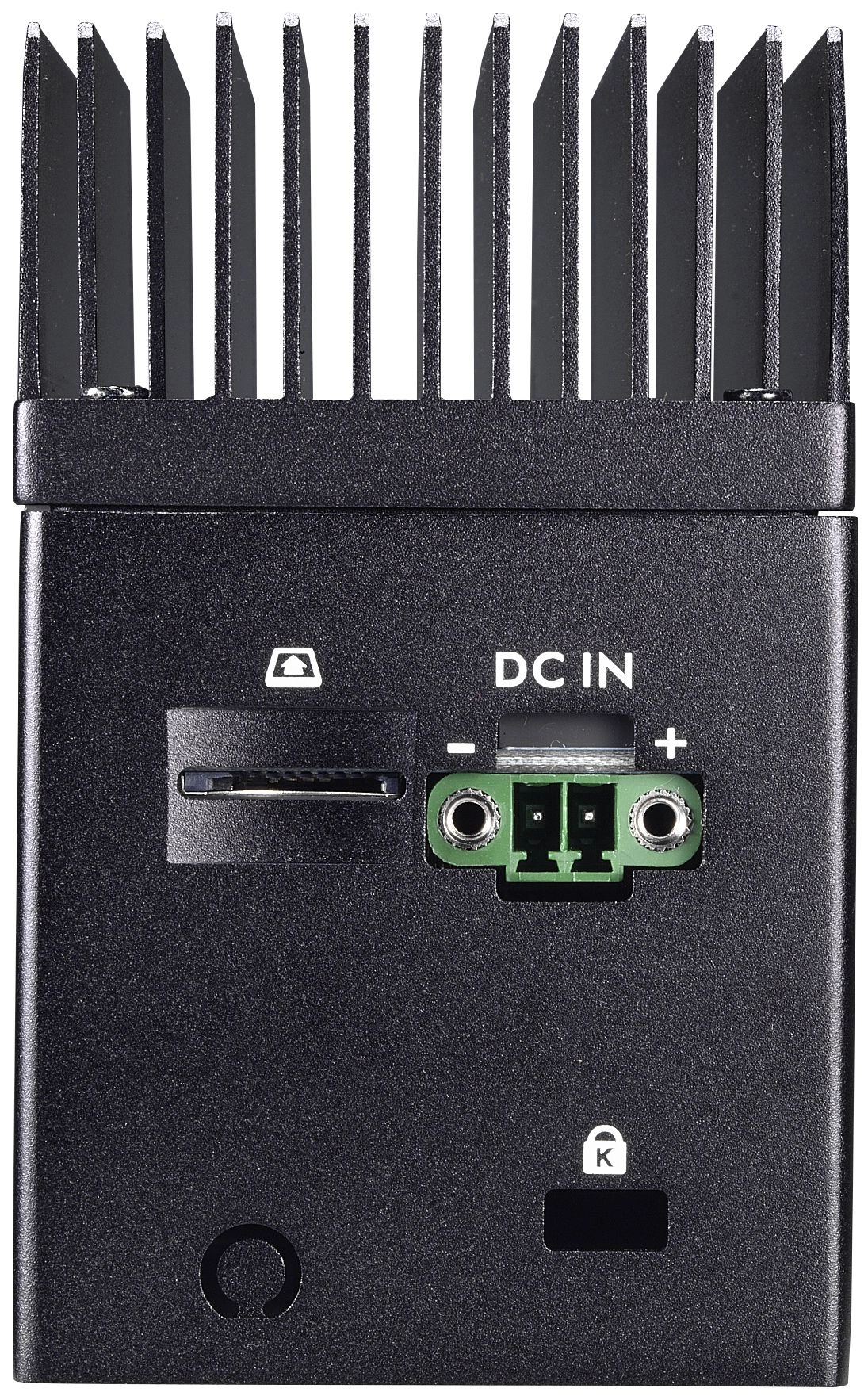

Two-pin Euroblock connector
This device has a two-pin Euroblock connector and can be supplied with 12-19 volts. A Phoenix screw terminal and an adapter for power supply units with hollow connectors are included.

Soldered Flash memory storage
This model already has many gigabytes of storage space for the operating system and as general data storage. This can be extended by external or internal drives if required.

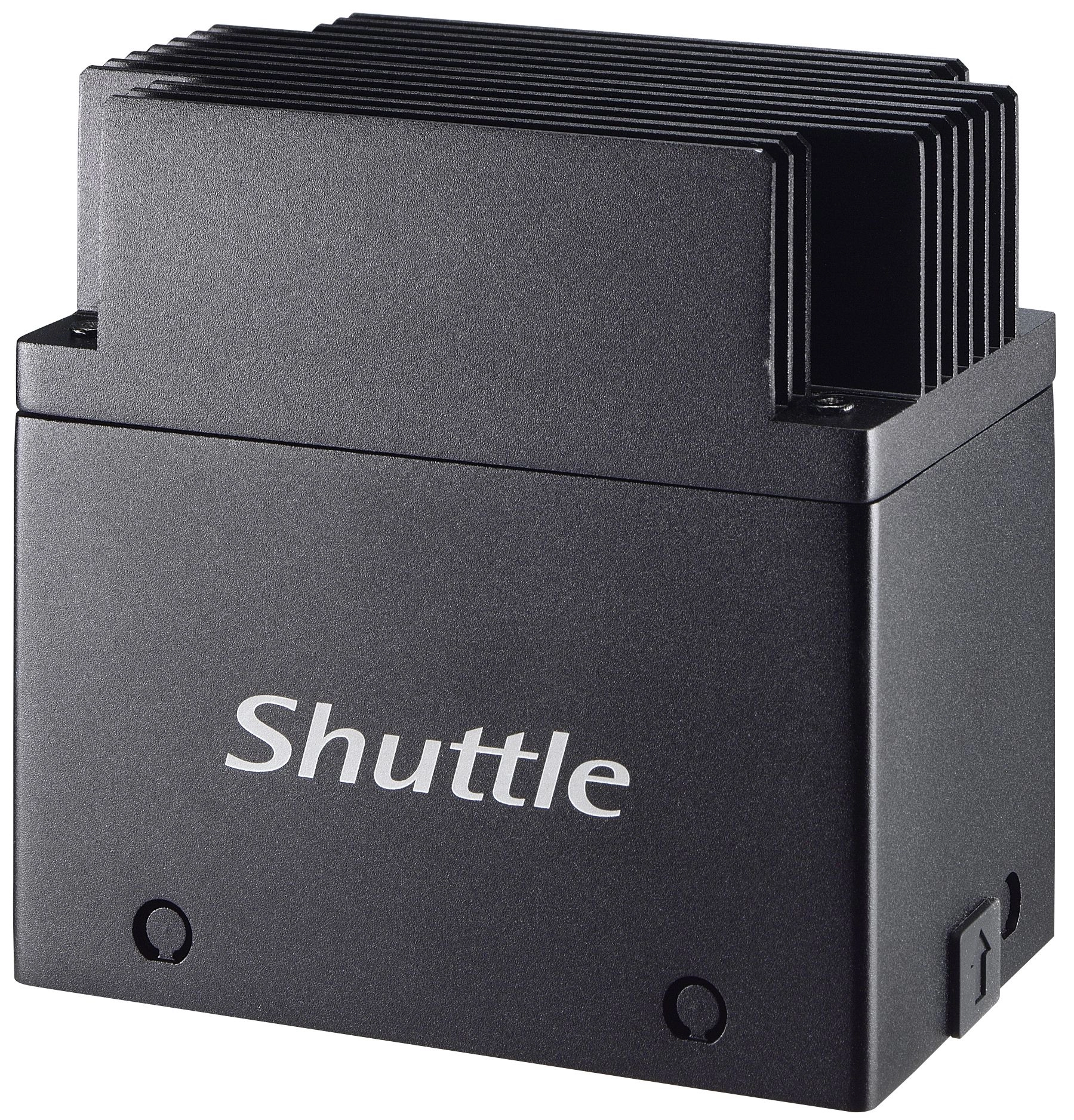

Ideal for DIN rail
With a DIN rail mounting, this model can be attached to a top-hat rail by means of a clamping mechanism and thus be used in switch cabinets and distribution boxes, for example.

Power supply via PoE (Option)
Thanks to PoE (Power over Ethernet), the model's power and data transmission is completely over the network cable. This saves costs for cabling and provides more space in limited areas. (Available as accessory)

Ready for 4G mobile reception
For this model, the Shuttle range of accessories offers a separately available antenna kit which can be used to install 4G modules in an M.2-3042 format.

Suitable for Linux operating systems
This model was successfully tested with Linux. All machine functions worked without problem immediately after installation.

Robust aluminium housing
The use of aluminium as housing material has decisive advantages. Aluminium has an ideal ratio between weight and strength, it does not rust and is insensitive to magnetism. Its thermal conductivity is four times higher than steel.

Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product.

Communication in the fast lane
The integrated gigabit LAN chipset opens up completely new possibilities for communication with no restriction on the speed of data transfer. Say goodbye to information bottlenecks, whether in the company network or for home Internet access.

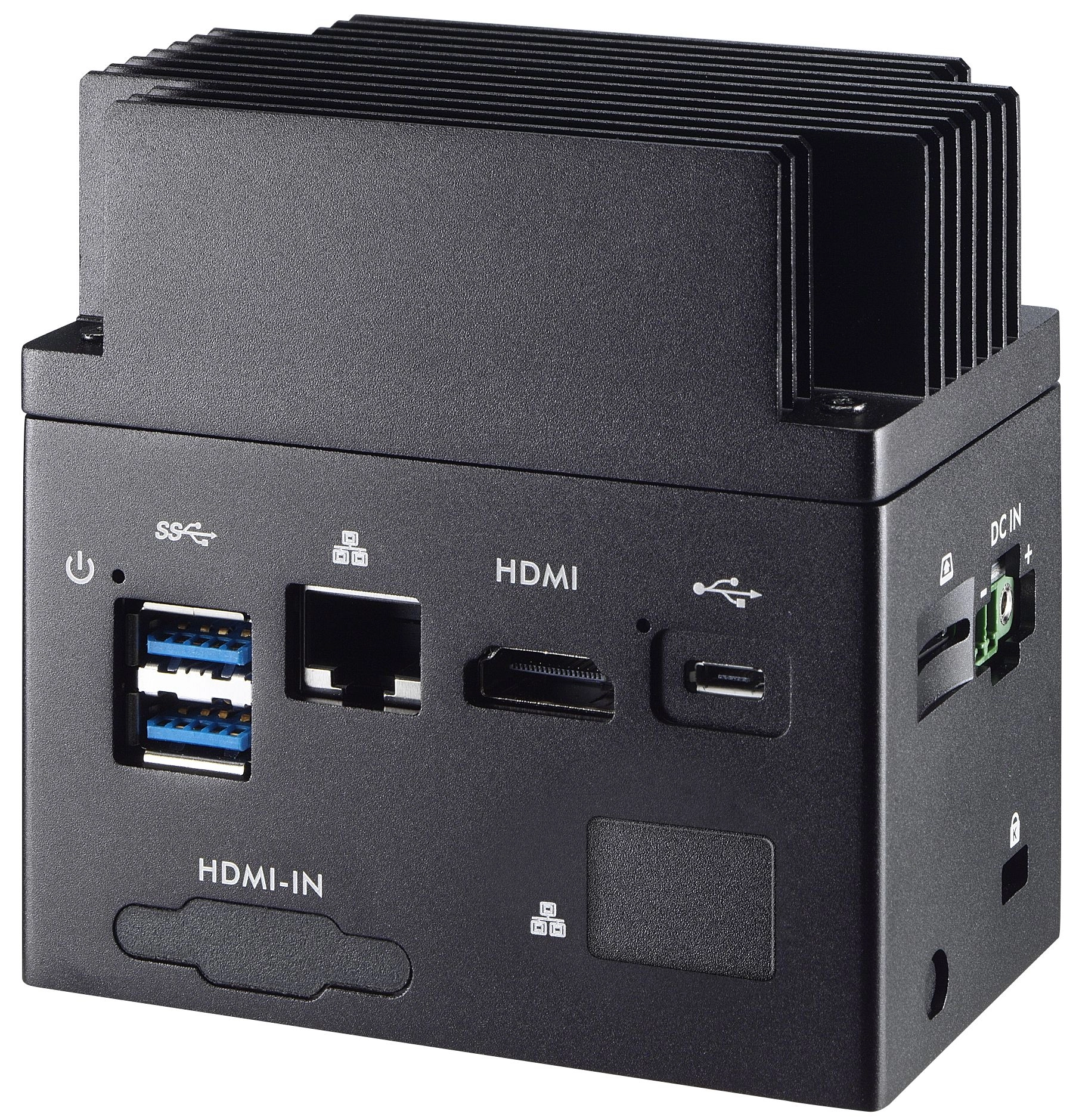

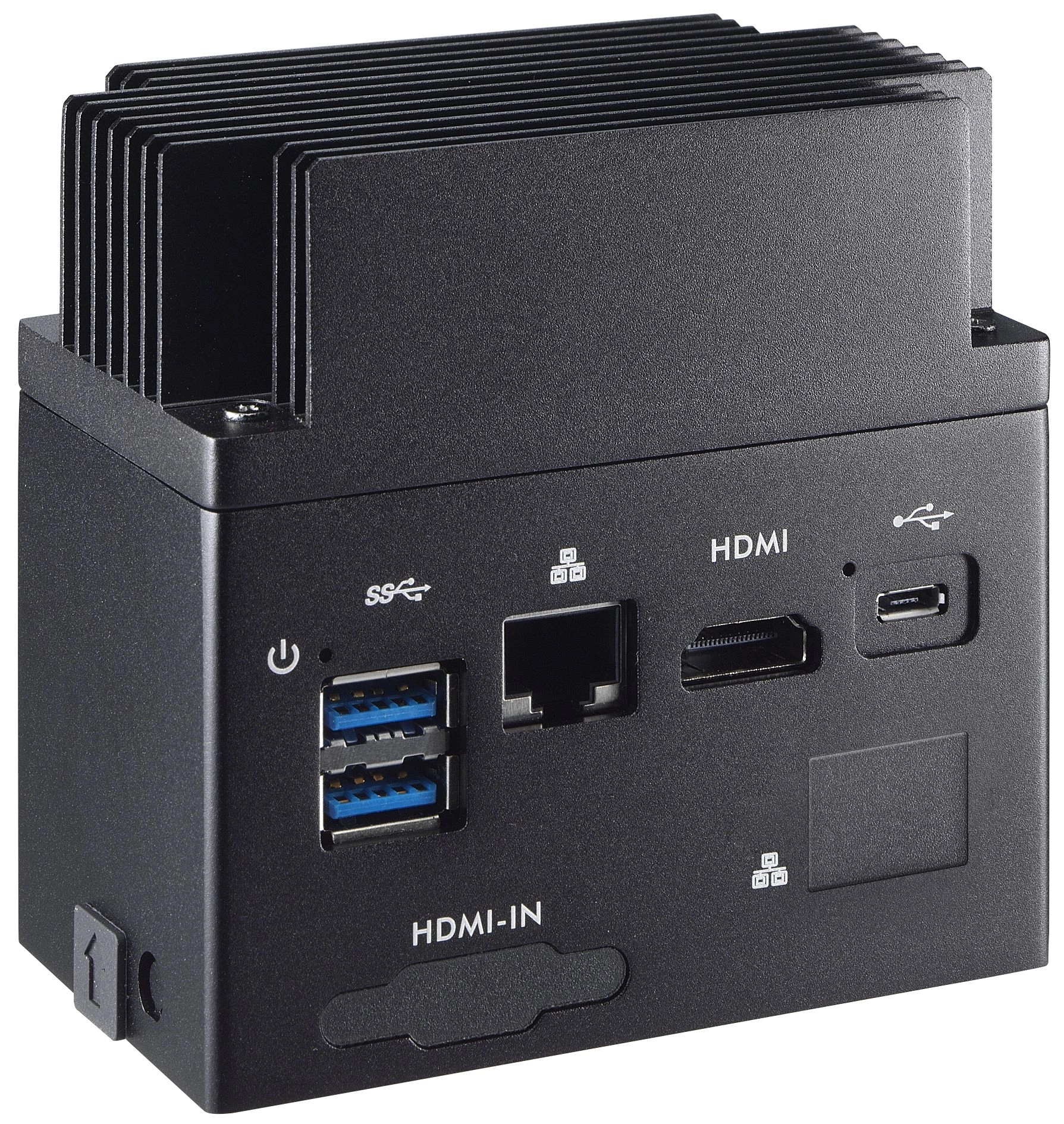

HDMI interface
Goodbye cable spaghetti! Modern flat-screen TVs and large-format TFT screens can be connected to this Mini-PC with just a single thin cable. Often the audio output is also transferred in brilliant quality via the HDMI cable.

Low energy consumption
Thrift is a virtue. In terms of power consumption this Mini-PC sets an example. It is not just good for the environment but for your pocket, too.

Card reader
Simply insert the memory card and you can access all stored photos and videos immediately.

For a longer life and more system stability
All the components of the highly integrated mainboard of this PC are fitted with modern solid capacitors, which offer six times the lifespan of normal capacitors.

Specification

Product
Product id	686261
Brand	Shuttle
Partnr	NEC-EN01J40
EAN/UPC code	887993601113
Processor
Processor manufacturer	Intel
Processor family	Intel Pentium
Processor model	J4205
Processor cores	4
Processor frequency	1.5 GHz
Processor boost frequency	2.6 GHz
Processor socket	BGA 1296
Processor cache	2 MB
Processor cache type	Smart Cache
Processor threads	4
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Pentium Processor J4000 Series for Desktop
Thermal Design Power (TDP)	10 W
Processor codename	Apollo Lake
Tjunction	105 °C
Maximum number of PCI Express lanes	6
PCI Express slots version	2.0
PCI Express configurations	1x2, 1x2+2x1
Stepping	B1
Maximum internal memory supported by processor	8 GB
Memory types supported by processor	DDR3L, LPDDR3-SDRAM, LPDDR4-SDRAM
Memory clock speeds supported by processor	1866, 2400 MHz
Memory
Internal memory	8 GB
Internal memory type	LPDDR4-SDRAM
Maximum internal memory	8 GB
Memory clock speed	2400 MHz
Storage
Total storage capacity	64 GB
Optical drive type	N
Card reader integrated	Y
Storage media	eMMC
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Graphics
Discrete graphics adapter	N
On-board graphics adapter	Y
Discrete graphics adapter model	Not available
On-board graphics adapter model	Intel HD Graphics 505
Maximum on-board graphics adapter memory	8 GB
Number of displays supported (on-board graphics)	3
On-board graphics adapter burst frequency	800 MHz
On-board graphics adapter base frequency	250 MHz
Number of execution units	18
Network
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Wi-Fi	N
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
DVI port	N
HDMI ports quantity	1
HDMI version	1.4b
Ethernet LAN (RJ-45) ports	1
Microphone in	N
Design
Volume	0.45 l
VESA mounting	Y
Placement supported	Horizontal
Cable lock slot	Y
Cable lock slot type	Kensington
Product colour	Black
Country of origin	China
Performance
Product type	Mini PC (<= 3L)
Motherboard chipset	Intel SoC
BIOS type	UEFI AMI
Software
Operating system installed	N
Drivers included	Y
Processor special features
UART	Y
CPU configuration (max)	1
Processor code	SR2ZA
Processor package size	24 x 31 mm
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Y
Intel Enhanced Halt State	Y
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Processor ARK ID	95591
Intel Rapid Storage Technology	N
Intel Smart Response Technology version	0.00
Intel Small Business Advantage (SBA) version	0.00
Intel Virtualization Technology (VT-x)	Y
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Secure Boot Technology version	1.00
Intel Identity Protection Technology version	1.00
Intel Smart Connect Technology version	0.00
Intel Secure Boot	Y
Enhanced Intel SpeedStep Technology	Y
Intel 64	Y
Intel® High Definition Audio (Intel® HD Audio)	Y
Intel® Wireless Display (Intel® WiDi)	N
Intel® Small Business Advantage (Intel® SBA)	N
Intel® InTru™ 3D Technology	N
Intel® Insider™	N
Intel® Clear Video HD Technology (Intel® CVT HD)	Y
Execute Disable Bit	Y
Intel Trusted Execution Technology	N
Intel® OS Guard	N
Intel® Secure Key	Y
Intel® AES New Instructions (Intel® AES-NI)	Y
Intel Stable Image Platform Program (SIPP)	N
Thermal Monitoring Technologies	Y
Embedded options available	N
Intel Clear Video Technology	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Idle States	Y
Intel® Smart Response Technology	N
Intel® Turbo Boost Technology	N
Intel Smart Connect Technology	N
Intel® Hyper Threading Technology (Intel® HT Technology)	N
Intel® Quick Sync Video Technology	Y
Intel® Identity Protection Technology (Intel® IPT)	Y
Intel® Anti-Theft Technology (Intel® AT)	N
Conflict-Free processor	Y
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 procent
Certificates
Certification	FCC, CE, BSMI, VCCI, RCM, ETL, CB, BSMI, IP20, ErP
Weight & dimensions
Width	54.4 mm
Depth	92.4 mm
Height	90 mm
Weight	480 g
Package weight	1030 g
Packaging content
Display included	N
Cables included	DC
VESA mount included	Y
Technical details
Sustainability certificates	RoHS, ENERGY STAR
Other features
Harmonized System (HS) code	84714900
