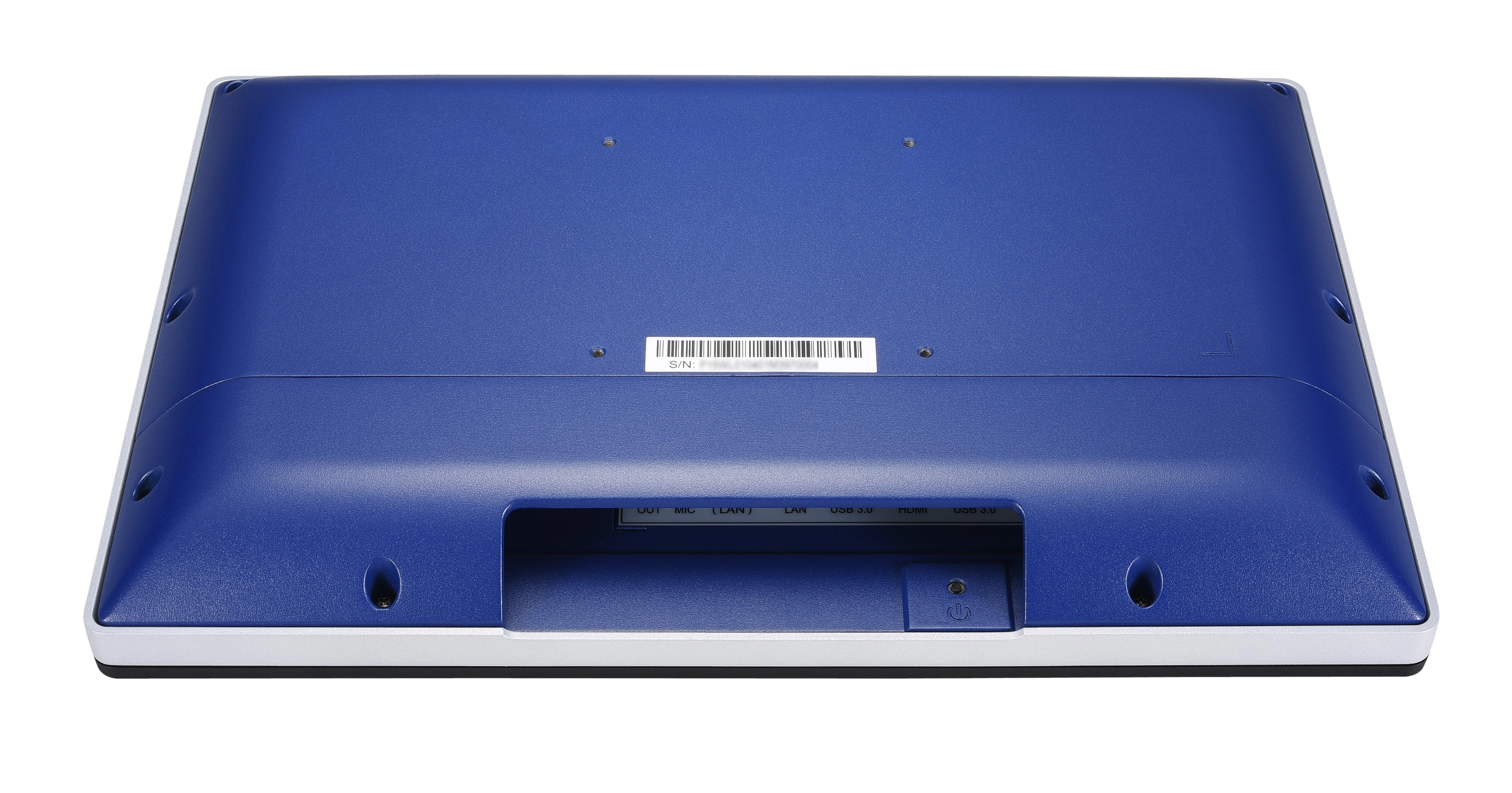

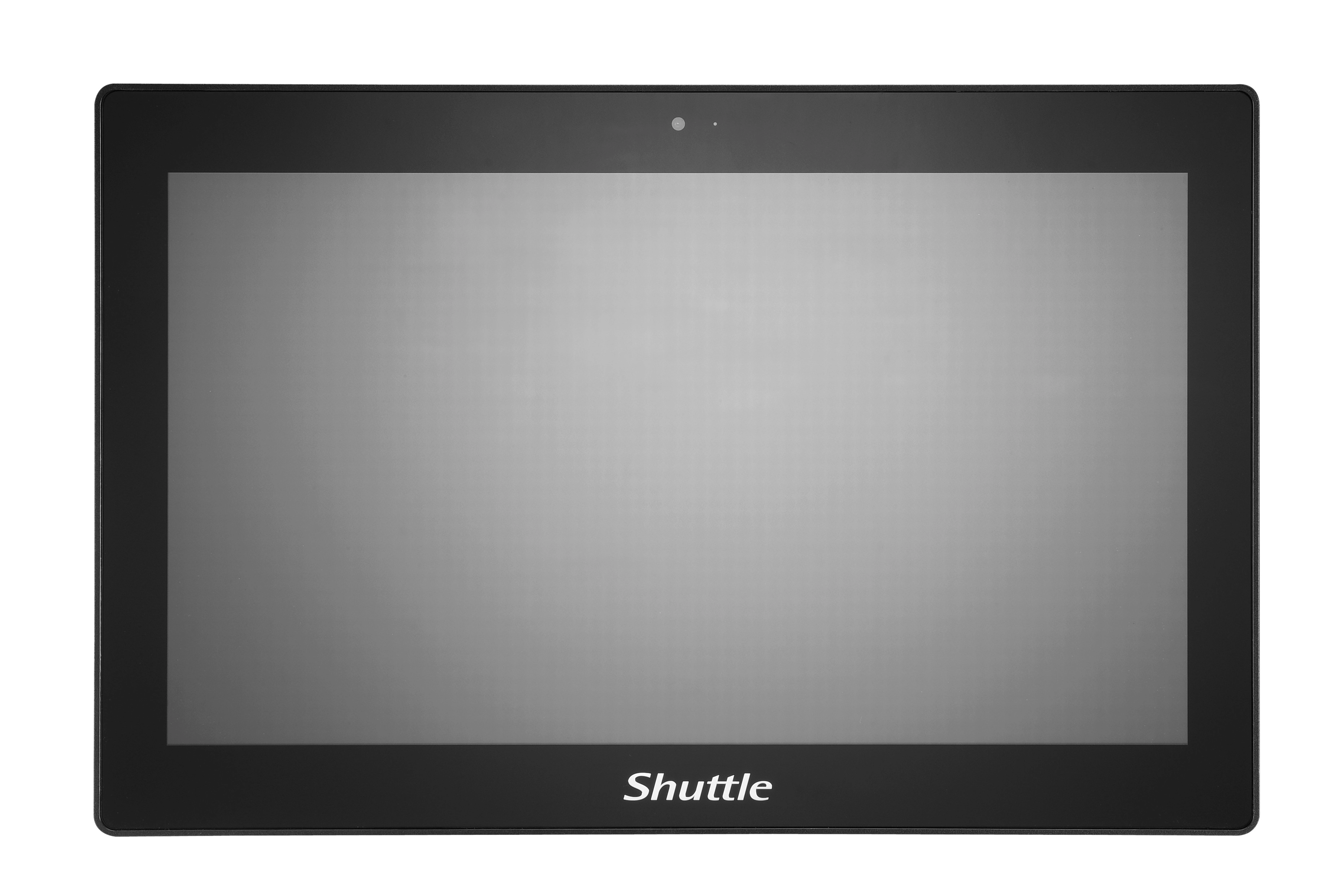

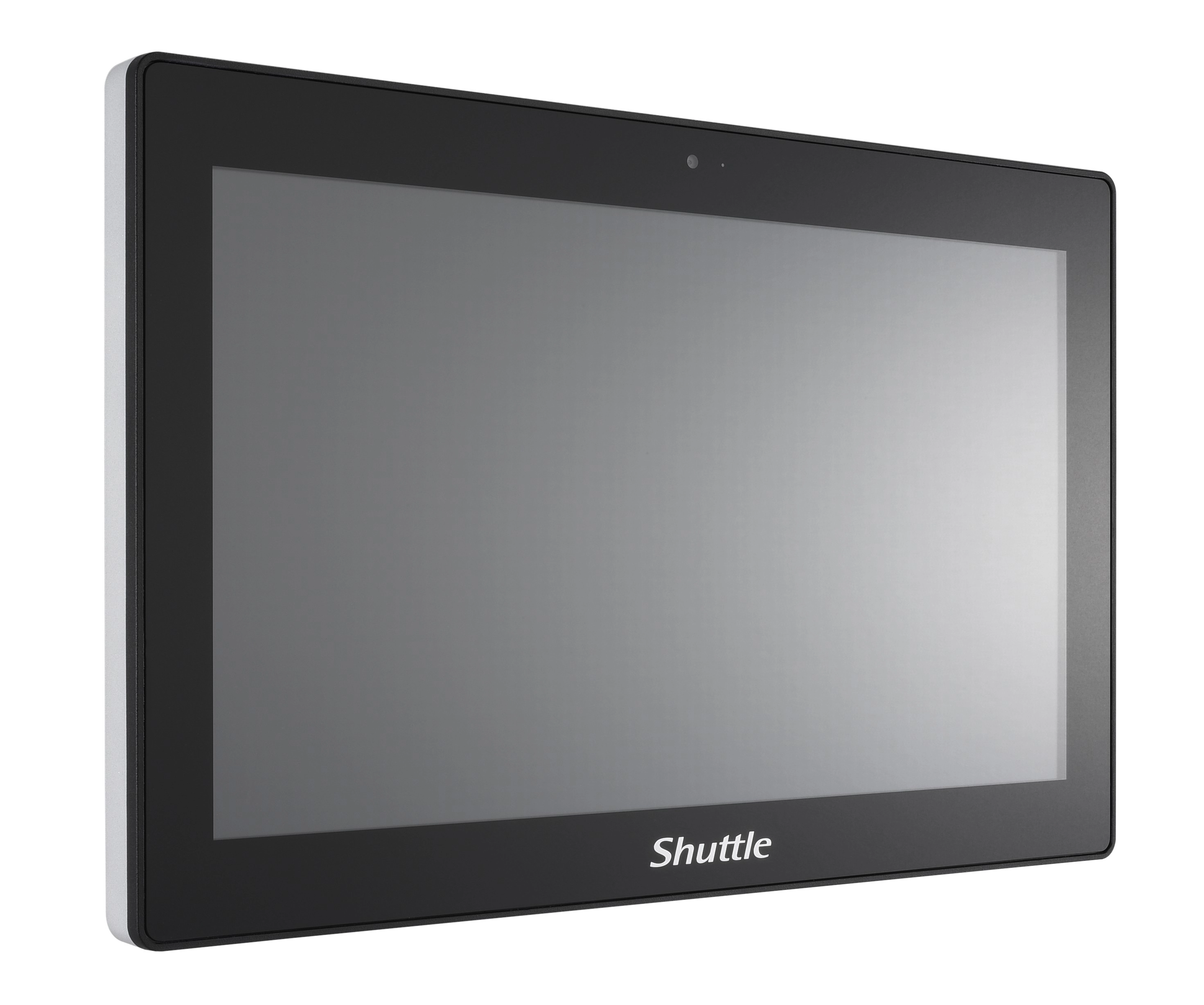

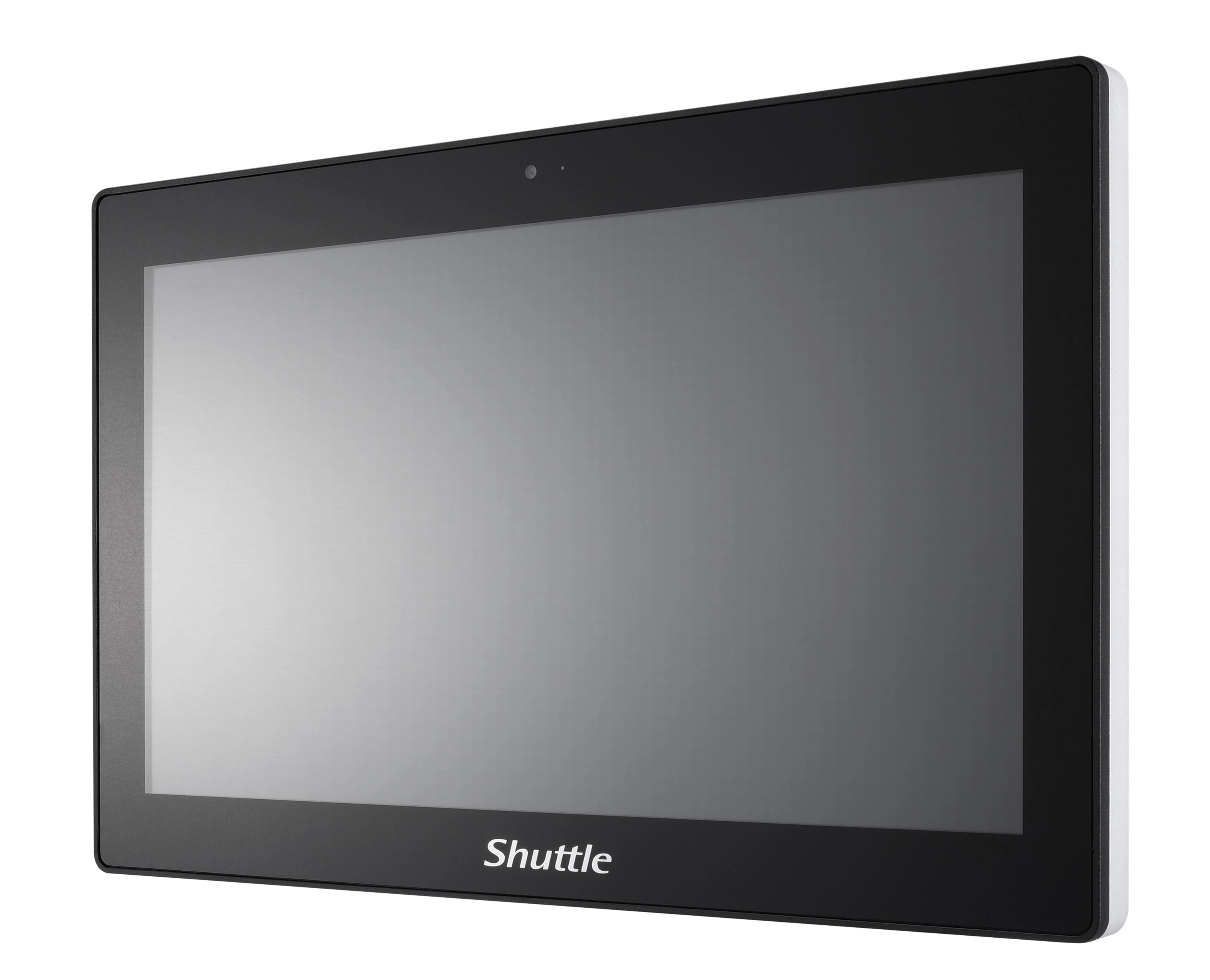

The high-value P15AL01-i5 Panel PCs comes with a rugged Aluminium chassis with a IP65 compliant front panel and is powered by an Intel Core-i5 ULV processor. The display is Full-HD and sports a projected capacitive 10-point multi-touch function. With its passive cooling the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. This makes it the perfect choice for rugged and public applications such as healthcare, hospitality sector, digital signage, POI, POS, Kiosk and industry.

Specification

Product
Product id	1003613
Brand	Shuttle
Partnr	P15AL01-I5
EAN/UPC code	887993007885
Processor
Built-in processor	Y
Processor manufacturer	Intel
Processor family	Intel Core i5
Performance-core Max Turbo Frequency	4.4 GHz
Processor model	i5-1235U
Processor generation	Intel Core i5-12xxx
Efficient-core Max Turbo Frequency	3.3 GHz
Processor cores	10
Processor threads	12
Processor boost frequency	4.4 GHz
Processor cache	12 MB
Performance cores	2
Efficient cores	8
Processor cache type	Smart Cache
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
Memory voltage	1.1 V
Supported memory clock speeds	4800 MHz
Supported memory types	DDR5-SDRAM
Maximum internal memory	64 GB
Storage
Supported storage drive types	SSD
Storage drive sizes supported	2.5, M.2 "
Storage drive interface	PCI Express, Serial ATA III
NVMe	Y
Graphics
On-board graphics adapter	Y
Graphics adapter family	Intel
On-board graphics adapter model	Intel Iris Xe Graphics
Display
Display diagonal	15.6 inch
Touchscreen	Y
Display resolution	1920 x 1080 Pixels
Panel type	TFT-LCD
HD type	Full HD
Aspect ratio	16:9
Display brightness	350 cd/m²
Audio
Built-in speaker(s)	Y
Number of speakers	2
RMS rated power	4 W
Network
Ethernet LAN	Y
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller model	Realtek RTL8821CE
Bluetooth version	4.2
Bluetooth	Y
LAN controller	Intel I226-LM, Intel I226-V

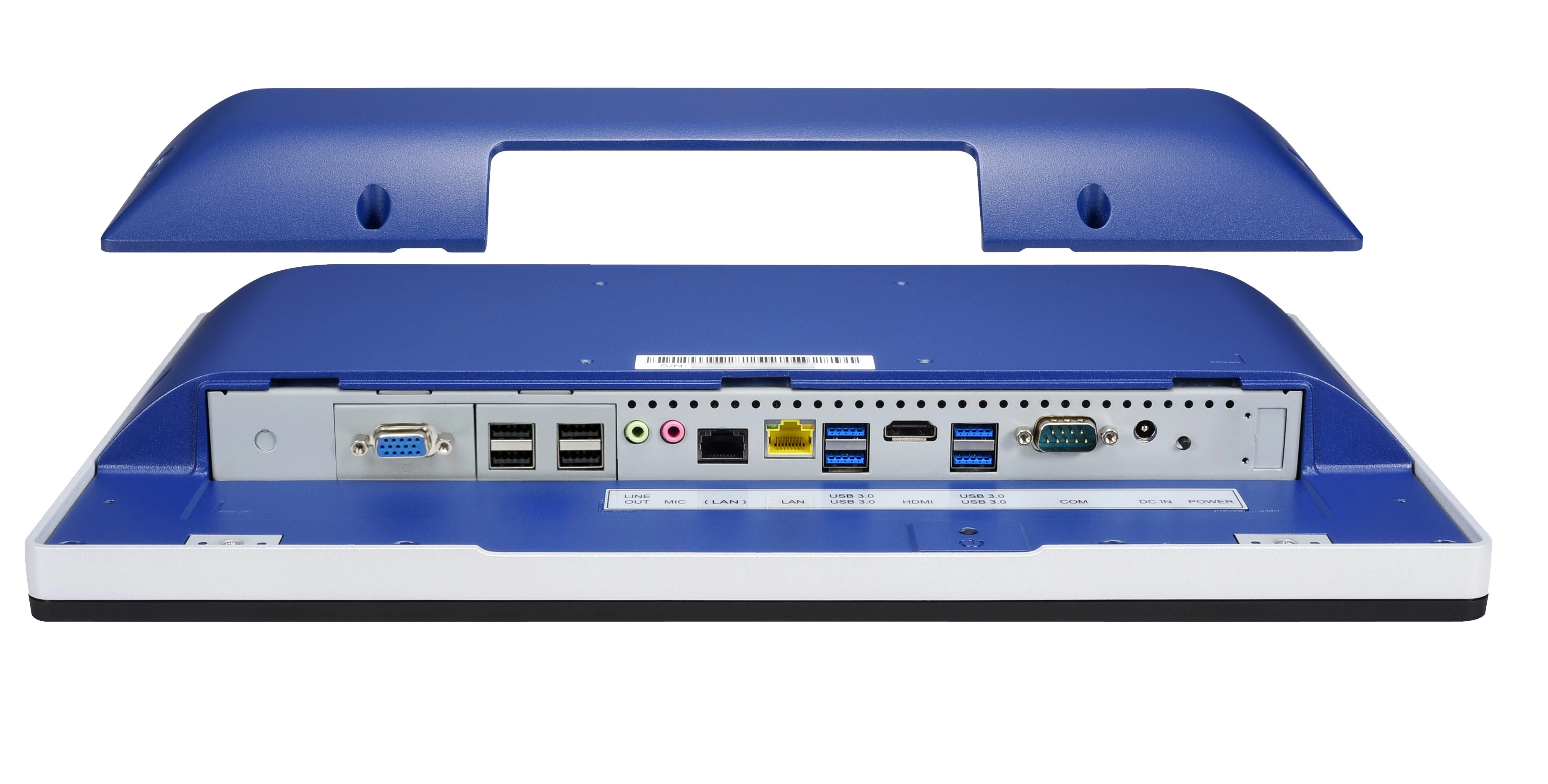

Ports & interfaces
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	1
HDMI version	2.0b
VGA (D-Sub) ports quantity	1
Microphone in	Y
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2
Serial ports quantity	1
DC-in jack	Y
Design
Chassis type	All-in-one
Product colour	Black, Blue
Cooling type	Passive
On/off switch	Y
Housing material	Aluminium, Plastic
VESA mounting	Y
Panel mounting interface	100 x 100 mm
Product type	All-in-One PC barebone
Performance
Motherboard chipset	Intel SoC
Number of processors supported	1
BIOS type	UEFI
Built-in camera	Y
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Audio chip	Realtek ALC888S
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Y
Harmonized System (HS) code	84714900
Technical details
Compliance certificates	BSMI, CB, CE, Federal Communications Commission (FCC), cTUVus
Power
Power supply type	External AC adapter
Power supply	90 W
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
AC adapter output voltage	19 V
AC adapter output current	4.74 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 procent
Weight & dimensions
Width	394.3 mm
Depth	48.9 mm
Height	256.2 mm
Weight	4600 g
