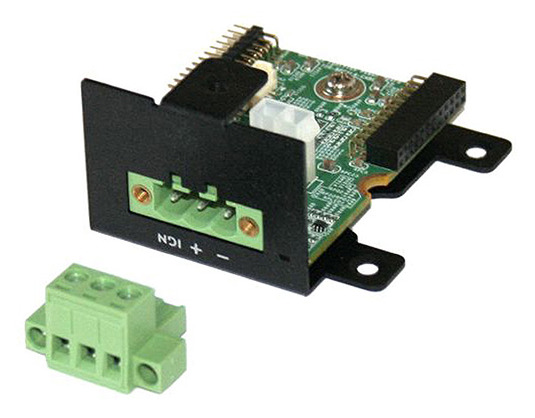

Shuttle offers a wide range of optional accessory products for their Box-PC series. Usually, the Box-PC is powered with 19 V DC voltage from the supplied power adapt-er, whereby the 5.5/2.5 mm DC plug of the power adapter is connected to the DC input of the Box-PC. With the required accessory VOL01, the permissible operating voltage is extended to 9 - 36 V DC so that other voltage sources (e. g. 12V or 24V) can also be used. In addition, the Box PC BPCAL02 can also be equipped with the option-al accessory PDC11 which provides a fixed screw connection for an external power source and an external power button. When using the box PC in a car/lorry, it can be connected to the ignition lock, which enables delayed switching on and off.

Specification

Product
Product id	1011177
Brand	Shuttle
Partnr	PDC11
EAN/UPC code	4046047104376
Features
Compatible chassis type	Mini PC
Type	Other
Product colour	Black, Green
Country of origin	Taiwan
Compatible products	Shuttle Box-PC BPCRL02, BPCAL02
Harmonized System (HS) code	84733020
Power
Input voltage	9 - 36 V
