Robust 0.5L Industry PC supports three displays and optional 4G

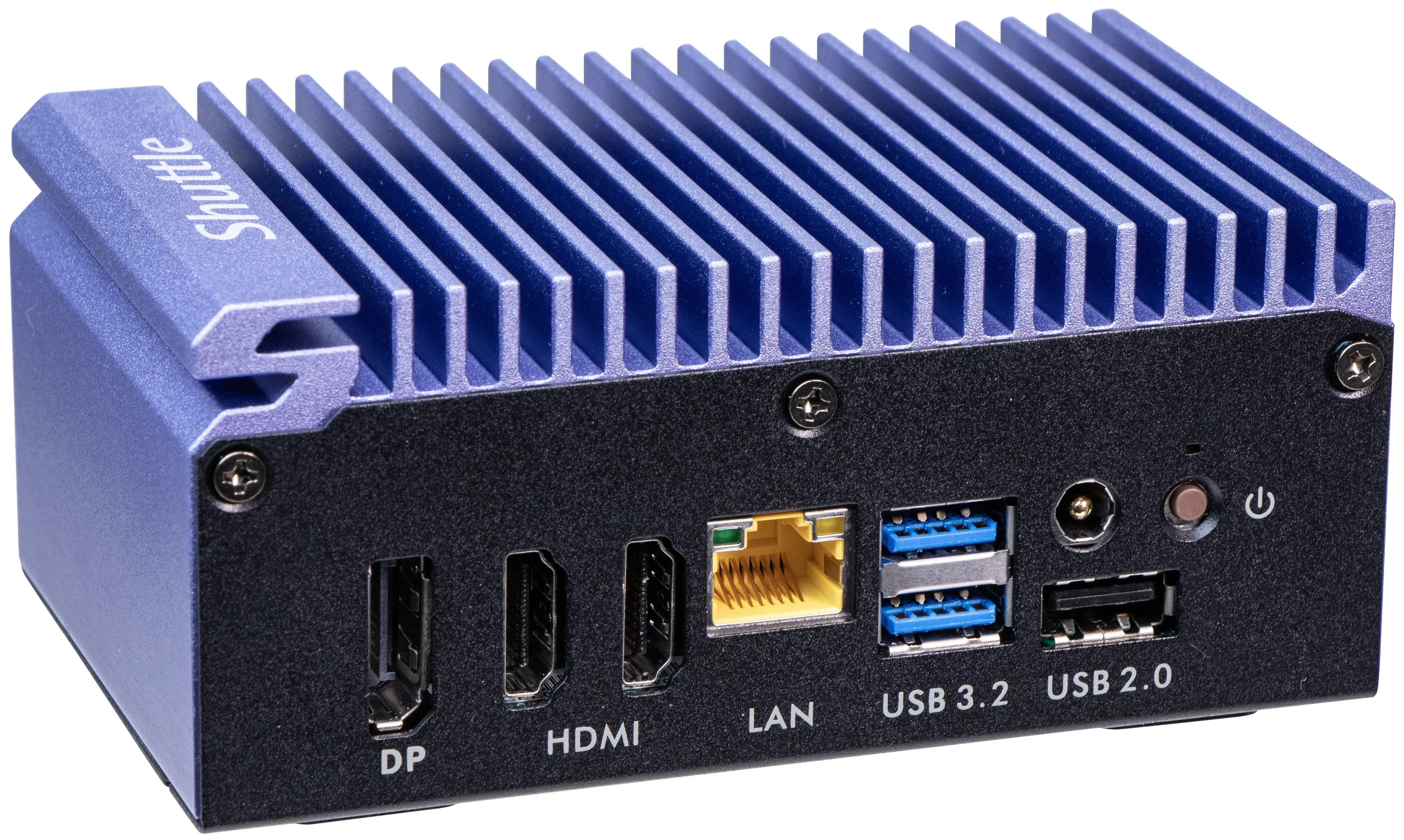

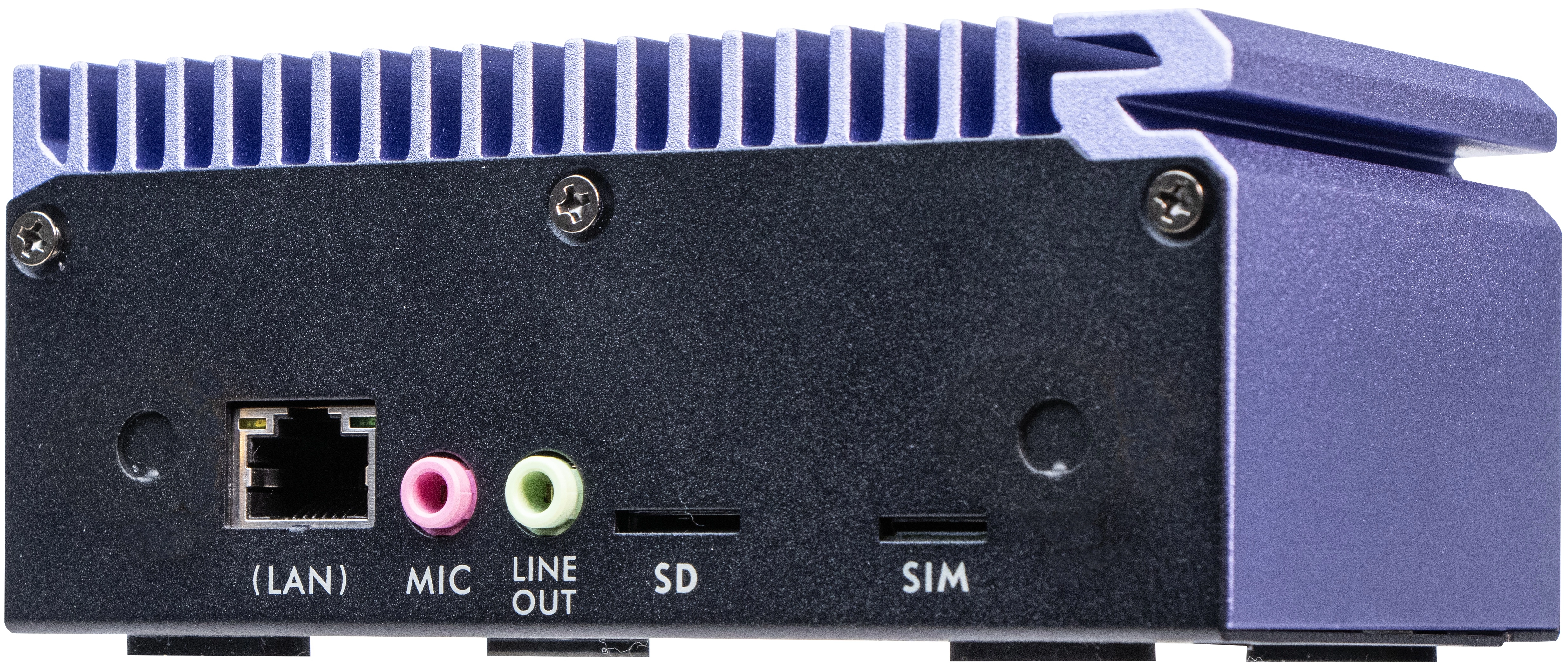

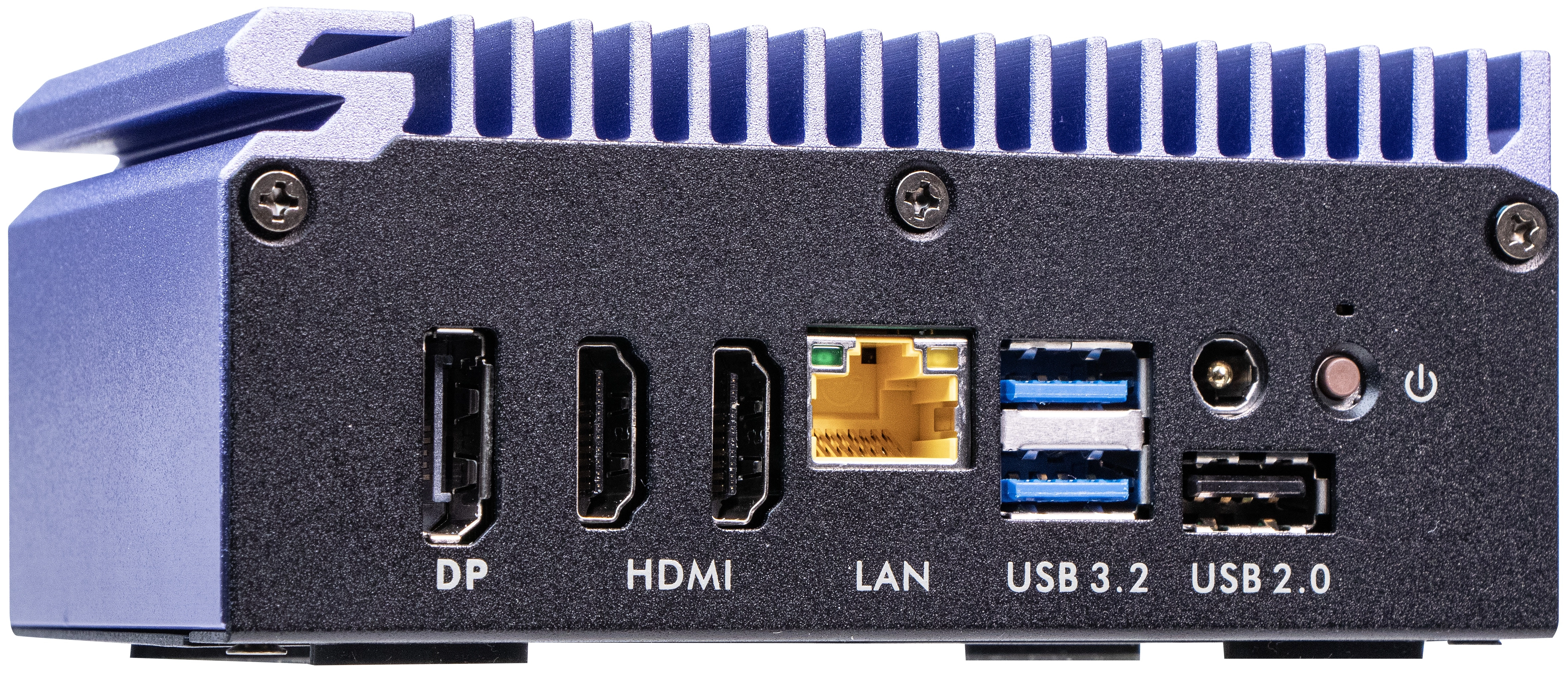

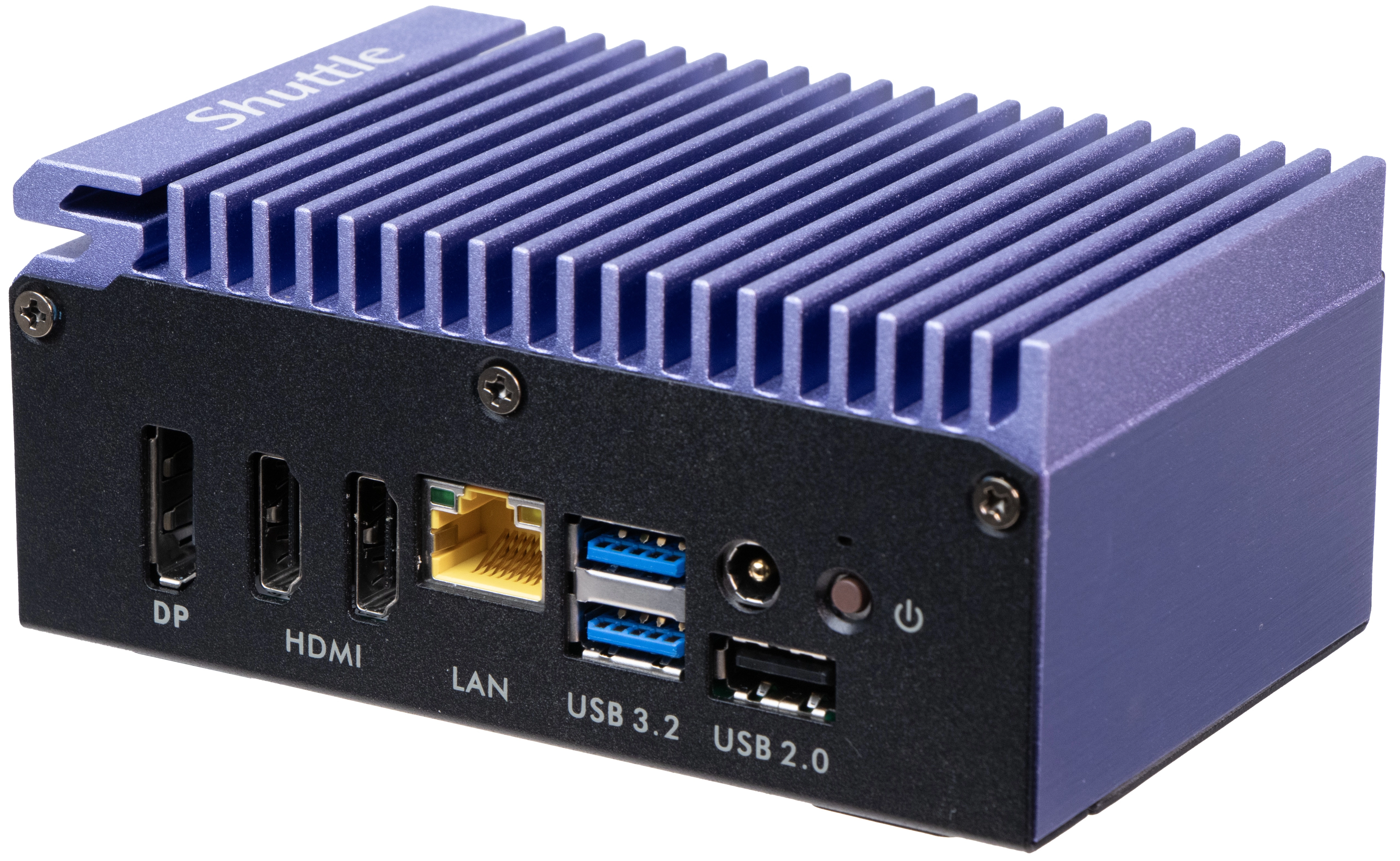

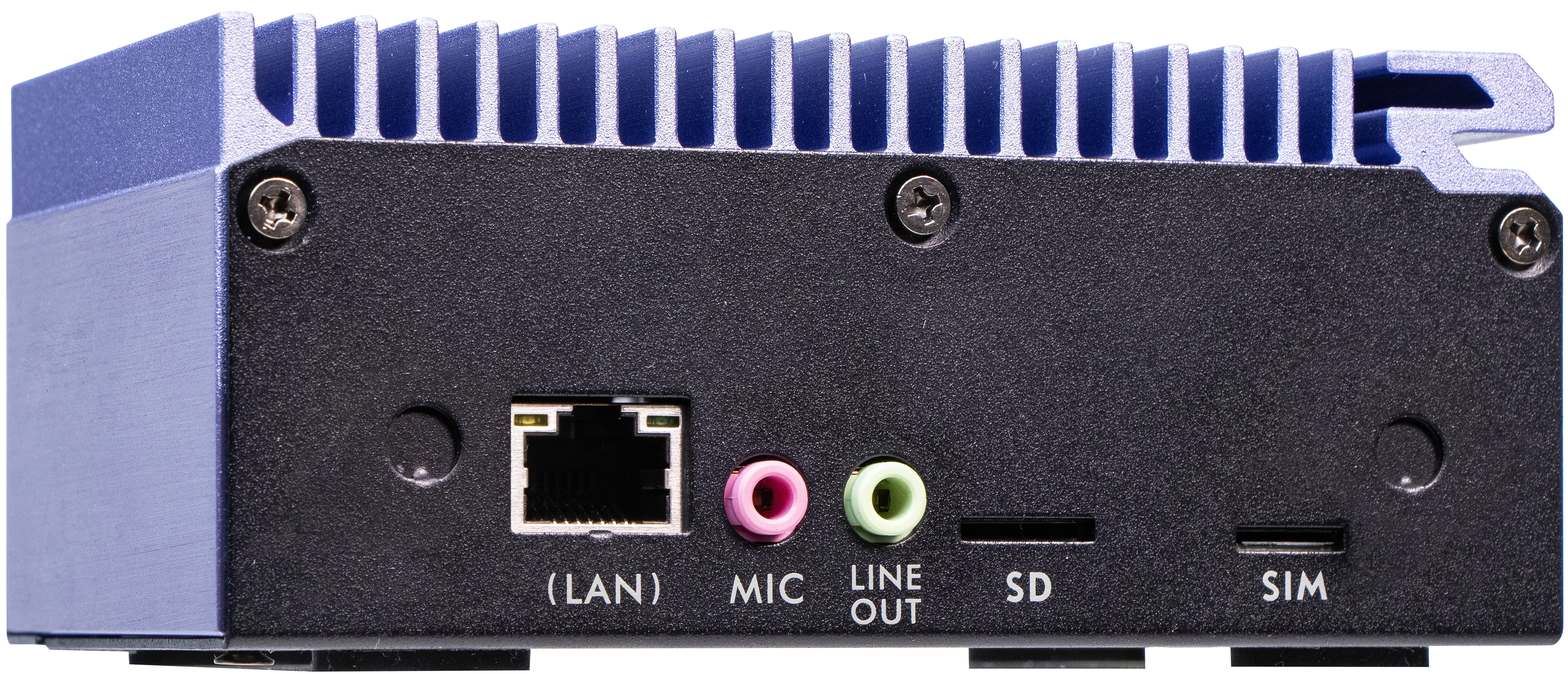

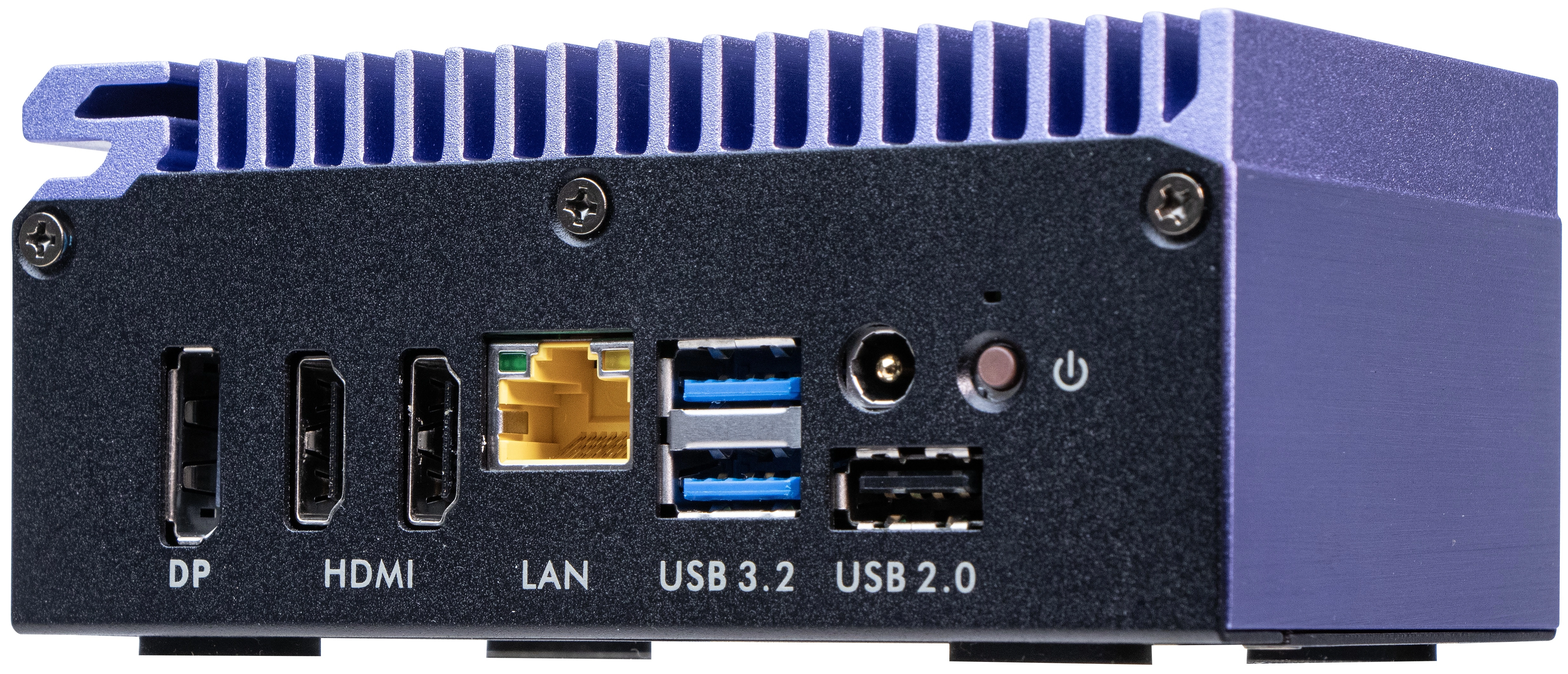

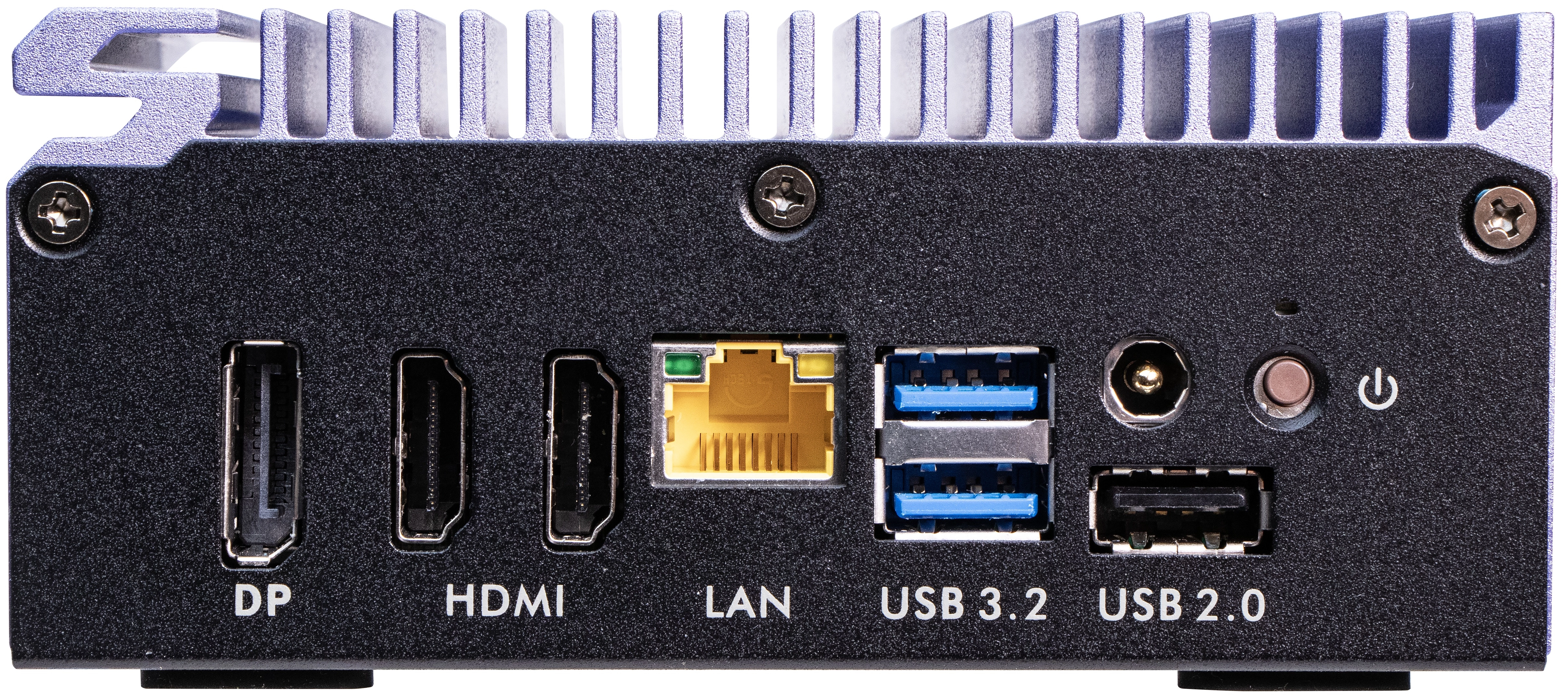

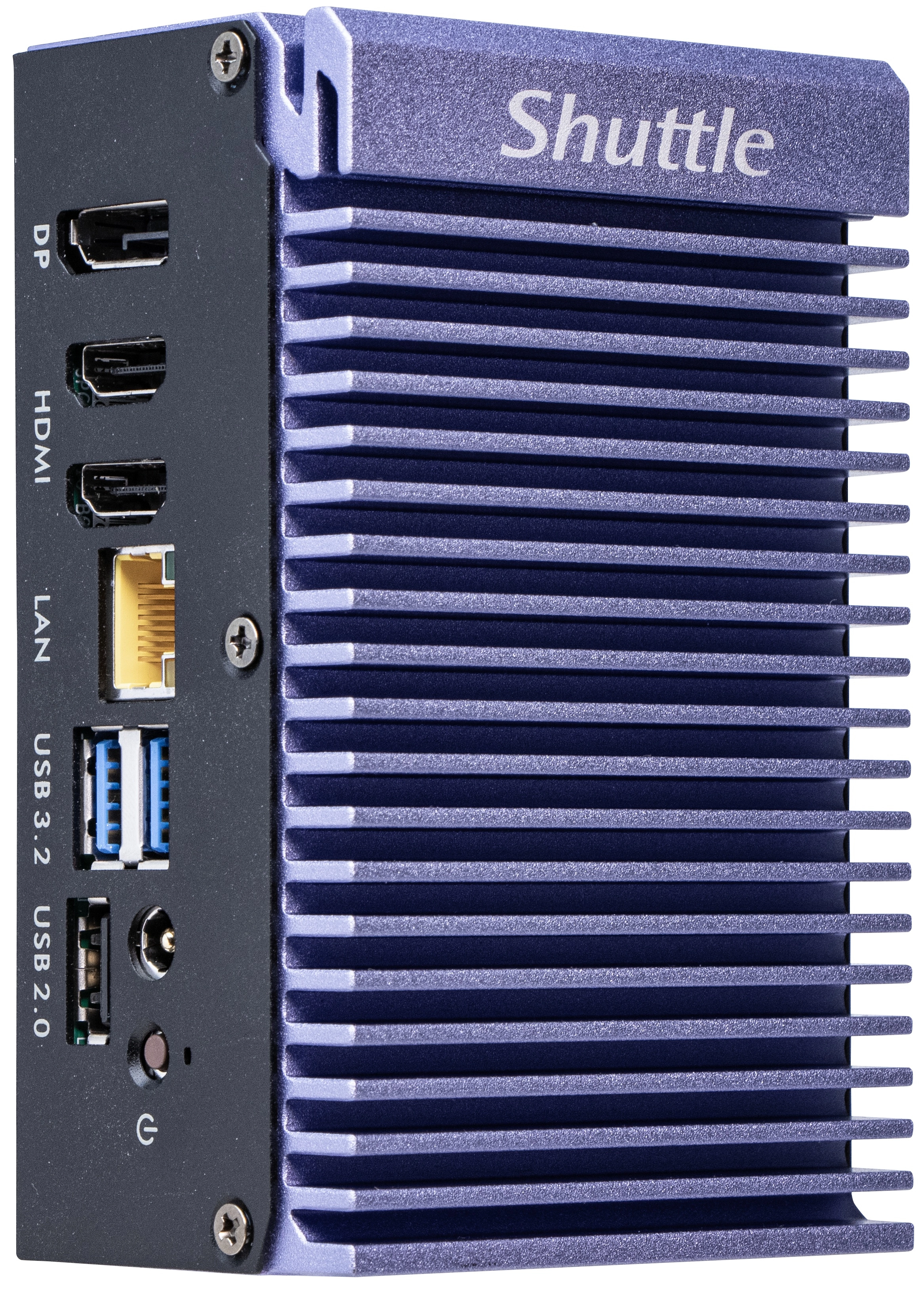

The Shuttle Edge PC SPCEL12 is a fanless Industrial PC barebone in a robust metal chassis and intended for VESA mounting. It is flexible in use and de-signed for maintenance-free 24/7 operation at ambient temperatures of up to 40°C. Inside there is an Intel Celeron "Elkhart Lake" processor with slots for RAM module, M.2 SSD card and optional WLAN or 4G card. The small housing offers an amazing variety of connections, including three graphics ports, dual LAN, Audio, and slots for Micro SD and Nano SIM. This product is targeted at professional applications such as digital signage (media player), edge computing (IoT gateway), automation, control, data logging and video surveillance.

Specification

Product
Product id	975005
Brand	Shuttle
Partnr	SPCEL12
EAN/UPC code	887993007243
Processor
Built-in processor	Y
Processor manufacturer	Intel
Processor family	Intel Celeron
Processor model	J6412
Processor frequency	2 GHz
Processor cores	4
Processor threads	4
Processor boost frequency	2.6 GHz
L2 cache	1.5 MB
Thermal Design Power (TDP)	10 W
Memory
Memory slots type	SO-DIMM
Number of memory slots	1
Memory channels	Single-channel
Memory voltage	1.2 V
Supported memory clock speeds	3200 MHz
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
ECC	N
Non-ECC	Y
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2 "
SSD form factor	M.2
Storage drive interface	Serial ATA
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash)
Graphics
On-board graphics adapter	Y
Graphics adapter family	Intel
On-board graphics adapter model	Intel UHD Graphics
Maximum resolution	3840 x 2160 Pixels
Audio
Built-in speaker(s)	N
Network
Ethernet LAN	Y
Wi-Fi	N
LAN controller	Intel I226-V
Ports & interfaces
USB 2.0 ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI ports quantity	2
HDMI version	2.0b
DisplayPorts quantity	1
DisplayPort version	1.4
Microphone in	Y
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2
DC-in jack	Y
Design
Chassis type	0.46L sized PC
Product colour	Black, Blue
Cooling type	Passive
LED indicators	Power
Housing material	Aluminium
VESA mounting	Y
Panel mounting interface	100 x 100 mm
Product type	Mini PC (<= 3L) barebone
Performance
Motherboard chipset	Intel SoC
Processor socket	BGA 1493
Number of processors supported	1
BIOS type	UEFI AMI
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Audio chip	Realtek ALC888-VD
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Y
Operating system installed	N
Harmonized System (HS) code	84733080
Technical details
Sustainability certificates	ENERGY STAR
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, VCCI
Power
Power supply type	External AC adapter
Power supply	65 W
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
AC adapter output voltage	19 V
AC adapter output current	3.42 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 procent
Weight & dimensions
Width	120 mm
Depth	75 mm
Height	51 mm
Weight	720 g
Package weight	1200 g
Packaging content
Power cord included	Y
AC adapter included	Y
