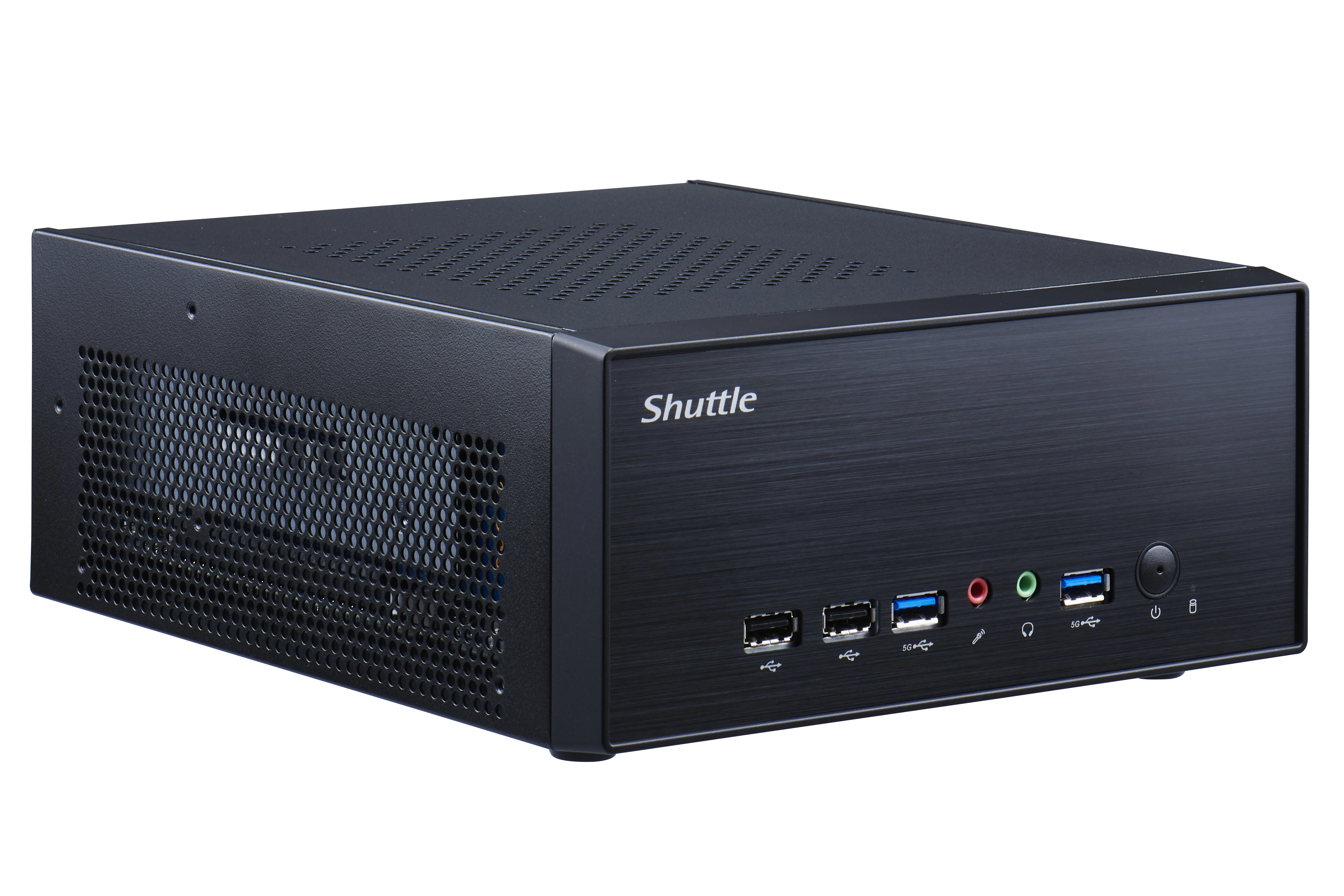

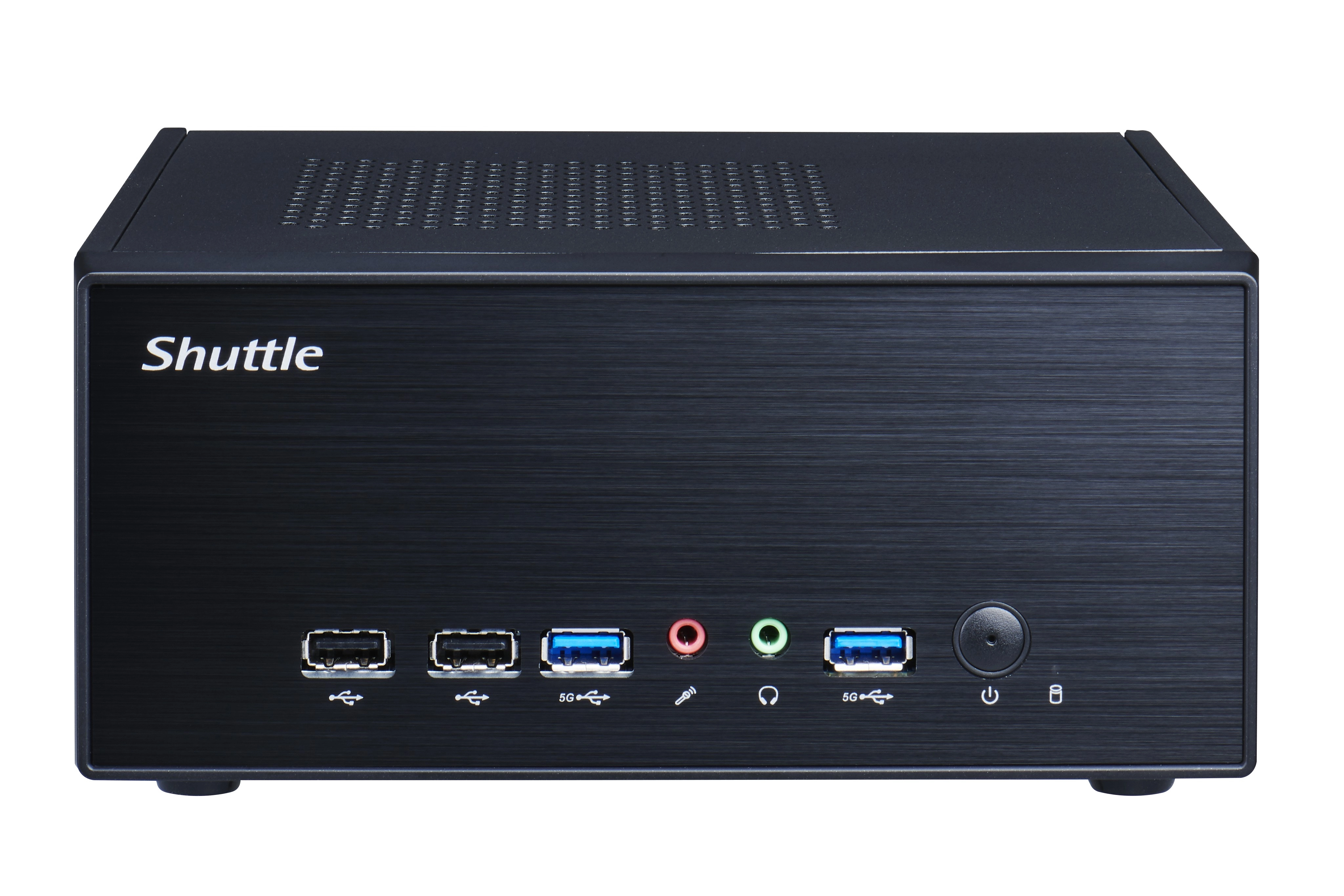

The Shuttle XPC slim Barebone XH610G2 is a 4.7-litre PC with two slots for PCI-Express expansion cards. Together with an LGA 1700 Intel Core desktop processor of the Intel Core Gen 12/13/14 range, this platform is perfectly suited for many professional applications where performance, flexibility and a compact form factor matter. This includes video wall presentations, graphics workstations, media capturing, surveillance, POS, POI as well as network and industrial applications. Even mid-range gaming is possible.

Specification

Product
Product id	975006
Brand	Shuttle
Partnr	XH610G2
EAN/UPC code	887993006796
Processor
Built-in processor	N
Processor manufacturer	Intel
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
Memory voltage	1.1 V
Supported memory clock speeds	5600 MHz
Supported memory types	DDR5-SDRAM
Maximum internal memory	64 GB
Non-ECC	Y
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5, M.2 "
Storage drive interface	PCI Express, Serial ATA III
NVMe	Y
Graphics
On-board graphics adapter	Y
Audio
Built-in speaker(s)	N
Network
Ethernet LAN	Y
Wi-Fi	N
LAN controller	Intel I219-LM, Intel I226-LM

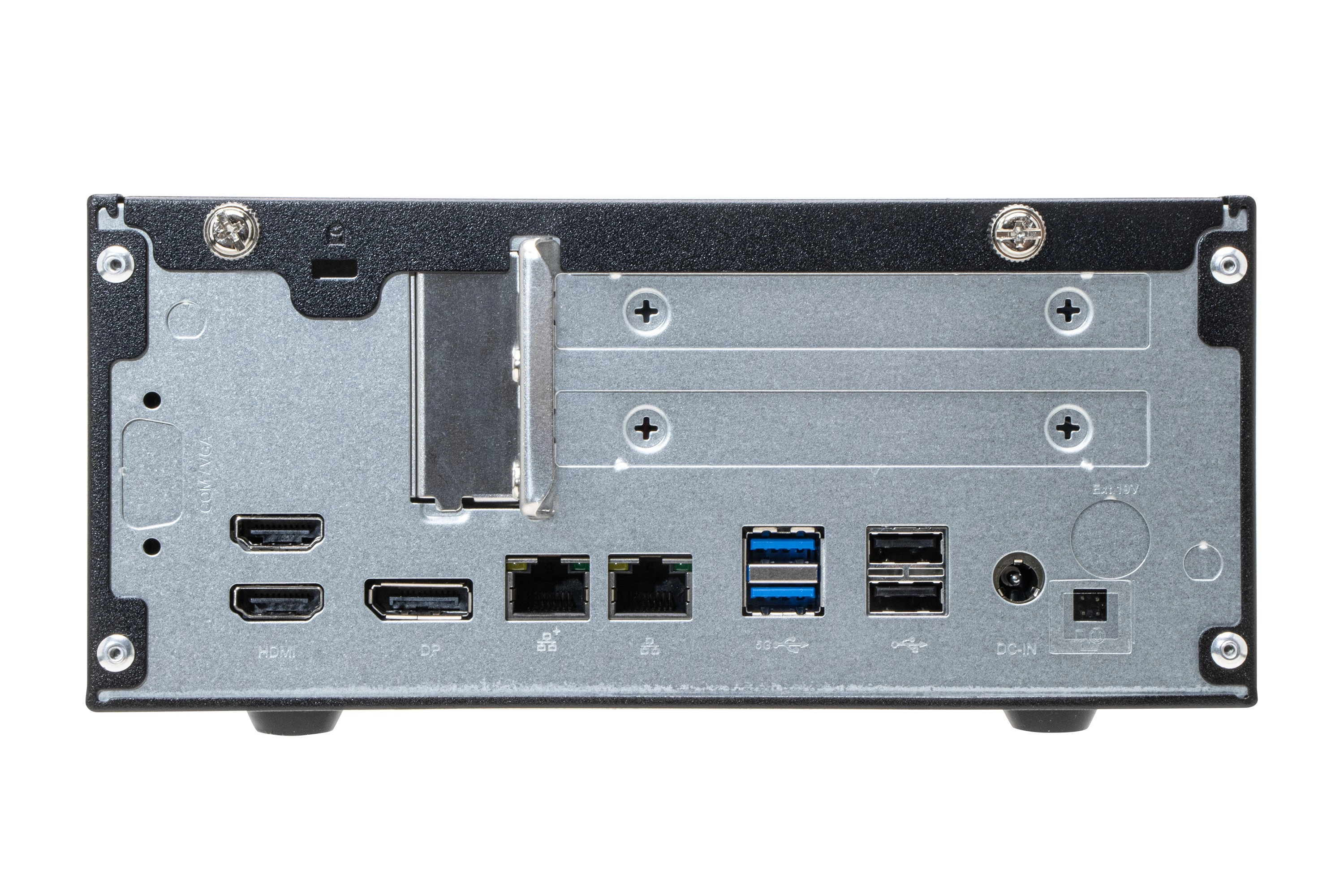

Ports & interfaces
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	2
HDMI version	2.0b
DisplayPorts quantity	1
DisplayPort version	1.4
Microphone in	Y
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2
DC-in jack	Y
Design
Chassis type	Desktop
Product colour	Black
Cooling type	Active
On/off switch	Y
LED indicators	Y
Product type	PC barebone
Performance
Motherboard chipset	Intel H610
Processor socket	LGA 1700
Number of processors supported	1
BIOS type	UEFI AMI
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Audio output channels	7.1 kanalen
Audio chip	Realtek ALC888S
Windows operating systems supported	Windows 11
Linux operating systems supported	Y
Harmonized System (HS) code	84733080
Logistics data
Country of origin	China
Technical details
Sustainability certificates	ENERGY STAR, ErP
Compliance certificates	BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI, cTUVus
Power
Power supply type	External AC adapter
Power supply	180 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
AC adapter output voltage	19.5 V
AC adapter output current	9.23 A
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 procent
Weight & dimensions
Width	250 mm
Depth	200 mm
Height	95 mm
Weight	2980 g
Package weight	3490 g
Packaging content
Power cord included	Y
AC adapter included	Y
Quick start guide	Y
Drivers included	Y
