The Shuttle XPC XH810 is the ideal entry point for professional computing, offering an exceptional balance of price and performance within a compact 3.5-litre chassis. As a cost-effective base model, this robust steel barebone supports the latest Intel Core Ultra 200 series processors (LGA1851) and up to 96GB of high-speed DDR5 memory. Its versatile storage options provide incredible value, uniquely accommodating a full-sized 3.5-inch hard disk or two 2.5-inch drives alongside dual M.2 NVMe SSDs for maximum flexibility on a budget.

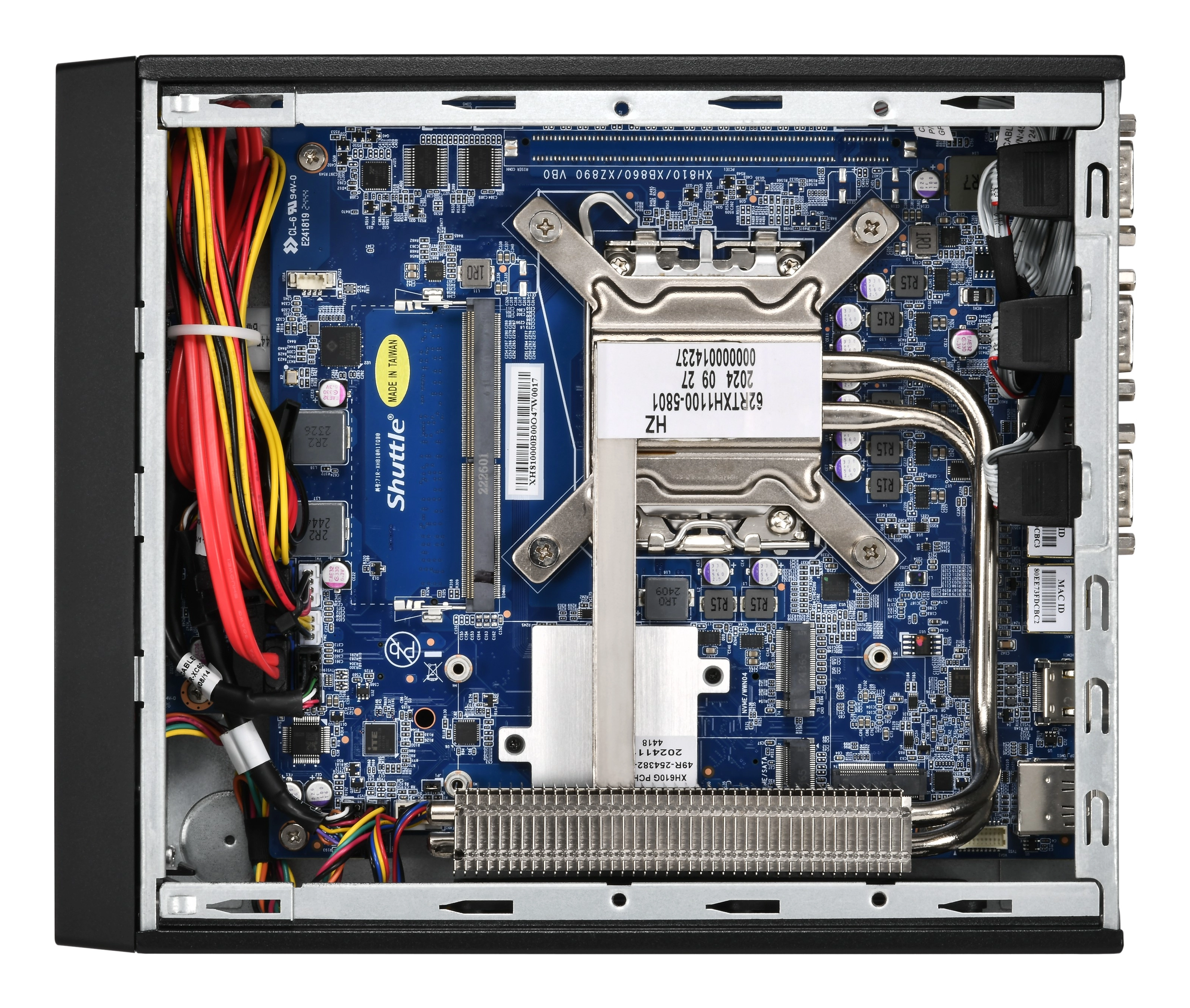

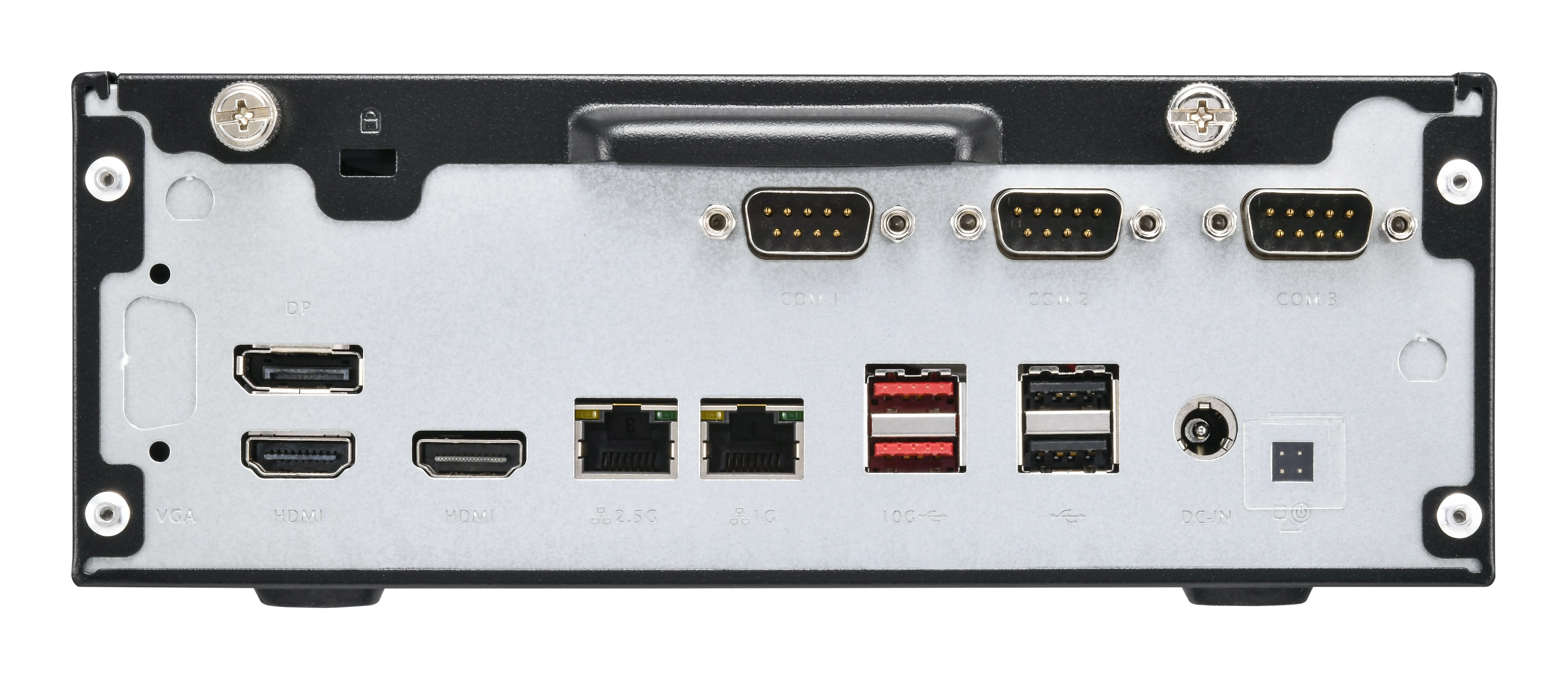

Despite its affordable positioning, the XH810 makes no compromises on connectivity. It features triple 4K/8K display support, dual Intel LAN (2.5G + 1G), and up to six serial ports, making it a versatile choice for office tasks, digital signage, or industrial control. An integrated heatpipe cooling system ensures stable 24/7 operation, delivering professional-grade reliability at an accessible price point. The XH810 is the smart, economical alternative to bulky and expensive tower PCs.

Specification

Product
Product id	1020933
Brand	Shuttle
Partnr	SHU-XH810
EAN/UPC code	887993008110
Processor
Built-in processor	N
Processor manufacturer	Intel
Memory
Memory slots type	SO-DIMM
Internal memory installed	N
Number of memory slots	2
Memory channels	Dual-channel
Memory voltage	1.1 V
Supported memory clock speeds	5600 MHz
Supported memory types	DDR5-SDRAM
Maximum internal memory	96 GB
ECC	N
Non-ECC	Y
Storage
Storage drives installed	N
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5, 3.5, M.2 "
M.2 SSD size	2280 (22 x 80 mm)
Graphics
On-board graphics adapter	Y
Graphics adapter family	Intel
Audio
Built-in speaker(s)	N
Network
Ethernet LAN	Y
Wi-Fi	N
LAN controller	Intel I226-LM, Intel I219-LM
Ports & interfaces
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI ports quantity	2
HDMI version	2.0/2.1
DisplayPorts quantity	1
DisplayPort version	1.4a
Microphone in	Y
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2
Serial ports quantity	3
DC-in jack	Y
Design
Chassis type	3.5L sized PC
Product colour	Black
Cooling type	Active
LED indicators	Y
Cable lock slot	Y
Cable lock slot type	Kensington
VESA mounting	Y
Product type	PC barebone
Performance
Motherboard form factor	Mini ITX
Motherboard chipset	Intel H810
Processor socket	LGA 1851 (Socket V1)
Number of processors supported	1
Compatible processor series	Intel Core Ultra (Series 2)
BIOS type	AMI EEPROM
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Audio chip	ALC 888S
Harmonized System (HS) code	84733080
Logistics data
Country of origin	China
Technical details
Sustainability certificates	ENERGY STAR, ErP
Compliance certificates	Federal Communications Commission (FCC), CE, UKCA, BSMI, RCM, VCCI, RoHS
Power
Power supply type	External AC adapter
Power supply	120 W
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
AC adapter output voltage	19 V
AC adapter output current	6.32 A
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 procent
Weight & dimensions
Width	238 mm
Depth	200 mm
Height	72.5 mm
Weight	1900 g
Package weight	3200 g
Packaging content
Power cord included	Y
AC adapter included	Y
Quick start guide	Y
Drivers included	Y
