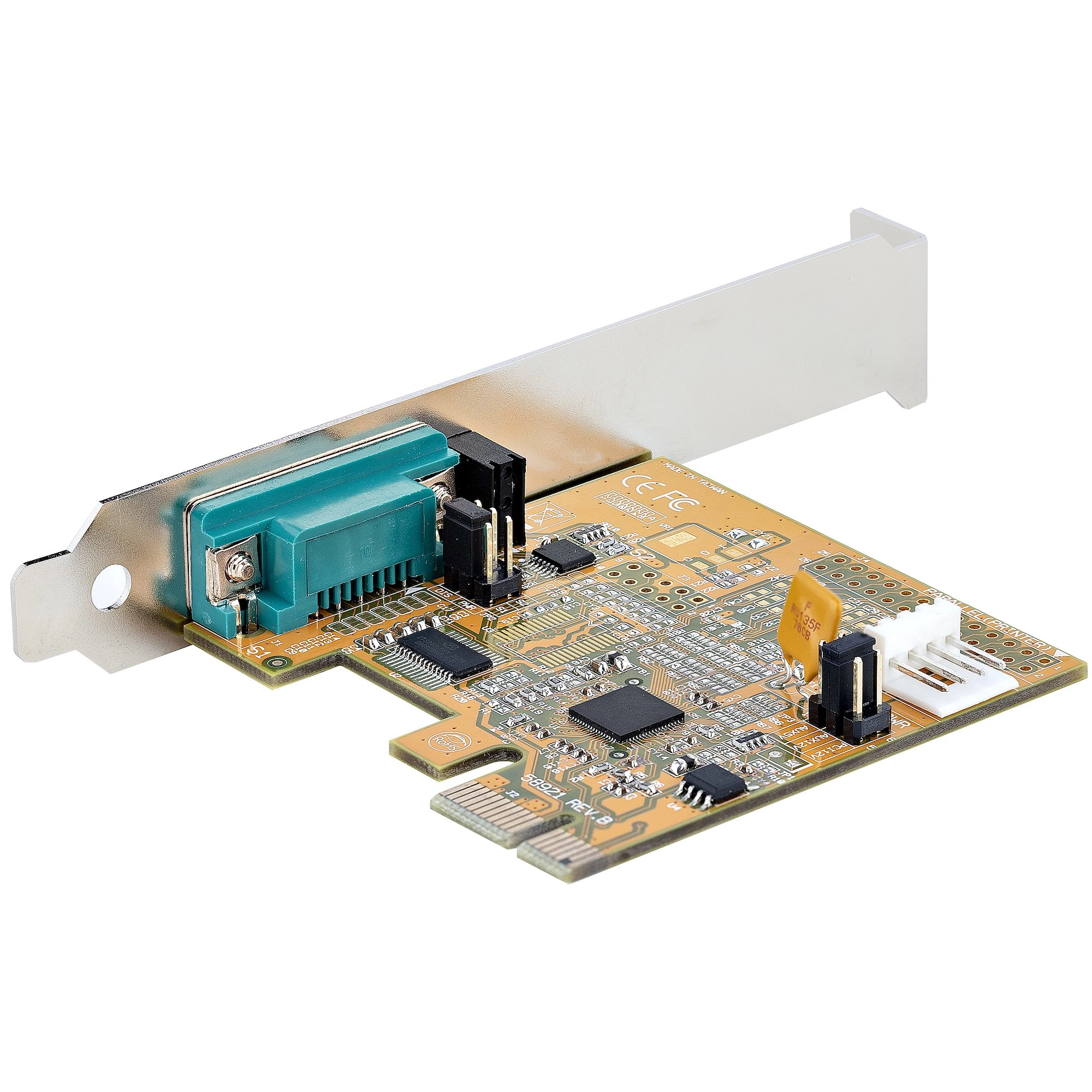

PCI Express Serial Card PCIe to RS232



StarTech.com
Limited stock
€ 52,72
€ 63,79 incl 21% VAT

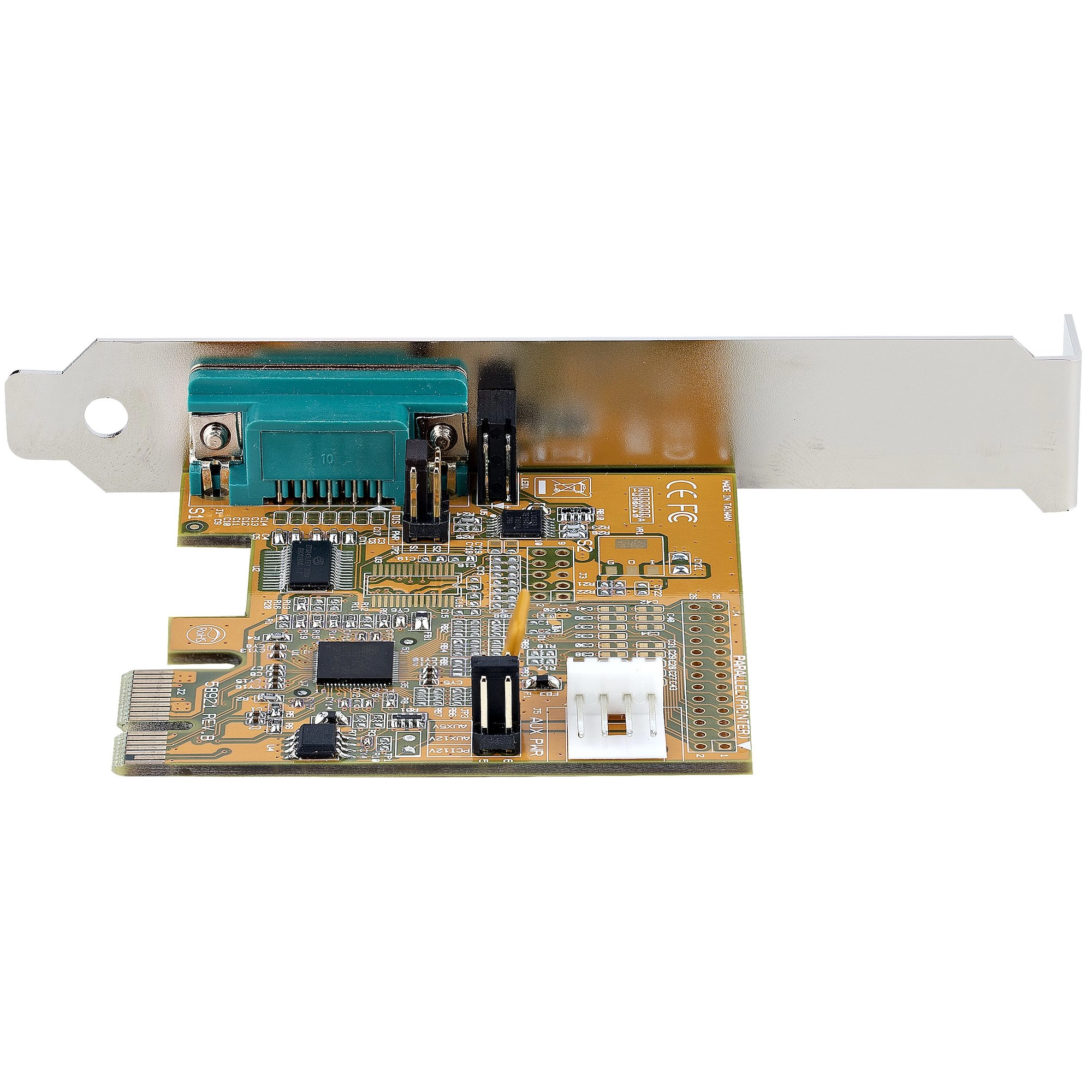

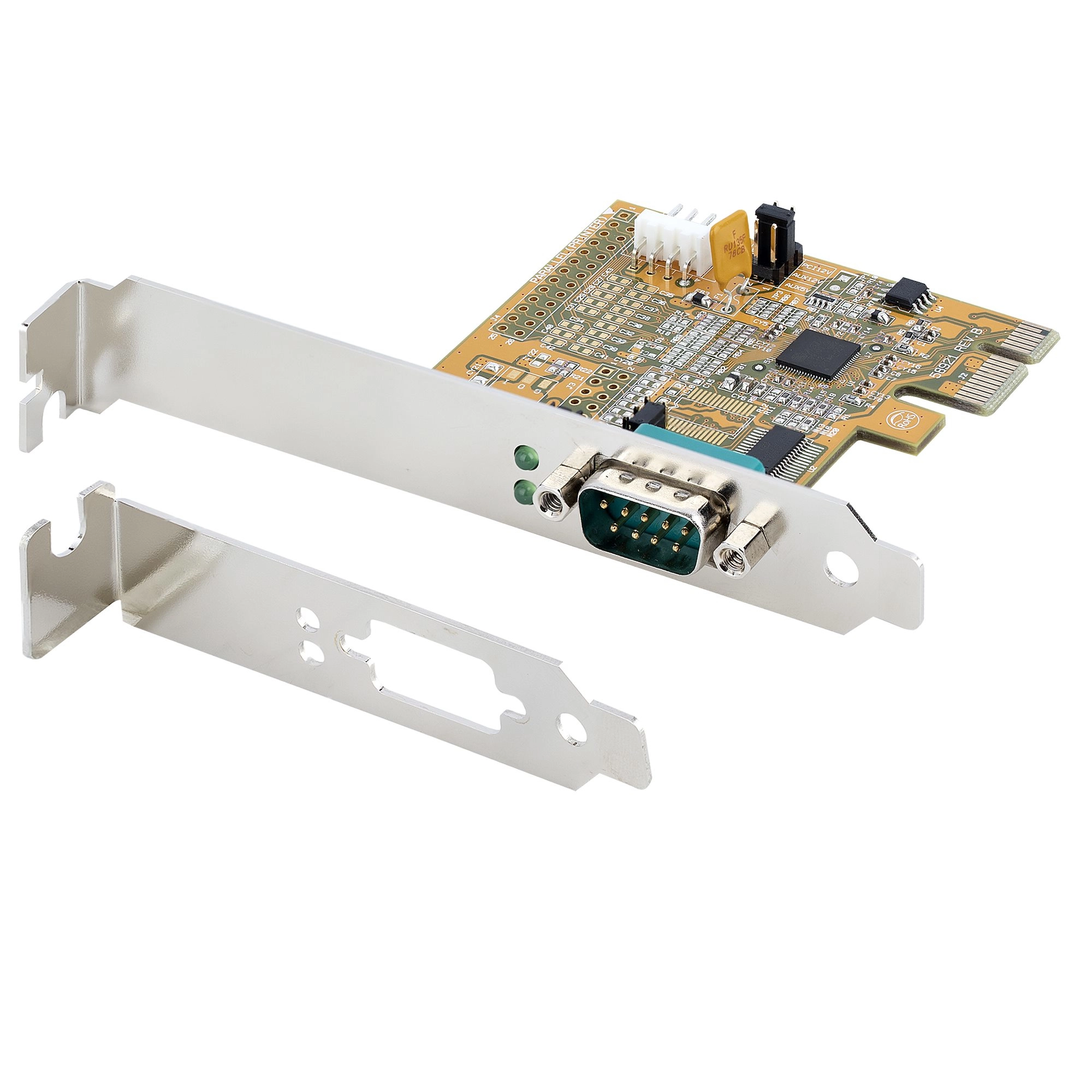

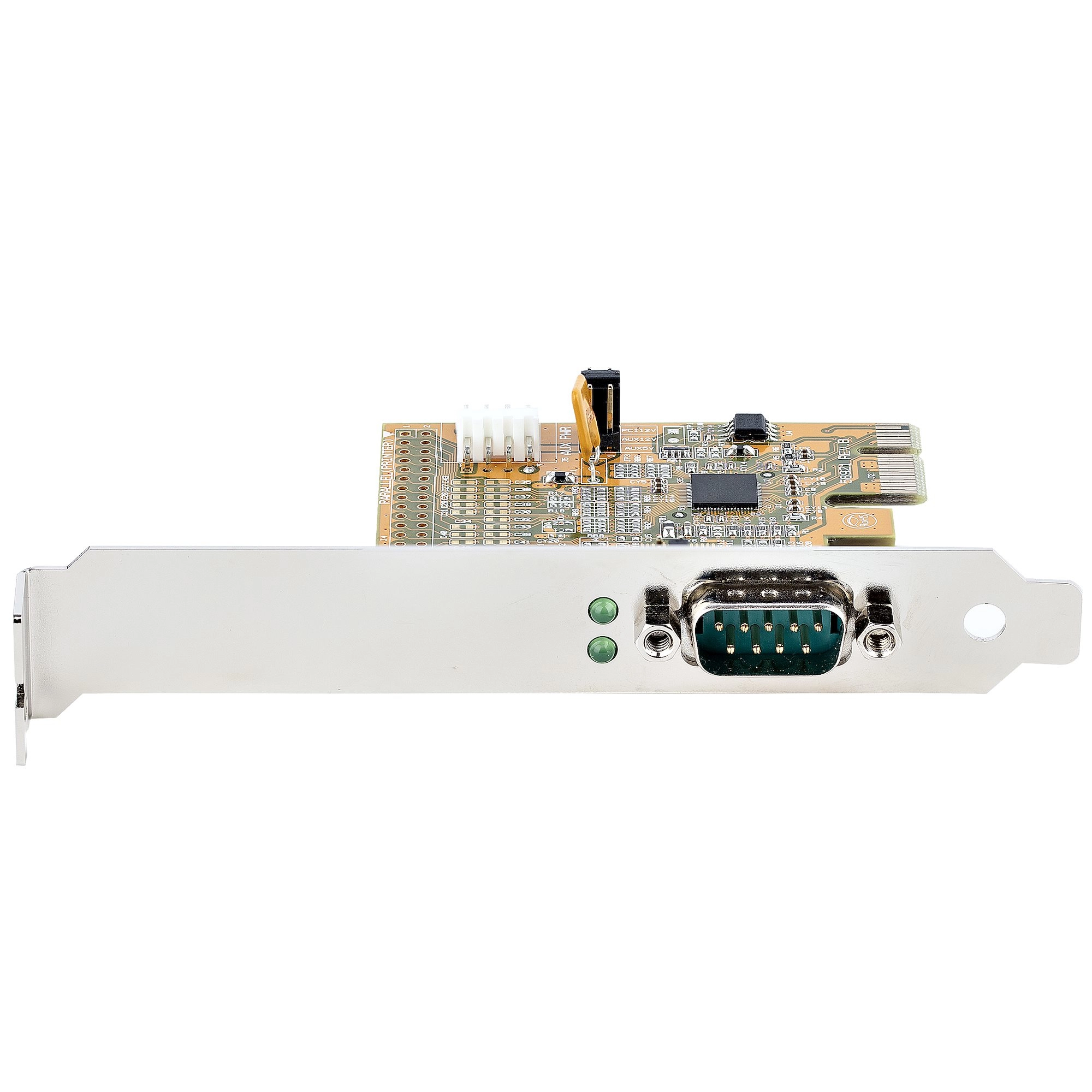

Baud Rate 921.6 Kbps per Port | 256-byte FIFO | PCIe 2.0 x1Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device. Legacy ConnectivityInstall this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more. Connect with EaseThe RS-232 card features 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps, low-profile bracket is included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.11050-PC-SERIAL-CARD is backed for 2-years by StarTech. com, including free lifetime 24/5 multi-lingual technical assistance. The StarTech. com Advantage

Specification

Product
Product id 880211
Brand StarTech.com
Partnr 11050-PC-SERIAL-CARD
EAN/UPC code 065030894777
Warranty (months) 2 Years
Technical details
Chipset ASIX - AX99100, ASIX - ZT3243LFEY
Sustainability certificates CE, RoHS
Ports & interfaces
Host interface PCIe
Output interface Serial
Expansion card form factor Full-height / Low-profile
Expansion card standard PCIe 2.0
Serial ports quantity 1
Serial interface type RS-232
Design
Internal Y
Product colour Yellow
LED indicators Activity
Features
Baud rate 921.6 Kbit/s
FIFO (First In, First Out) 256 B
Data bits 5, 6, 7, 8, 9
Flow control support Y
Parity bit Even, Mark, N, Odd, Space
Harmonized System (HS) code 84733020
Operational conditions
Operating temperature (T-T) 0 - 55 °C
Storage temperature (T-T) -40 - 75 °C
Operating relative humidity (H-H) 5 - 95 procent
Packaging data
Mounting brackets included Y
Quick installation guide Y
Package width 207 mm
Package depth 144 mm
Package height 38 mm
Package weight 200 g
System requirements
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported Y
Server operating systems supported Windows Server 2016, Windows Server 2019
Weight & dimensions
Width 65 mm
Depth 67 mm
Height 18 mm
Weight 42 g
Logistics data
Master (outer) case width 530 mm
Master (outer) case length 440 mm
Master (outer) case height 340 mm
Quantity per master (outer) case 50 stuk(s)
Other features
Material Steel
