Access Ultra-Fast NVMe Storage via 40Gbps USB4 with Thunderbolt 5 Compatibility

Turn your PCIe M.2 NVMe SSD into a fast and highly portable USB-C external storage solution. This NVMe enclosure supports USB4 (40Gbps), delivering read/write speeds up to 3, 800 MB/s. Ideal for power users handling large media files, managing data across devices, or performing OS imaging, data recovery, and disk management.

Versatile USB-C & Thunderbolt Support

Built for current and next-gen storage, this USB4 enclosure connects M-Key or B+M Key M.2 NVMe SSDs (2230/2242/2260/2280) to USB4, Thunderbolt 5/4/3, or USB 3.2 hosts. It supports PCIe Gen 4x4 NVMe drives and offers native, driverless compatibility with Windows, macOS, and Linux. Seamless interoperability with USB-C and Thunderbolt systems makes it ideal for fast backups and high-volume data transfers.

Robust Heat Dissipation

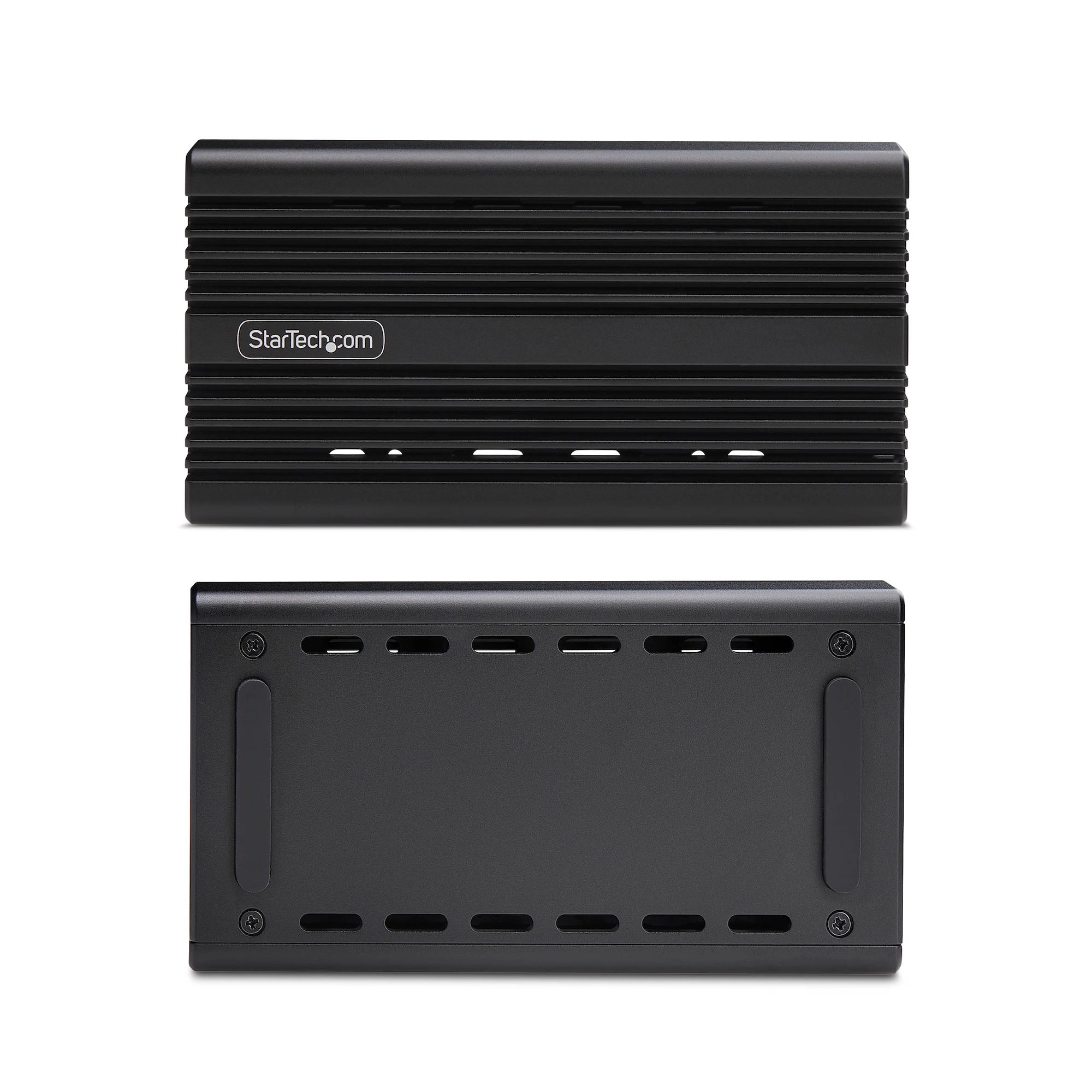

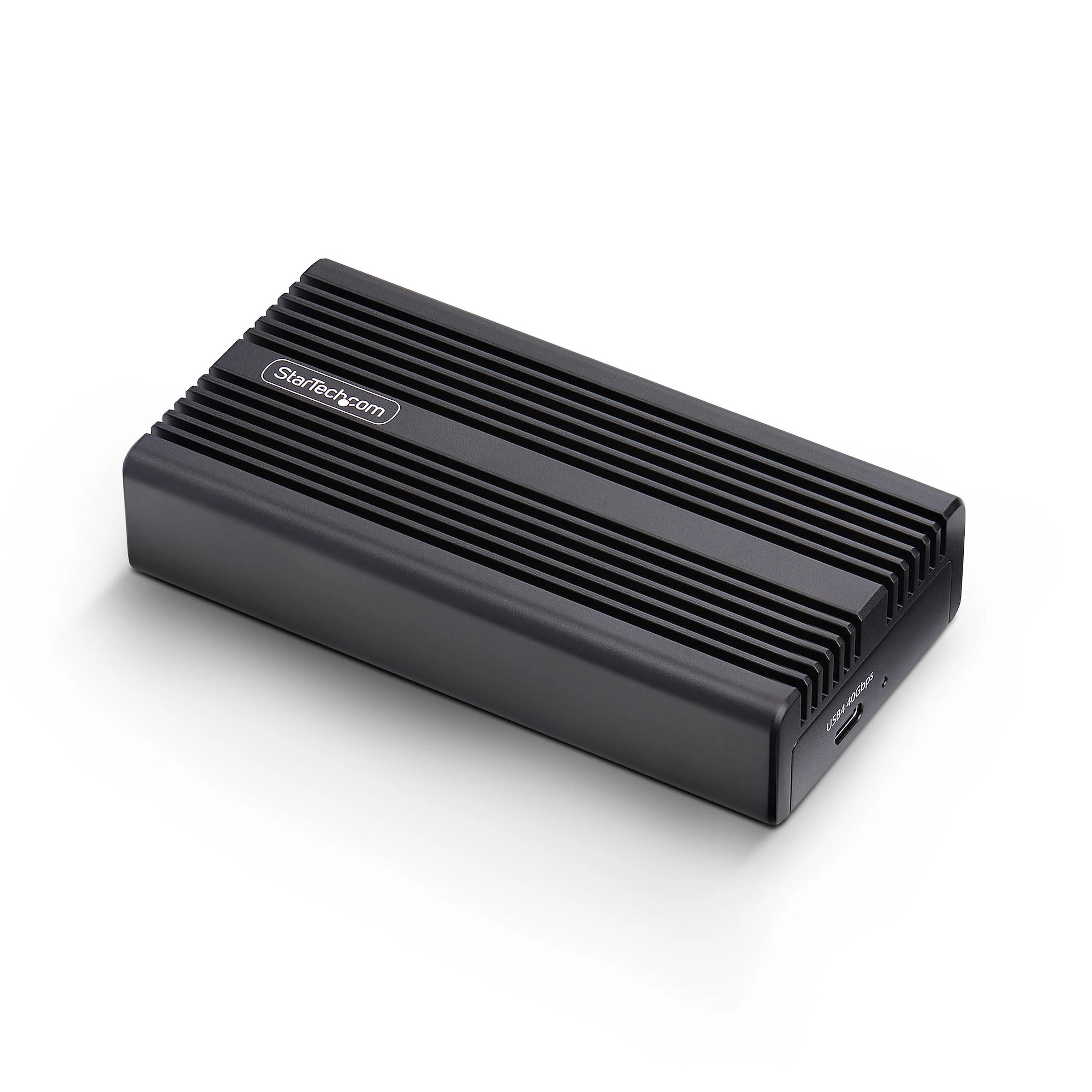

The anodized aluminum housing features a heatsink-style cover design with a high-efficiency thermal pad to enable passive cooling during sustained workloads. The fanless construction allows for silent operation while maintaining consistent transfer rates during intensive tasks such as disk imaging or data capture.

Compact and Durable

The USB4 NVMe Enclosure's compact footprint fits comfortably in a technician's toolkit or laptop bag. The rugged aluminum housing not only helps with heat dissipation but also protects the SSD from physical damage during transport or deployment in demanding environments.

Specification

Product
Product id	997222
Brand	StarTech.com
Partnr	1USB4-NVME-ENCLOSURE
EAN/UPC code	065030907248
Warranty (months)	2-Year Warranty
Storage
Storage drive size	M.2 "
Supported storage drive interfaces	PCI Express
Number of storage drives supported	1
Supported storage drive lengths	30, 42, 60, 80 mm
Supported storage drive heights	22 mm
NVMe	Y
Ports & interfaces
USB connectivity	Y
USB version	USB4 Gen 4
USB connector type	USB Type-C
USB connector gender	Female connector
USB ports quantity	1
Integrated USB cable	N
Design
Product type	SSD enclosure
Product colour	Black
Material	Aluminium
LED indicators	Y
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Performance
Data transfer rate	40 Gbit/s
Chipset	ASMedia - ASM2464PD
Plug and Play	Y
Power
Power source type	USB
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90 procent
Weight & dimensions
Width	65 mm
Depth	124.8 mm
Height	28.8 mm
Weight	340 g
Cable length	0.3 m
Package width	190 mm
Package depth	114 mm
Package height	35 mm
Package weight	430 g
Packaging content
Cables included	USB Type-C to USB Type-C
Screwdriver included	Y
Manual	Y
Logistics data
Master (outer) case width	395 mm
Master (outer) case length	200 mm
Master (outer) case height	260 mm
Quantity per master (outer) case	20 stuk(s)
