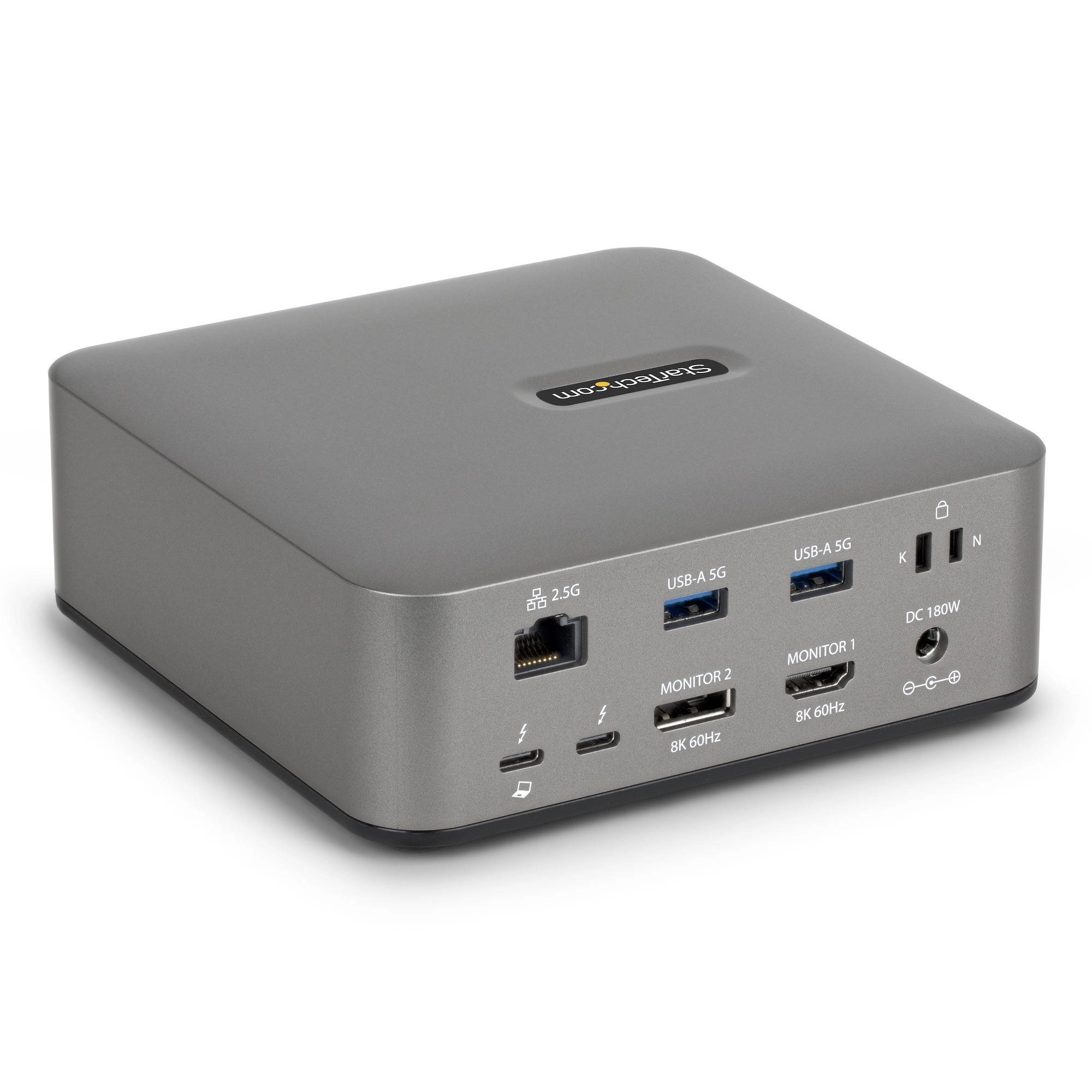

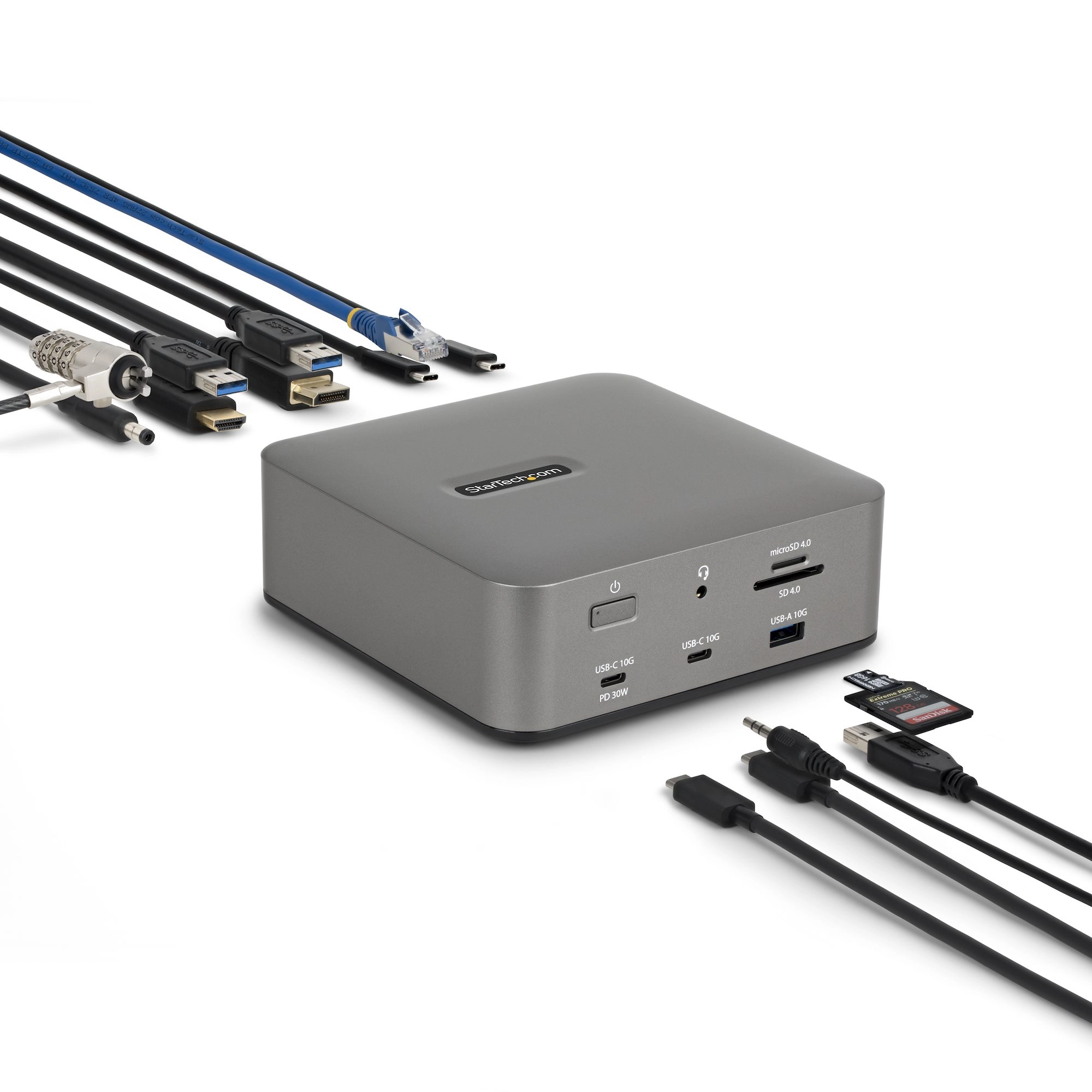

Transform your Thunderbolt 5 or USB4 laptop into a high-resolution, multi-monitor workstation

Simplify your workspace with a high-performance dock that supports Thunderbolt 5, Thunderbolt 4, and USB4 laptops. Supports multiple displays up to triple 4K displays, 140W laptop charging, and 2.5G Ethernet, all through a single connection.

Advanced Display and Charging Capabilities

Connect up to three 4K 144Hz displays using a combination of HDMI, DisplayPort, and USB-C outputs or dual 8K 60Hz via HDMI and DisplayPort. The docking station includes an 180W power adapter that can supply up to 140W to charge high-performance laptops such as the MacBook Pro M4. A dedicated 30W USB-C port provides data connectivity and charging for phones or tablets without drawing power from the host computer.

Networking and Compatibility

Enjoy faster cloud access, file transfers, and virtual collaboration with the wired 2.5G Ethernet RJ45 port. Driverless dock is compatible out of the box with Windows 11 and macOS 15 / 26 systems that feature Thunderbolt 5, 4, or USB4 connectivity, helping ensure IT-managed deployments stay efficient and consistent.

Secure and High-Functioning Workspace

Dual security slots (K-Slot and Nano) let you physically secure the dock helping prevent theft in shared environments or high-traffic workspaces. This dock features built-in SD 4.0 and microSD 4.0 card slots for fast transfers from UHS-II-compatible memory cards. A 3.5mm audio jack supports headsets or speakers for seamless conferencing or media playback.

Enterprise Management Tools

StarTech. com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features such as MAC address pass-through, Wi-Fi auto-switch, and USB device monitoring, the software helps IT teams streamline deployment and enhance security across diverse setups.

Download the StarTech. com Connectivity Tools to optimize your device setup .

Specification

Product
Product id	1006298
Brand	StarTech.com
Partnr	215UE-TB5USB4DOCK
EAN/UPC code	065030923118
Warranty (months)	3 Years
Ports & interfaces
Connectivity technology	Wired
Host interface	Thunderbolt 5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Power Delivery	Y
USB Power Delivery up to	140 W
HDMI ports quantity	1
DisplayPorts quantity	1
Combo headphone/mic port	Y
Headphone outputs	1
Headphone connectivity	3.5 mm
Thunderbolt 5 ports quantity	1
DC-in jack	Y
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000, 2500 Mbit/s
Wake-on-LAN ready	Y
Networking standards	IEEE 802.3bz
Full duplex	Y
Performance
Product colour	Grey
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
Data transfer rate	40 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 Pixels
Number of displays supported	3
Cable lock slot	Y
Cable lock slot type	Kensington, Nano
Maximum refresh rate	144 Hz
On/off switch	Y
Housing material	Plastic
LED indicators	Y
UASP support	Y
Power
Output current	9 A
Output voltage	20 V
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported	Mac OS X 15.0 Sequoia
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	50 mm
Weight	592 g
Packaging data
Package width	302 mm
Package depth	6.7 mm
Package height	59 mm
Package weight	1800 g
Packaging content
User guide	Y
AC adapter included	Y
Cables included	Thunderbolt
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90 procent
Technical details
Compliance certificates	RoHS, Trade Agreements Act (TAA)
Logistics data
Master (outer) case height	170 mm
Master (outer) case length	330 mm
Master (outer) case width	360 mm
Quantity per master (outer) case	5 stuk(s)
Other features
Chipset	Intel - JHL9480 (Barlow Ridge), Synaptics - VMM7100, VIA Labs - VL822, VIA Labs - VL817, Realtek - RTL8156B, Genesys Logic - GL3231S, Parade - FL5801, Realtek - ALC4030U
