Add a 2.5Gb Ethernet port to your MacBook, Chromebook™ or laptop with USB-C or Thunderbolt™ 3

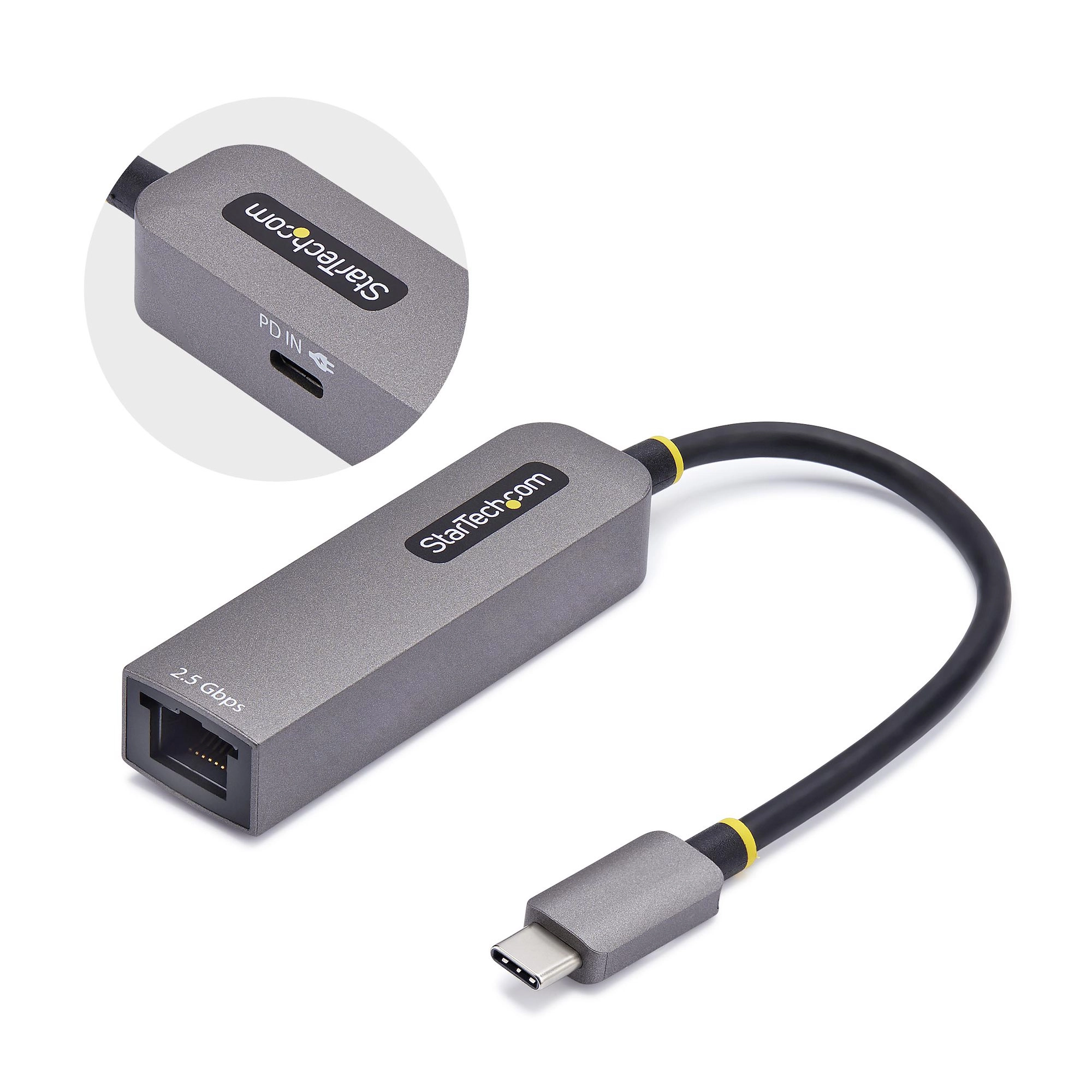

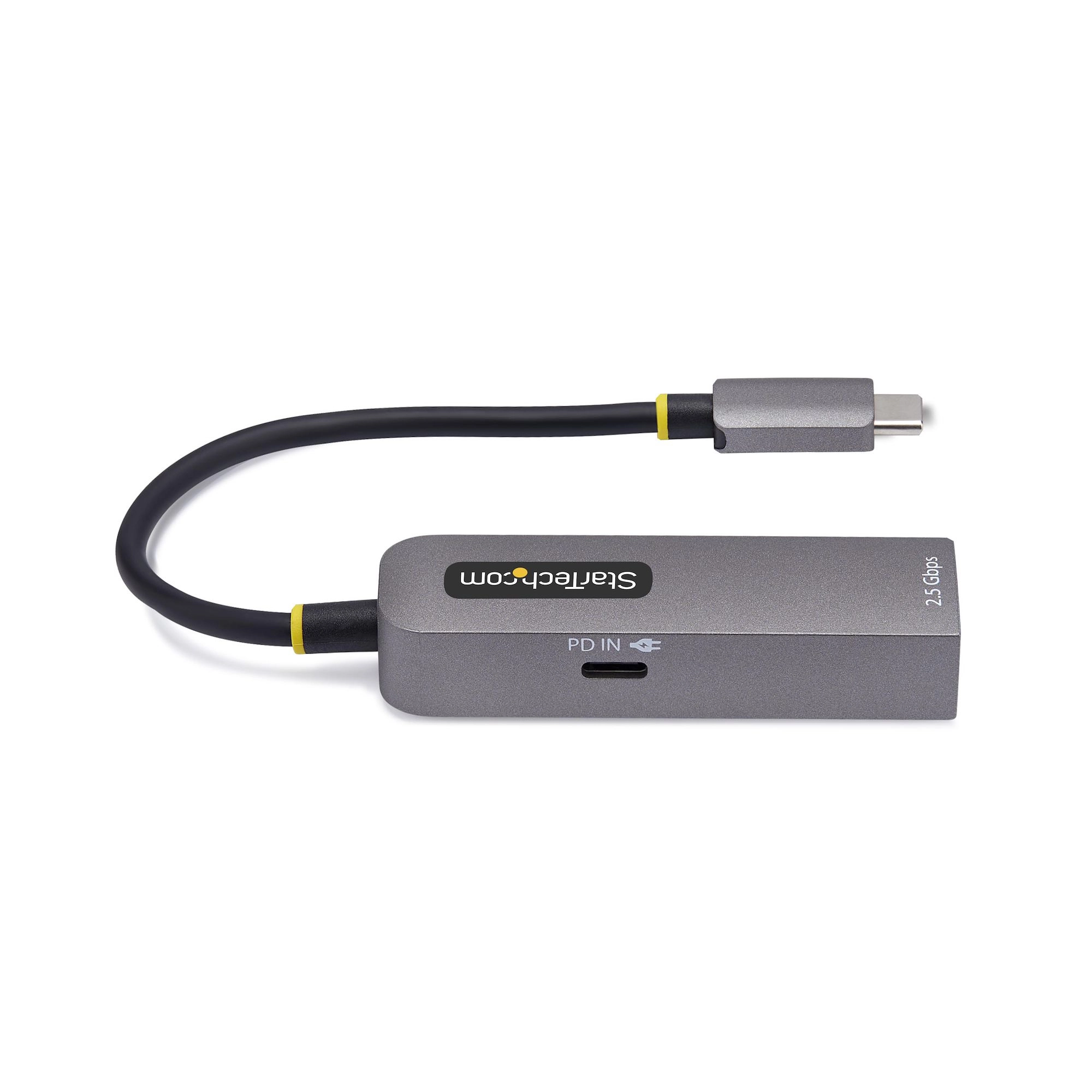

Add 2.5GbE network access to laptops, tablets, and iPhones equipped with a USB-C port. This USB-C to Ethernet Adapter features a 100W PD pass-through port that allows you to connect a charger to the same USB-C port, enabling simultaneous Ethernet connection and device charging. Enable ethernet connection without losing access to the original USB-C port for charging or connecting additional peripherals; well-suited for devices with limited ports.

2.5 Gigabit Network Connection

This slim form factor adapter is ideal for office use and hot desks. Download large files from a network more quickly, experience higher quality video conference streaming, and sync files to the cloud in the background, without impacting your other browsing. This adapter supports both current and legacy Ethernet networks down to 10Mbps, making it ideal for providing a reliable network connection almost anywhere whether at home, work or while traveling. The Realtek chipset is broadly supported on new and older laptops enabling PXE capabilities to aid IT departments with provisioning and maintaining systems along with Wake-on-LAN (WoL) support. The adapter provides a wired connection that is faster and more secure than wireless, making it ideal for IT professionals.

Native Driver Support Makes Installation Easy

Simply plug this USB-C to Ethernet adapter into the USB port on a laptop and connect to a network. The network adapter Realtek chipset provides native driver support for Windows (10/11, ARM supported) Macbooks (macOS), Chromebooks (ChromeOS), Snapdragon, Linux, iPhones, and tablets. Any Windows operating systems without the driver will be automatically prompted to download the software directly from the adapter, ensuring quick and effective installation with no Internet access required.

The StarTech. com Advantage

Specification

Product
Product id	978055
Brand	StarTech.com
Partnr	2GPD3-USB-C-ETHERNET
EAN/UPC code	065030904742
Warranty (months)	2-Year Warranty
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC)
Ports & interfaces
Connectivity technology	Wired
Host interface	USB Type-C
Interface	Ethernet
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
USB version	3.2 Gen 1 (3.1 Gen 1)
USB connector form factor	Straight
USB pass-through	N
Network
Maximum data transfer rate	5000 Mbit/s
Networking standards	IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Ethernet interface type	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10, 100, 1000, 2500 Mbit/s
Cabling technology	NBase-T
Wake-on-LAN ready	Y
Auto MDIX IEEE	Y
Full duplex	Y
Auto-negotiation	Y
Jumbo frames support	Y
VLAN tagging	Y
Design
Internal	N
Component for	PC/Server
Product colour	Grey
Chipset	Realtek RTL8156BG
LED indicators	Y
Mean time between failures (MTBF)	1912948 uur
Power
Output voltage	5 V
USB powered	Y
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85 procent
Packaging data
Package width	220 mm
Package depth	128 mm
Package height	16 mm
Package weight	27 g
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma
Linux operating systems supported	Y
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2022
Weight & dimensions
Depth	22 mm
Height	15 mm
Weight	24.7 g
Logistics data
Master (outer) case width	500 mm
Master (outer) case length	320 mm
Master (outer) case height	210 mm
Quantity per master (outer) case	250 stuk(s)
Other features
Jumbo frames	16000
Cable length	0.15 m
