Split and extend a single 4K 60Hz HDMI signal to two HDMI displays over a distance of up to 230ft (70m) with Power over Cable

This HDMI extender and splitter delivers reliable 4K AV distribution to two displays over Ethernet cabling for professional AV installations. Enables flexible deployment using Ethernet cables for longer-range and in-wall runs. Ideal for centralized AV distribution in boardrooms, digital signage, educational facilities, and hospitality environments.

HDMI Over Ethernet Cabling

Extend HDMI signals to two remote displays over CAT6/6a cabling using a single transmitter. Transmitter features a HDMI output providing a direct connection for a local display. Supports 4K 60Hz video and 2 channel audio up to 230ft (70m). Includes IR extension support for remote control of the source device from any connected display.

Powered with a Single Power Adapter

Single power adapter connects to the transmitter; both receivers are powered directly over the CAT6/6a cables. Simplifies installation in environments with limited power access and reduces overall cable clutter.

No Drivers, Software, or IP Configuration

Plug-and-play installation with no additional drivers, software, or network setup required. Supports any operating system including Windows, macOS, and ChromeOS, and is compatible with all hardware platforms including Intel, AMD, and Apple Silicon.

Versatile Mounting Options

1x2 HDMI distribution kit includes mounting brackets for wall, ceiling, or under-table installation at both transmitter and receiver locations. Compact form factor enables discreet installation in tight spaces.

Specification

Product
Product id	1003132
Brand	StarTech.com
Partnr	4K7012IC-EXTEND-HDMI
EAN/UPC code	065030916158
Warranty (months)	2 Years
Features
Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 Pixels
Cable types supported	Cat6, Cat6a
Chipset	GSV5100
Maximum transfer distance	70 m
Maximum refresh rate	60 Hz
Audio output channels	2.0 kanalen
Daisy chain	N
Rack mounting	N
LED indicators	Y
Product colour	Black
Ports & interfaces
Connectivity technology	Wired
RJ-45 input ports	2
RJ-45 output ports	2
Number of HDMI outputs	3
HDMI in	1
Remote (IR) input	2
Remote (IR) output	1
DC-in jack	Y
Power
AC input voltage	100 - 240 V
Operating voltage	12 V
Input current	0.8 A
Output current	2 A
Power consumption (typical)	24 W
Power plug type	Type M
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 90 procent
Weight & dimensions
Width	70 mm
Depth	154 mm
Height	23 mm
Weight	261 g
Packaging data
Package width	292 mm
Package depth	238 mm
Package height	55 mm
Package weight	1100 g
Packaging content
AC adapter included	Y
Included power plug types	ANZ, EU, NA, UK
Quick start guide	Y
Mounting kit	Y
IR blaster included	Y
IR receiver included	Y

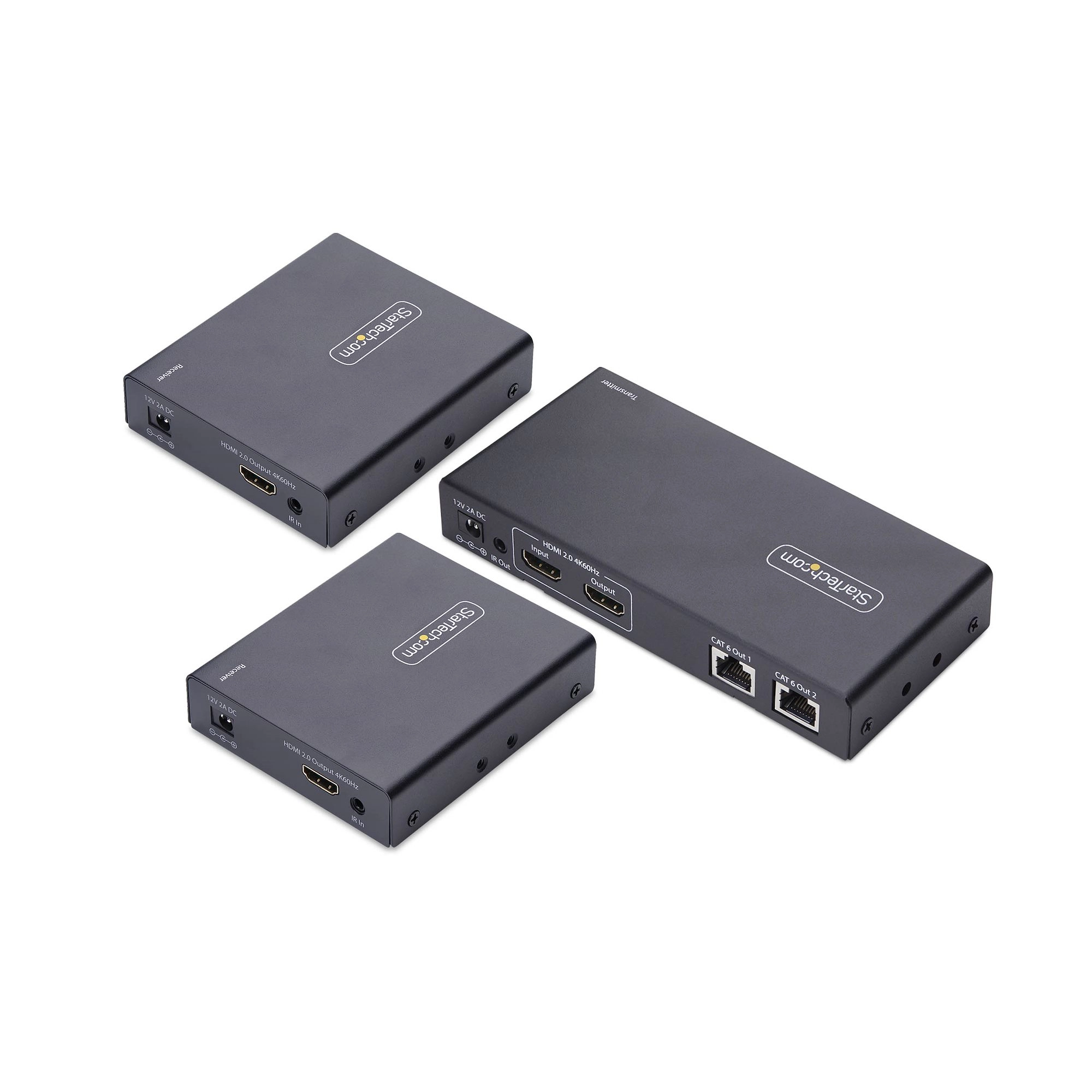

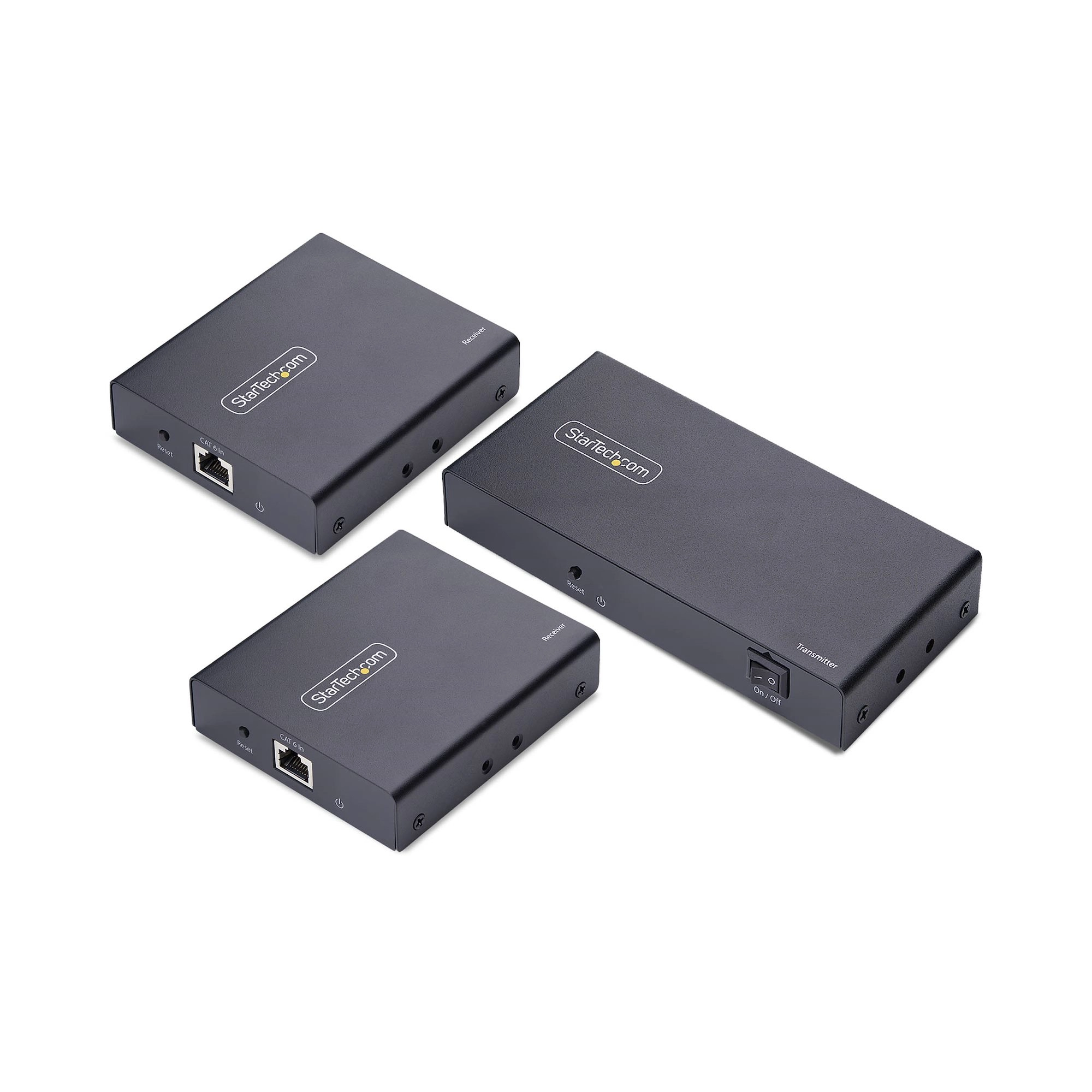

Packaging content	1 - HDMI Transmitter 2 - HDMI Receiver
Logistics data
Master (outer) case width	500 mm
Master (outer) case length	300 mm
Master (outer) case height	330 mm
Quantity per master (outer) case	10 stuk(s)
