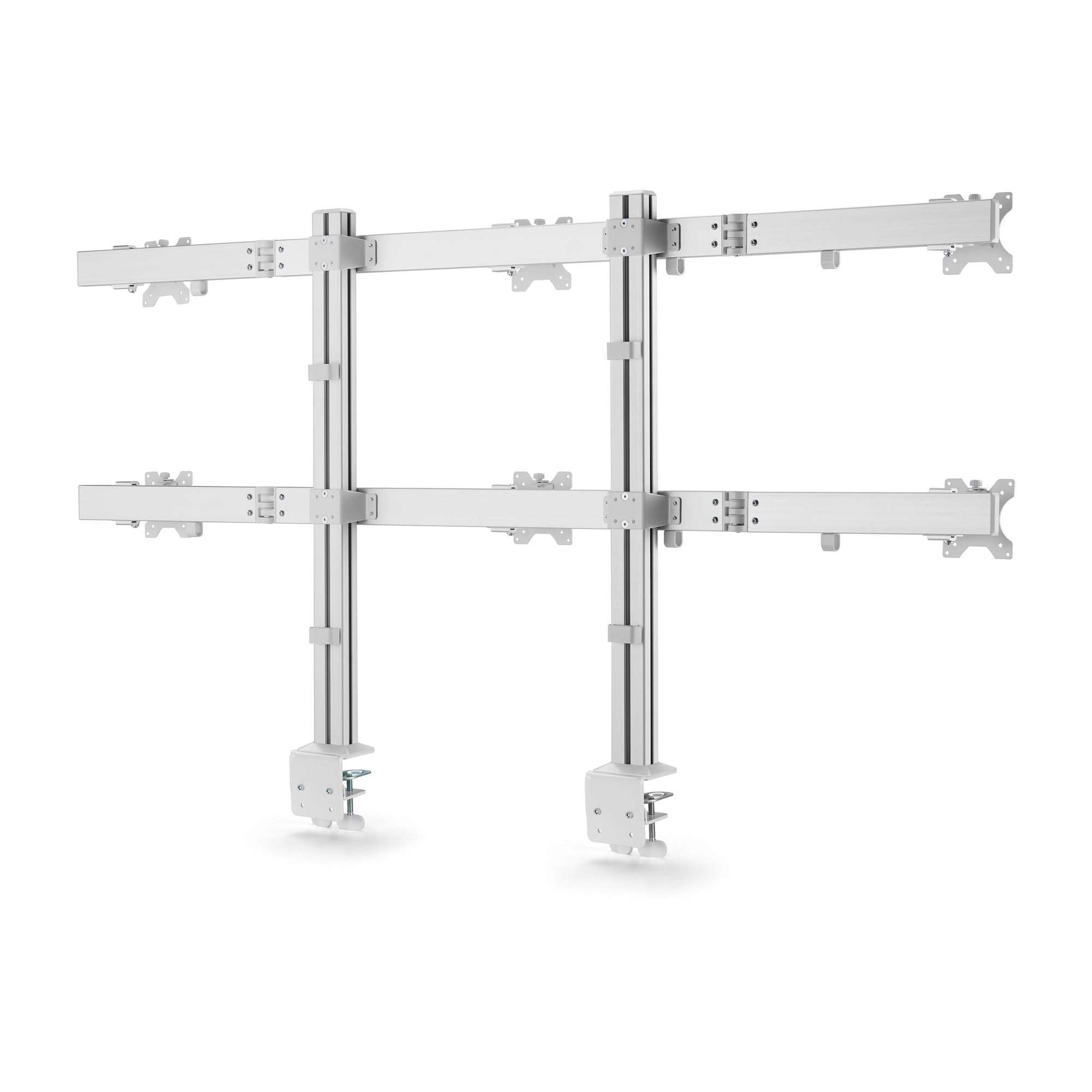

Six monitor desk mount with support up to 32" displays with articulation and height adjustment. VESA compatible 75x75/100x100

This monitor desk mount is designed to support up to six 32-inch displays, creating an ergonomic multi-monitor setup that provides a vast viewing area for productivity.

Dual-Column Stability

The dual-column design, sturdy aluminum construction, and enhanced c-clamp base ensure long-lasting stability. This design prevents tilting over time and evenly distributes weight across the desk for reliable support.

Perfect 3x2 Setup

This monitor setup is ideal for data aggregation and monitoring applications such as financial analysis, security monitoring, control rooms, and other activities that require an extensive viewing area.

Individual micro-height adjustment enables precise alignment of each monitor.

Display Adjustment

The ergonomic VESA plate support +/-17° swivel, +/-34° tilt, and 360° screen rotation for portrait or landscape orientation, and 75x75/100 patterns. Each display mount can support up to 17.6lb (8kg).

Every monitor can be positioned along the 71.1-inch (1.8m) wide crossbars. The outer monitors can be angled (+/-16°) toward the user.

Convenient Installation

The mount offers dual mounting options: robust C-clamps for desks from 0.4 to 2.9in (1 to 7.5cm) thick or grommet hole mounts for desks from 0.4 to 1.7in (1 to 4.5cm) thick.

Each crossbar can be positioned along the two 33.5-inch (85.3cm) columns, providing flexible height options.

All VESA plates are removable for easy installation or removal of the monitors.

Organized Workspace

To maintain an organized workspace, the mount includes cable clips for the crossbars and columns to keep cables neatly tucked away and out of sight. Combine accessories such as cable ties and hooks (parts HKLP25GN and CBMZT8B) for a tidier setup.

The StarTech. com Advantage

Specification

Product
Product id	987258
Brand	StarTech.com
Partnr	6-MONITOR-ARM-A
EAN/UPC code	065030895323
Warranty (months)	5 Years
Mounting
Maximum weight capacity	48 kg
Maximum weight capacity (per display)	32 kg
Minimum screen size compatibility	17 "
Maximum screen size	32
Mounting type	Desk
Mounting	Clamp/Grommet
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Number of displays supported	6
Extension arm (max)	1806 mm
Desk thickness (min)	20 mm
Desk thickness (max)	75 mm
Clamp mount desk thickness (max)	75 mm
Grommet mount desk thickness (max)	45 mm
Ergonomics
Height adjustment	Y
Tilt angle range	-34 - 34 °
Swivelling	Y
Swivel angle range	-17 - 17 °
Angle of rotation	360 °
Cable management	Y
Rotating	Y
Tilt adjustment	Y
Design
Product colour	White
Housing material	Aluminium, Plastic, Steel
Anti-theft function	N
Packaging content
Wrench included	Y
Wrench type	Hexagonal wrench
Clamp included	Y
Number of cable clips	12
Number of rubber pads included	10 stuk(s)
Number of end caps included	2 stuk(s)
Mounting brackets included	Y
Screws included	Y
Number of screws	138
Number of washers included	24
Number of spacers included	24
Grommet base plate included	Y
Grommet plate included	Y
Manual	Y
Weight & dimensions
Width	1800 mm
Depth	118 mm
Height	863 mm
Weight	14000 g
Package width	1030 mm
Package depth	405 mm
Package height	120 mm
Package weight	15800 g
Logistics data
Master (outer) case width	1030 mm
Master (outer) case length	405 mm
Master (outer) case height	120 mm
Quantity per master (outer) case	1 stuk(s)
