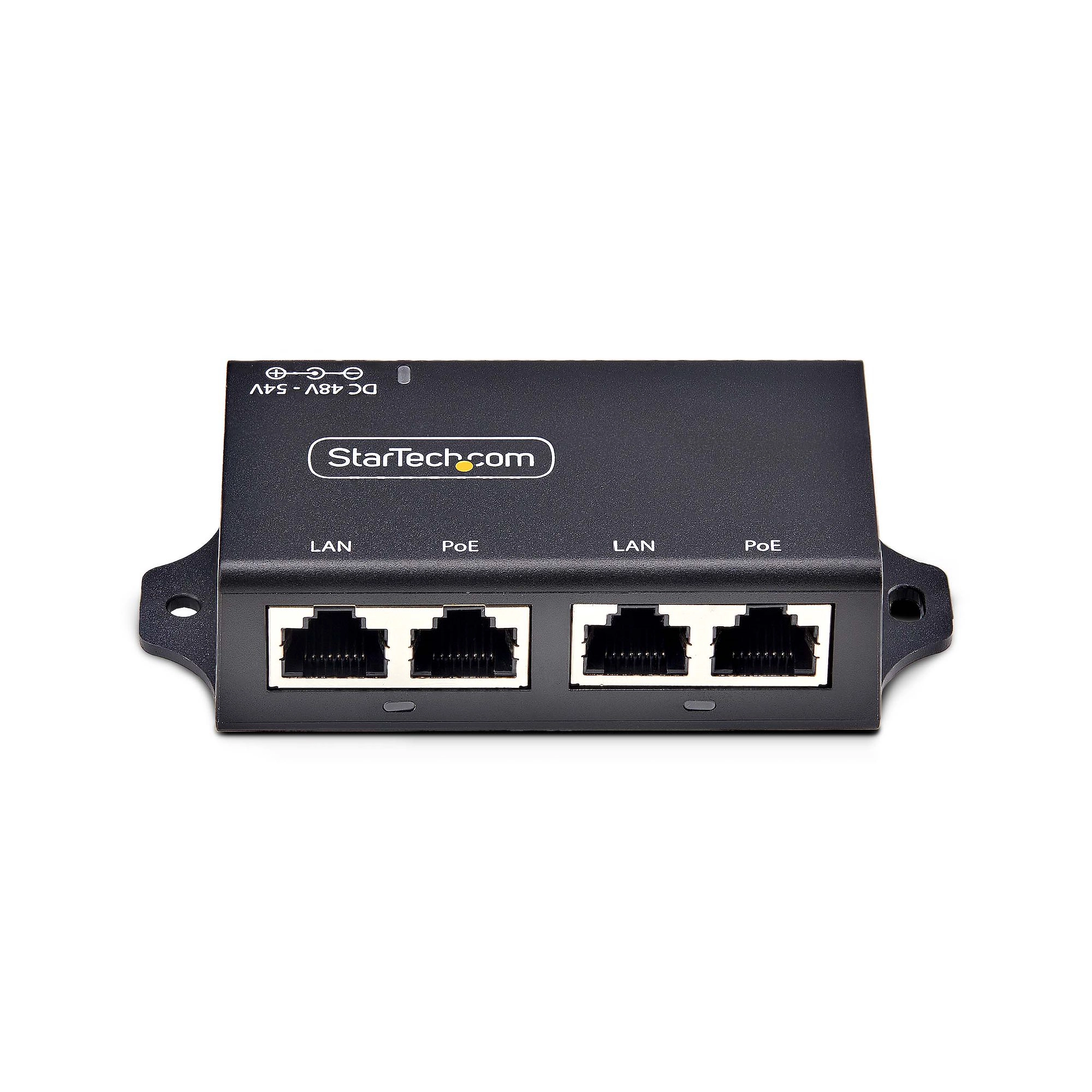

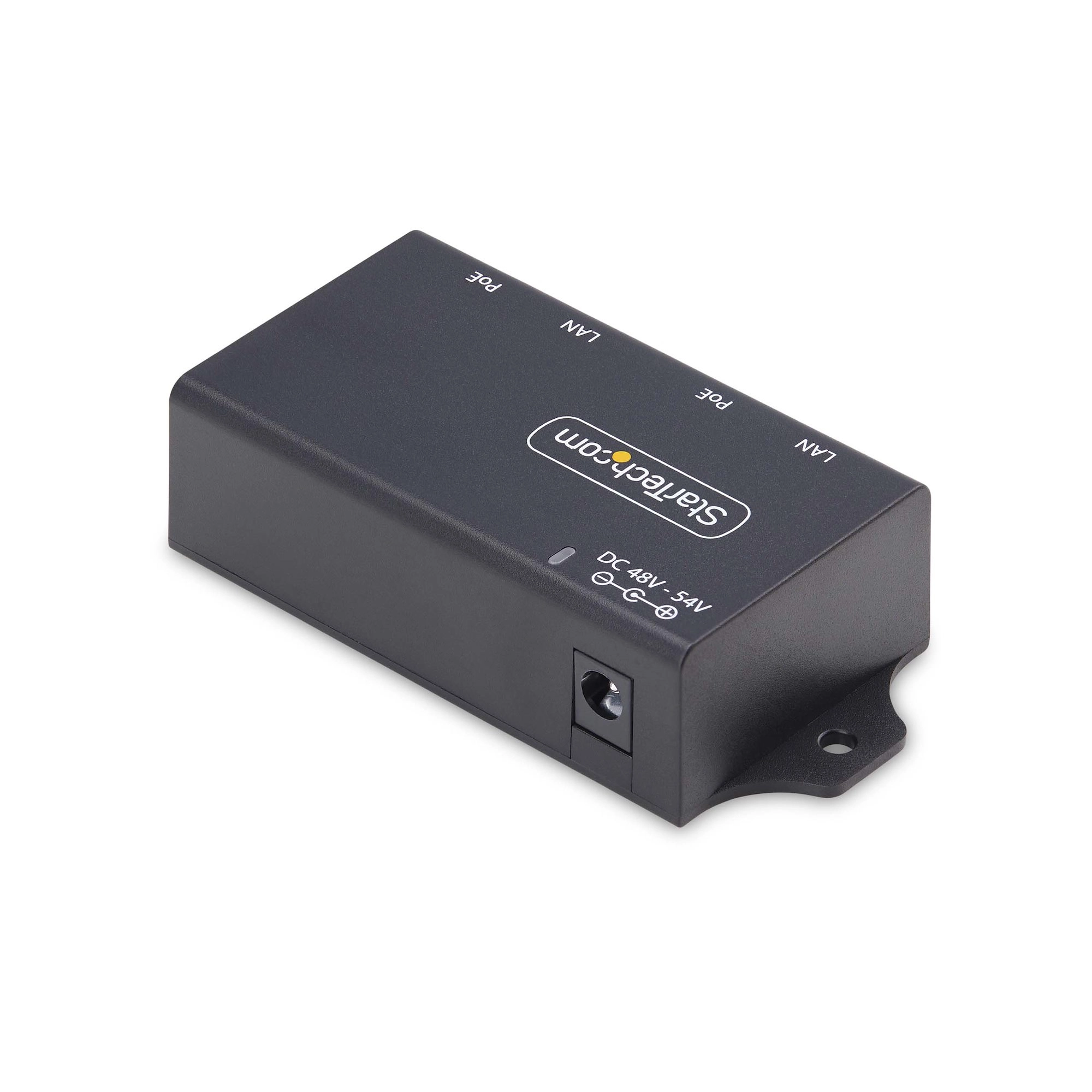

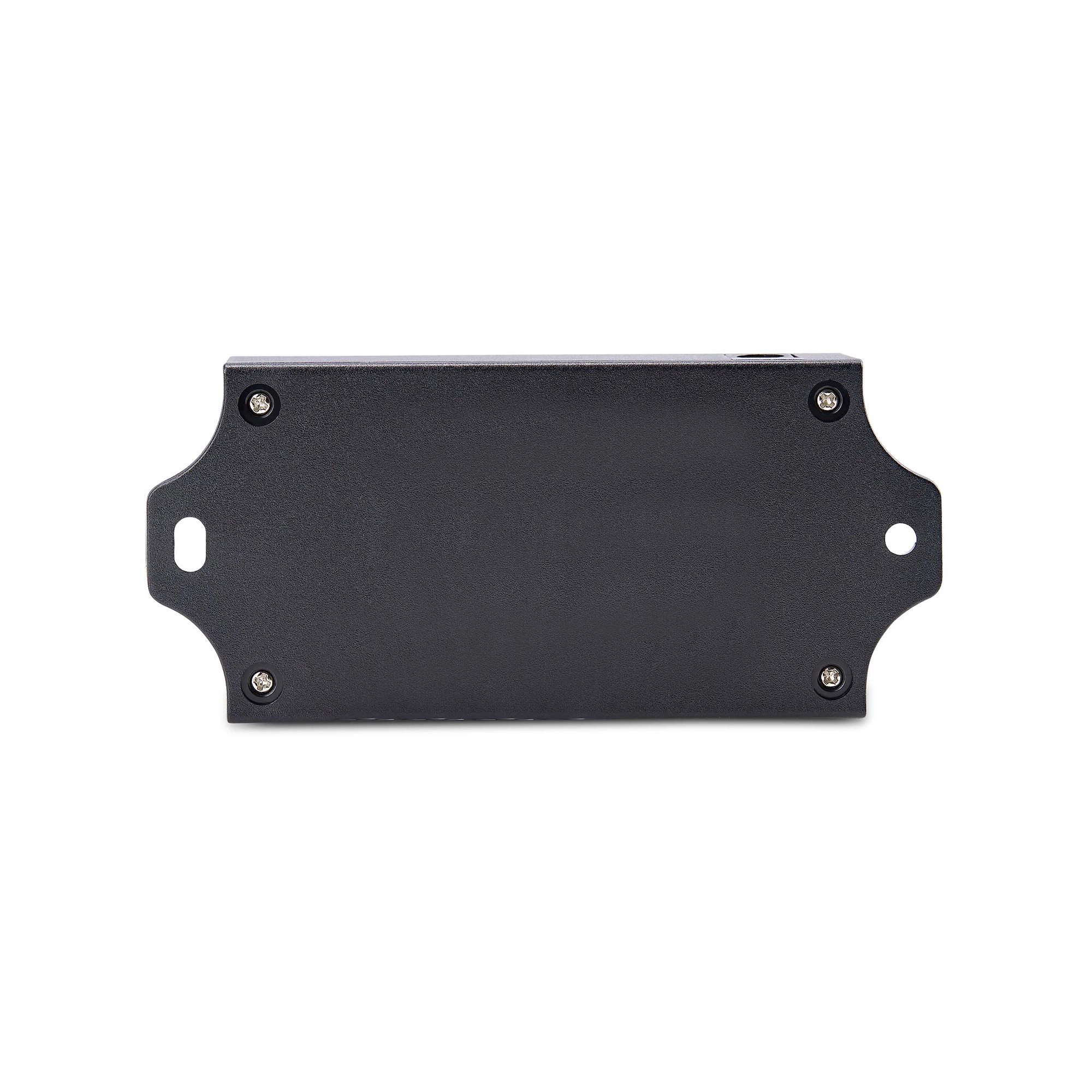

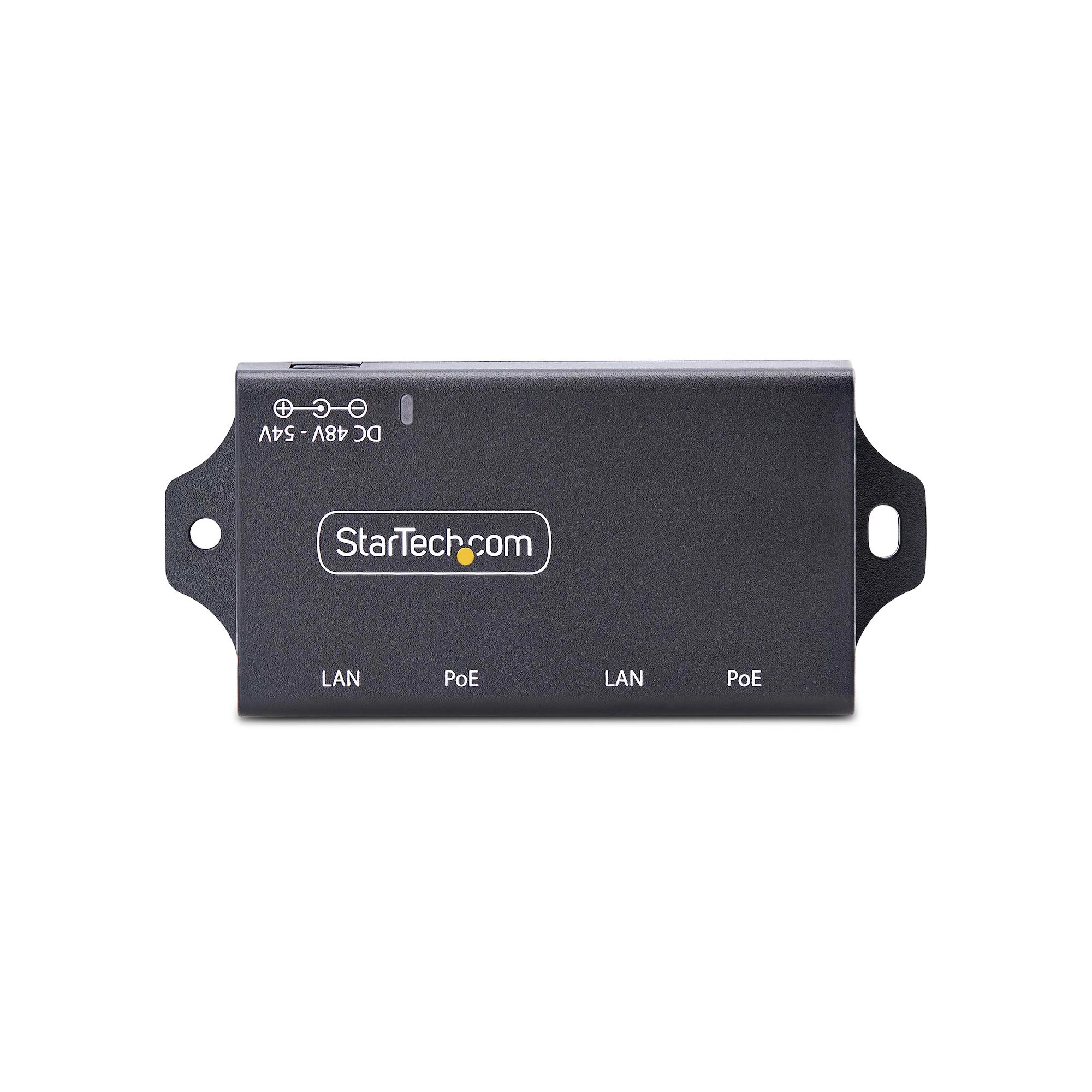

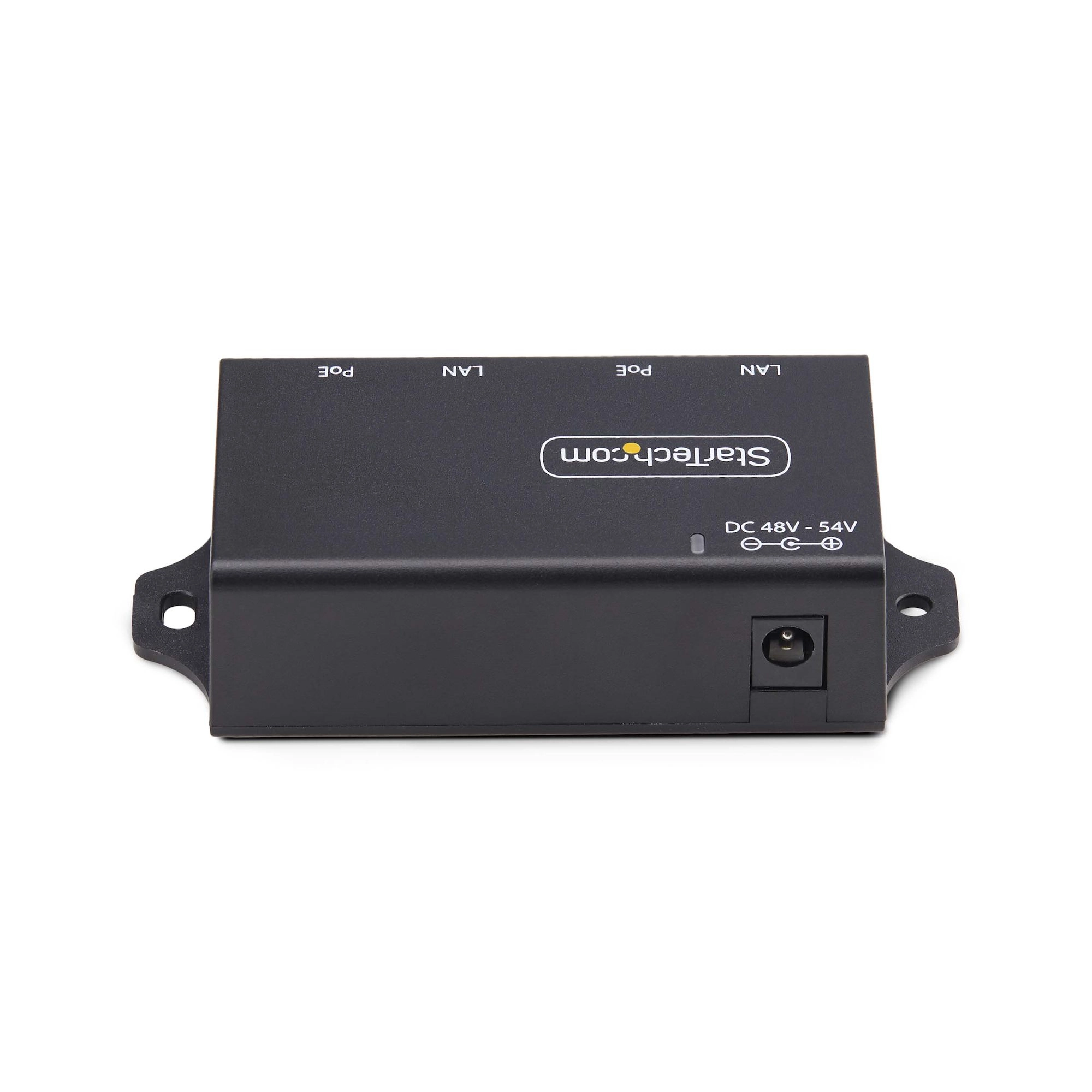

Supply power and data to two PoE devices over standard Ethernet cabling

This 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps. This mid-span inline injector can transmit network data and power up to 328ft (100m) for two Powered Devices (PD).

Versatile PoE Injector

Dual-port PoE injector supports the IEEE 802.3af and IEEE 802.3at PSE standards and delivers up to 30W output (52V/0.580A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design allows for either desktop or surface-mount use.

Streamlined Cable Management

All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (3.2x1x1.8in(82x25x46mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.

The StarTech. com Advantage

Specification

Product
Product id	974726
Brand	StarTech.com
Partnr	AF221CE-POE-INJECTOR
EAN/UPC code	065030911313
Warranty (months)	2 Years
Network
Ethernet interface type	Gigabit Ethernet, Fast Ethernet
Ethernet LAN data rates	10, 1000, 100 Mbit/s
Power over Ethernet (PoE)	Y
Chipset	IC Plus - IP802AR
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3at
Cabling technology	10/100/1000
Web-based management	N
Auto MDI/MDI-X	Y
Features
Wall mountable	Y
Housing material	Plastic
Surge protection	Y
Maximum operating distance	100 m
Product colour	Black
LED indicators	Y
Jumbo frames support	Y
Jumbo frames	9000
Auto-negotiation	Y
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
RJ-45 input ports	2
RJ-45 output ports	2
DC-in jack	Y
Power
Output power	30 W
AC adapter input voltage	100 - 240 V
AC adapter output voltage	52 V
Input current	1.5 A
Output current	1.25 A
Power consumption (max)	65 W
Total Power over Ethernet (PoE) budget	30 W
Power plug type	Type M
Surge protection voltage	2 kV
Suitable for use in country/location	Europe, United Kingdom
Technical details
Compliance certificates	RoHS
Operational conditions
Operating relative humidity (H-H)	5 - 90 procent
Storage temperature (T-T)	-10 - 70 °C
Weight & dimensions
Width	46 mm
Depth	102 mm
Height	25 mm
Weight	60 g
Packaging data
Package width	207 mm
Package depth	144 mm
Package height	38 mm
Package weight	105 g
Packaging content
Quick installation guide	Y
Logistics data
Master (outer) case width	440 mm
Master (outer) case length	420 mm
Master (outer) case height	320 mm
Quantity per master (outer) case	40 stuk(s)
