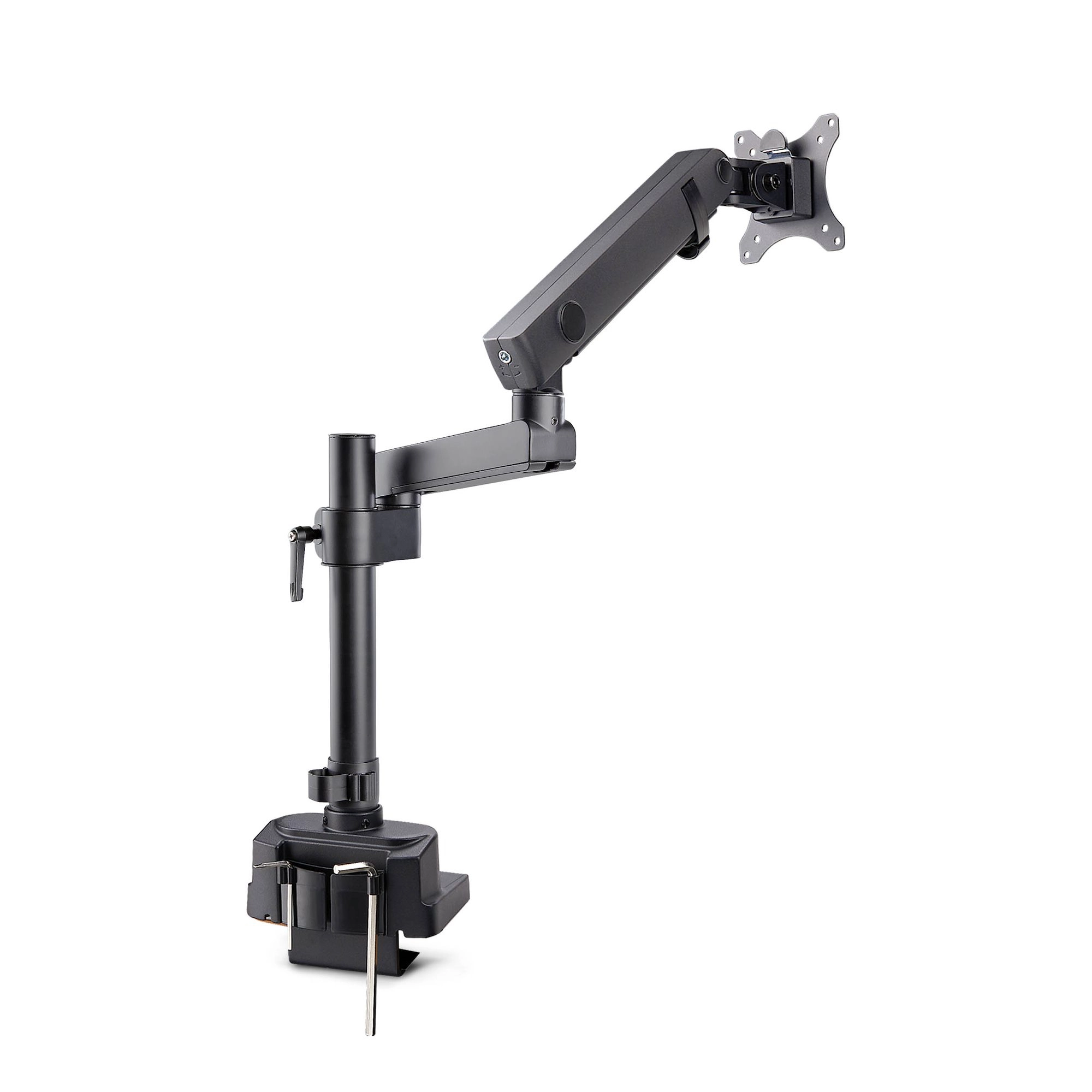

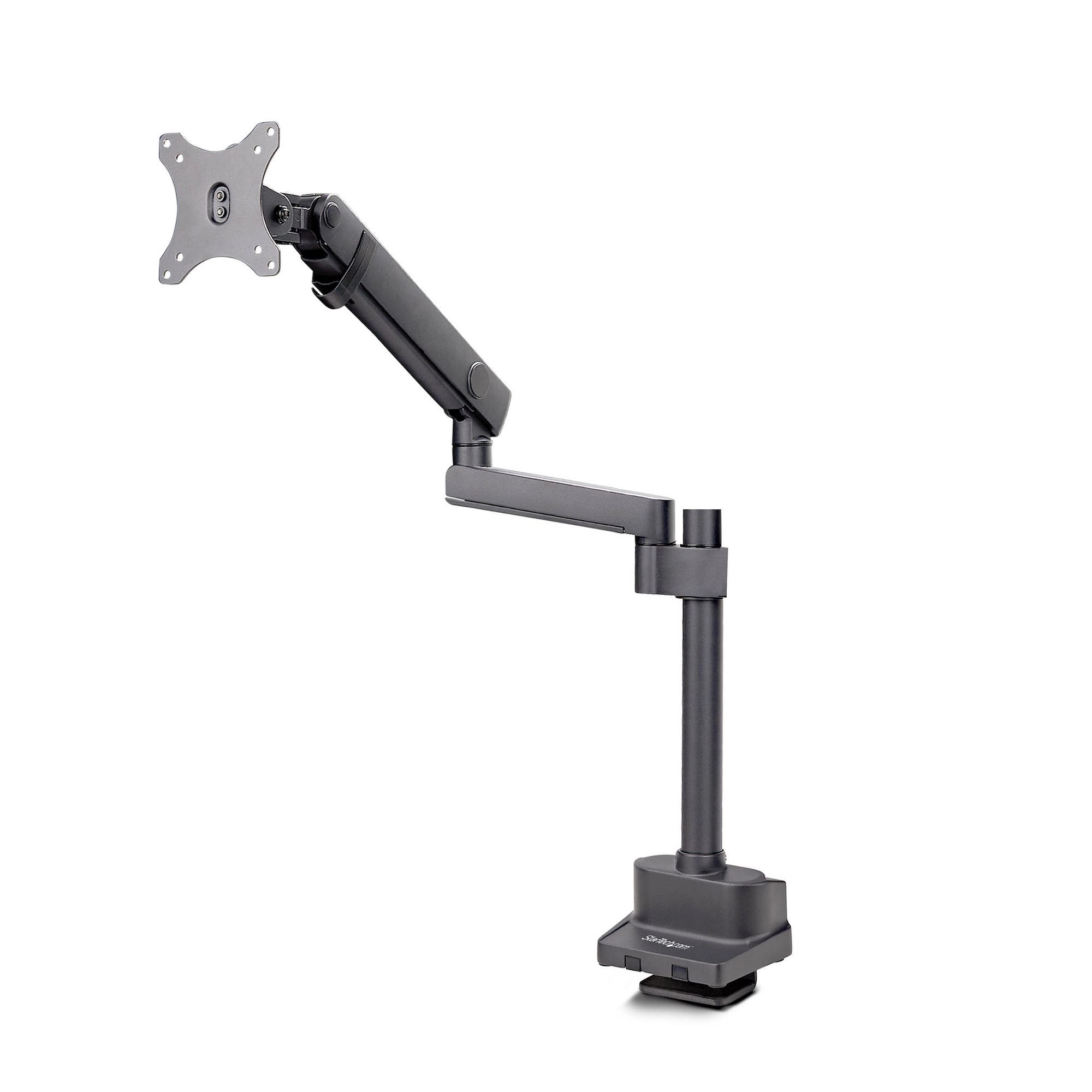

Monitor desk mount with support for up to 40" monitor with height adjustable spring arm

This monitor desk mount creates an ergonomic workspace for productivity and supports up to a 40-inch monitor and a maximum weight of 17.6lb (8kg). The robust mechanical spring ensures long-term durability and allows for smooth arm adjustment to suit different ergonomic needs.

Top-Down Installation

The uniquely design desk clamp simplifies installation by enabling users to tighten the clamp from above using a hex key or a hand drill, eliminating the need to go under the desk. In addition, the desk clamp is designed with a C-clamp and grommet mount to accommodate desks up to 2 inches (50mm) thick, providing flexibility for different desk configurations.

Height Adjustment with One Smooth Motion

Mechanical spring-assisted arm enables a height adjustment range of up to 17.3in (44cm) to a maximum height of 24.4in (62cm) with effortless one-touch motion. The monitor arm can extend up to 23.3in (59.4cm) from the base of the desktop mount.

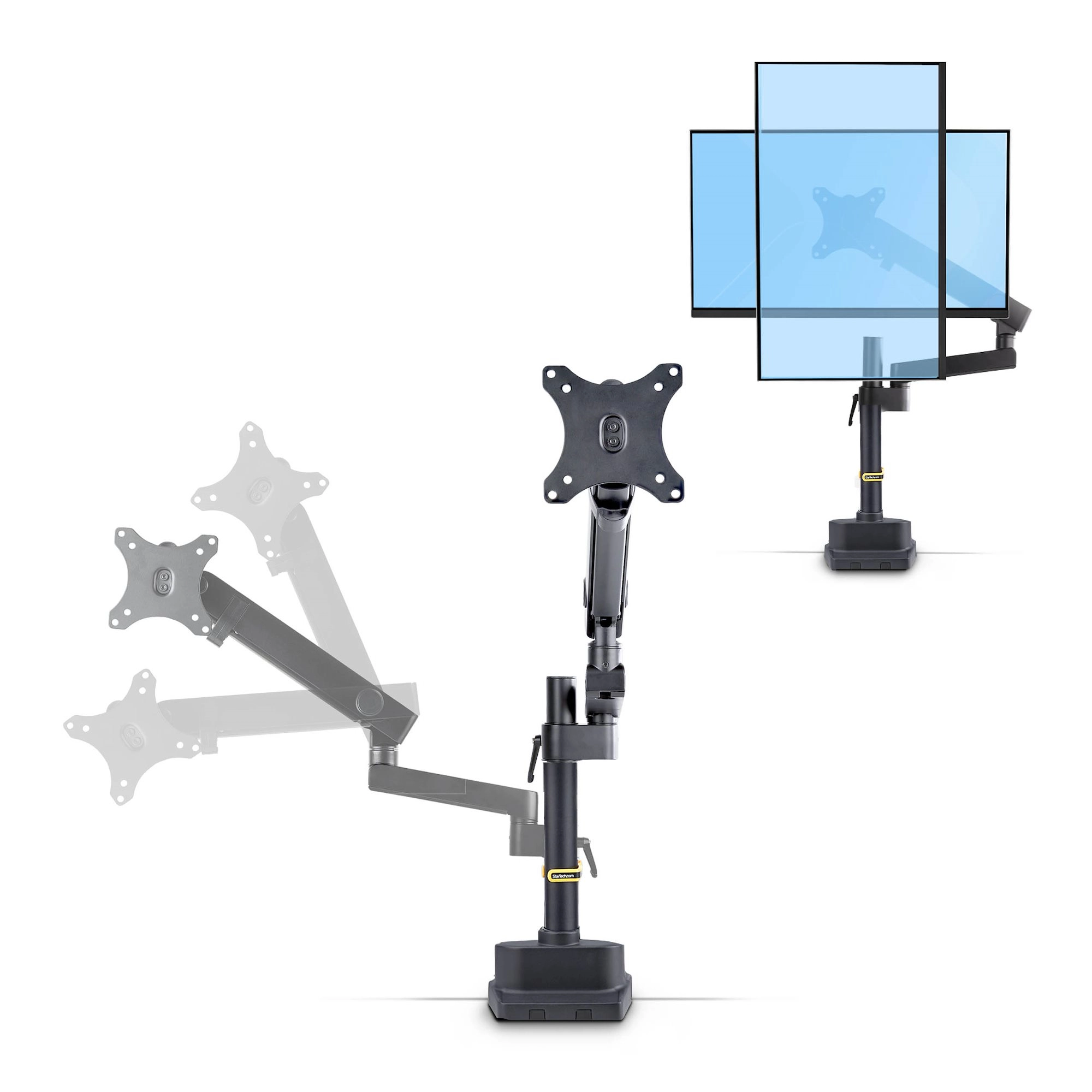

Range of Motion

Articulating arm enables 180° pan, and the quick-release VESA plate features tool-less adjustments of +/-90° horizontal swivel, +/-90° tilt, and 360° screen rotation for portrait or landscape orientations. This flexibility enables users to customize the screen placement for maximum productivity and comfort.

Cable Management

Features a cable management channel along the underside of the swivel arm to keep cables out of sight. Additionally, multiple cable clips help reduce clutter and contribute to a tidy setup.

Specification

Product
Product id	1007268
Brand	StarTech.com
Partnr	ARMPIVOT2
EAN/UPC code	065030921695
Warranty (months)	5 Years
Mounting
Maximum weight capacity	8 kg
Maximum weight capacity (per display)	8 kg
Minimum screen size compatibility	17 "
Maximum screen size	40
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Number of displays supported	1
Desk thickness (min)	10 mm
Desk thickness (max)	50 mm
Ergonomics
Height adjustment	Y
Height adjustment range	180 - 620 mm
Depth adjustment range	419 - 594 mm
Tilt angle range	-90 - 90 °
Swivelling	Y
Swivel angle range	-180 - 180 °
Angle of rotation	360 °
Cable management	Y
Rotating	Y
Tilt adjustment	Y
Design
Product colour	Black
Housing material	Plastic, Steel
Anti-theft function	N
Packaging content
VESA mount included	Y
Number of cable clips	1
Screws included	Y
Number of screws	9
Number of washers included	4
Grommet plate included	Y
Weight & dimensions
Width	115 mm
Depth	703 mm
Height	607 mm
Weight	3600 g
Package width	435 mm
Package depth	240 mm
Package height	117 mm
Package weight	3700 g
Logistics data
Master (outer) case width	420 mm
Master (outer) case length	370 mm
Master (outer) case height	335 mm
Quantity per master (outer) case	4 stuk(s)
