Conference Table Connectivity Box HDMI / VGA / Mini DisplayPort to HDMI Output with Fast Charge USB port for mobile devices & Ethernet Pass-through Port for Internet Connectivity



StarTech.com
Not in stock
€ 221,66
€ 268,20 incl 21% VAT
Install this AV connectivity panel into any boardroom table, and connect the screen from any laptop with HDMI, VGA or mDP to an HDMI display

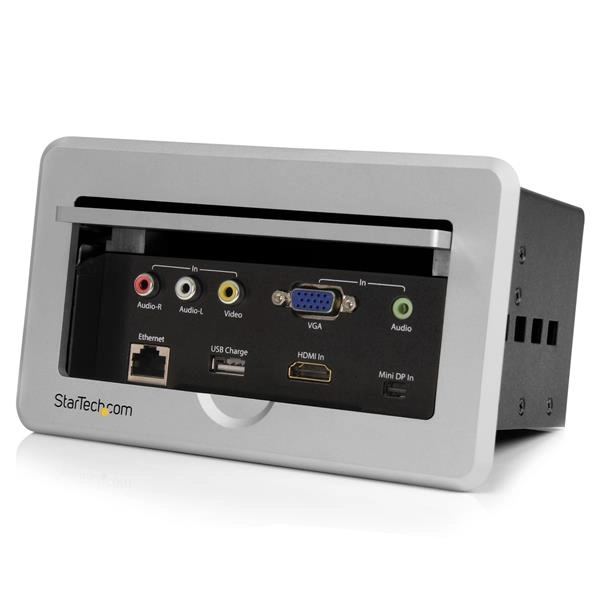

This connectivity box for conference tables features a concealed, in-table design that lets you connect a VGA, Mini DisplayPort, HDMI or composite video source device to an HDMI display or projector. When the video switch isn't in use, you can simply slide the stylish cover panel over the connectors, hiding them inside the table or podium surface.

Convenient accessibility

Presenters can conveniently share content from their own device with the table top switch automatically converting any attached audio/video source device into a single HDMI output. The switch box also offers stylish integration into your modern boardroom or classroom with a discreet hideaway panel.  For added convenience the BOX4HDECP features a USB charging port to charge your mobile device and an Ethernet pass-through port for Internet connectivity in boardrooms where Wi-Fi is not available.

Collaborate easily

The A/V switch makes your large display accessible to any presenter's video source device, by installing directly into the surface of your table or podium, and automatically outputs the most recently connected video source.  Plus, support for high-definition video resolutions up to 1920x1080 (1080p) ensures that the quality of your presentation is maintained.

Connectivity options

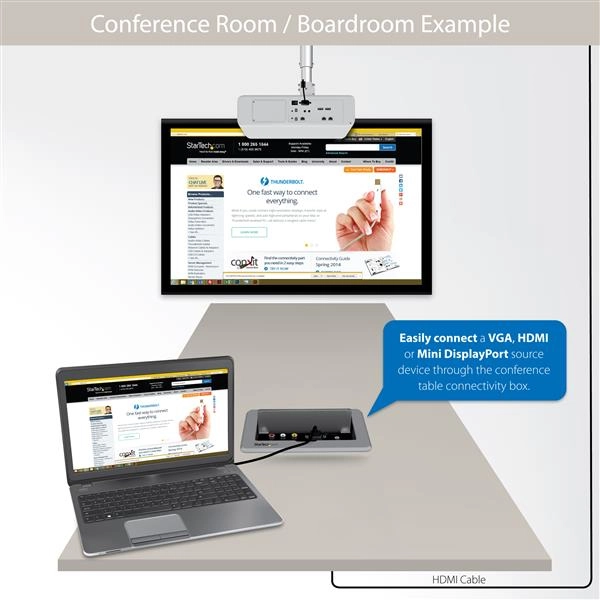

With support for different video inputs, including HDMI, VGA, Mini DisplayPort, and composite, the video switch ensures support for almost any laptop, Ultrabook or mobile device such as MacBook, Microsoft Surface Pro 2 & 3, and Lenovo X1. The switch panel even works with legacy audio/video devices such as DVD players, and supports the use of video adapters for your iPhone or iPad.

The BOX4HDECP is backed by a StarTech. com 2-year warranty, and free lifetime technical support.

The StarTech. com Advantage

- Concealed table installation clears boardroom cable clutter
- Enable boardroom connection compatibility with laptops and Ultrabooks
- Single cable connection to your HDMI Display

Specification

Product
Product id 475645
Brand StarTech.com
Partnr BOX4HDECP
EAN/UPC code 065030858359
Warranty (months) 2 Years
Video
Maximum resolution 1920 x 1080 Pixels
Supported video modes 1080p, 720p
Network
Ethernet LAN Y
Features
Product colour Black, Grey
Maximum cable length 15.2 m
Certification FCC, CE, REACH
Ports & interfaces
HDMI input ports quantity 1
HDMI output ports quantity 1
VGA (D-Sub) input ports 1
Composite video in 1
USB 2.0 Type-A ports quantity 1
Audio input 3.5 mm, 2 x RCA
Ethernet LAN (RJ-45) ports 2
USB pass-through N
Power
External power supply Y
AC adapter input voltage 100 - 240 V
AC adapter output voltage 12 V
AC adapter output current 2 A
Power plug type Type N
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 10 - 85 procent
Technical details
Sustainability certificates RoHS
Weight & dimensions
Width 100 mm
Depth 170 mm
Height 100 mm
Weight 1100 g
Package width 160 mm
Package depth 235 mm
Package height 190 mm
Package weight 1800 g

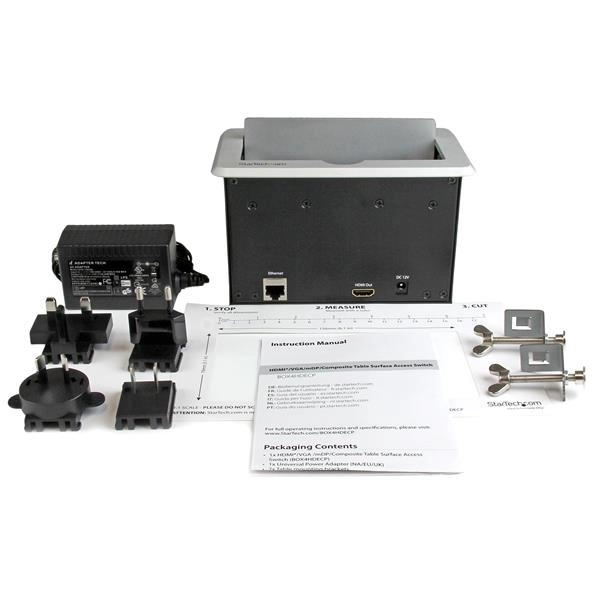

Packaging content
AC adapter included Y
Included power plug types AU, EU, NA, UK
Quick start guide Y
