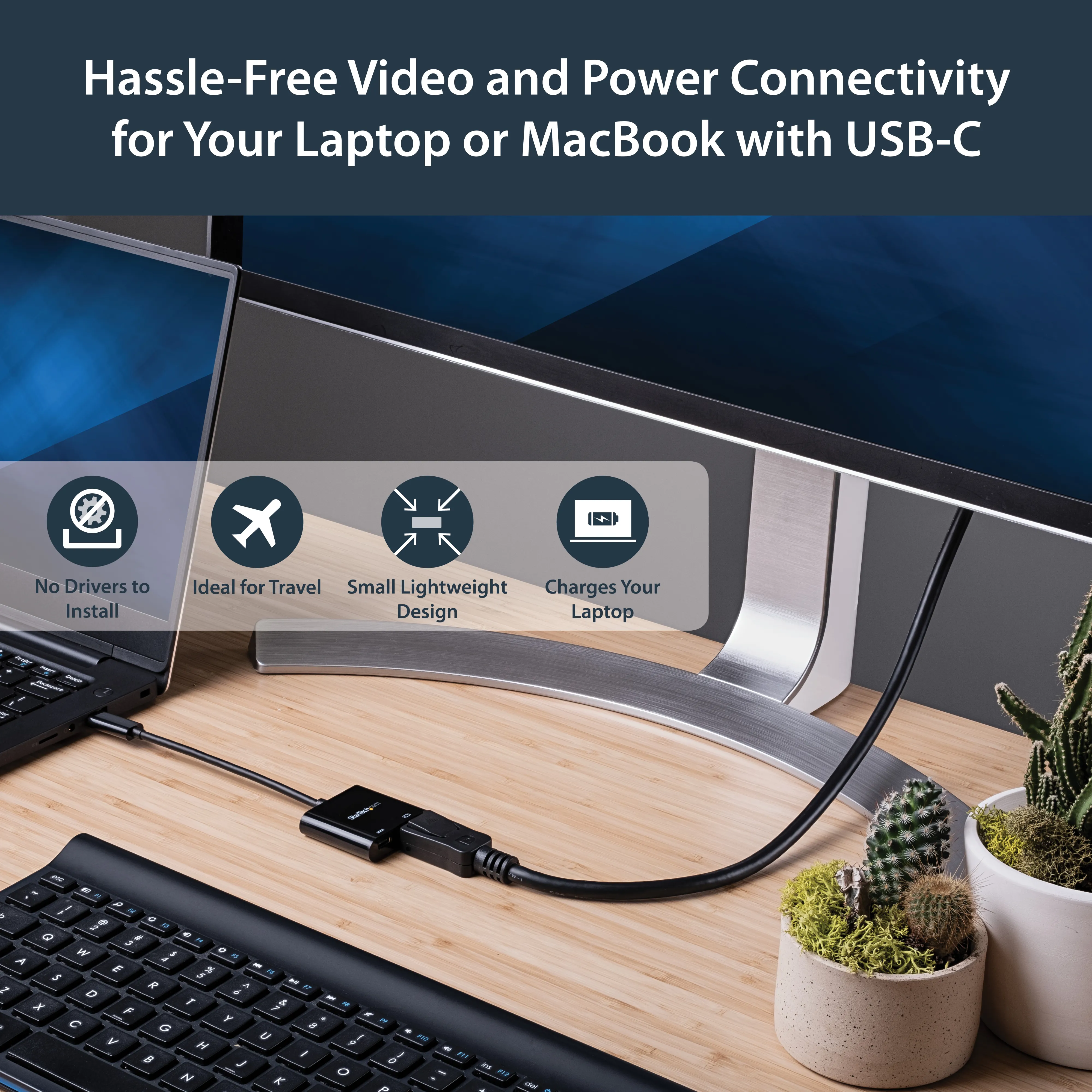

Use this USB Type-C to DisplayPort adapter to output DP video and charge your laptop using a single USB-C port

This USB-C to DisplayPort adapter lets you connect your laptop or MacBook with USB Type-C to a DisplayPort monitor. The video adapter features USB Power Delivery, which enables you to power your laptop while you're outputting video to a DisplayPort display.

USB Type-C is a universal connectivity standard that combines all of your essential functions into one dynamic port. This adapter works with USB-C devices that pass a DisplayPort video signal, such as the MacBook, Chromebook Pixel and the 2018 iPad Pro. It's also compatible with Thunderbolt 3 ports.

Charges your laptop

Unlike some video adapters that take up one of your laptop’s USB-C ports to output video, this video adapter features an additional USB-C charge port that supports USB Power Delivery up to 60 watts. This means you can charge your laptop and output video using a single port, by simply connecting the laptop’s power adapter to the adapter's USB-C port. It’s the perfect solution for laptops that have a limited number of USB-C ports.

Promotes portability

This USB Type-C video adapter maximizes portability with a lightweight, small-footprint design. It’s the perfect accessory to carry with your MacBook or other USB-C computer, fitting easily into your laptop bag or carrying case. Its ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office.

Connects easily

This adapter lets you utilize the versatile USB Type-C port on your portable device. USB Type-C is a reversible connector, so no matter how you plug it in, the adapter will always connect. This saves you the hassle and embarrassment of struggling with your device when you're trying to deliver a presentation or sharing information.

Maintains astonishing picture quality

At four times the resolution of high-definition 1080p, you’ll be amazed at the picture quality of a 4K monitor or television. The adapter lets you harness the video capabilities that are built into your USB Type-C connection to deliver the astonishing quality of Ultra HD to your 4K display. 4K resolution gives you additional screen space to simplify your approach to detailed work such as editing video and viewing large spreadsheets.

Even if you're not running 4K, the adapter supports high-definition 1080p and lower resolutions, which gives you peace of mind in knowing that this adapter will work with any DP display you need to connect to.

The CDP2DPUCP is backed by a 3-year StarTech. com warranty and free lifetime technical support.

The StarTech. com Advantage

- HIGH PERFORMANCE: USB-C to DisplayPort 1.2 (DP Alt Mode HBR2) (21.6Gbps) adapter to connect a single DP display supporting 4K 60Hz UHD (4096x2160/3840x2160)
- HDCP 2.2/1.4
- Thunderbolt 3 Compatible

Specification

Product
Product id	581363
Brand	StarTech.com
Partnr	CDP2DPUCP
EAN/UPC code	065030872171
Warranty (months)	3 Years
Performance
USB connector type	USB Type-C
USB connector gender	Male connector
DVI output	N
USB connector form factor	Straight
HDMI output	N
DisplayPort output	Y
Number of displays supported	1
HDCP	Y
DisplayPort version	1.2
Maximum resolution	3840 x 2160 Pixels
Refresh rate at maximum resolution	60 Hz
HDCP version	1.4/2.2
Supported graphics resolutions	1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 768, 1280 x 800, 1360 x 768 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280, 2560 x 1600 (WQXGA), 3840 x 2160
Audio output channels	7.1 kanalen
Data transfer rate (max)	21.6 Gbit/s
Chipset	PERICOM - PI3DPX1203, VIA/VLI - VL100
Certification	FCC, CE, REACH
Design
Product colour	Black
Housing material	Plastic
Integrated USB cable	Y
USB cable length	0.1 m
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90 procent
Weight & dimensions
Width	43 mm
Depth	187 mm
Height	12 mm
Weight	22 g
Package width	145 mm
Package depth	170 mm
Package height	30 mm
Package weight	90 g
Technical details
Sustainability certificates	RoHS
Logistics data
Quantity per master (outer) case	60 stuk(s)
Master (outer) case width	330 mm
Master (outer) case length	525 mm
Master (outer) case height	315 mm
