USB-C to VGA Adapter with USB Power Delivery - USB Type-C to VGA Converter - 2048x1280 USB Type C - Using a single USB C port on your laptop output VGA video and charge the laptop

StarTech.com

Not in stock

€ 27,96

€ 33,83 incl 21% VAT

Would you like to ask us a question about this product?

USB Type C Adapter | Thunderbolt 3 Compatible | 1080p

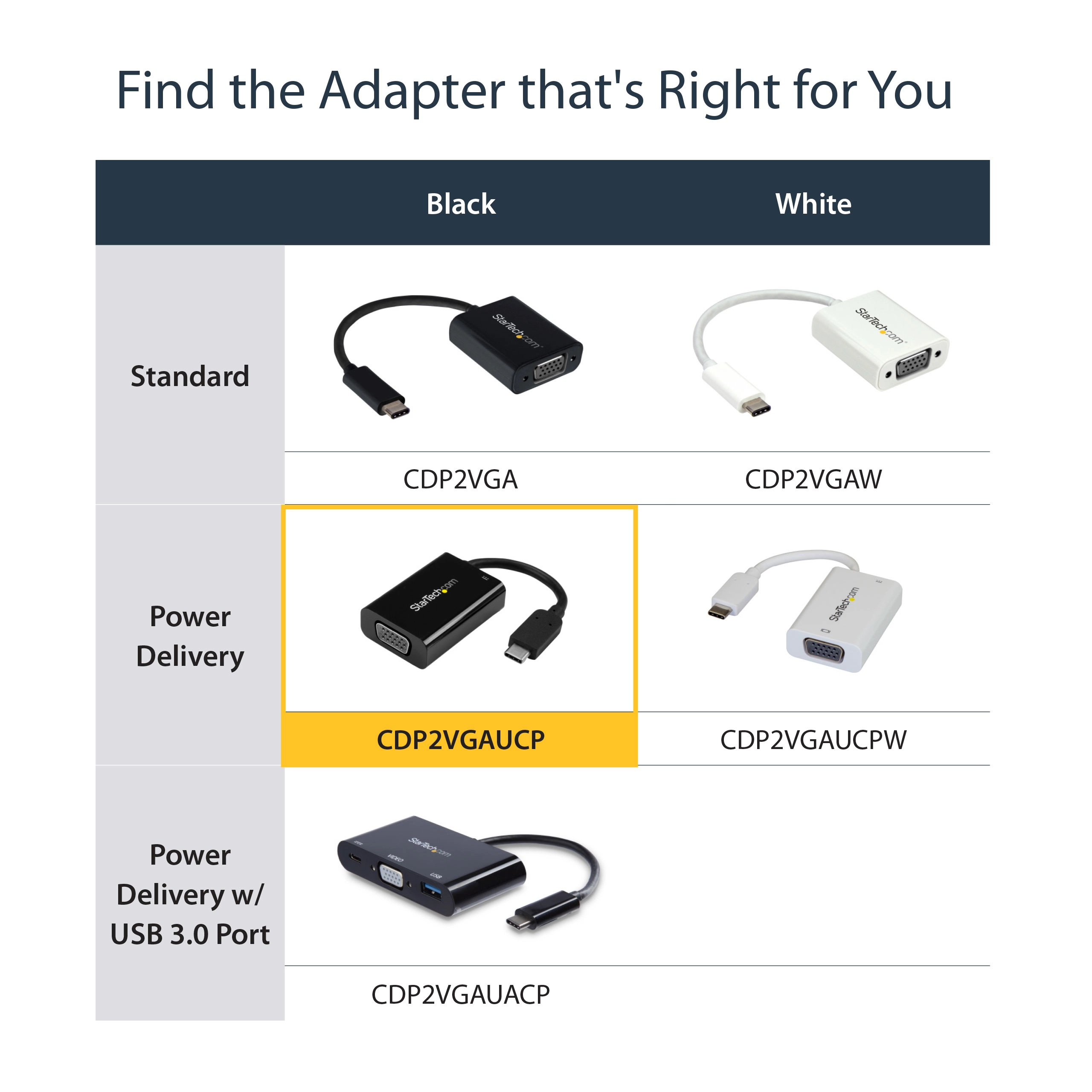

This USB-C to VGA adapter connects a VGA display to your laptop or MacBook with USB Type-C. The USB-C adapter features USB Power Delivery, enabling you to power your laptop while outputting video through the same USB-C port. The adapter is also available in white (CDP2VGAUCPW) so you can choose an adapter that matches the style of your laptop.

Power and Video in One Port with USB Power Delivery

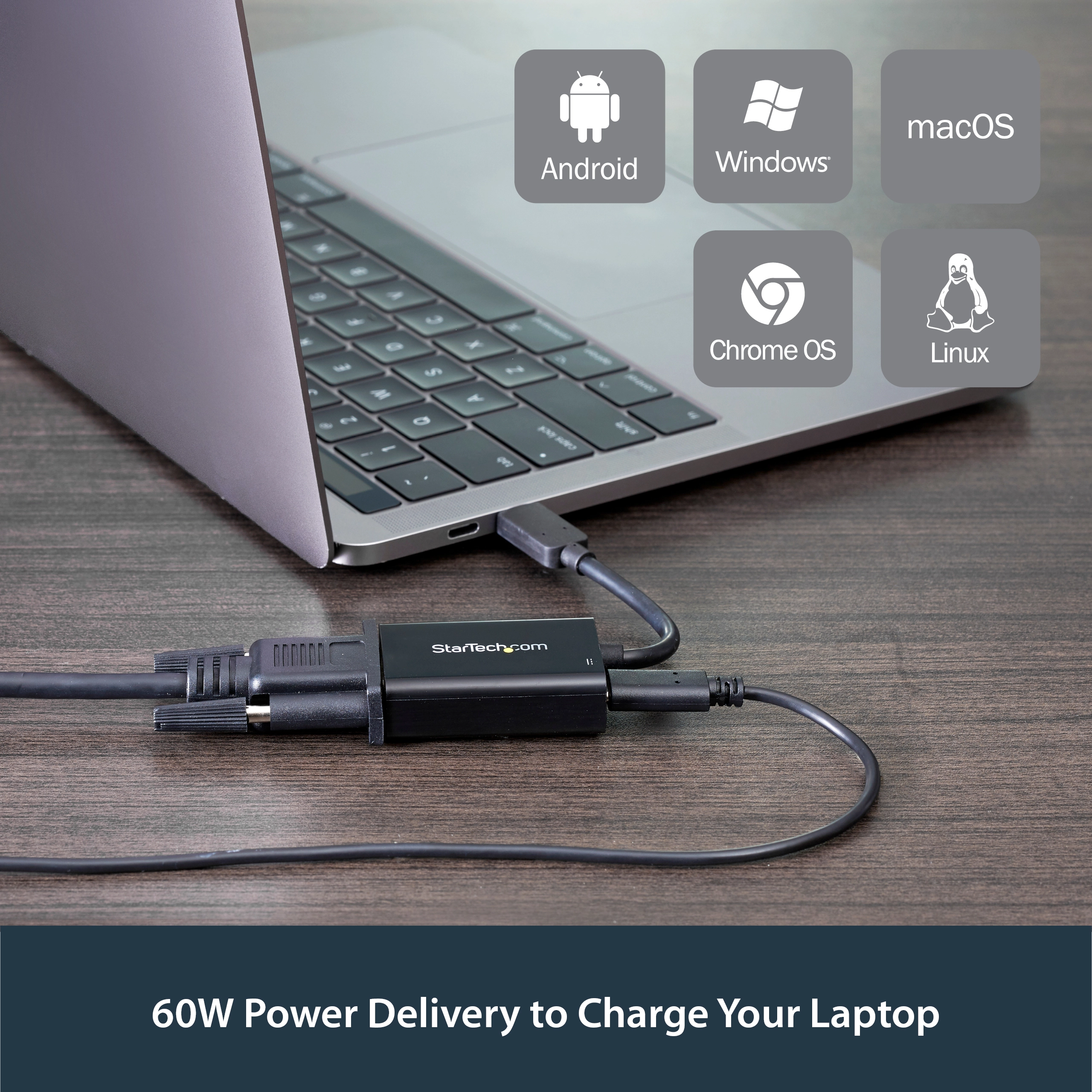

Smaller and lighter laptops are great for portability but you’re left with fewer connectivity ports. This USB-C VGA adapter supports USB Power Delivery up to 60 watts and features an additional USB-C port, so you can charge your laptop using its USB-C power adapter, even while you output video. Many laptops like Dell XPS and MacBook Pro support charging through your USB-C port with USB Power Delivery, check your specifications to confirm compatibility.

Enjoy HD Picture Quality with Video Resolutions up to 2048 x 1260

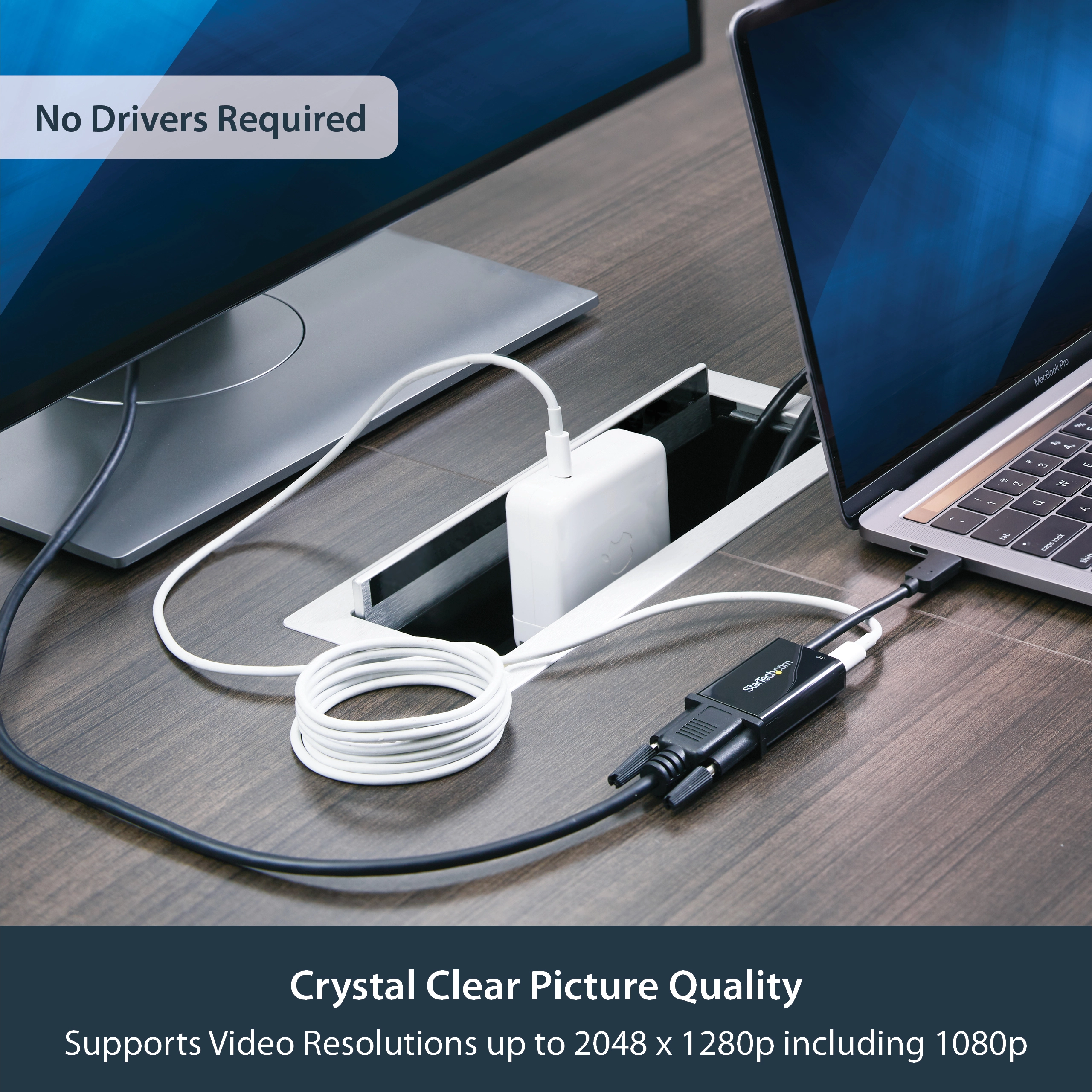

To ensure the quality of your video signal is maintained the USB-C dongle supports VGA resolutions up to 2048 x 1260 60Hz, including popular high-definition resolutions like 1080p and 720p.

Stylish Connectivity for Your Ultrabook or Any Laptop

This USB Type-C adapter has an all-black housing and built-in USB-C cable designed to match your Ultrabook or laptop. The adapter is compatible with any device that supports USB-C DP Alt Mode, such as the 2018 iPad Pro.

The CDP2VGAUCP is backed by a 3-year StarTech. com warranty and free lifetime technical support.

The StarTech. com Advantage

- DIGITAL TO ANALOG: USB-C (DP 1.2 Alt Mode HBR2) adapter lets you connect a single VGA display supporting 2048x1280, 1920x1200 & 1920x1080 at 60Hz; equipped w/ EDID support & DDC pass-through
- 60W PD PASS THROUGH CHARGING: USB-C display adapter with up to 60W Power Delivery to power & charge your laptop while displaying video on a VGA monitor/projector using a single USB-C port

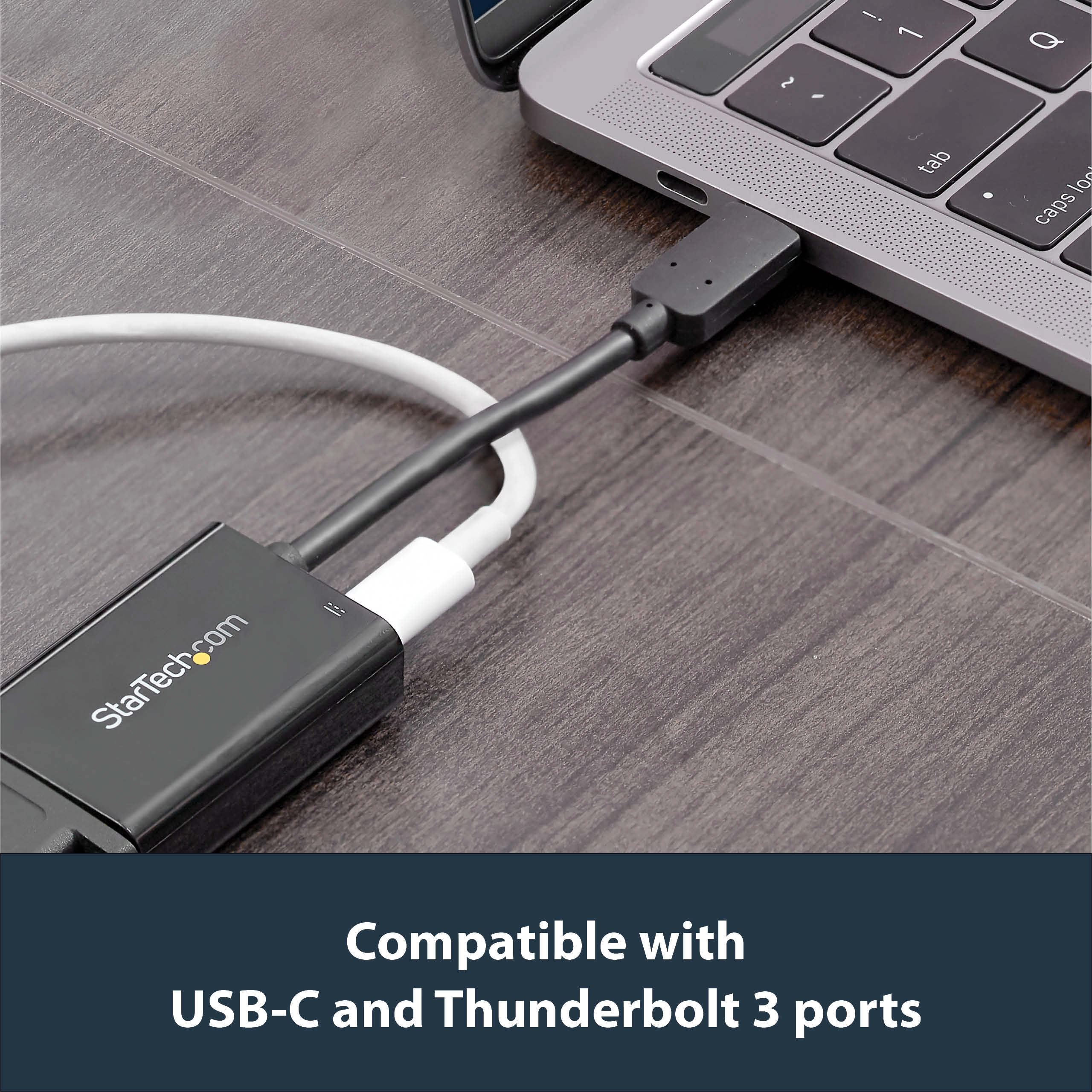

- COMPATIBILITY: Works w/ DisplayPort over USB Type-C (TB3 compatible) laptops like Lenovo ThinkPad X1 Carbon, Dell XPS 13, HP EliteBook, TB3 MacBook Pro 13 / Air, Surface Book 3/Laptop 3, Chromebook

Specification

Product
Product id	556884
Brand	StarTech.com
Partnr	CDP2VGAUCP
EAN/UPC code	065030866224
Warranty (months)	3 Years
Performance
USB connector type	USB Type-C
USB connector gender	Male connector
DVI output	N
HDMI output	N
DisplayPort output	N
Number of displays supported	1
VGA (D-Sub) output	Y
Maximum resolution	2048 x 1280 Pixels
Refresh rate at maximum resolution	60 Hz
Supported graphics resolutions	1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 800,1360 x 768 (WXGA),1440 x 900,1600 x 900,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2048 x 1280
Chipset	ITE - IT6516, VIA/VLI - VL100
Certification	FCC, CE, REACH
Design
Product colour	Black
Integrated USB cable	Y

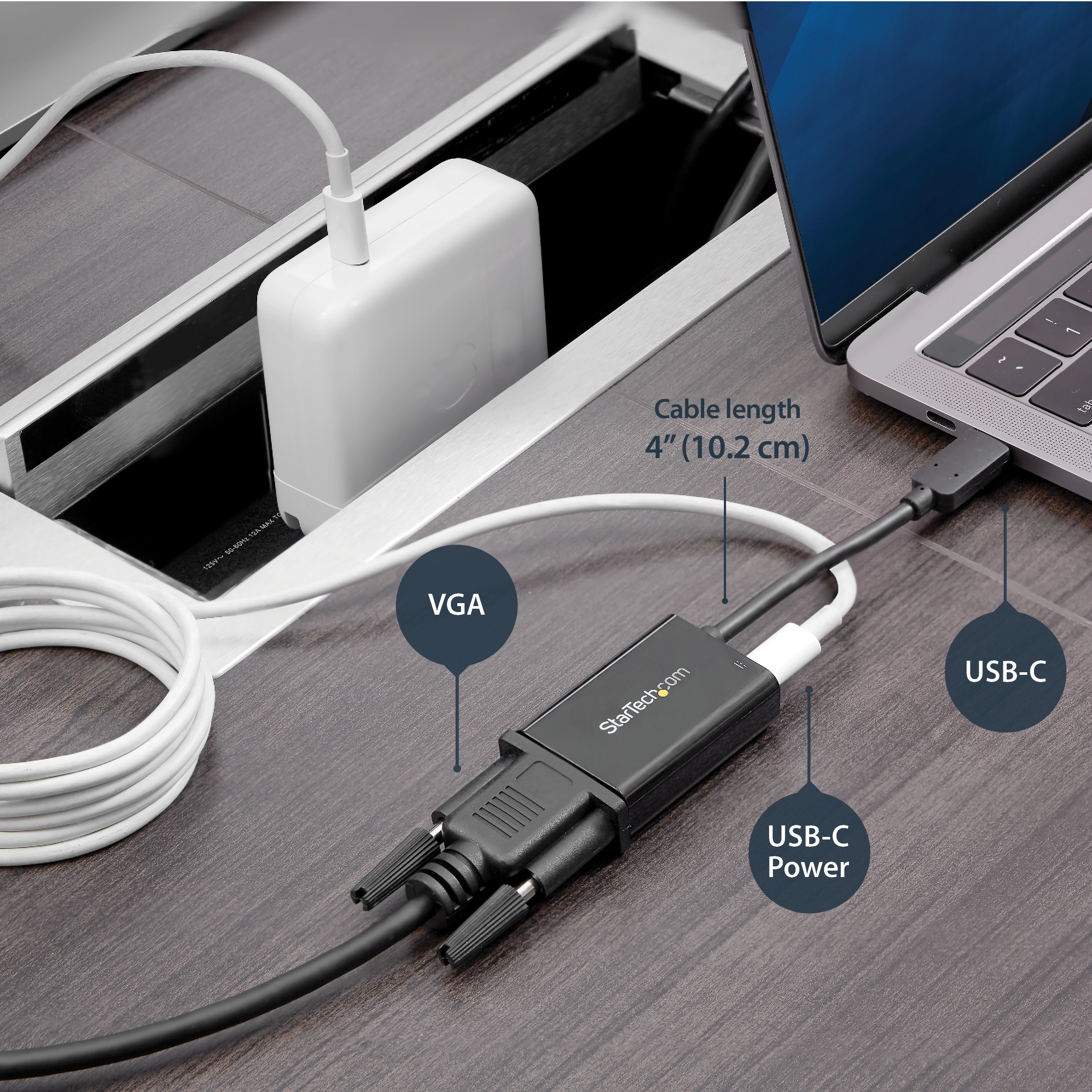

USB cable length	0.102 m
Weight & dimensions
Width	33 mm
Depth	150 mm
Height	15 mm
Weight	24 g
Package width	148 mm
Package depth	173 mm
Package height	32 mm
Package weight	109 g
Technical details
Sustainability certificates	RoHS
Logistics data
Quantity per master (outer) case	40 stuk(s)
Master (outer) case width	330 mm
Master (outer) case length	362 mm
Master (outer) case height	320 mm
