USB Type-C to VGA DVI HDMI or mDP Travel Adapter | Wrap-Around Cable

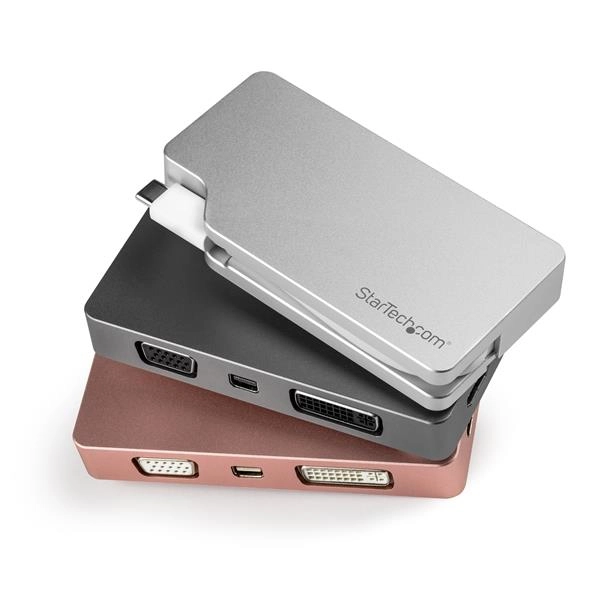

This rose gold USB-C multiport video adapter offers a portable solution for connecting your USB Type-C laptop to a VGA, DVI, HDMI or Mini DisplayPort display. The adapter is also available in silver (CDPVGDVHDMDP) and space gray (CDPVDHDMDPSG).

All-in-One Video Connectivity with Travel in Mind

Avoid the hassle of carrying different adapters for different displays with this 4-in-1 USB-C adapter. With VGA, DVI, HDMI and mDP output, you can connect your laptop to virtually any display, a convenient plug-and-play solution for travel or Bring Your Own Device (BYOD) applications.

Astonishing Picture Quality

The HDMI and mDP outputs on this USB-C video adapter support UHD 4K resolutions, providing four times the picture quality of high-definition 1080p.  All of the outputs (HDMI, mDP, VGA, DVI) can support high-definition resolutions of up to 1920 x 1200.

Stylish Connectivity

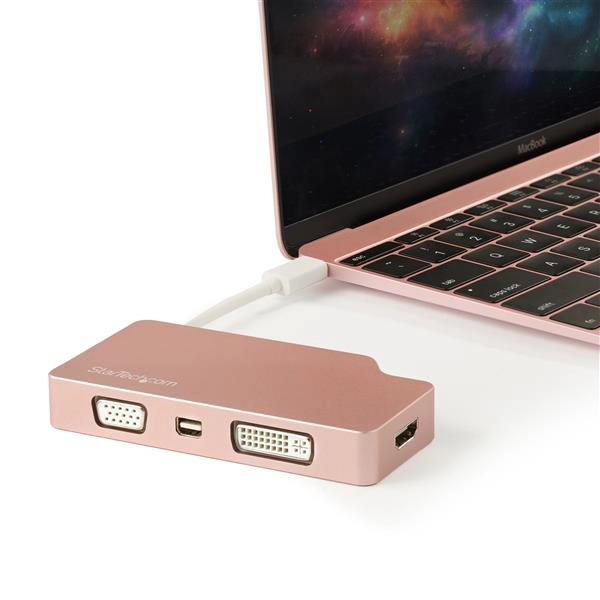

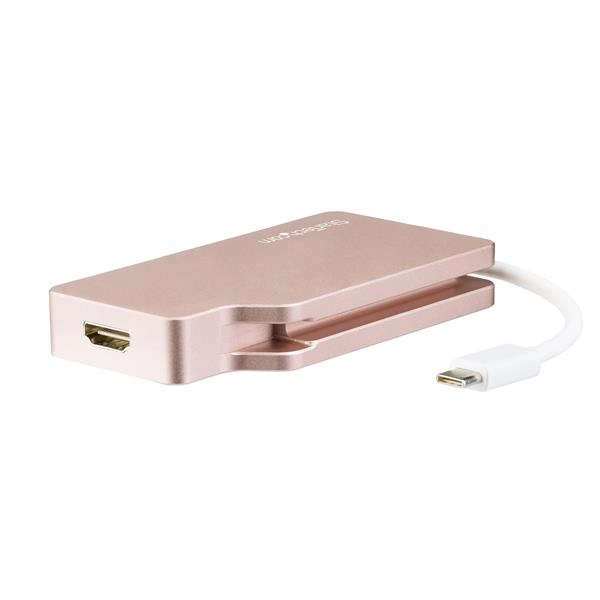

The USB Type-C adapter has an aluminum housing designed to match your rose gold MacBook and is compatible with any device that supports USB-C DP Alt Mode. Featuring a built-in USB-C cable with magnetic cable manager, the USB-C video adapter conveniently stores away for easy travel.

The CDPVDHDMDPRG is backed by a StarTech. com 3-year warranty and free lifetime technical support.

The StarTech. com Advantage

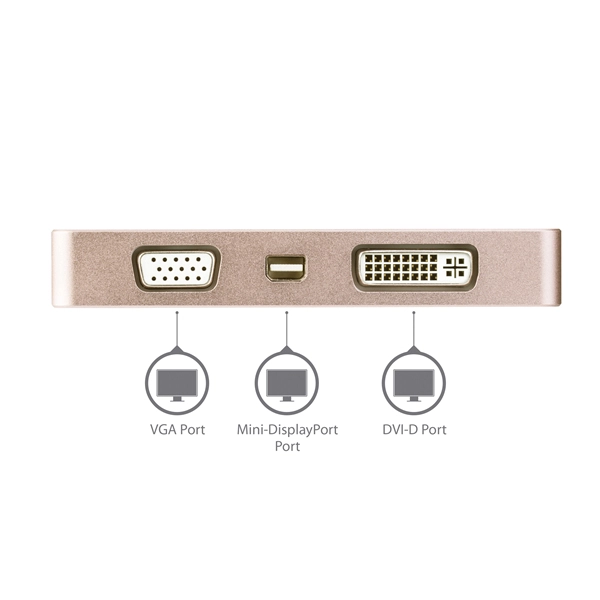

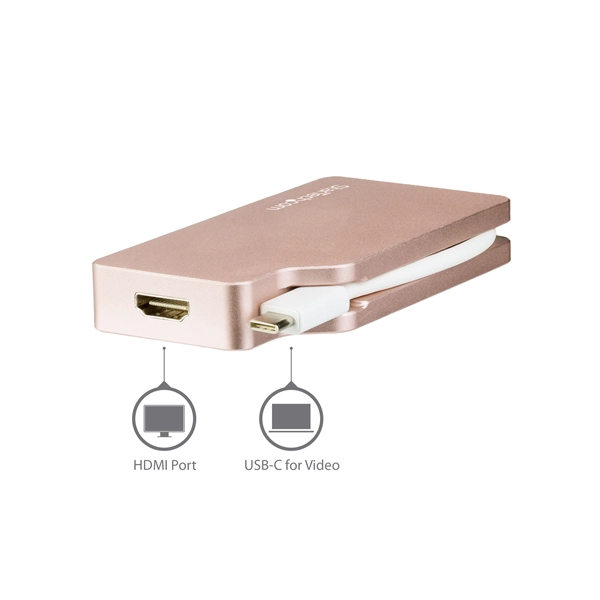

- 4-IN-1 MULTIPORT USB-C VIDEO ADAPTER: USB-C DP Alt Mode to any one of HDMI 1.4 (4K 30Hz & 7.1ch audio), mDP 1.2 (4K 60Hz & 2ch audio), VGA or DVI (1080p), HDCP 2.2/1.4, Thunderbolt 3 compatible
- TOUGH & PORTABLE: Durable aluminum Rose Gold enclosure with a magnetically-secured hideaway cable wrap for on-the-go users in the office, at home, boardrooms, and classrooms
- COMPATIBILITY: USB-C display adapter for Dell XPS/Precision/Latitude, Lenovo ThinkPad X1 Carbon/Extreme, Surface Laptop 3/Surface Book 3, TB3 MacBook Pro/Air, HP EliteBook/Spectre/ZBook, Chromebooks

Specification

Product
Product id	608718
Brand	StarTech.com
Partnr	CDPVDHDMDPRG
EAN/UPC code	065030878777
Warranty (months)	3 Years
Performance
USB connector type	USB Type-C
USB connector gender	Male connector
DVI output	Y
HDMI output	Y
DisplayPort output	N
Mini DisplayPorts quantity	1
Number of displays supported	4
VGA (D-Sub) output	Y
DVI connector type	DVI-D
DisplayPort version	1.2
Maximum resolution	3840 x 2160 Pixels
Refresh rate at maximum resolution	60 Hz
Maximum analog resolution	1920 x 1200 Pixels
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Audio output channels	7.1 kanalen
Chipset	Cypress - CYPD1120, Cypress - CY7C65210, Parade - PS8348B, Parade - PS171
Certification	CE, FCC, DisplayLink, REACH
Design
Product colour	Rose Gold
Housing material	Aluminium
Integrated USB cable	Y
USB cable length	0.115 m
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85 procent
Storage relative humidity (H-H)	5 - 90 procent
Weight & dimensions
Width	142 mm
Depth	169 mm
Height	15 mm
Weight	180 g
Package width	105 mm
Package depth	55 mm
Package height	16 mm
Package weight	100 g
Technical details
Sustainability certificates	RoHS
Logistics data
Quantity per master (outer) case	70 stuk(s)
Master (outer) case width	440 mm
Master (outer) case length	473 mm
Master (outer) case height	331 mm
