Control multiple computers with a single set of peripherals while isolating data paths between systems and ensuring no data is ever stored

Operate multiple secure systems from a single workstation with the NIAP-Certified KVM switch, delivering uncompromising security, enterprise-grade performance, and seamless control over up to eight computers with two displays.

NIAP Certified Multi-System Control

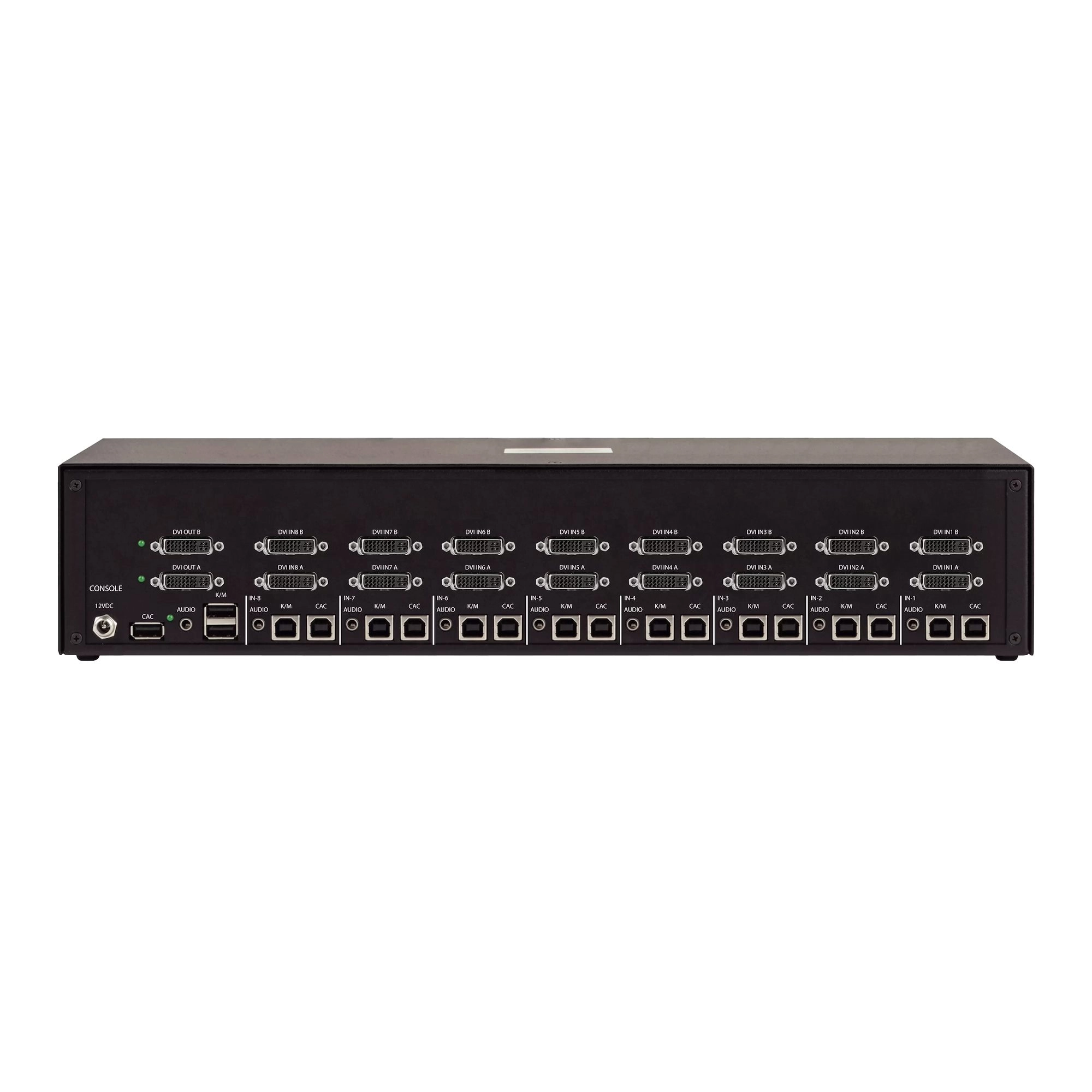

Manage up to eight DVI-enabled desktops, workstations, or servers from one mouse, keyboard, and two monitors. Status LEDs on the console ports, CAC port, and port selection indicators provide instant visual feedback, while NIAP certification ensures complete system isolation to prevent any data transfer or leakage between connected systems. Integrated anti-tamper switches provide protection from the moment the unit leaves the factory, so any intrusion attempt, whether in storage, transit, or operation, will permanently disable the KVM and trigger clear visual and audible alerts. This makes it ideal for safeguarding operations across security domains or ensuring compliance with strict regulatory requirements.

This secure KVM complies with the following protection profiles and modules:

• Protection Profile for Peripheral Sharing Device (PSD), Version 4.0
• PP-Module for Analog Audio Output Devices, Version 1.0
• PP-Module for User Authentication Devices, Version 1.0
• PP-Module for Keyboard/Mouse Devices, Version 1.0
• PP-Module for Video/Display Devices, Version 1.0

Built-In CAC Access and Tamper Protection

A dedicated and configurable Common Access Card port enables secure smart card logins across all connected systems without the need to attach readers to each machine. The advanced Tamper Protection System uses anti-tamper switches to detect physical intrusion attempts, immediately disabling all functionality and triggering visual and audible alerts, while a tamper-evident seal provides clear indication of unauthorized physical access.

Enterprise-Grade Security and Reliability

Engineered for IT professionals, our secure KVM switches are built in the USA, NIAP certified, rigorously tested in our Innovation Lab, and trusted by government, military, and enterprise security teams worldwide. Built for environments handling sensitive or classified data, they combine high-assurance security with the dependable performance required for mission-critical operations.

Specification

Product
Product id	1006337
Brand	StarTech.com
Partnr	CK4-D208C
EAN/UPC code	735816509545
Warranty (months)	3 Years
Technical details
Plug and Play	Y
Ports & interfaces
Number of computers controlled	8
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-I
DVI-I ports quantity	16
USB 2.0 Type-B ports quantity	16
Console ports	3.5mm headphone, DVI-I, USB A
Console USB ports quantity	3
Console DVI-I ports quantity	2
Audio connections	Y
Headphone outputs	1
Number of microphone inputs	8
DC-in jack	Y
Performance
HD type	WQXGA
Maximum resolution	2560 x 1600 Pixels
Daisy chain	N
Number of displays supported	2
Maximum refresh rate	60 Hz
Design
Rack mounting	N
Product colour	Black
Housing material	Metal
Maximum cable length	6 m
LED indicators	Y
Push button	Y
Hot keys	N
Display
Built-in display	N
On Screen Display (OSD)	N
Power
Power source	DC
Sustainability
Compliance certificates	Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Packaging data
Package width	511 mm
Package depth	14.3 mm
Package height	118 mm
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Weight & dimensions
Width	221 mm
Depth	432 mm
Height	69 mm
Weight	3100 g
Logistics data
Master (outer) case width	300 mm
Master (outer) case length	400 mm
Master (outer) case height	300 mm
Quantity per master (outer) case	5 stuk(s)
Other features
IP control	N
