Connect your DVI Dual Link display to a DisplayPort video source, for high resolution applications

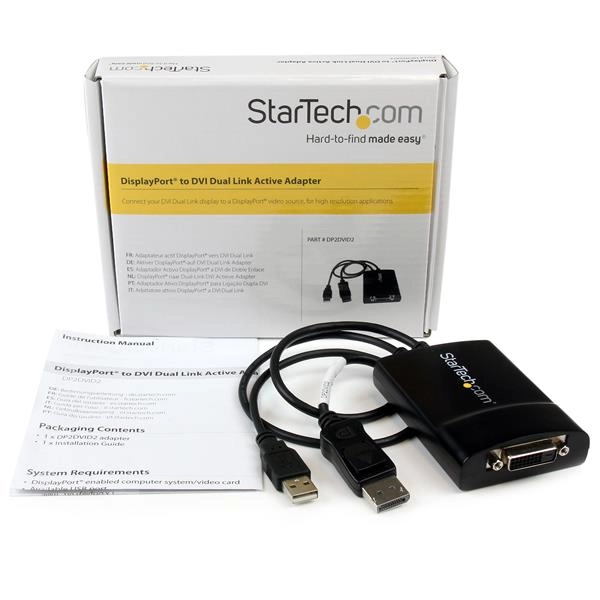

The DP2DVID2 DisplayPort to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc. ) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.

The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook.

DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI Eyefinity cards.

Back by StarTech. com 3-year warranty, with free lifetime technical support.

The StarTech. com Advantage

- Eliminates cost by making your DisplayPort video output compatible with an older, DVI-D (dual link) display
- Suitable for DisplayPort video cards not capable of outputting DVI signals (i. e. single mode DisplayPort)

Specification

Product
Product id	414271
Brand	StarTech.com
Partnr	DP2DVID2
EAN/UPC code	065030848749
Warranty (months)	3 Years
Features
Maximum resolution	2560 x 1600 Pixels
Maximum refresh rate	120 Hz
Product colour	Black
Converter type	Active video converter
Certification	CE, FCC, REACH
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Packaging data
Package width	174 mm
Package depth	143 mm
Package height	35 mm
Package weight	232 g
Technical details
Sustainability certificates	RoHS
Weight & dimensions
Weight	160 g
Width	64 mm
Depth	549 mm
Height	22 mm
Logistics data
Master (outer) case width	337 mm
Master (outer) case length	497 mm
Master (outer) case height	220 mm
Quantity per master (outer) case	28 stuk(s)
