2 Port FLUSH Mount ExpressCard MM eSATA II Controller Card


Not in stock
€ 22,31
€ 26,99 incl 21% VAT
Add 2 flush mounted eSATA ports to a laptop through an ExpressCard/54 slot

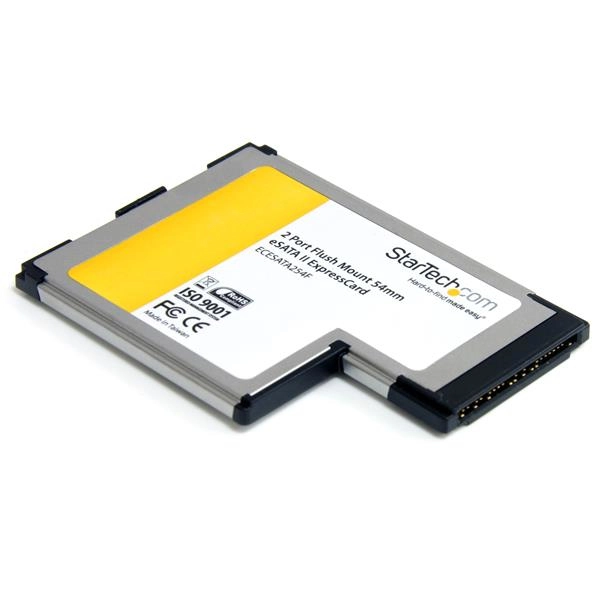

The ECESATA254F Flush Mount 2-Port eSATA ExpressCard Adapter uses a unique slim 54mm form factor design that allows it to sit fully in a standard laptop ExpressCard/54 slot without sticking out. When installed, the ports sit flush with the sides of the laptop, creating a seamless add-on that can be left installed at all times, without fear that it or the card slot will be damaged due to snagging or impact.

The eSATA ExpressCard adapter features 2 independent eSATA ports, and is compatible with the latest high capacity SATA drives (SATA I, SATA II) with support for data transfer speeds up to 3 Gbps.

With support for Port Multiplier technology and hot-swap installation, the eSATA ExpressCard allows compatible multi-drive enclosures to be connected over a single eSATA cable, and devices can be connected and disconnected without having to reboot the system.

The StarTech. com Advantage

- Unique 54mm flush mount design fits seamlessly into ExpressCard/54 slots, so it can be left installed without the worry of snagging or hitting the card
- Port Multiplier and 48-bit LBA support means multi-drive enclosures and large capacity drives work as intended
- Backed by a StarTech. com 2-year warranty and free lifetime technical support


Product id 340095
Brand StarTech.com
Partnr ECESATA254F
EAN/UPC code 065030842495
Warranty (months) 1 year
Technical details
Chipset Silicon Image Sil3132CNU
Data transfer rate 3000 Mbit/s
Ports & interfaces
Host interface ExpressCard
Output interface SATA
eSATA ports quantity 2
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -65 - 150 °C
Packaging data
Package width 145 mm
Package depth 175 mm
Package height 30 mm
Package weight 115 g
Weight & dimensions
Width 54 mm
Depth 75 mm
Height 5 mm
Weight 22.5 g
Other features
Ports quantity 2
Connectivity technology Wired
Mac compatibility N
Compatible operating systems Windows 2000/ XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ Server 2008 R2/ 7(32/64-bit), Linux
