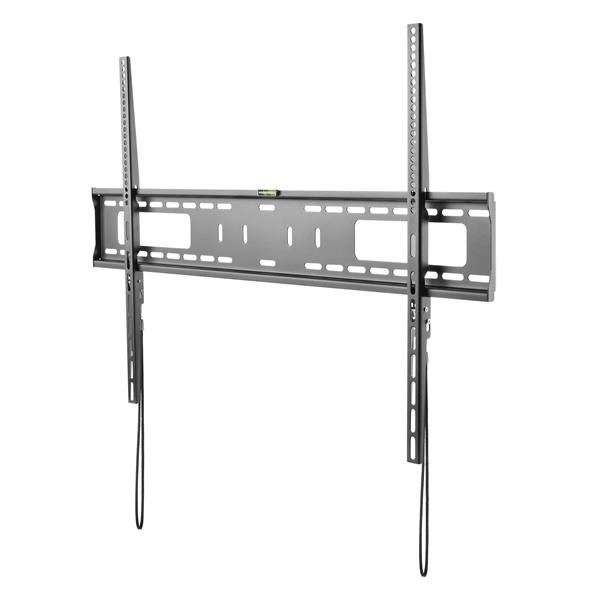

Flat Screen Mount | Weight Cap. 165 lb. (75 kg) | 60” to 100” TV | Cold-Rolled Steel | VESA Compatible

This heavy-duty TV wall mount is ideal for commercial and business purposes such as digital signage in lobbies, displays for boardrooms or anywhere a large professional display needs to be mounted.

Engineered for Heavy Duty Commercial Grade TVs

This TV wall mount is designed to be used with commercial or heavy-duty televisions and displays. It supports a weight of up to 165 lbs.  or 75 kilograms and has been thoroughly tested to triple the rated weight capacity to ensure premium product quality and reliable performance.

The mount is ideal for 60” to 100” TVs including curved TVs; however, most larger or smaller TVs can be accommodated if they fall within the listed weight capacity.

Straightforward Installation & Removal

This TV mount is VESA compatible and has two rows of seventeen mounting holes across the wall bracket to accommodate a variety of spacing between studs and helping you to center your display.  The included bubble level helps to ensure an accurate mount to the wall.

Once the wall bracket is attached to the wall and the vertical brackets are attached to the TV, the TV simply attaches to the mount using the spring locks and can be as easily removed using the release pull straps.

Comprehensive Product Testing & Expert Technical Support 

StarTech. com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech. com Technical Advisors have broad product expertise and work directly with StarTech. com Engineers to provide support for our customers both pre and post-sales.

FPWFXB1 is backed by a StarTech. com 5-year warranty and free lifetime technical support.

The StarTech. com Advantage

- Securely mount large commercial TVs and digital signage to boardrooms, lobbies and anywhere large displays are required
- Designed to support slim TVs up to 165 lbs. (75kg), ideal for 60” to 100” TVs
- Mount TV or display using the spring locks and simply remove using the release straps

Specification

Product
Product id	630104
Brand	StarTech.com
Partnr	FPWFXB1
EAN/UPC code	065030880497
Warranty (months)	5 Years
Mounting
Maximum weight capacity	75 kg
Mounting type	Wall
Minimum screen size compatibility	60 "
Maximum screen size	100
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	900 x 600 mm
Panel mounting interface	100 x 100, 100 x 200, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 200, 300 x 300, 400 x 200, 400 x 400, 400 x 300, 600 x 200, 600 x 400, 600 x 600, 600 x 300, 800 x 400, 800 x 600, 900 x 600 mm
Ergonomics
Built-in spirit level	Y
Cable management	N
Technical details
Product colour	Black
Sustainability certificates	RoHS
Number of displays supported	1
Distance to the wall (max)	30.5 mm
Design
Housing material	Plastic, Steel
Anti-theft function	N
Weight & dimensions
Width	625 mm
Depth (max)	954 mm
Height	30.5 mm
Weight	3500 g

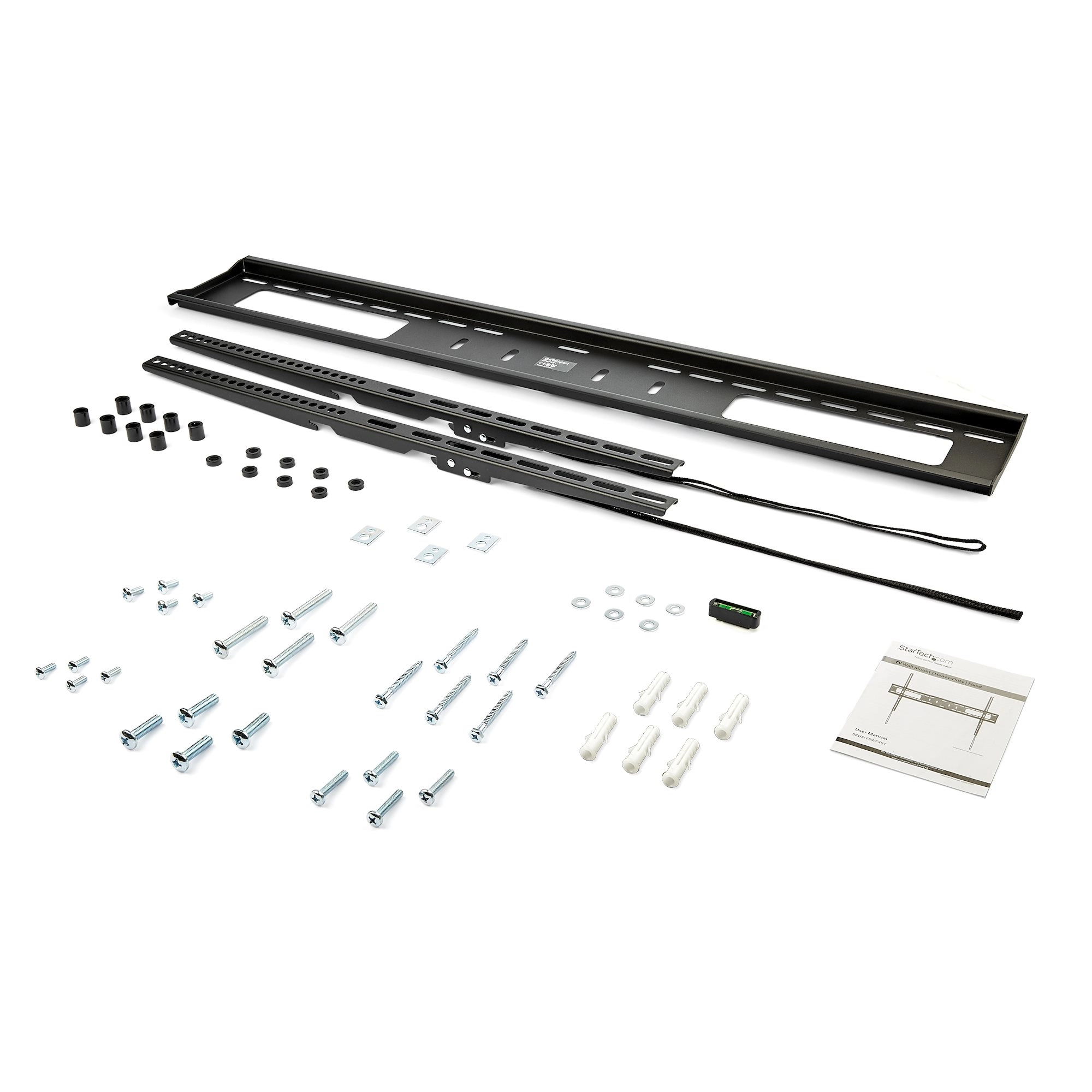

Packaging content
Manual	Y
Adapter bracket included	Y
Number of adapter brackets included	2
Anchors included	Y
Number of anchors included	6
Washers included	Y
Number of washers included	10
Spacer included	Y
Number of spacers included	16
Screws included	Y
Number of screws	26
Packaging data
Package width	156 mm
Package depth	980 mm
Package height	380 mm
Package weight	3600 g
Logistics data
Master (outer) case width	177 mm
Master (outer) case length	995 mm
Master (outer) case height	210 mm
Quantity per master (outer) case	5 stuk(s)
