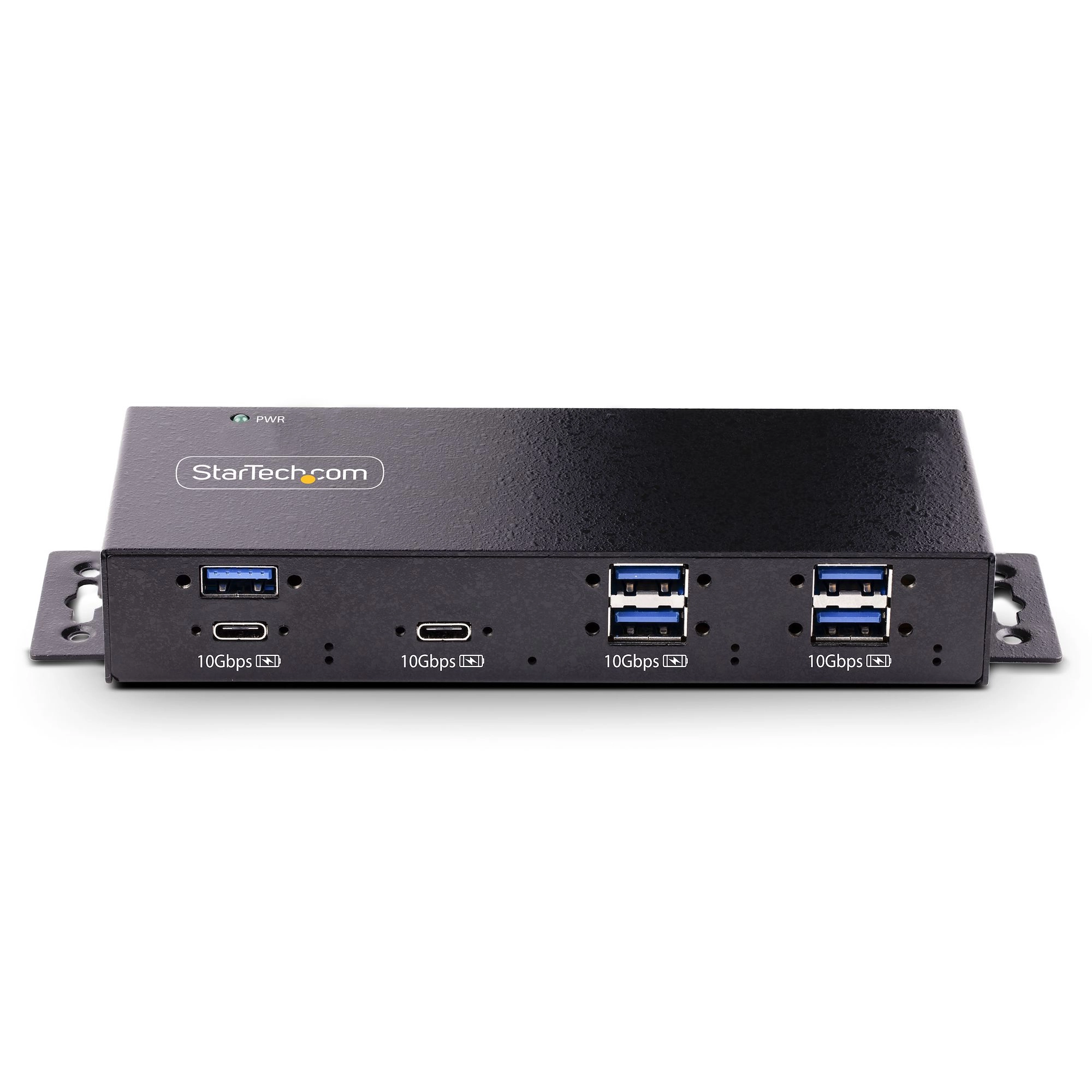

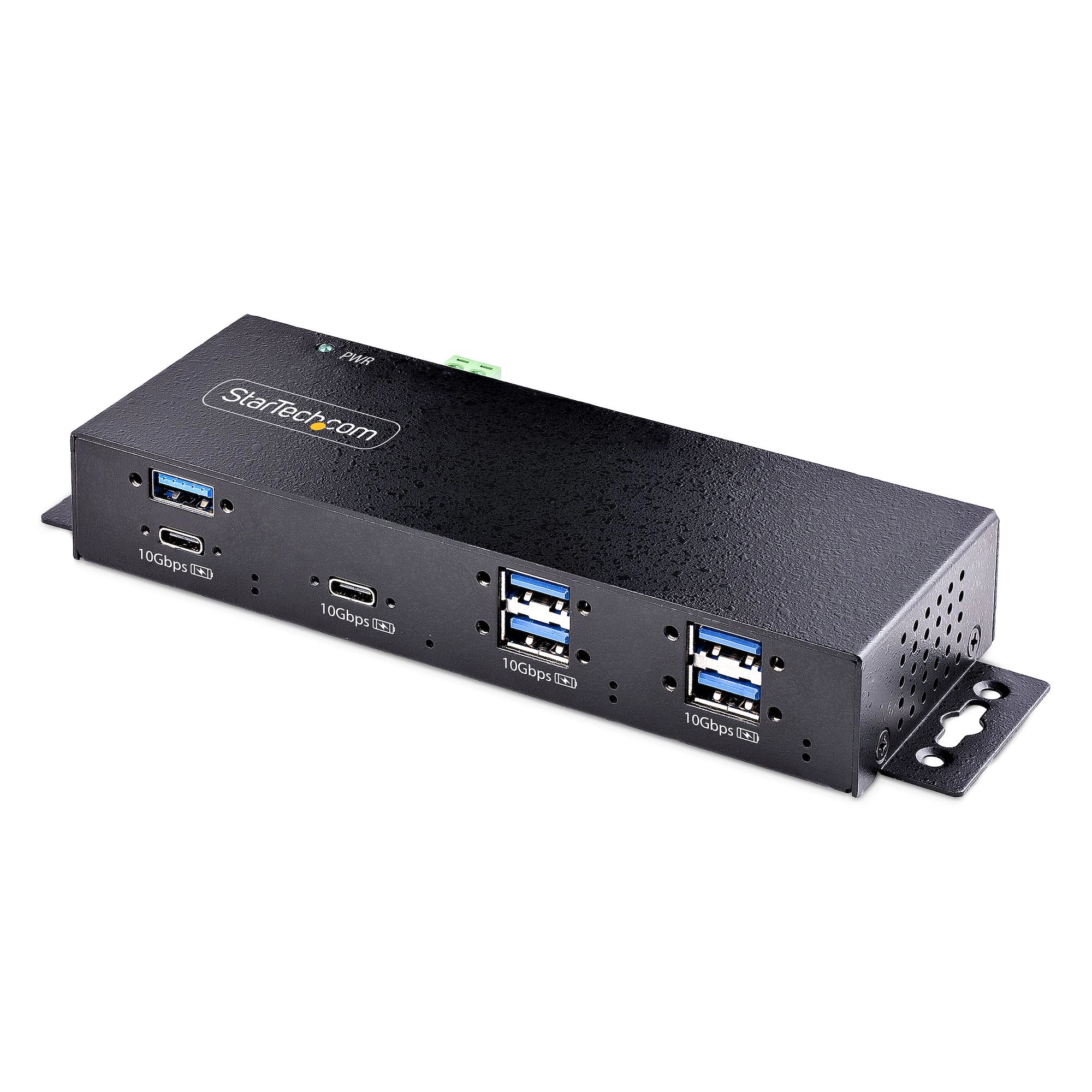

Add 7 external, wall mountable USB 3.2 (10Gbps) ports from a single USB-C connection

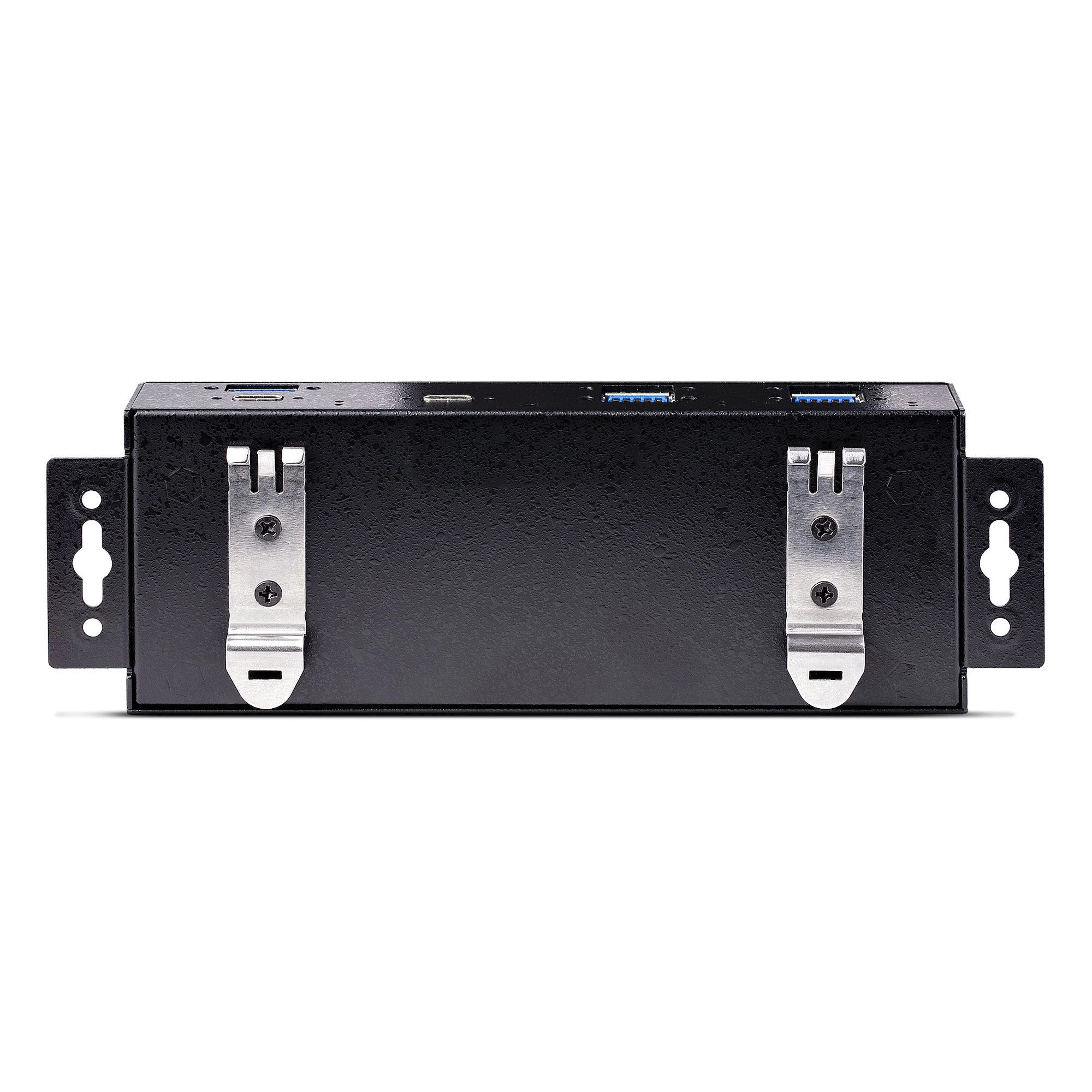

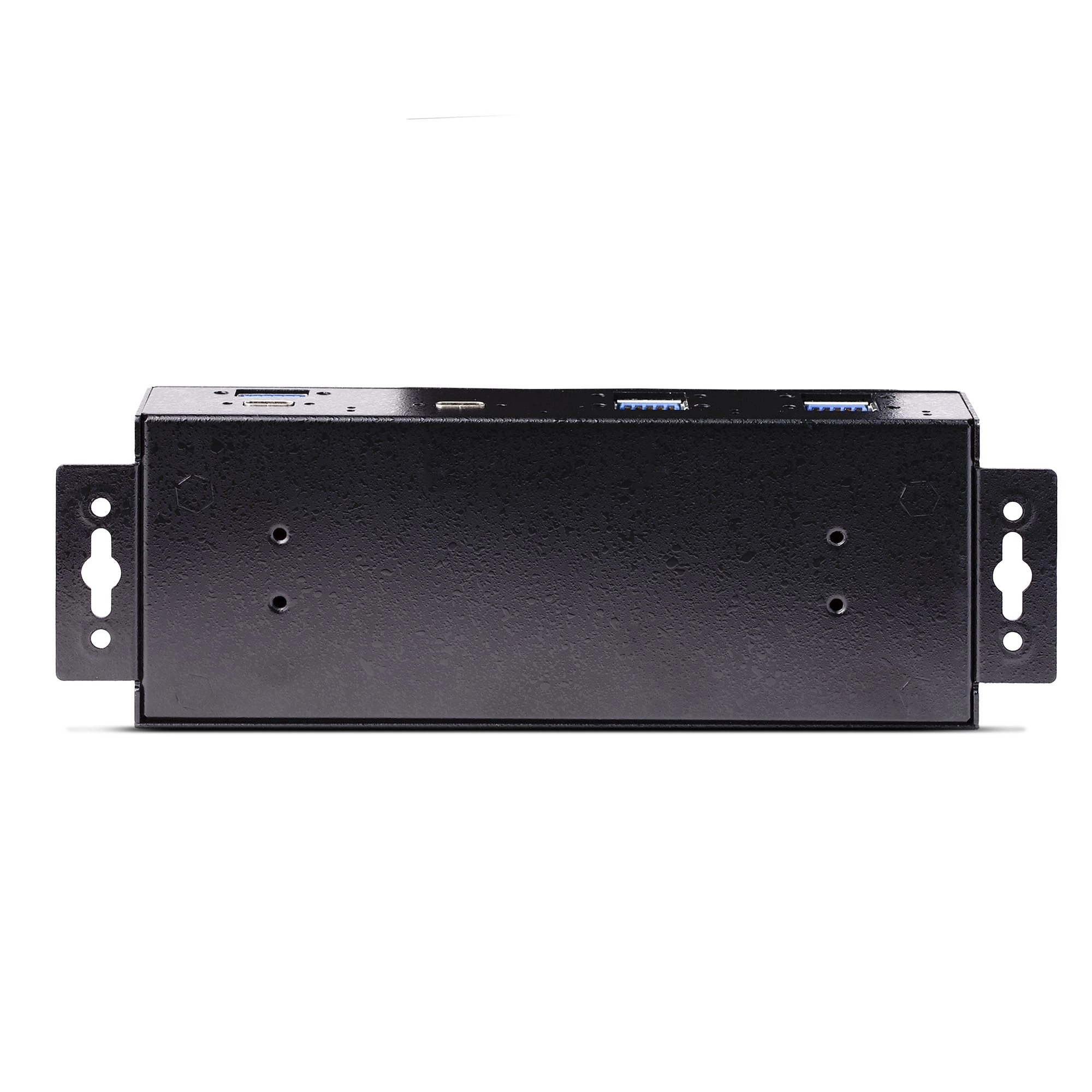

The 7-Port Industrial USB 10Gbps Hub with Power Adapter features 5x USB-A and 2x USB-C device ports. Built with a durable all-metal enclosure, it withstands harsh and industrial environments while offering Level-4 Electrostatic Discharge (ESD) protection (15kV Air / 8kV Contact) to safeguard connected devices. For secure connections, this hub includes two 3.3ft (1m) USB cables (USB-C to C & USB-C to A) with side screw locking to prevent accidental disconnection. The hub can be surface-mounted (on or under a desk, wall-mounted) or DIN rail-mounted, ensuring a secure and space-efficient installation.

Power & Charging

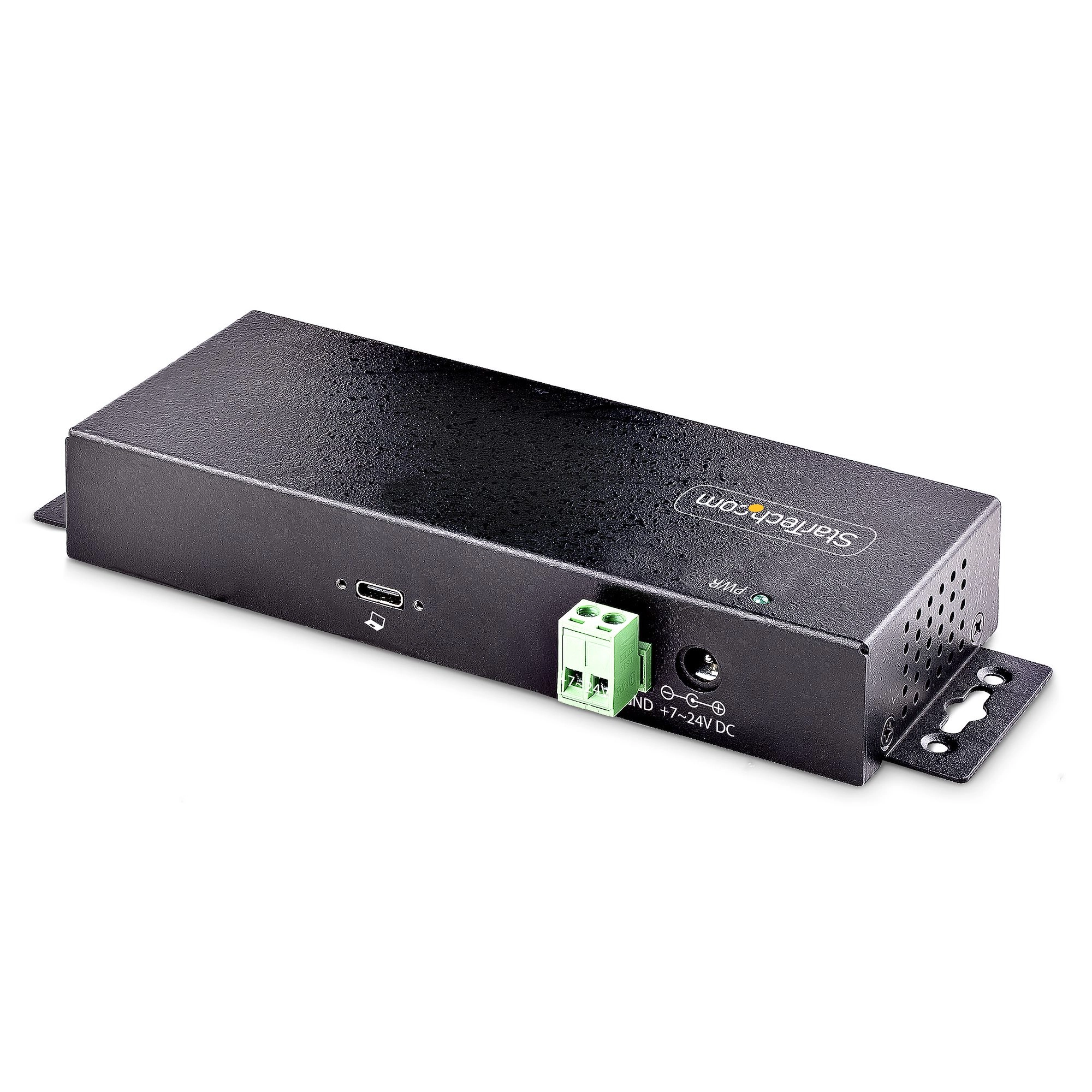

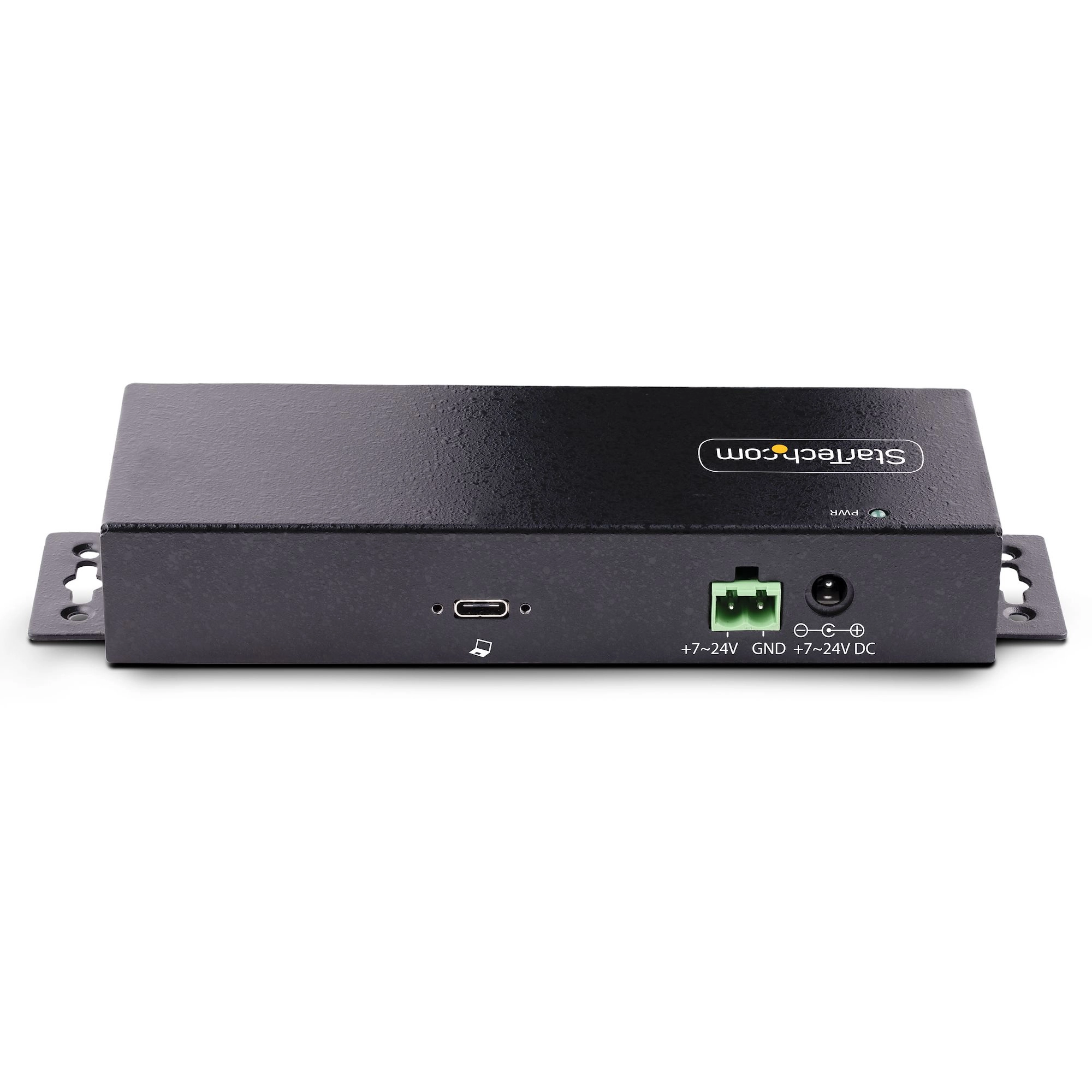

This versatile hub can be powered via the included universal power adapter or the 7-24V DC terminal block, making it ideal for industrial settings or where standard power outlets may be limited.

When not connected to a host, the hub functions as a dedicated charging station, supporting BC1.2 charging / Dedicated Charging Port (DCP) across all ports. Each port delivers up to 2.4A, with a total power budget of 40W (8A) when all ports are in use, ensuring efficient charging for multiple high-powered peripherals.

High-Speed Data Transfer

With speeds of up to 10Gbps on all downstream ports, this hub is ideal for data storage banks, SSDs, NVMe enclosures, RAID drive enclosures, and 3D printers/scanners. It is fully backwards compatible with USB 3.2 Gen 1 (5Gbps), USB 2.0, and USB 1. x devices.

OS-Independent

This TAA Compliant hub is compatible with all operating systems and host devices and has been tested for compatibility with Windows, macOS, Linux, and ChromeOS.

The StarTech. com Advantage

Specification

Product
Product id	987290
Brand	StarTech.com
Partnr	HB31C5A2CME
EAN/UPC code	065030889810
Warranty (months)	2 Years
Ports & interfaces
Ports quantity	7
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Hub interfaces	USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Terminal block port	Y
DC-in jack	Y
Features
Data transfer rate	10000 Mbit/s
Housing material	Steel
Product colour	Black
Surge protection	Y
LED indicators	Y
Electrostatic Discharge (ESD) protection (air)	15 kV
Electrostatic Discharge (ESD) protection (contact)	8 kV
Power
Power supply type	DC
Input voltage	100 - 240 V
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Weight & dimensions
Width	26 mm
Depth	60 mm
Height	178 mm
Weight	300 g
Packaging data
Package width	290 mm
Package depth	187 mm
Package height	70 mm
Package weight	1400 g
Packaging content
AC adapter included	Y
Included power plug types	ANZ, EU, JP, NA, UK
Cables included	USB Type-A to USB Type-C, USB Type-C to USB Type-C
DIN rail kit included	Y
Quick start guide	Y
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	5 - 95 procent
Performance
Mean time between failures (MTBF)	163021.7 uur
Logistics data
Master (outer) case width	515 mm
Master (outer) case length	390 mm
Master (outer) case height	313 mm
Quantity per master (outer) case	14 stuk(s)
Other features
Chipset	VIA/VLI VL822
