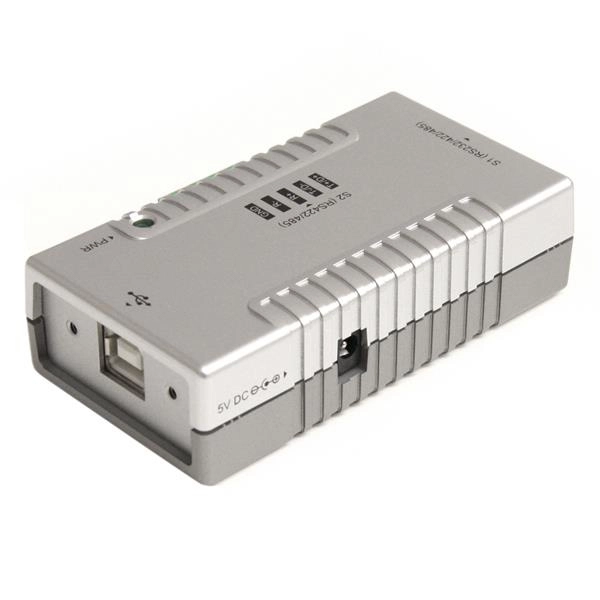

The ICUSB2324852 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention lets you connect every type of serial device to your USB-enabled computer, whether it be for RS232, RS422, or RS485 communication. The adapter features a 9-pin (DB9) male and a 5-pin terminal block serial connector as well as dip-switch controls for easy port configuration with minimal software requirements. The adapter also supports using 2 ports simultaneously, including with mixed protocols; for example RS-232 on port 1, and RS-485 on port 2, or a number of other combinations.

For a convenient, and clean installation in office or industrial settings, the RS232/RS422/RS485 USB Adapter is wall-mountable and fully powered via the host USB connection, providing power to the attached serial device without requiring an external power adapter.

Backed by a StarTech. com 2-year warranty and free lifetime technical support.

The StarTech. com Advantage
- This single adapter is compatible with any serial device protocol (RS232, RS422, and RS485), and even allows mixing protocols for simultaneous communication over both ports
- COM retention saves the assigned port settings for the device, so disconnecting/reconnecting is hassle-free
- USB Powered - no power outlet required, and no cumbersome AC adapter to carry around

Specification

Product
Product id	349863
Brand	StarTech.com
Partnr	ICUSB2324852
EAN/UPC code	065030840965
Warranty (months)	2 Years
Technical details
Chipset	FTDI - FT2232H
Sustainability certificates	RoHS
Design
Product colour	Grey
LED indicators	Power
Certification	CE, FCC
Features
Baud rate	921.6 Kbit/s
FIFO (First In, First Out)	128 B
Data bits	7, 8
Stop bits	1, 2
Parity bit	Even, Mark, N, Odd, Space
Flow Control type	N, XON/XOFF
Power
Output voltage	5 V
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-25 - 85 °C
Packaging data
Cables included	USB
Manual	Y
Package width	144 mm
Package depth	208 mm
Package height	40 mm
Package weight	310 g
Weight & dimensions
Width	44.2 mm
Depth	82.3 mm
Height	23.2 mm
Weight	310 g
Logistics data
Quantity per pack	1 stuk(s)
Other features
Compatible operating systems	- Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 - Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016 - Mac OS X® 10.6 to 10.12 - Linux 2.4. x to 4.4. x LTS
Relative humidity	5 - 95 procent
