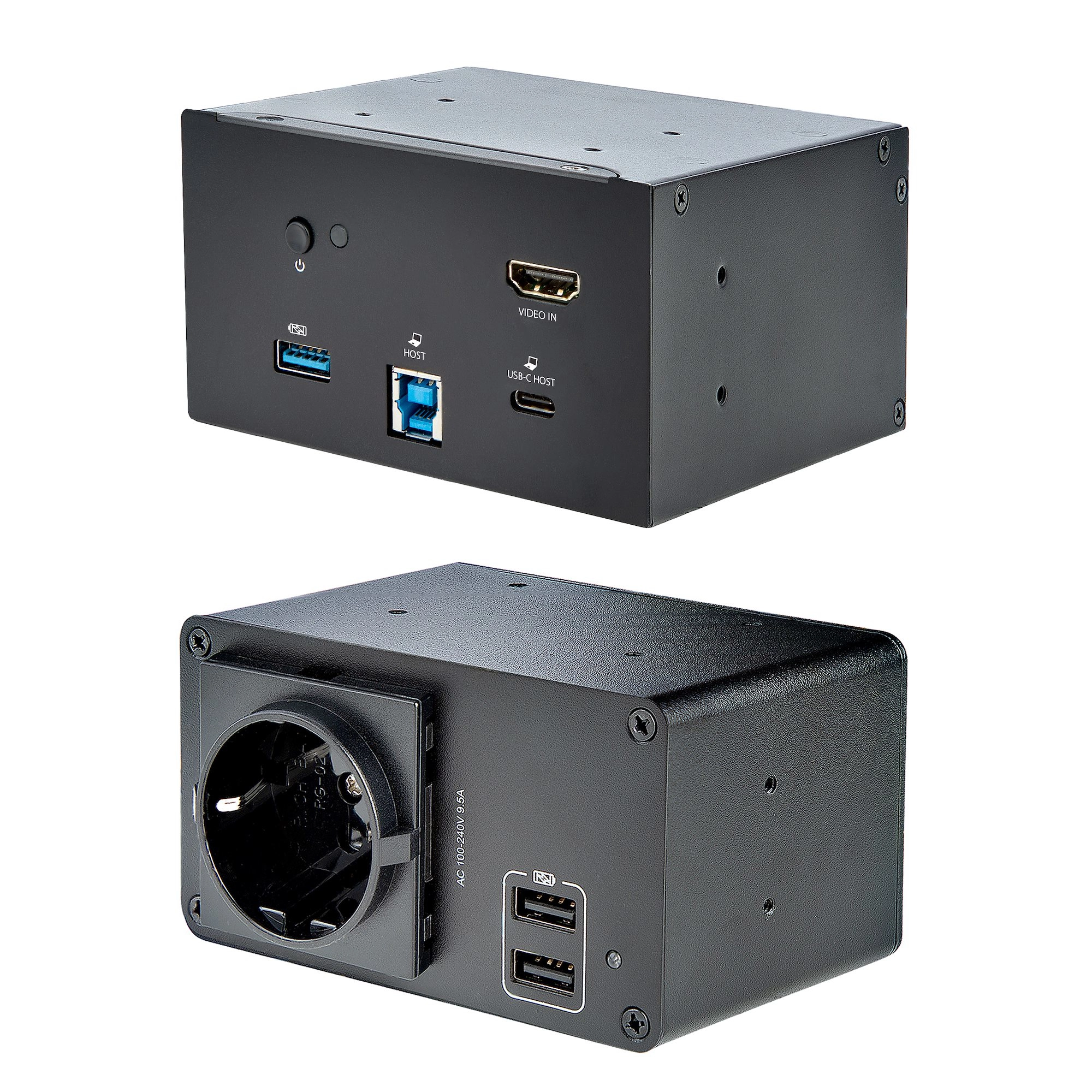

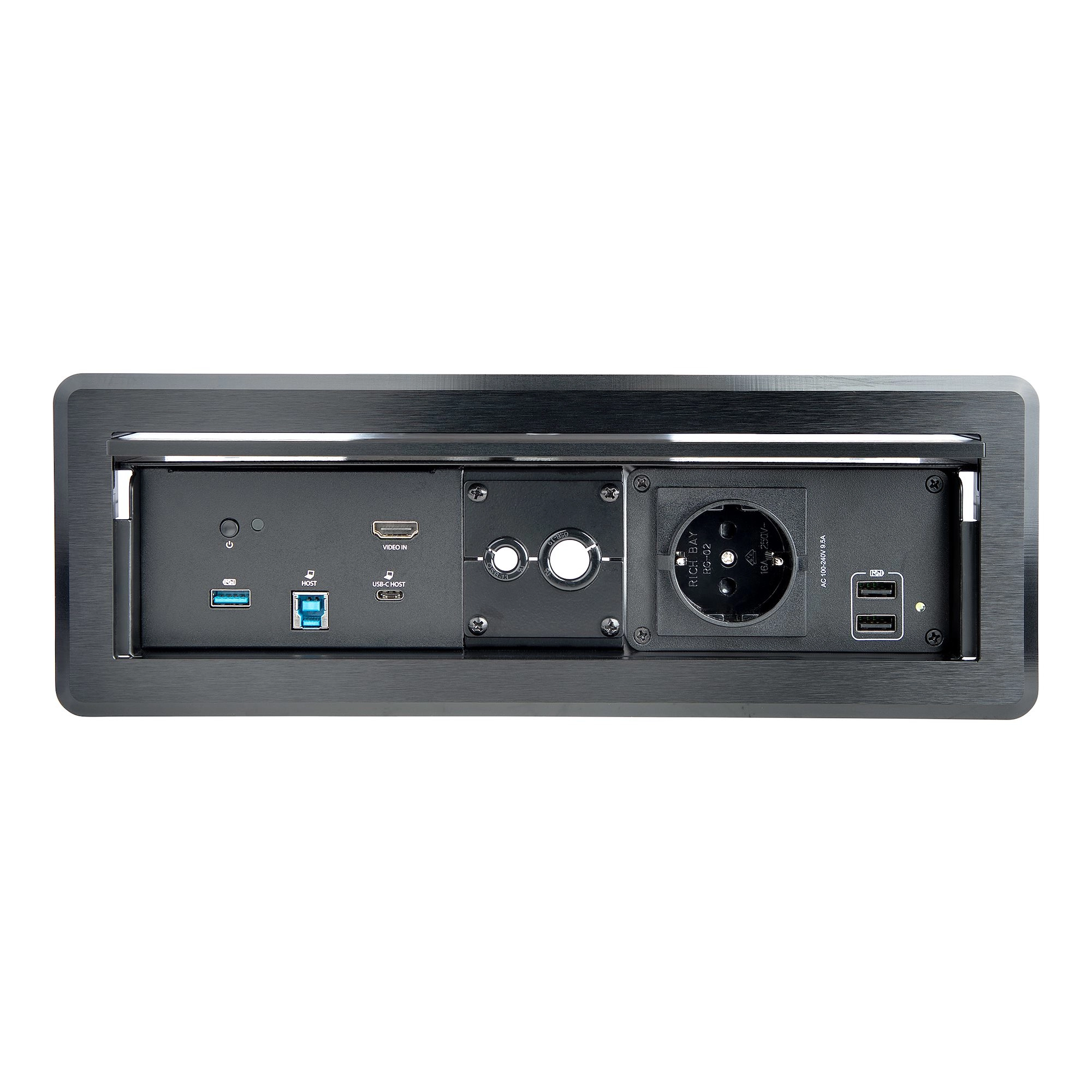

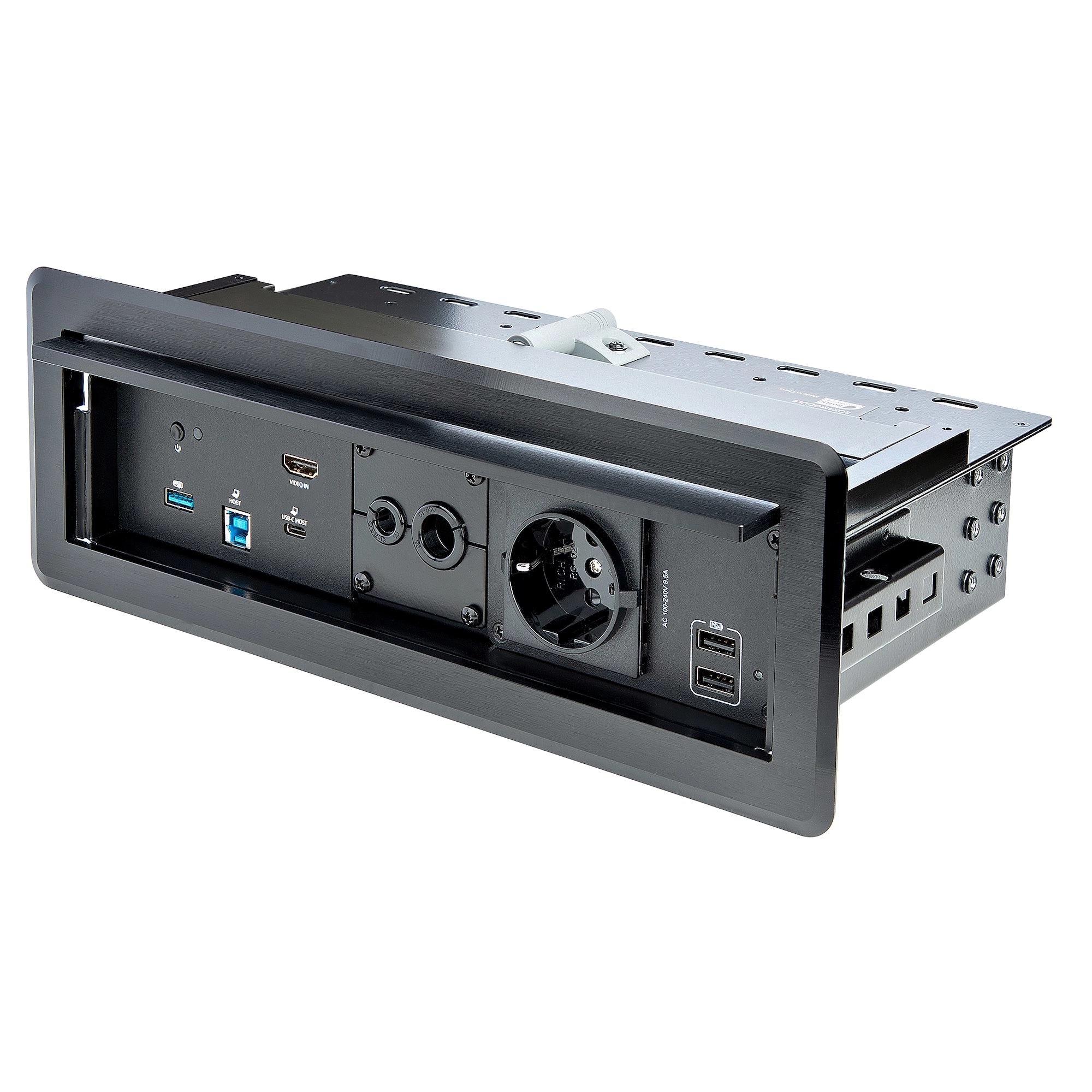

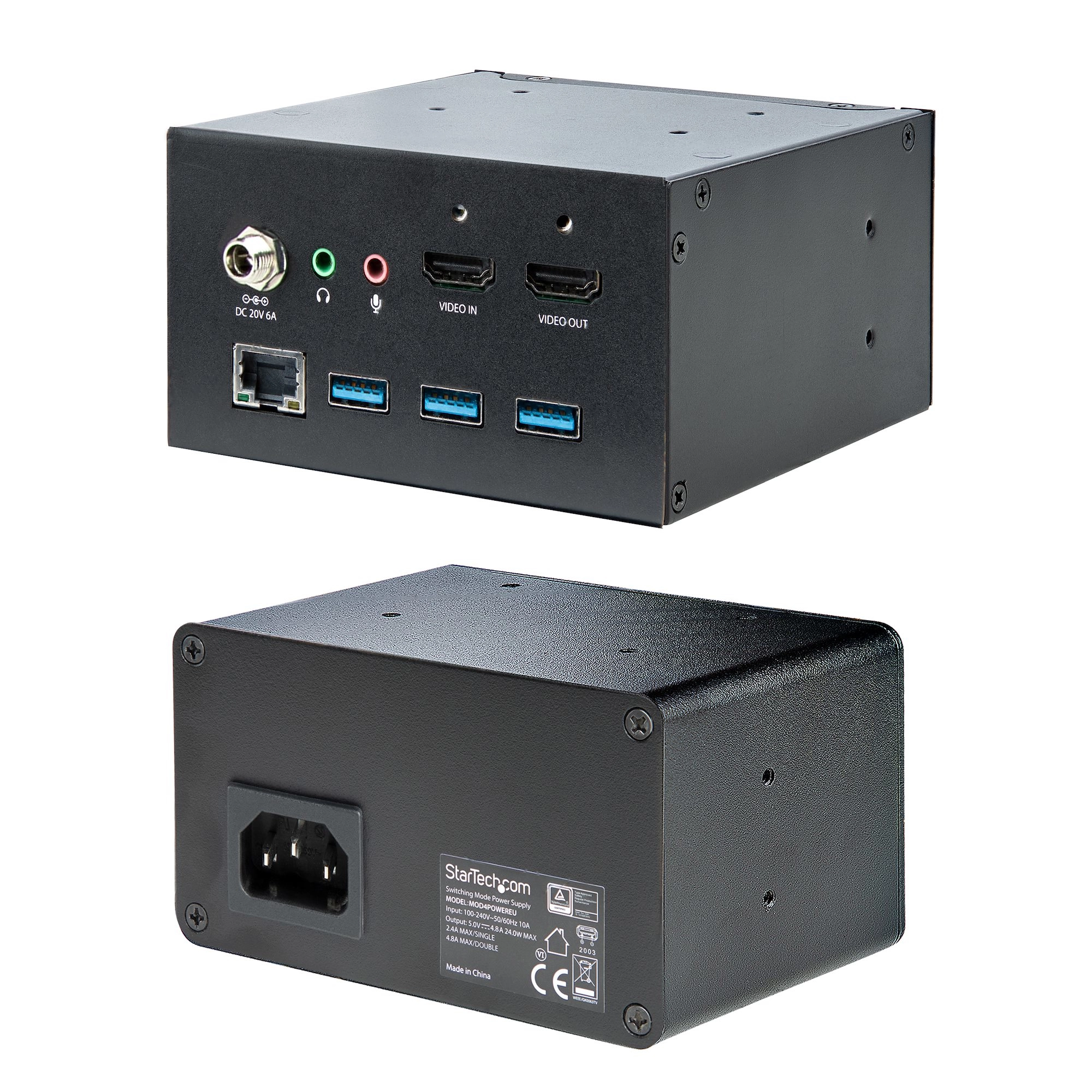

Architectural Connectivity | 4K HDMI® | USB-C™ and USB-A | USB-C PD | 1x AC and 2x USB-AThis conference table connectivity box bundle provides power and charging where it's needed and adds docking station capabilities to your boardroom, classroom or huddle space. The StarTech. com bundle contains three products to equip you with a convenient out-of-the-box connectivity solution:• Power outlet module (MOD4POWEREU)• Laptop Docking Module (MOD4DOCKACPD)• Dual-module conference table connectivity box (BOX4MODULE)Power Your Devices and Stay Charged During MeetingsThis tabletop power hub lets you power a laptop using the AC power outlet and charge phones and tablets using the 2.4 amp USB ports, directly from your conference table. Dock Your LaptopDuring meetings you may need to set up conference calls using applications such as Microsoft Teams, Zoom or Google Hangouts. Unlike other boardroom conferencing solutions that are limited to only one or two collaboration applications, this module lets you use your own laptop, so you are not restricted to a specific platform. The boardroom USB-C docking station lets you collaborate with others in the room and around the globe. It lets you:• Access your room's display; peripherals, webcam, speakers, mic and network• Charge mobile devices using the USB-A charge port• Power a supported USB-C laptop with USB-C power deliveryFor users that are unable to dock or for quick access to the display, the front-facing HDMI port lets you connect a laptop directly to the display. Simple InstallationThe conference table insert is easy to install and features a lid that closes to conceal connection points. Plus, the cable organizer keeps cables accessible. The connectivity box can meet the needs of small, medium or large size rooms. KITBXDOCKPEU is backed by a StarTech. com 2-year warranty and free lifetime technical support. The StarTech. com Advantage

Specification

Product
Product id	817278
Brand	StarTech.com
Partnr	KITBXDOCKPEU
EAN/UPC code	065030891172
Warranty (months)	2 Years
Video
Maximum resolution	3840 x 2160 Pixels
Maximum refresh rate	30 Hz
Network
Ethernet LAN	Y
Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X	Y
Full duplex	Y
Data transfer rate (max)	5 Gbit/s
Features
Product colour	Black
LED indicators	Power
Housing material	Aluminium, Plastic, Steel
Chipset	DisplayLink - DL-6950, Genesys Logic - GL850G, Texas Instruments - TPS65982, Parade Technologies - PS176, VIA Labs - VL813, Realtek - RTL8153
Certification	CE, RoHS, FCC
Operating systems supported	Windows 7, 8, 8.1, 10, 11 macOS 10.9 - 10.12, 10.14, 10.15, 11.0, 12.0 Chrome OS v55+
Ports & interfaces
HDMI input ports quantity	2
HDMI output ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio input	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Audio output	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
UASP support	Y
DC-in jack	Y
Power
DC input voltage	100 - 240 V
AC adapter output voltage	20 V
AC adapter output current	6 A
Power plug type	Type N
AC outlet types	C13 coupler, Type E / F
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	20 - 80 procent
Weight & dimensions
Width	318 mm
Depth	165 mm
Height	110 mm
Weight	2700 g
Package width	360 mm
Package depth	140 mm
Package height	240 mm
Package weight	5600 g

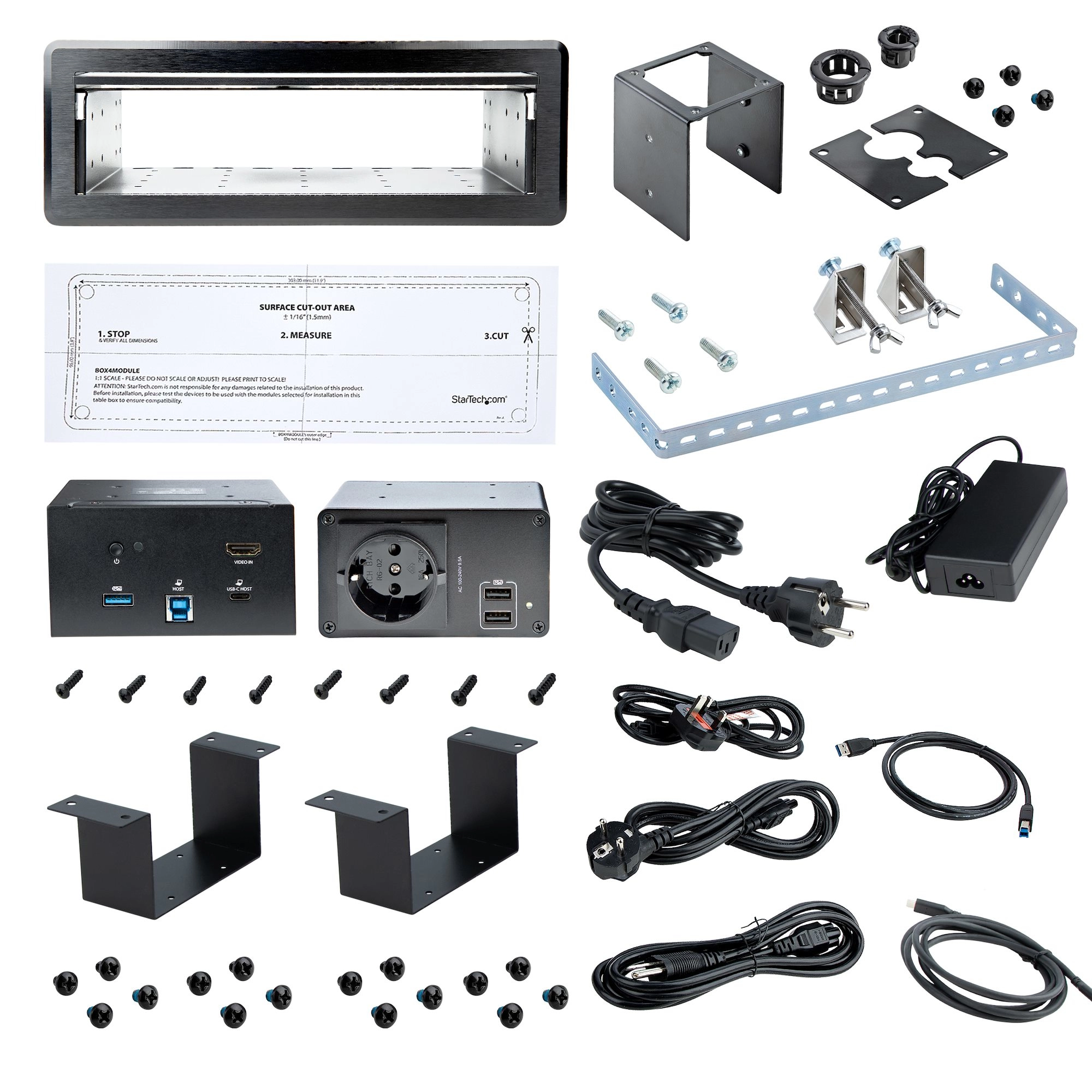

Packaging content
AC adapter included	Y
Cables included	AC
Included power plug types	EU, NA, UK
Screws included	Y
Number of screws	36
Quick start guide	Y
Mounting brackets included	Y
Logistics data
Master (outer) case width	360 mm
Master (outer) case length	140 mm
Master (outer) case height	240 mm
Quantity per master (outer) case	1 stuk(s)
