Centralize edge conversions with a 15-slot rack that simplifies management and adds optional power redundancy for uptime.

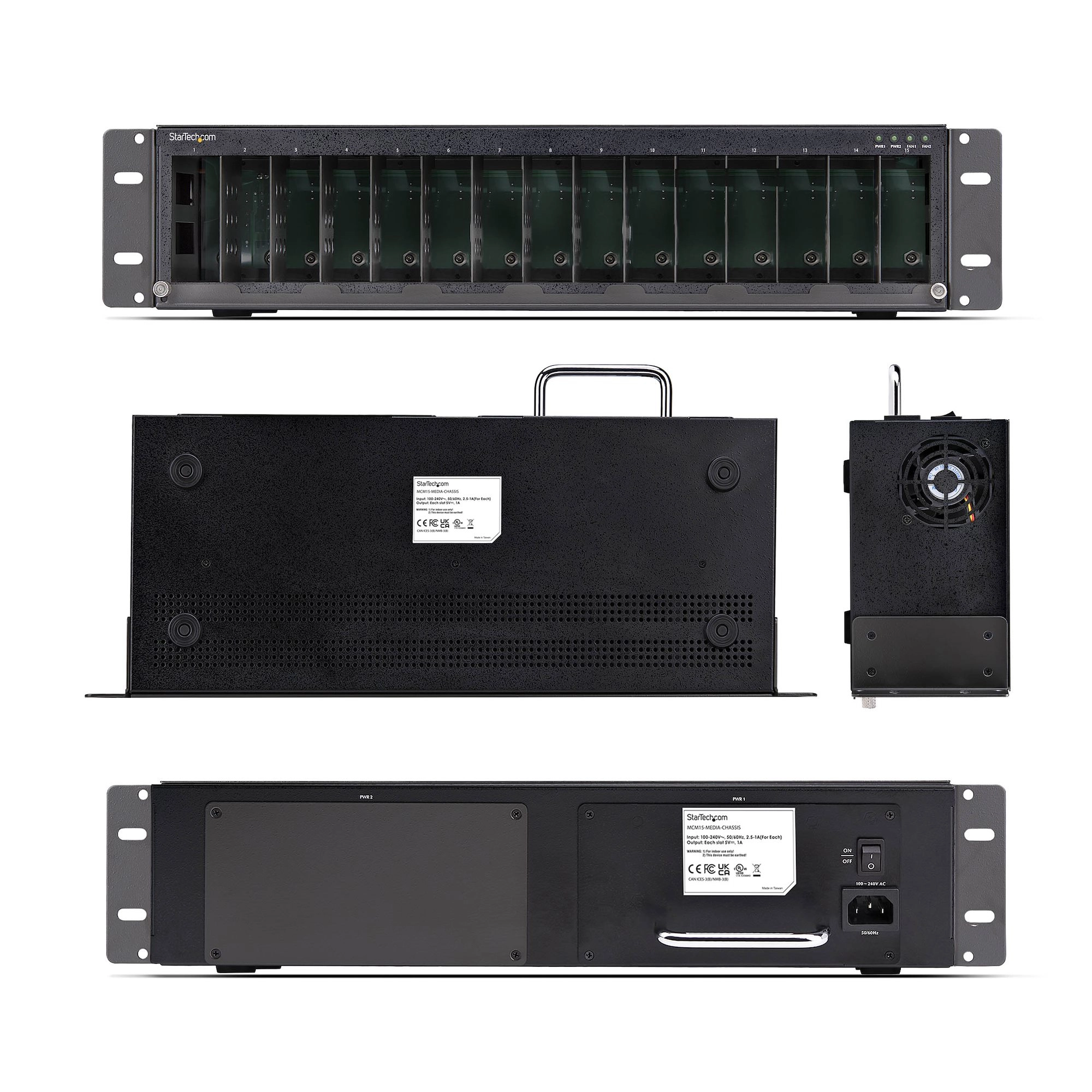

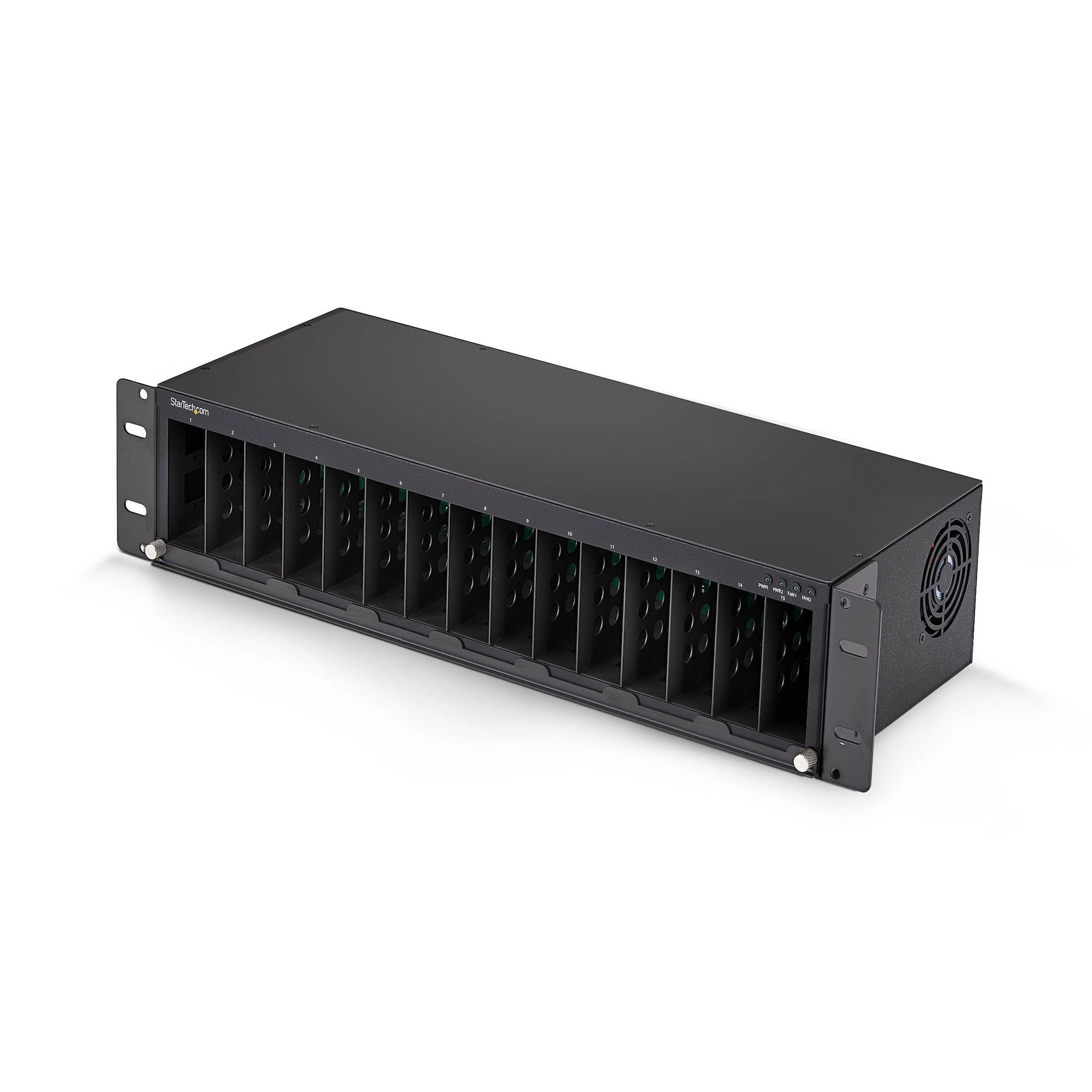

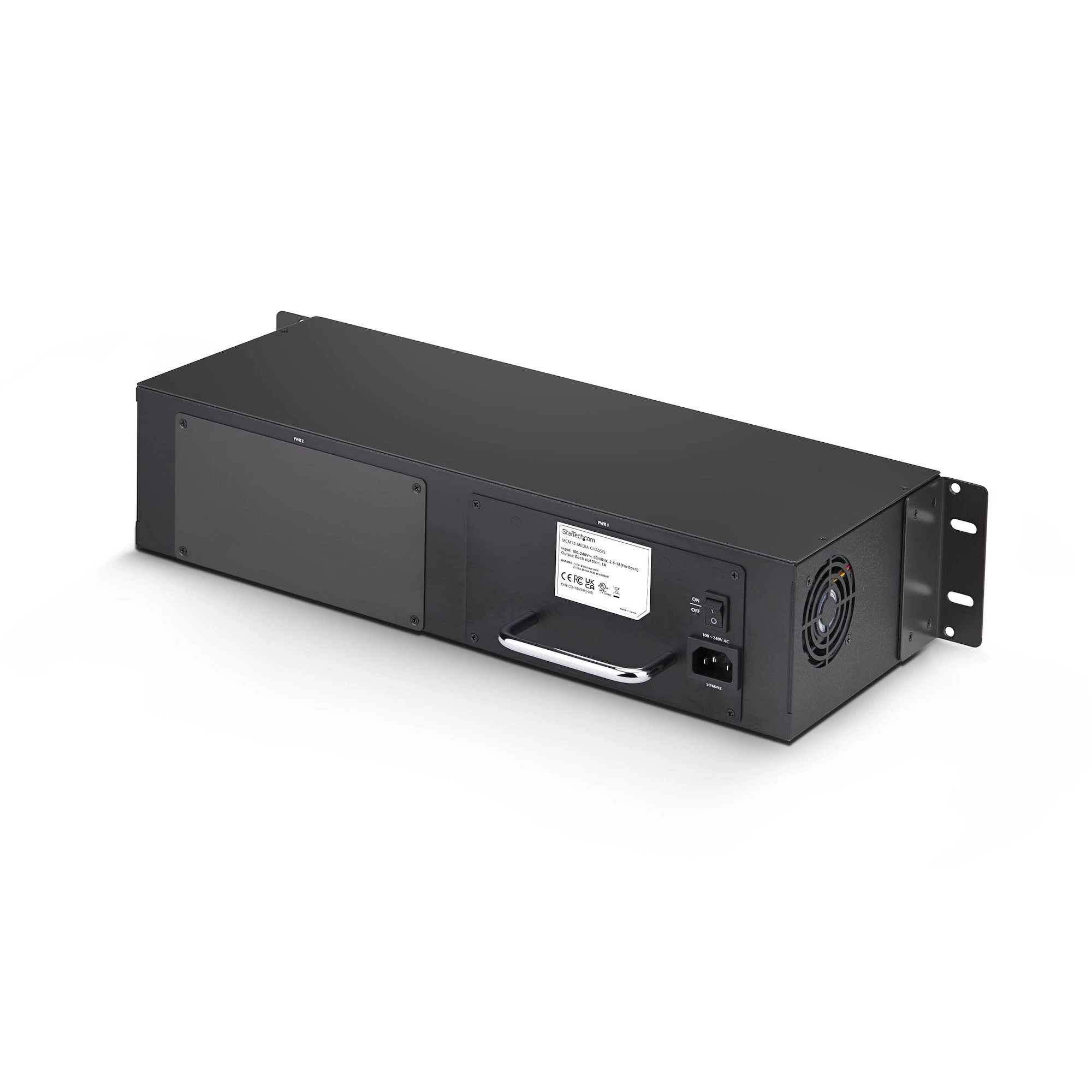

The 15-Slot Media Converter Chassis delivers high-density, centralized management for up to fifteen media converters in a compact 19-inch rack-mount form. Designed for enterprise, telecom, and data center networks, it streamlines power distribution, reduces clutter, and supports nonstop operation with an optional hot-swappable Redundant Power System (RPS). the chassis is designed for the MCM Media Converter Series.

Centralized, Scalable Integration

Accommodates Fast, Gigabit, and 10-Gigabit Ethernet, VDSL2, and Serial-over-Ethernet converters in one chassis. Each slot is hot-swappable and independently powered, allowing upgrades or replacements without downtime.

Reliable Power and Protection

Includes one AC power supply with an optional AC or -48V DC backup for continuous service. Electrical isolation and protection against over-voltage, over-current, and short-circuit events ensure stable performance.

Durable, Intelligent Design

This rugged 2.4U metal chassis with dual cooling fans and LED indicators provides efficient heat management and easy status monitoring. FCC, CE, and UL certified, the chassis offers long-term reliability in mission-critical environments.

Specification

Product
Product id	1012668
Brand	StarTech.com
Partnr	MCM15-MEDIA-CHASSIS
EAN/UPC code	065030917056
Warranty (months)	2 Years
Technical details
Rack mounting	Y
LED indicators	Fan, Power
Material	Metal
Number of slots	15
Product colour	Black
Number of fans	2 ventilator(en)
Mean time between failures (MTBF)	50000 uur
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Compatible products	MCM Series
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	5 - 90 procent
Power
Output voltage	48 V
AC input voltage	100 - 240 V
Output current	4.2 A
Included power plug types	EU, NA, UK
Weight & dimensions
Width	438 mm
Depth	200 mm
Height	103 mm
Packaging data
Cables included	AC
Manual	Y
Package width	274 mm
Package depth	508 mm
Package height	170 mm
Package weight	5700 g
Logistics data
Master (outer) case width	300 mm
Master (outer) case length	540 mm
Master (outer) case height	383 mm
Quantity per master (outer) case	2 stuk(s)
