Add a powered 7-slot rack that organizes edge converters, cuts clutter, and supports optional power redundancy for uptime.

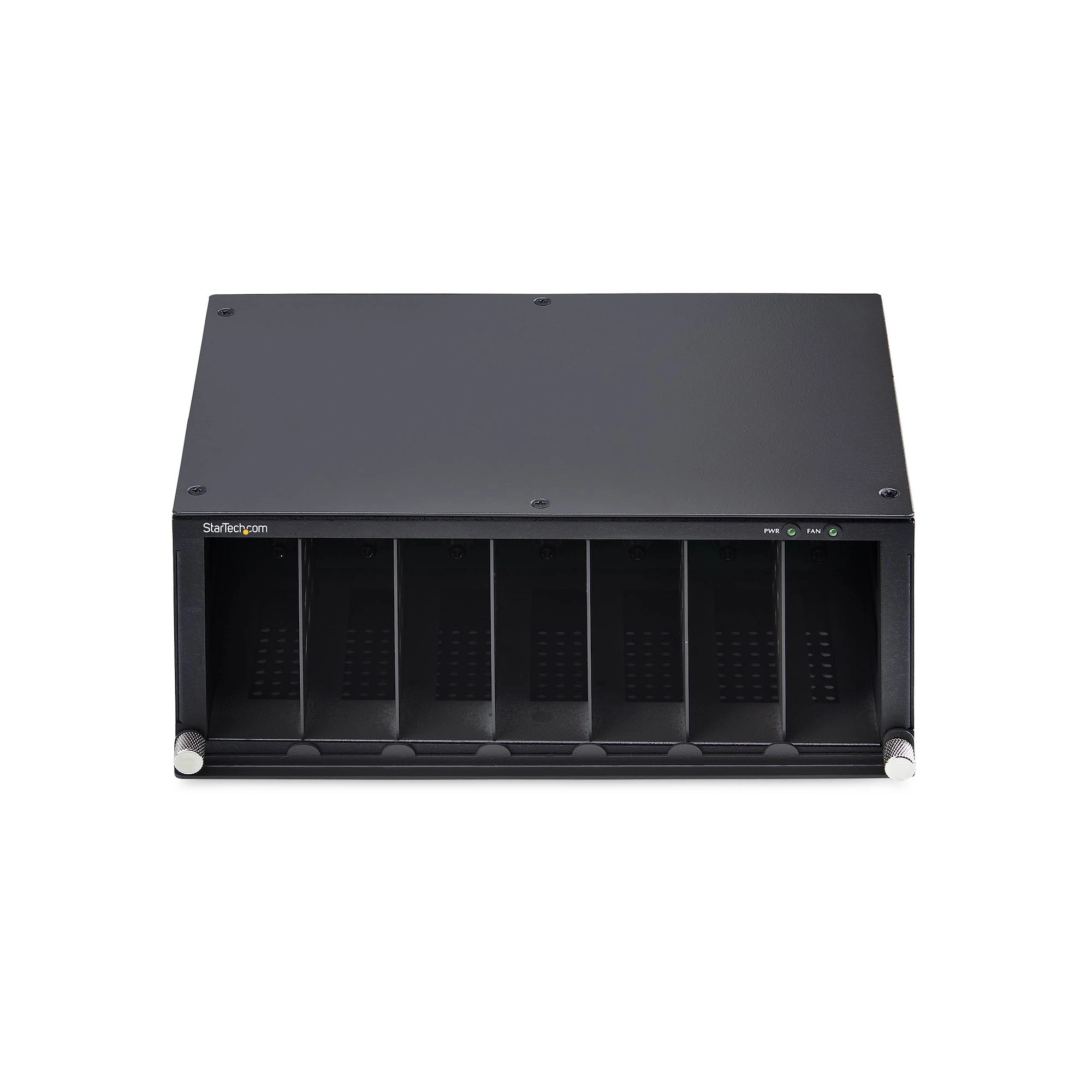

The 7-Slot Media Converter Chassis delivers high-density, centralized management for up to seven media converters in a compact 10-inch rack-mount form. Designed for enterprise, telecom, and data center networks, it streamlines power distribution, reduces clutter, and supports nonstop operation with an optional hot-swappable Redundant Power System (RPS). the chassis is designed for the MCM Media Converter Series.

Centralized, Scalable Integration

Accommodates Fast, Gigabit, and 10-Gigabit Ethernet, VDSL2, and Serial-over-Ethernet converters in one chassis. Each slot is hot-swappable and independently powered, allowing upgrades or replacements without downtime.

Reliable Power and Protection

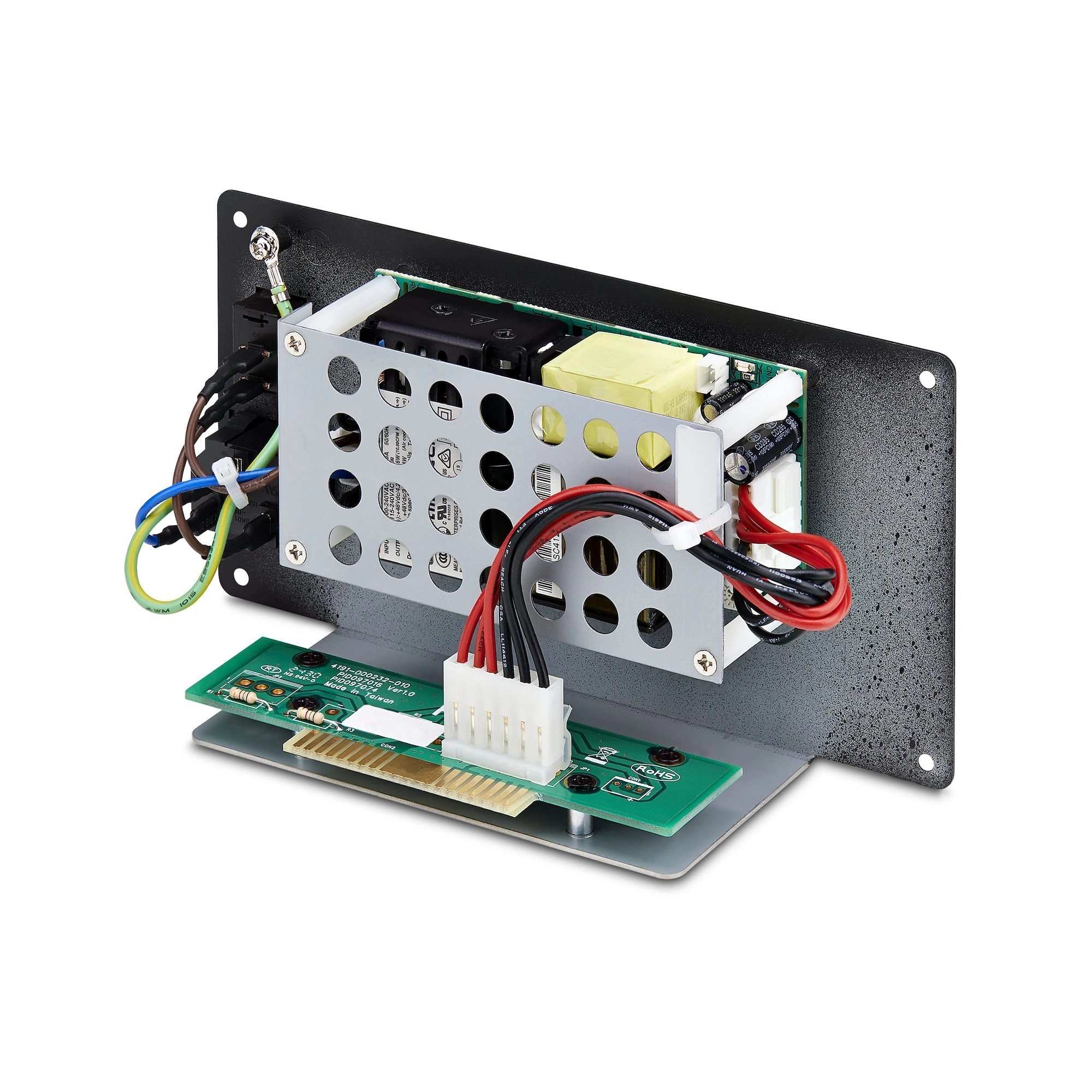

Includes one AC power supply with an optional AC or -48V DC backup for continuous service. Electrical isolation and protection against over-voltage, over-current, and short-circuit events ensure stable performance.

Durable, Intelligent Design

This rugged metal chassis with dual cooling fans and LED indicators provides efficient heat management and easy status monitoring. FCC, CE, and UL certified, the chassis offers long-term reliability in mission-critical environments.

Specification

Product
Product id	1012669
Brand	StarTech.com
Partnr	MCM7-MEDIA-CHASSIS
EAN/UPC code	065030917070
Warranty (months)	2 Years
Technical details
Rack mounting	Y
LED indicators	Fan, Power
Material	Metal
Number of slots	7
Product colour	Black
Mean time between failures (MTBF)	50000 uur
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Compatible products	MCM Series
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 90 procent
Power
Output voltage	48 V
AC input voltage	100 - 240 V
Output current	4.2 A
Included power plug types	EU, NA, UK
Weight & dimensions
Width	417 mm
Depth	140 mm
Height	88.5 mm
Packaging data
Cables included	AC
Manual	Y
Package width	216 mm
Package depth	316 mm
Package height	153 mm
Package weight	2600 g
Logistics data
Master (outer) case width	405 mm
Master (outer) case length	465 mm
Master (outer) case height	360 mm
Quantity per master (outer) case	5 stuk(s)
