Multi-Monitor Video Splitter | Windows | Thunderbolt 3 Compatible

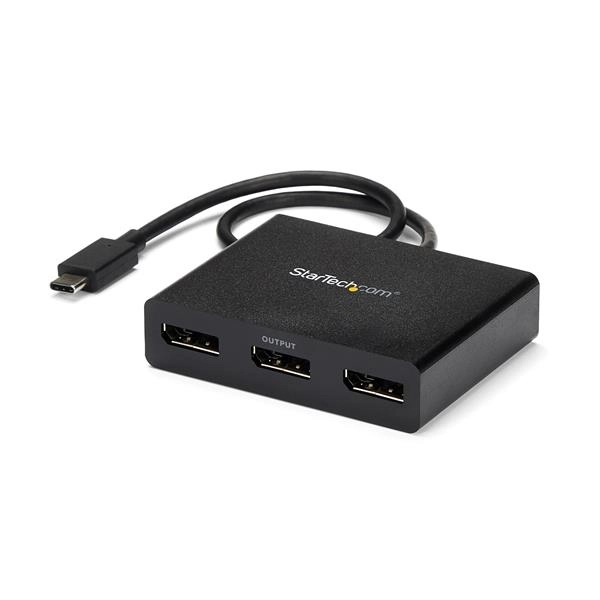

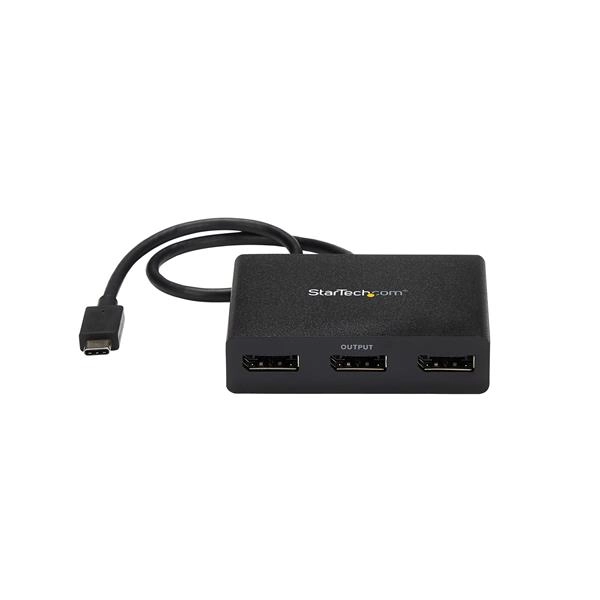

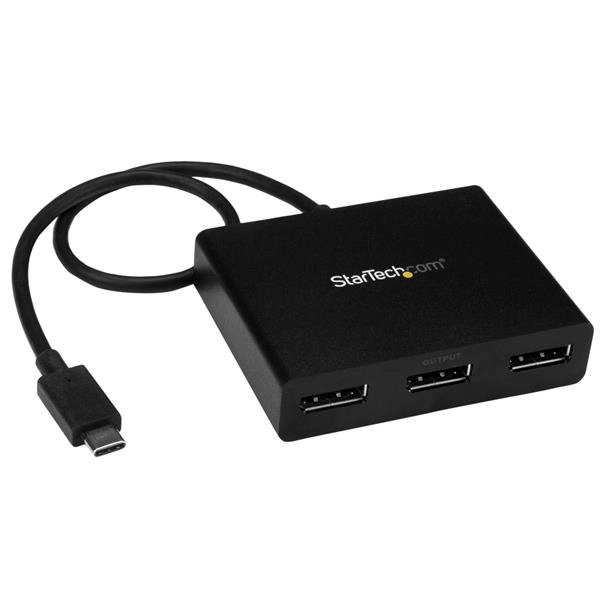

This 3-port USB-C to DisplayPort MST hub lets you connect three DisplayPort monitors to your USB Type-C Windows device, conveniently helping you to maximize your productivity.

Multitasking Made Easy

With devices becoming more portable than ever, you can be limited to fewer video outputs and confined to your small integrated screen. This MST hub solves that problem by enabling you to connect three displays to your USB-C computer, making multi-tasking much easier.

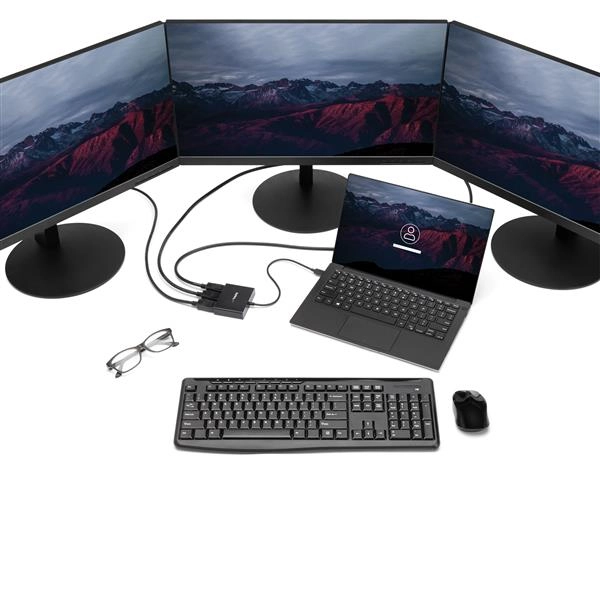

Using this USB-C to DisplayPort splitter, you can mirror your display onto additional monitors or stream independent content to each display, which makes it the ideal accessory for travel or hot-desking.

Astonishing Picture Quality

Multi-Stream Transport (MST) technology uses your existing video card to minimize the use of system resources while delivering UHD 4K resolutions for up to two monitors simultaneously.  Plus, because the multi-monitor splitter can output HD 1080p on three independent displays, it’s perfect for all high-resolution applications such as graphic design and medical imaging.

Hassle-Free Setup

MST offers an easy setup, by natively working on any Windows device that supports DP Alt Mode over USB Type-C. This USB-C multi-monitor adapter is Thunderbolt 3 compatible and offers plug-and-play installation with no drivers or software required. Additionally, this DP MST hub is powered by the USB-C port, meaning no external power cords are necessary.

MSTCDP123DP is backed by a StarTech. com 3-year warranty, and free lifetime technical support.

The StarTech. com Advantage

- MULTIPLE MONITORS: USB-C to DisplayPort splitter to drive 2x 4K 30Hz or 3x 1080p 60Hz DP displays using a USB-C DP Alt-Mode port (DP 1.2/HBR2/MST) w/ no video compression; Thunderbolt 3 compatible

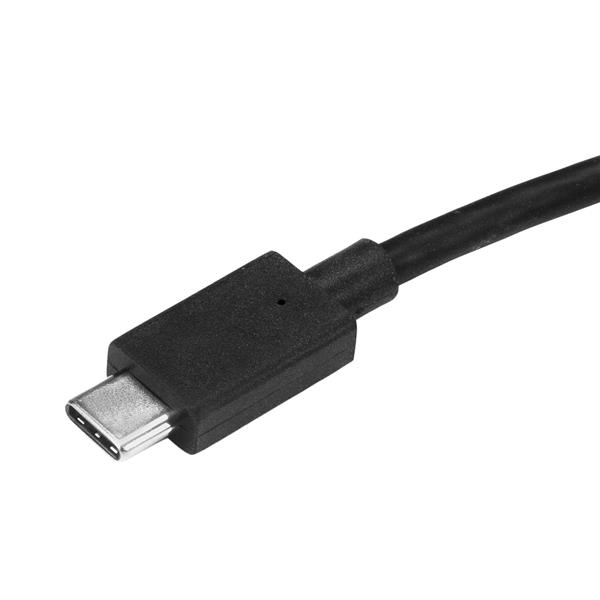

- CONVENIENCE: With a built-in 1ft cable, this bus-powered 3-port MST hub provides an easy method to connect up to three independent screens with any DisplayPort over USB Type-C Windows host device
- COMPATIBLE WITH: Dell XPS / Precision / Latitude, Lenovo ThinkPad X1 Carbon / Extreme, Surface Laptop 3 / Book 3 / Pro 7, HP ProBook / EliteBook / Spectre / ZBook & smaller (Mini -ITX) computers

Specification

Product
Product id	577547
Brand	StarTech.com
Partnr	MSTCDP123DP
EAN/UPC code	065030864503
Warranty (months)	3 Years
Performance
USB connector type	USB Type-C
USB connector gender	Male connector
DVI output	N
HDMI output	N
DisplayPort output	Y
Number of displays supported	3
DisplayPort version	1.2
Maximum resolution	3840 x 2160 Pixels
Refresh rate at maximum resolution	30 Hz
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160
Chipset	MegaChips - STDP4320, VIA/VLI - VL100
Certification	CE, FCC, REACH
Design
Product colour	Black
Housing material	Plastic
Integrated USB cable	Y
USB cable length	0.322 m
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	-20 - 70 procent
Weight & dimensions
Width	60 mm
Depth	78 mm
Height	18 mm
Weight	86 g
Package width	145 mm
Package depth	175 mm
Package height	30 mm
Package weight	200 g
Packaging content

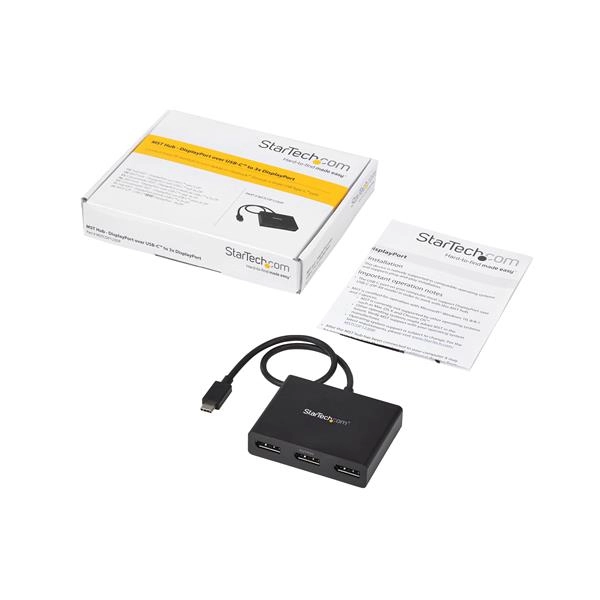

Quick installation guide	Y
Technical details
Sustainability certificates	RoHS
Logistics data
Quantity per master (outer) case	28 stuk(s)
Master (outer) case width	330 mm
Master (outer) case length	500 mm
Master (outer) case height	220 mm
