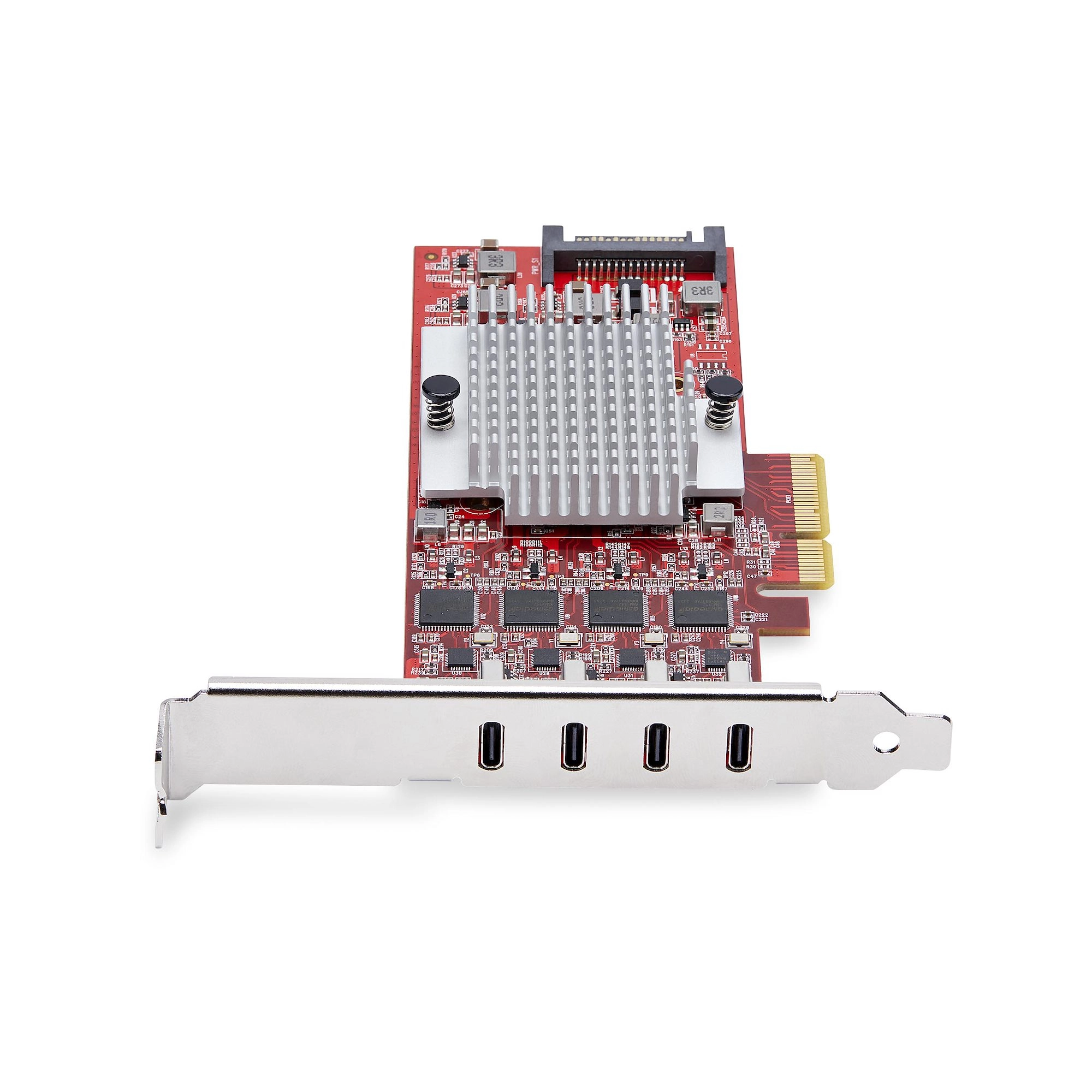

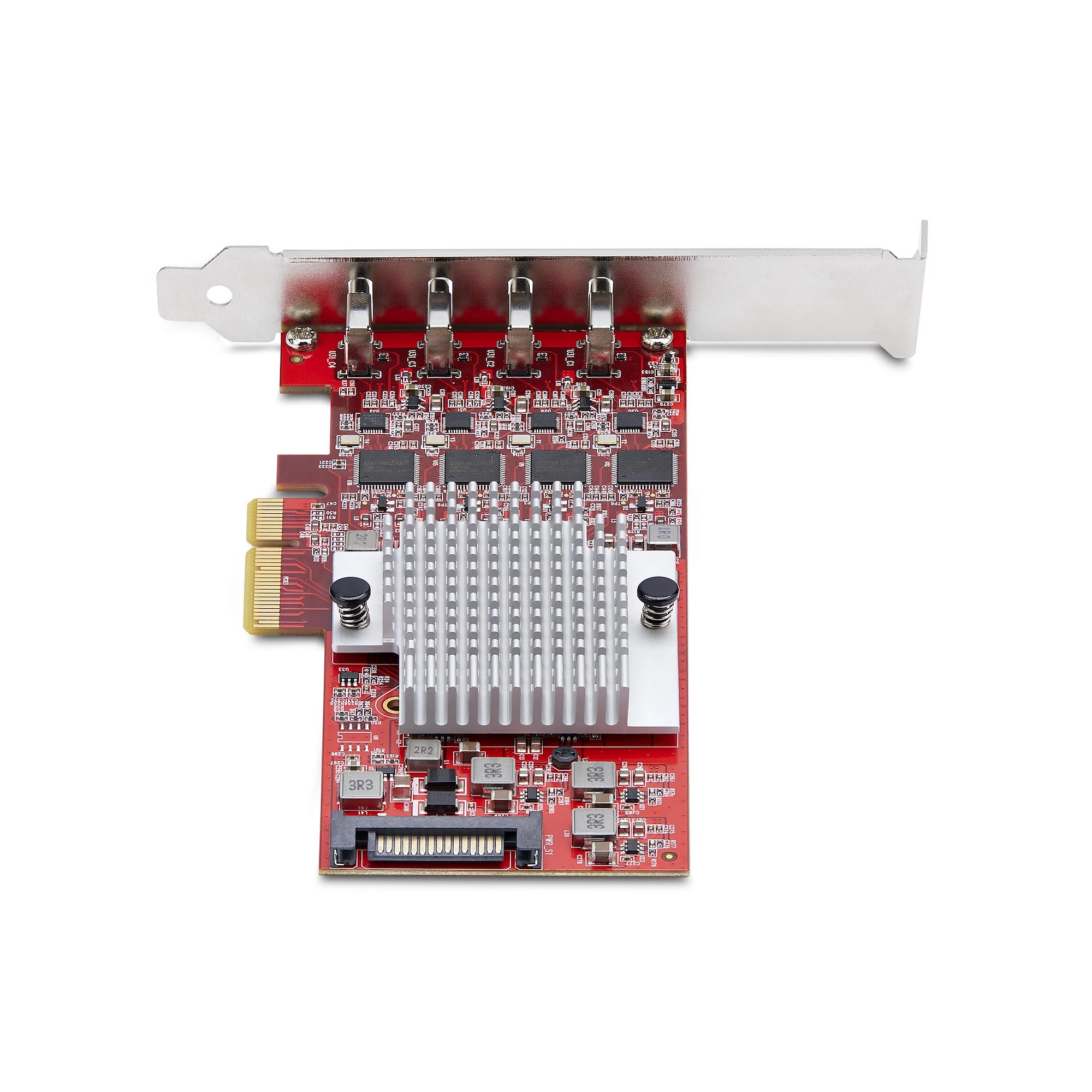

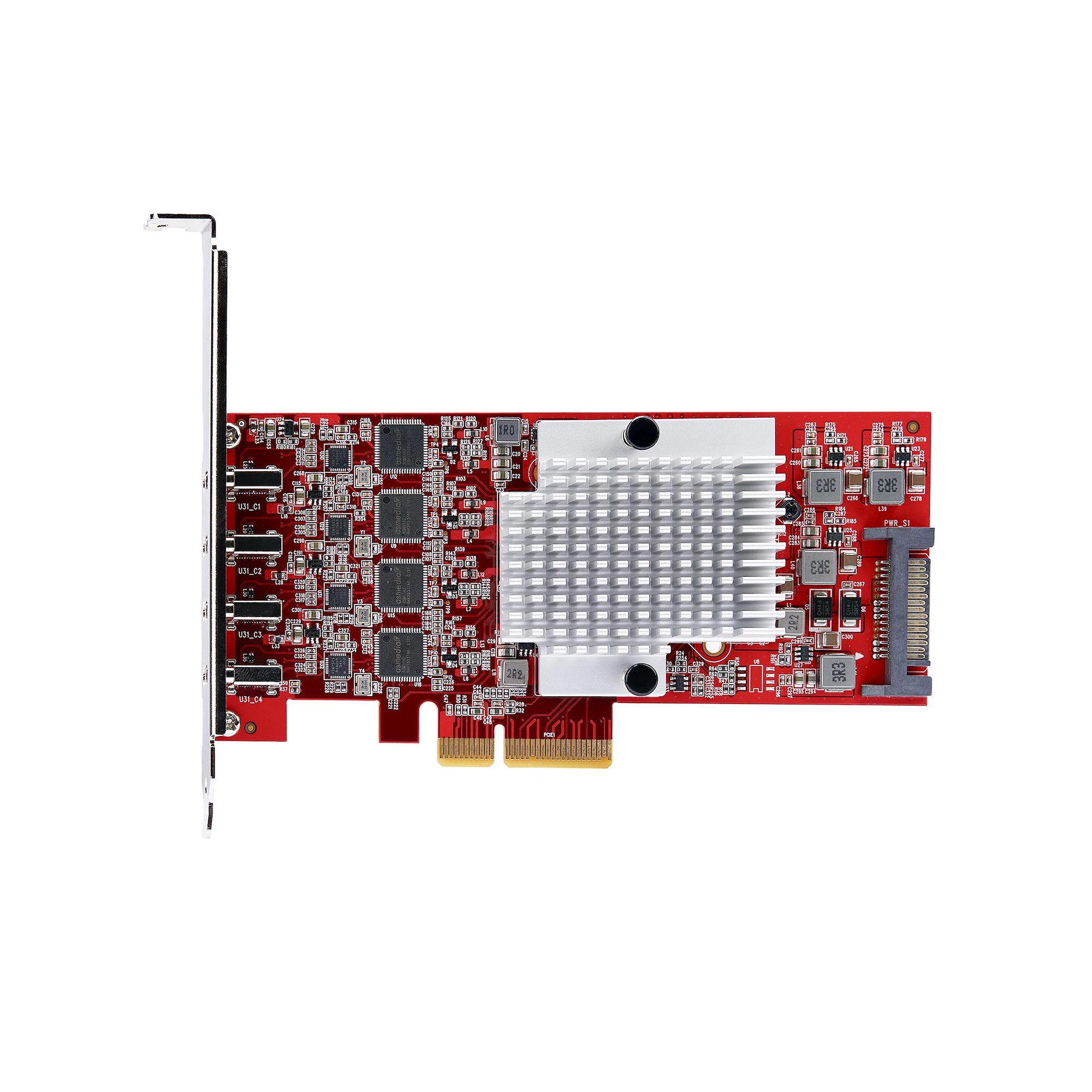

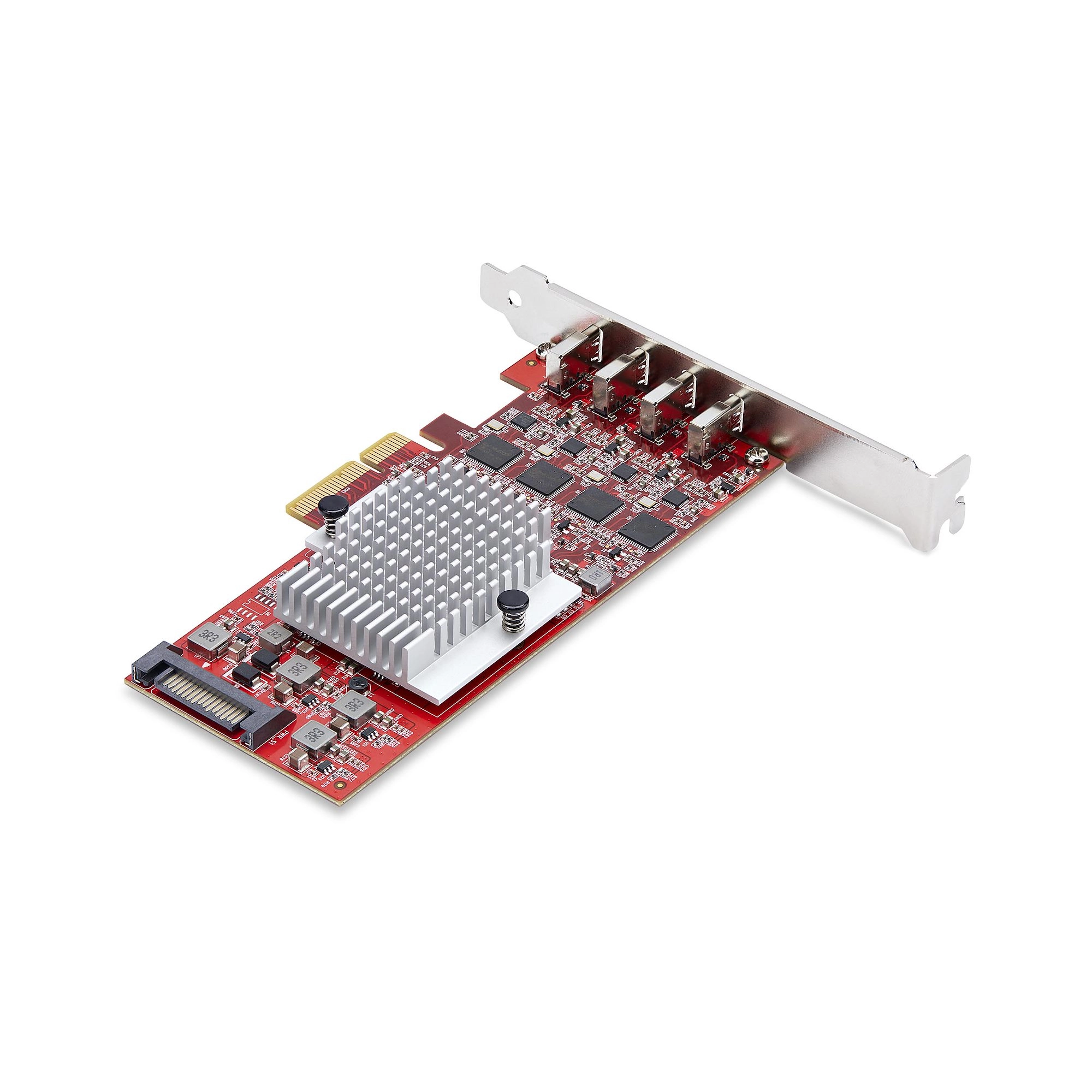

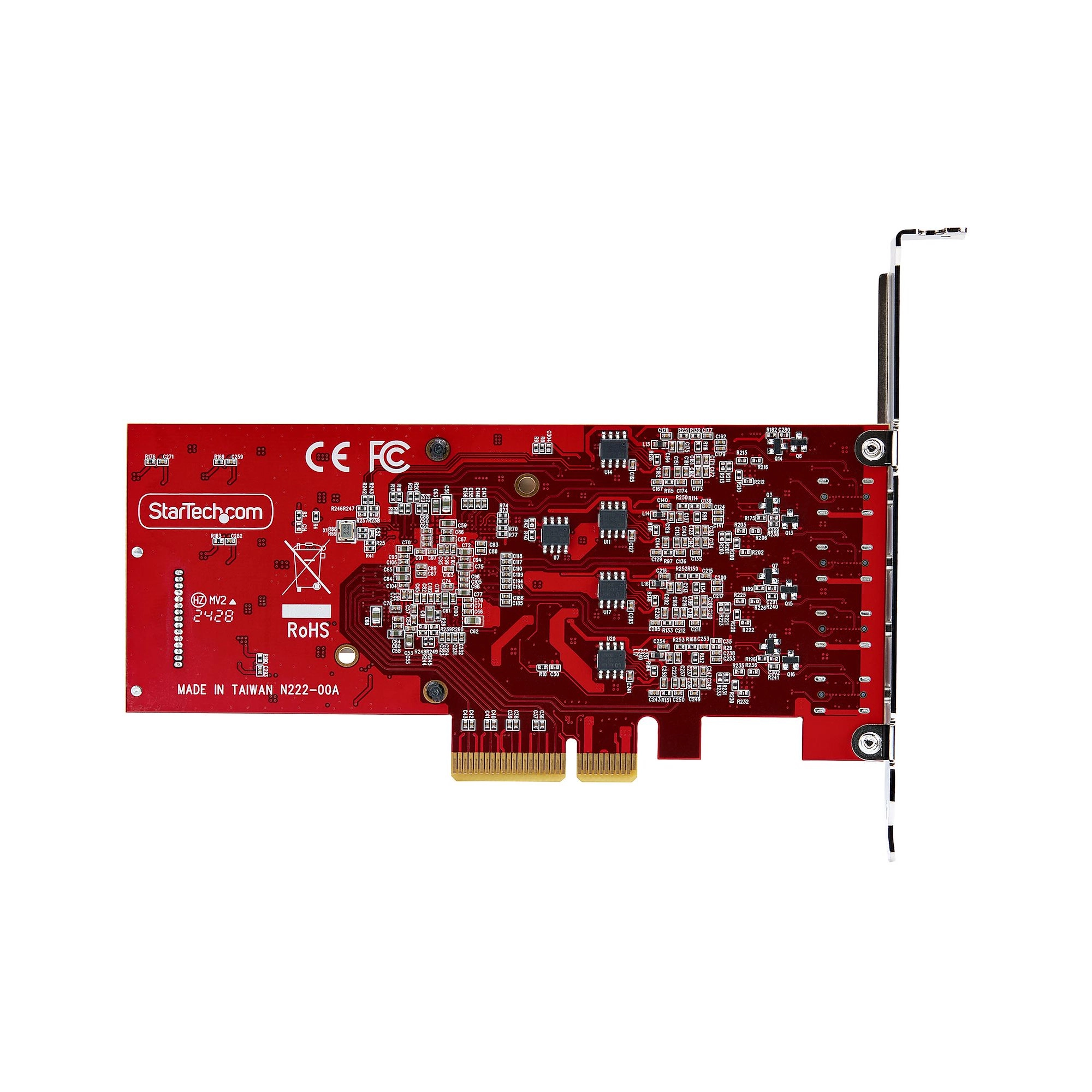

Add four 10Gbps USB Type-C ports to a server or desktop computer through PCI Express

Expand the USB connectivity of a desktop computer or server by adding four external USB Type-C 10Gbps ports with this internal PCI Express 3.0 expansion card.

Dedicated USB Controllers

Traditional single-controller USB cards share bandwidth across all ports. With its four independent USB controllers, this USB-C expansion card enables each port to achieve up to 10Gbps, reducing bottlenecks and increasing data throughput.

USB 3.2 Gen 2 (10Gbps) Performance

The high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, off-loading media from mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters like 10G Ethernet copper or fiber adapter.

Charge and Sync USB Devices

This USB PCI Express card can provide up to 5V 3A (15W) per USB-C port, enabling sync and charge of portable devices. If the motherboard can't supply enough power, a built-in SATA power connector can supply additional power to the card.

Compatibility

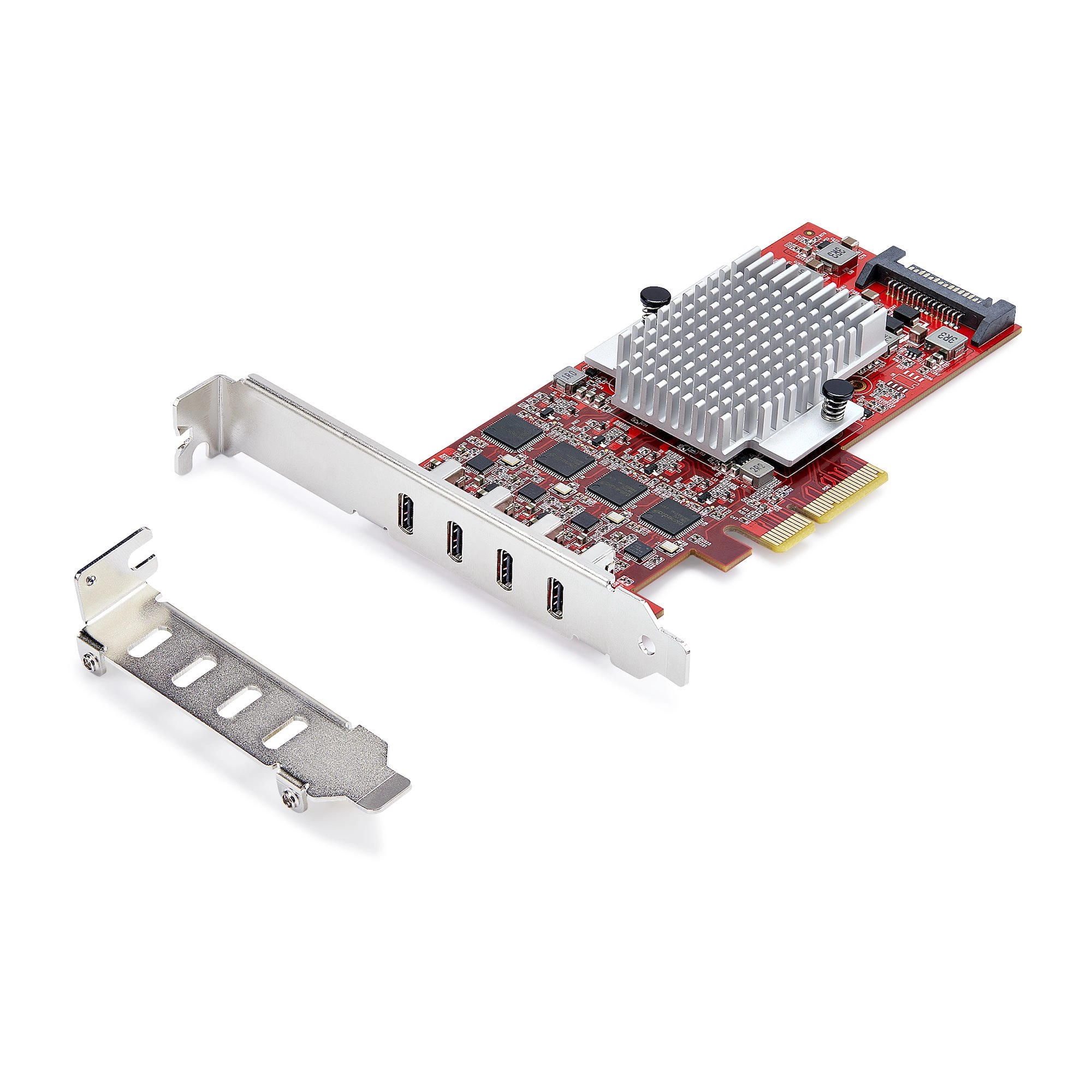

The PCI Express USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. The card is compatible with PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card also ships with a pre-installed standard profile bracket and includes a low-profile bracket for maximum compatibility.

The StarTech. com Advantage

Specification

Product
Product id	996087
Brand	StarTech.com
Partnr	P10Q4C-USB-CARD
EAN/UPC code	065030911436
Warranty (months)	2 Years
Technical details
Chipset	ASMedia - ASM3142 x4, ASMedia - ASM1543 x4, ASMedia - ASM2812X
Ports & interfaces
Host interface	PCIe
Output interface	USB Type-C
Expansion card standard	PCI 3.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	4
Internal SATA ports quantity	1
Design
Internal	Y
Product colour	Red
Features
Data transfer rate (max)	10 Gbit/s
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-25 - 85 °C
Operating relative humidity (H-H)	20 - 80 procent
Packaging data
Mounting brackets included	Y
Quick installation guide	Y
Package width	142 mm
Package depth	170 mm
Package height	30 mm
Package weight	160 g
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported	Y
Server operating systems supported	Windows Server 2019, Windows Server 2022
Weight & dimensions
Width	56.2 mm
Depth	140 mm
Height	119.9 mm
Weight	120 g
Logistics data
Master (outer) case width	380 mm
Master (outer) case length	310 mm
Master (outer) case height	500 mm
Quantity per master (outer) case	60 stuk(s)
