1-Port 10G Open SFP+ Network Card - PCIe - Intel Chip - MM/SM - PCI Express 10G NIC with Open SFP+ - Compatible with SR or LR Transceivers - 10G Ethernet Network Adapter



StarTech.com
Not in stock
€ 263,76
€ 319,14 incl 21% VAT

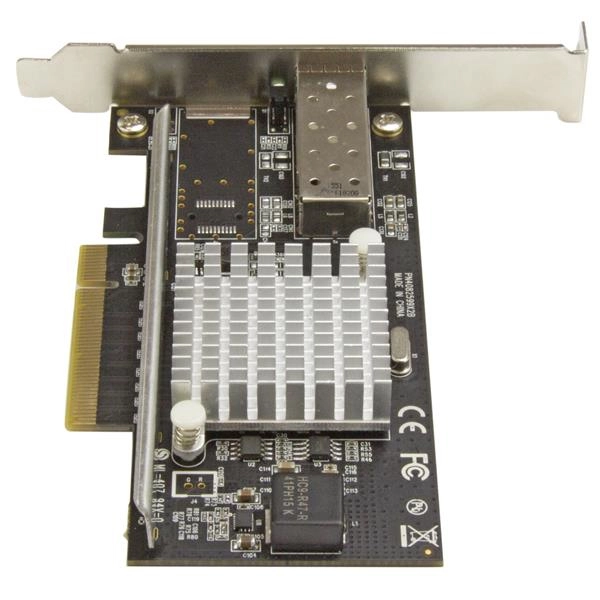

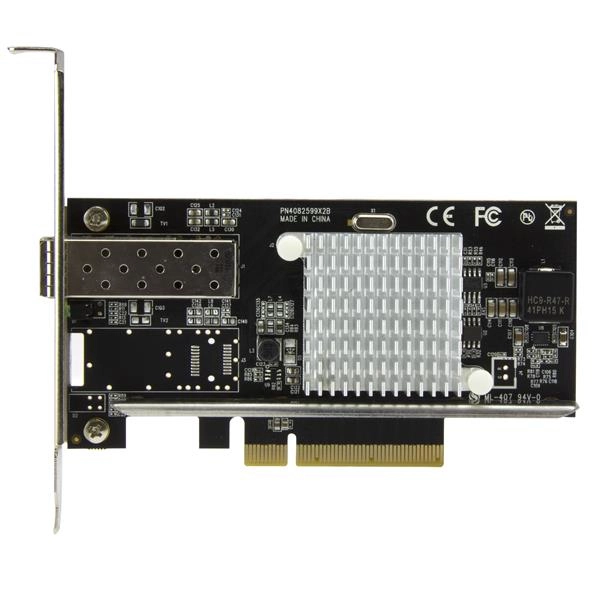

This fiber network card delivers reliable, high-performance network connectivity, by adding an open SFP+ slot to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade your server or workstation to a 10 Gigabit fiber network using the SFP+ module of your choice and gives you the flexibility to use either multimode or single-mode fiber.

Increase your network speed
Several factors drive the need for more bandwidth in your network infrastructure. An increase in the number of network users and data-intensive applications, such as multimedia streaming and large file transfers all contribute to the need for more bandwidth in your network infrastructure. This fiber NIC lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps.

Add scalable network connections to your server or workstation
The fiber NIC is compatible with most 10GbE SFP+ transceivers. This gives you flexible and scalable configuration options for connecting your computer directly to a fiber network, at greater distances.

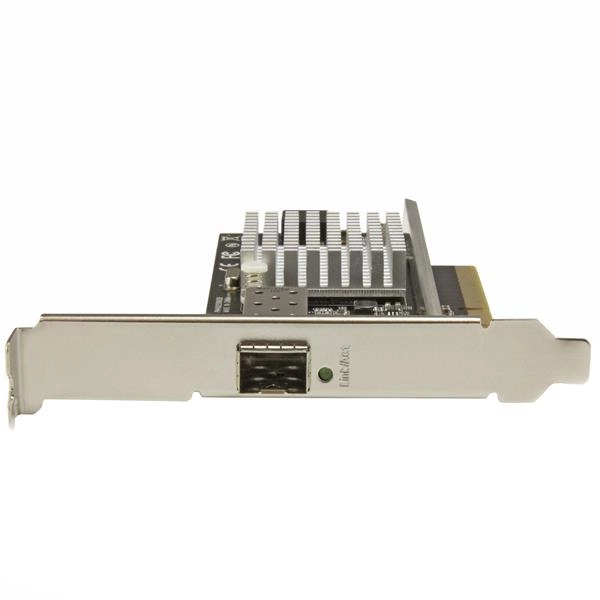

The card features an open SFP+ slot with support for one interchangeable 10GBase SFP+ module. This gives you the option to use the fiber transceiver module that best suits your network needs based on distance and connector type. StarTech. com offers a variety of SFP+ transceiver modules including the SFP10GLRST single-mode SFP+ the SFP10GLRMST multi-mode SFP+, and SFP10GSRST multimode LC with DDM.

In addition, StarTech. com SFP+ Cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.

Enhance your network capabilities
The 10 Gigabit network card features the Intel® 82599 chipset, delivering the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for Connectivity, PXE network boot support and up to 15K jumbo frame support.

The PEX10000SFPI is backed by a StarTech. com 2-year warranty and free lifetime technical support.

Specification

Product
Product id 552534
Brand StarTech.com
Partnr PEX10000SFPI
EAN/UPC code 065030866163
Warranty (months) 2 Years
Technical details
Sustainability certificates RoHS
Ports & interfaces
Connectivity technology Wired
Host interface PCI Express
Interface Fiber
Fiber optic connector SFP+
Fiber ports quantity 1
PCI version 2.0
Network
Maximum data transfer rate 10000 Mbit/s
Networking standards IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x
Fiber ethernet cabling technology 10GBASE-LR, 10GBASE-LRM, 10GBASE-SR
Full duplex Y
Jumbo frames support Y
VLAN tagging Y
Design
Internal Y
Component for PC
Product colour Black
Chipset Intel 82599
Certification CE, FCC, REACH
Operational conditions
Operating temperature (T-T) 5 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 20 - 80 procent
Packaging data
Low-profile bracket Y
Package width 142 mm
Package depth 172 mm
Package height 32 mm
Package weight 178 g
System requirements
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported Y
Server operating systems supported Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Weight & dimensions
Width 18 mm
Depth 135 mm
Height 120 mm
Weight 102 g
Other features

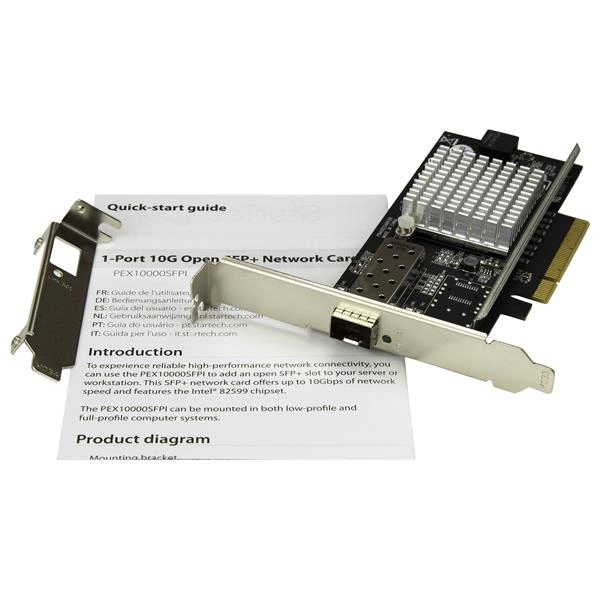

Quick start guide Y
Flow control support Y
Jumbo frames 15000
