2.5Gbps PCIe Network Card Ethernet NIC


Not in stock
€ 49,28
€ 59,62 incl 21% VAT

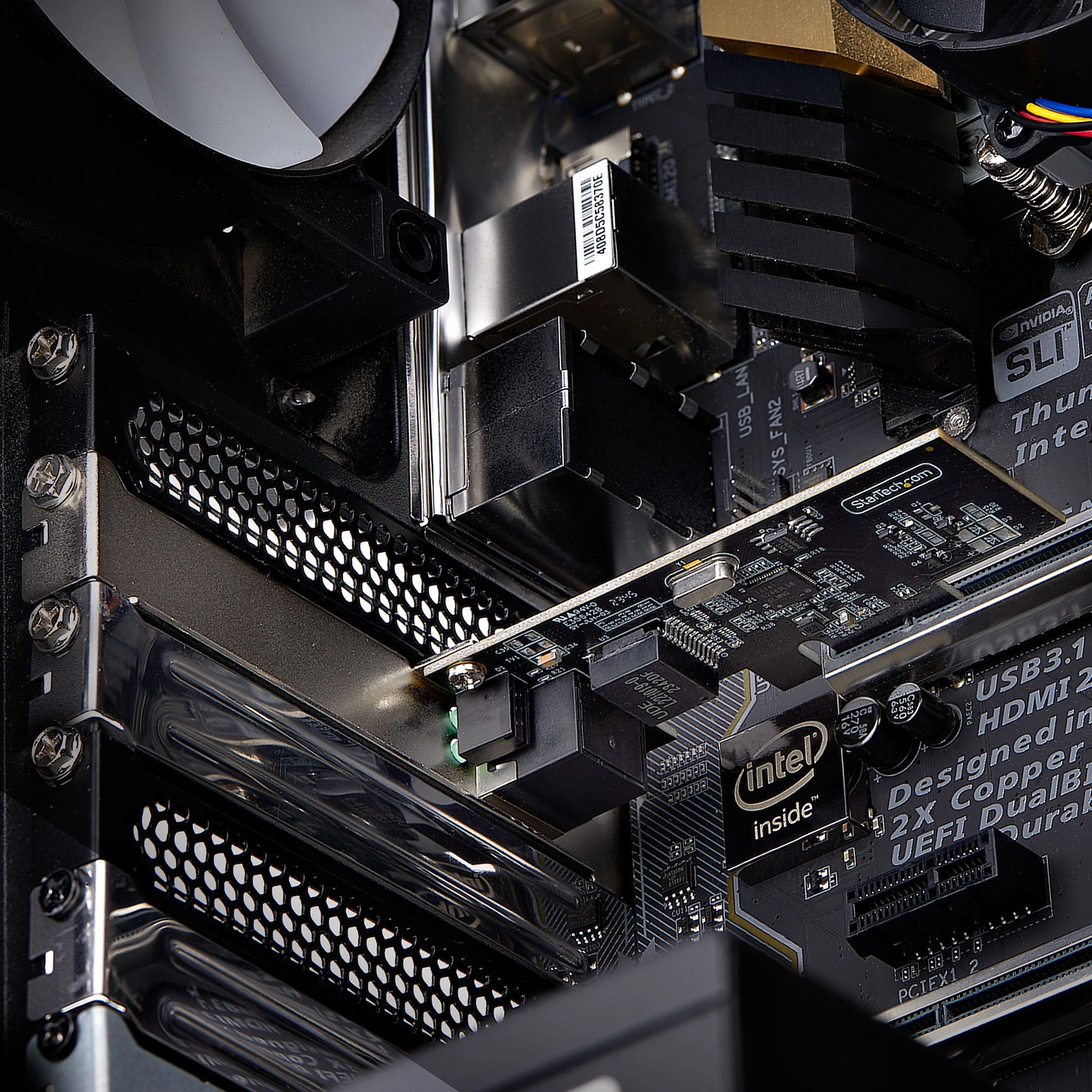

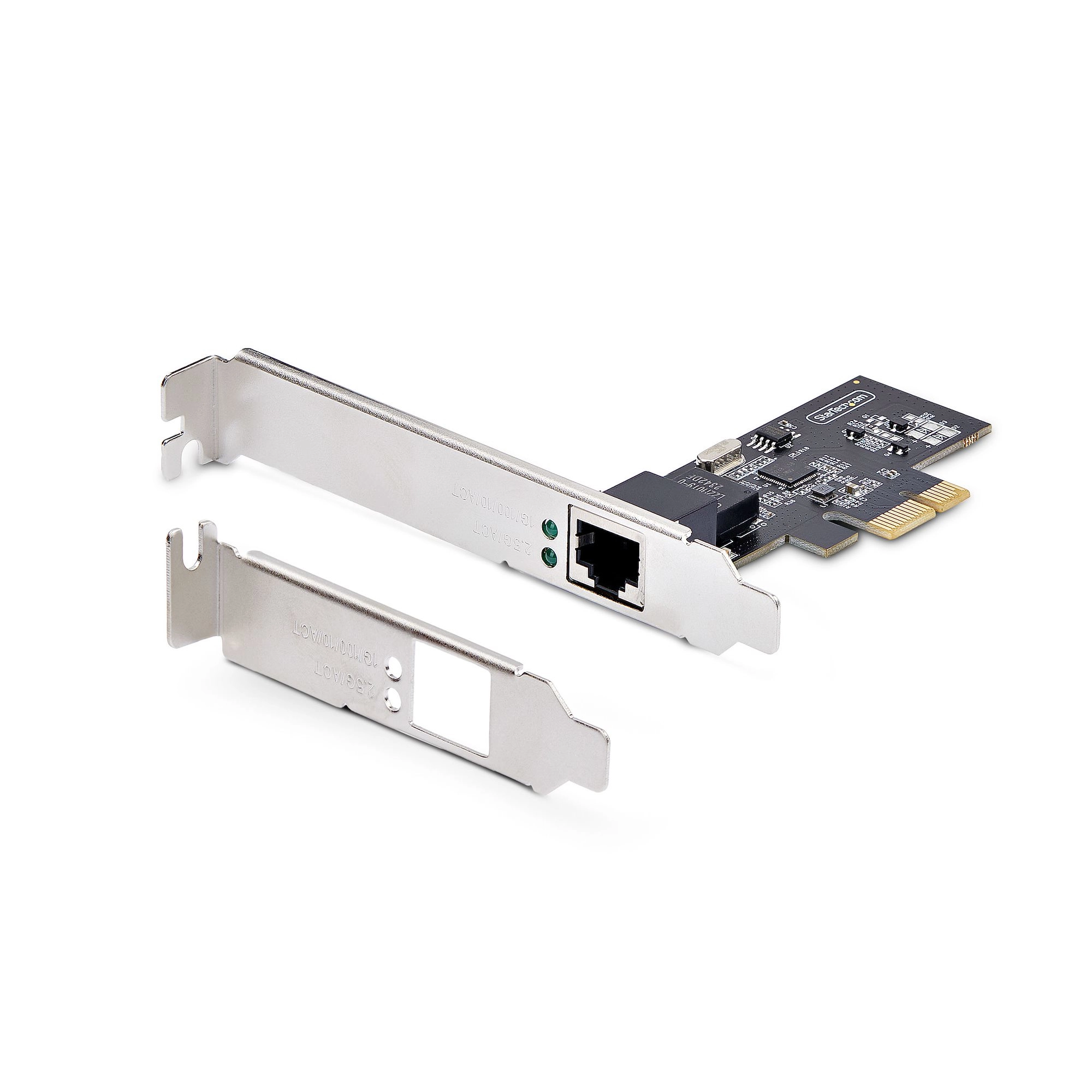

PCIe network card with Intel® I225-V chip features multi-Gigabit speeds with NBASE-T supportThis 2.5 GbE network interface card (NIC) features an Intel I225-V chipset with Intel vPro technology, to enhance performance and data integrity. Variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Leverage existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration. Increased Network SpeedThe PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTP, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds over Cat5e (or better) cabling, to maximize existing networks and equipment. Enhance Existing HardwareThe network interface card connects via an available x1 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This Ethernet NIC card is compatible with Windows, Windows Server, VMware, and Linux. This card supports the following advanced features: PXE boot, WoL, VLAN tagging, 9 K jumbo frame, full-duplex, and Intel vPro technology. The StarTech. com Advantage


Product id 949426
Brand StarTech.com
EAN/UPC code 065030906203
Warranty (months) 2 Years
Ports & interfaces
Connectivity technology Wired
Host interface PCI Express
Interface Ethernet
Ethernet LAN (RJ-45) ports 1
PCI version 2.0
Maximum data transfer rate 2500 Mbit/s
Networking standards IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Ethernet LAN data rates 10, 100, 1000, 2500 Mbit/s
Wake-on-LAN ready Y
Full duplex Y
Auto-negotiation Y
Jumbo frames support Y
Internal Y
Component for PC/Server
Product colour Black
Chipset Intel I225-V
LED indicators Y
Operational conditions
Operating temperature (T-T) 5 - 50 °C
Storage temperature (T-T) -10 - 70 °C
Operating relative humidity (H-H) 5 - 90 procent
Packaging content
Mounting brackets included Y
Quick installation guide Y
Packaging data
Package width 170 mm
Package depth 142 mm
Package height 30 mm
System requirements
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported Y
Server operating systems supported Windows Server 2019, Windows Server 2022
Weight & dimensions
Width 89 mm
Depth 121 mm
Height 15 mm
Weight 100 g
Logistics data
Master (outer) case width 605 mm
Master (outer) case length 385 mm
Master (outer) case height 325 mm
Quantity per master (outer) case 80 stuk(s)
Other features
Jumbo frames 9000
