1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime Warranty

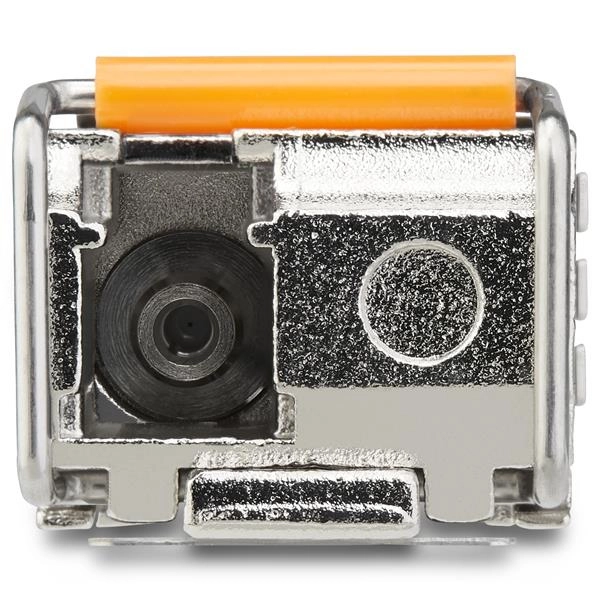

The SFP1GBX40UES is a Dell EMC SFP-1G-BX40-U compatible upstream fiber SFP transceiver which pairs with StarTech. com's SFP1GBX40DES. They are designed, programmed and tested to work with 1000Base-BX40 compatible Dell EMC switches and routers. The SFP transceiver module supports a maximum distance of up to 40 km (24.8 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

Technical Specifications:

Wavelength: 1310nmTx/1490nmRx

Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)

Type: Single Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 40 km (24.8 mi)

Power Consumption: < 1.6W

DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech. com SFPs

All StarTech. com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech. com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech. com Advantage

- 100% DELL EMC SFP-1G-BX40-U COMPATIBLE: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 1GbE connectivity
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
- TECHNICAL SPECS: 1000BASE-BX-U

Specification

Product
Product id	665881
Brand	StarTech.com
Partnr	SFP1GBX40UES
EAN/UPC code	065030883276
Warranty (months)	Lifetime
Network
SFP transceiver type	Fiber optic
Technical details
Sustainability certificates	RoHS
Packaging data
Number of products included	1 stuk(s)
Package width	90 mm
Package depth	115 mm
Package height	31 mm
Package weight	50 g
Performance
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	Y
Multi-mode fiber (MMF) supported	N
Fiber optic connector	LC
Maximum transfer distance	40000 m
Tx wavelength (max)	1310 nm
Rx wavelength (max)	1490 nm
Duplex system	Full
Digital Diagnostics Monitoring (DDM)	Y
Features
Product colour	Silver
Hot-swap	Y
Mean time between failures (MTBF)	3713222 uur
Brand compatibility	Dell
Compatible products	CE, FCC, UL, REACH
Certification	SFP-1G-BX40-U
Power
Power consumption (typical)	1.6 W
Weight & dimensions
Width	58.4 mm
Depth	13.9 mm
Height	12.6 mm
Weight	30 g
Logistics data
Master (outer) case width	90 mm
Master (outer) case length	115 mm
Master (outer) case height	31 mm
Quantity per master (outer) case	1 stuk(s)
