2-Port VGA Auto Switch Box with Priority Switching and EDID Copy

StarTech.com

Not in stock

€ 59,18

€ 71,60 incl 21% VAT

Would you like to ask us a question about this product?

Share a VGA monitor/projector between 2 VGA sources, with automatic/priority switching and EDID Emulation

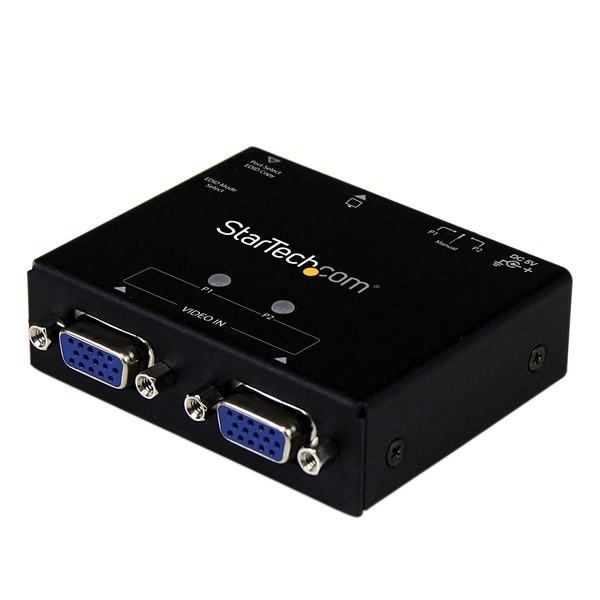

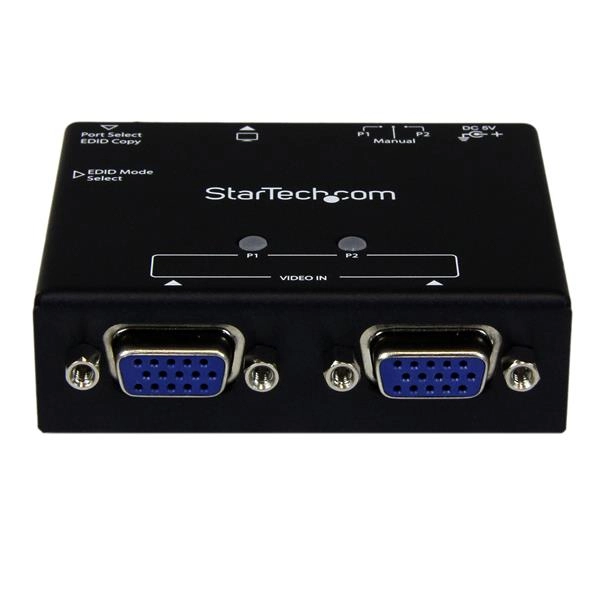

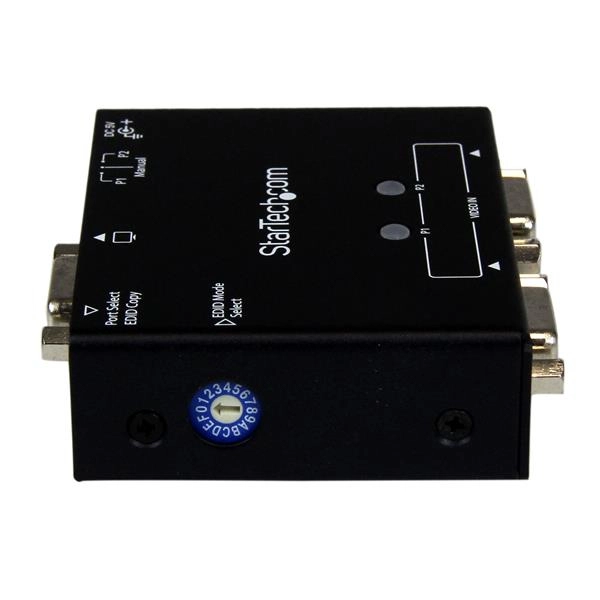

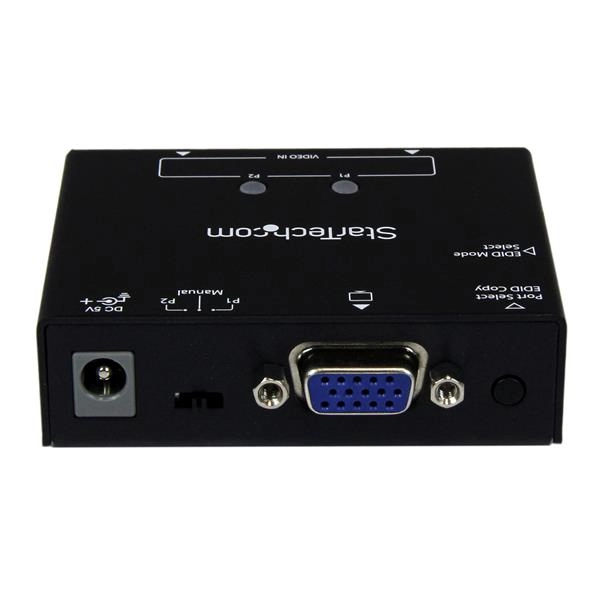

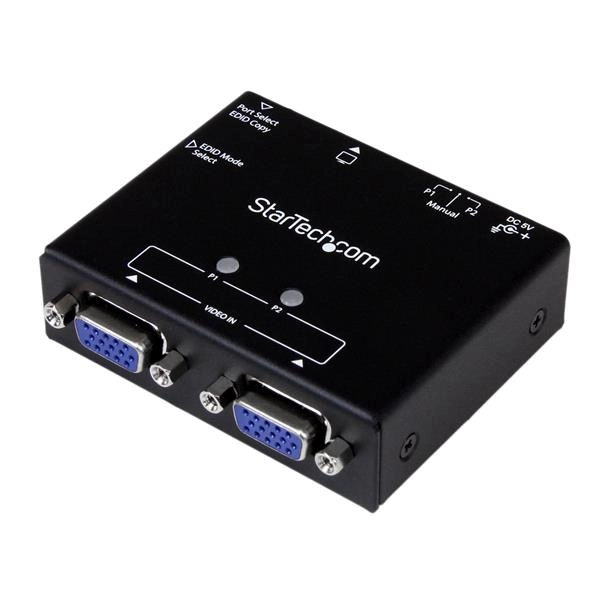

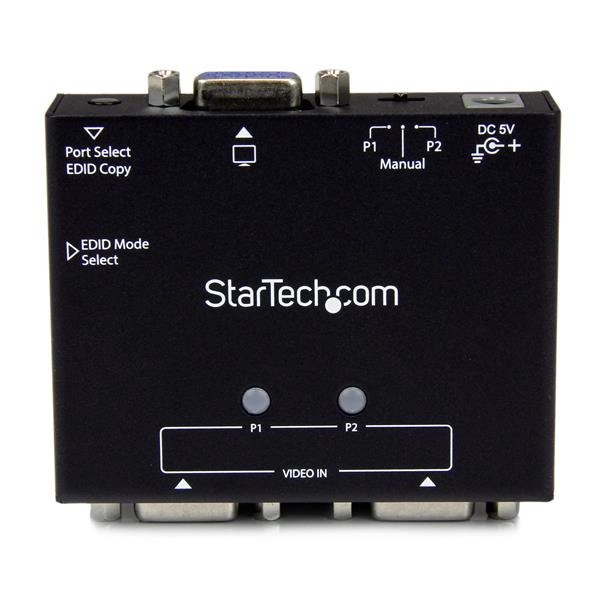

The ST122VGA 2-Port VGA Auto Switcher lets you share a display between two computers and automatically switch to the active source device using configurable priority switching. When the port you have selected as the primary input is turned off, the device automatically switches to the secondary input.

For maximum control and versatility, the ST122VGA also offers manual switch control with an easy-to-use button that allows you to toggle between video sources.

For a convenient setup the switcher can be powered using the included power adapter or the USB power cable, and features built-in EDID emulation ensuring maximum compatibility with your display or projector and support for resolutions up to 1920x1200/1080p.

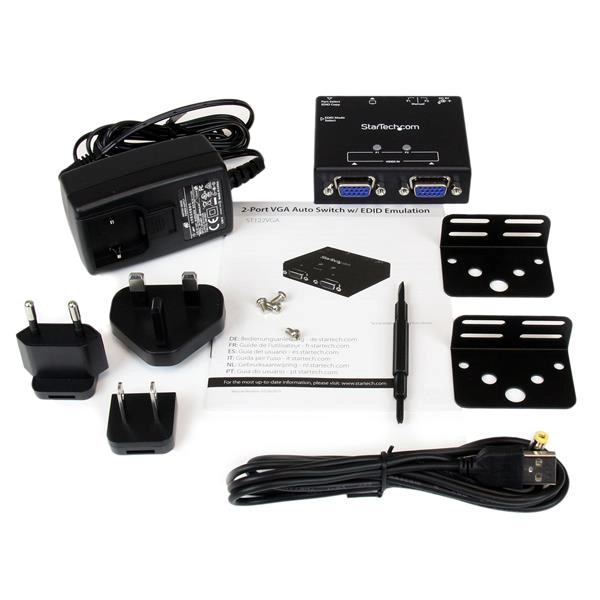

The ST122VGA includes mounting hardware for a tidy and professional installation, and is backed by a 2-year StarTech. com warranty, and free lifetime technical support.

The StarTech. com Advantage

- Hassle-free operation, with automatic switching
- Tidy and professional installation, with included mounting hardware

Specification

Product
Product id	444731
Brand	StarTech.com
Partnr	ST122VGA
EAN/UPC code	065030852821
Warranty (months)	2 Year Warranty
Ports & interfaces
Video port type	VGA
VGA (D-Sub) ports quantity	2
Video out	2x VGA
Video in	VGA
DC-in jack	Y
Features
Product colour	Black
Extended display identification data (EDID)	Y
External power adapter	Y
Maximum resolution	2048 x 1152 Pixels
Material	Aluminium
Supported graphics resolutions	1366 x 768,1600 x 900,1920 x 1440,2048 x 1152,1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1440 x 900 (WXGA+),1600 x 1200 (UXGA),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA)
Supported video modes	1080p
LED indicators	Y
Power
AC input voltage	100 - 240 V
AC adapter input current	0.4 A
AC adapter output voltage	5 V
AC adapter output current	2 A
Power consumption (typical)	10 W
Certificates
Certification	CE, FCC, TAA, REACH
Weight & dimensions
Width	59 mm
Depth	74 mm
Height	21 mm
Weight	170 g
Length	74 mm
Packaging data
Package width	170 mm
Package depth	145 mm
Package height	66 mm
Package weight	469 g
Packaging content
Quantity per pack	1 stuk(s)
Manual	Y
Plug adapter type	NA, EU, UK, ANZ
Cables included	USB
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Technical details
Sustainability certificates	RoHS
