Broadcast your HDMI signal to multiple locations throughout your site, using your existing network infrastructure

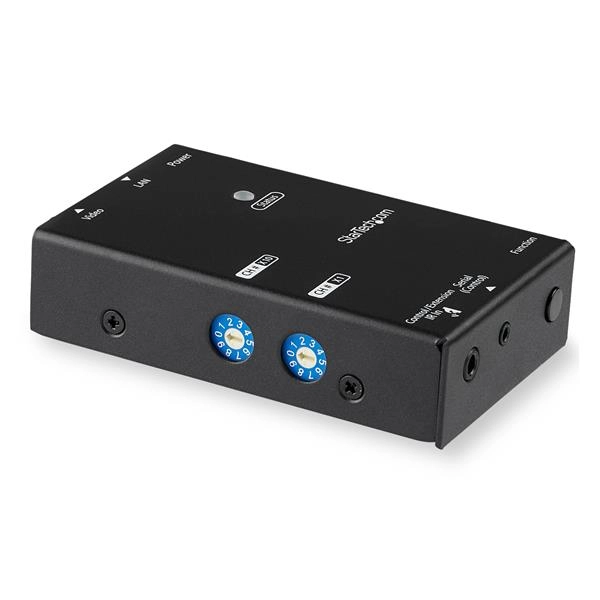

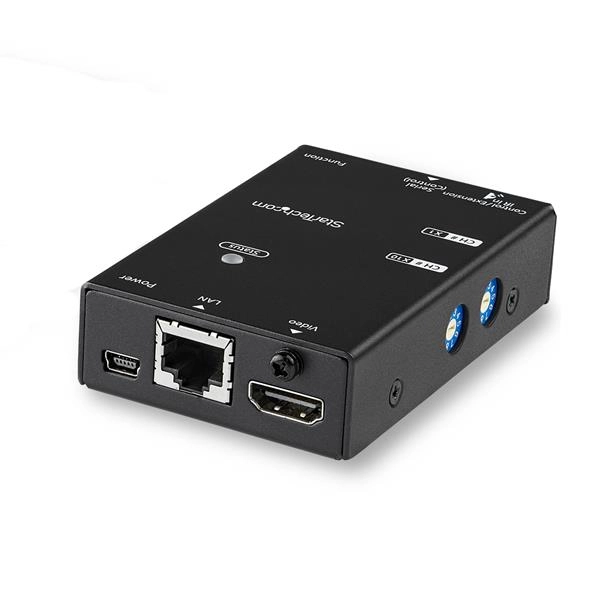

The HDMI® over IP receiver works with the HDMI over IP Extender (ST12MHDLNHK) to distribute HDMI to an additional remote display. You can add multiple receivers (each sold separately) to easily distribute HDMI to multiple locations.

Customize your video distribution with a scalable solution
With additional receivers, you can scale your HDMI over IP kit installation to suit your needs. In a point-to-multipoint setup, you can route HDMI over IP to as many receivers as you need. For additional scalability, you can combine up to 99 different kits (ST12MHDLNHK) to create a multipoint-to-multipoint setup, where you can route different HDMI source signals to different displays. Mounting hardware and IR extenders are included for each transmitter and receiver to ensure tidy, professional installation and hassle-free remote operation.

Get brilliant video at HD 1080p
The receiver maintains your HD video signal, supporting resolutions up to 1080p. Maintaining your HD quality over IP makes it easy to distribute dynamic digital signage throughout your site to attract and engage customers.

Save your network bandwidth with video compression
Unlike some video-over-IP solutions that consume your bandwidth, this HDMI over IP solution uses video compression to distribute high-quality HDMI over your local area network, with minimal bandwidth requirements. Extending your HDMI using compression saves your network resources, avoiding the hassle of a separate video network.

The ST12MHDLNHR is backed by a 2-year StarTech. com warranty and free lifetime technical support.

Specification

Product
Product id	630103
Brand	StarTech.com
Partnr	ST12MHDLNHR
EAN/UPC code	065030879040
Warranty (months)	2 years
Features
Type	AV receiver
Maximum resolution	1920 x 1200 Pixels
Cable types supported	Cat5e
Maximum transfer distance	15 m
Maximum refresh rate	60 Hz
Audio output channels	2.0 kanalen
Daisy chain	Y
Rubber feet	Y
Rack mounting	Y
LED indicators	Status
Supported video modes	1080p
Cable length	15.2 m
Material	Aluminium
Product colour	Black
Certification	CE, REACH, FCC, TAA

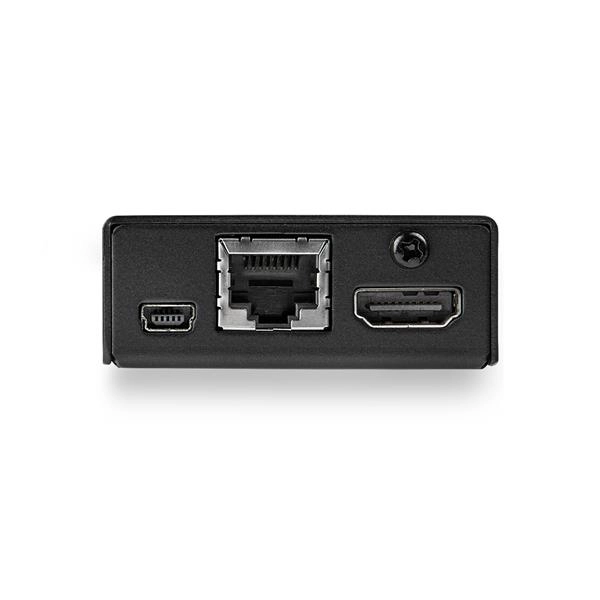

Ports & interfaces
Connectivity technology	Wired
Ethernet LAN	Y
RJ-45 input ports	1
Number of HDMI outputs	1
USB ports quantity	1
USB connector type	Mini-USB B
Audio output	1
Power
AC input voltage	100 - 240 V
Operating voltage	5 V
Input current	0.3 A
Output current	1 A
External power adapter	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Storage relative humidity (H-H)	0 - 80 procent
Weight & dimensions
Width	97 mm
Depth	130 mm
Height	28 mm
Weight	448 g
Packaging data
Package width	143 mm
Package depth	168 mm
Package height	63 mm

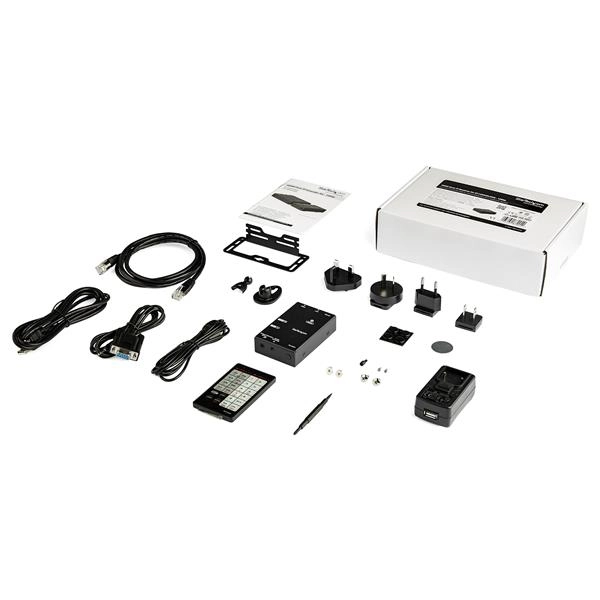

Packaging content
AC adapter included	Y
Cables included	LAN (RJ-45), Serial, USB
Included power plug types	ANZ, EU, NA, UK
Manual	Y
Mounting kit	Y
IR receiver included	Y
Technical details
Sustainability certificates	RoHS
