The UNIRAILS1U 1U Fixed 19-inch Adjustable Depth Universal Server Rack Rails enable you to fit non-rack mountable equipment (weight up to 25kg/55lbs. ) into a standard 19-inch rack. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

Featuring sturdy, cold-rolled steel construction, adjustable depth configurations for varying rack sizes, horizontal equipment supports, and multiple mounting hole patterns to secure your equipment, this durable 19" rack rails kit makes mounting your non-rackmount equipment quick and easy!

Backed by a StarTech. com Lifetime warranty.

The StarTech. com Advantage
- Universal design mounts to almost any 19" server, or other equipment for maximum mounting versatility
- Three-piece rail construction allows for a wide range, adjustable depth configuration to accommodate almost any size of rack
- Cross bars allow for mounting of equipment that can't span the 19" rack expanse

Specification

Product
Product id	367369
Brand	StarTech.com
Partnr	UNIRAILS1U
EAN/UPC code	065030845526
Warranty (months)	Lifetime
Features
Type	Rack rail
Product colour	Black
Housing material	Steel
Maximum weight capacity	25 kg
Rack capacity	1U
Certification	CE, UL, REACH, TAA
Weight & dimensions
Size (imperial)	19 "
Width	465 mm
Depth	481 mm
Height	60 mm
Mounting depth (min)	420 mm
Mounting depth (max)	1054 mm
Weight	2600 g
Packaging data
Package width	107 mm
Package depth	490 mm
Package height	75 mm
Package weight	2900 g

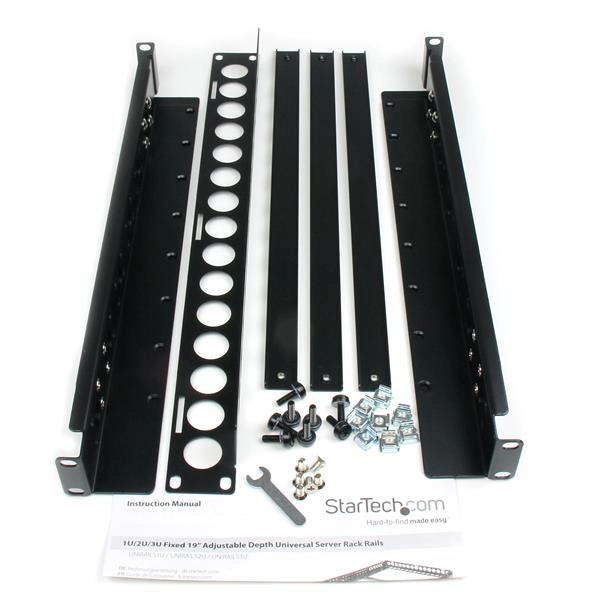

Packaging content
Mounting kit	Y
Screws included	Y
Screw type	M5
Number of screws	8
Number of cage nuts	8
Cage nuts included	Y
Technical details
Sustainability certificates	RoHS
