Extend a network up to 0.6 miles (1km) over single pair wire/phone line wire UTP

Extend a network over VDSL2, using Cat5e (or better) UTP Cabling or Single-Pair (or better) Telephone Wire at distances up to 0.6mi (1km).

Extend Network Connectivity

Extend a network over VDSL2 using UTP, CAT5e/6 or RJ11 cabling over distances up to 0.6mi (1km). Speeds of up to 300 Mbps (aggregated) are available at shorter distances. Supports VDSL2 35b/30a/17a and features ITU-T G.993.5 G. Vectoring and G. INP technologies.

Thoughtful Design

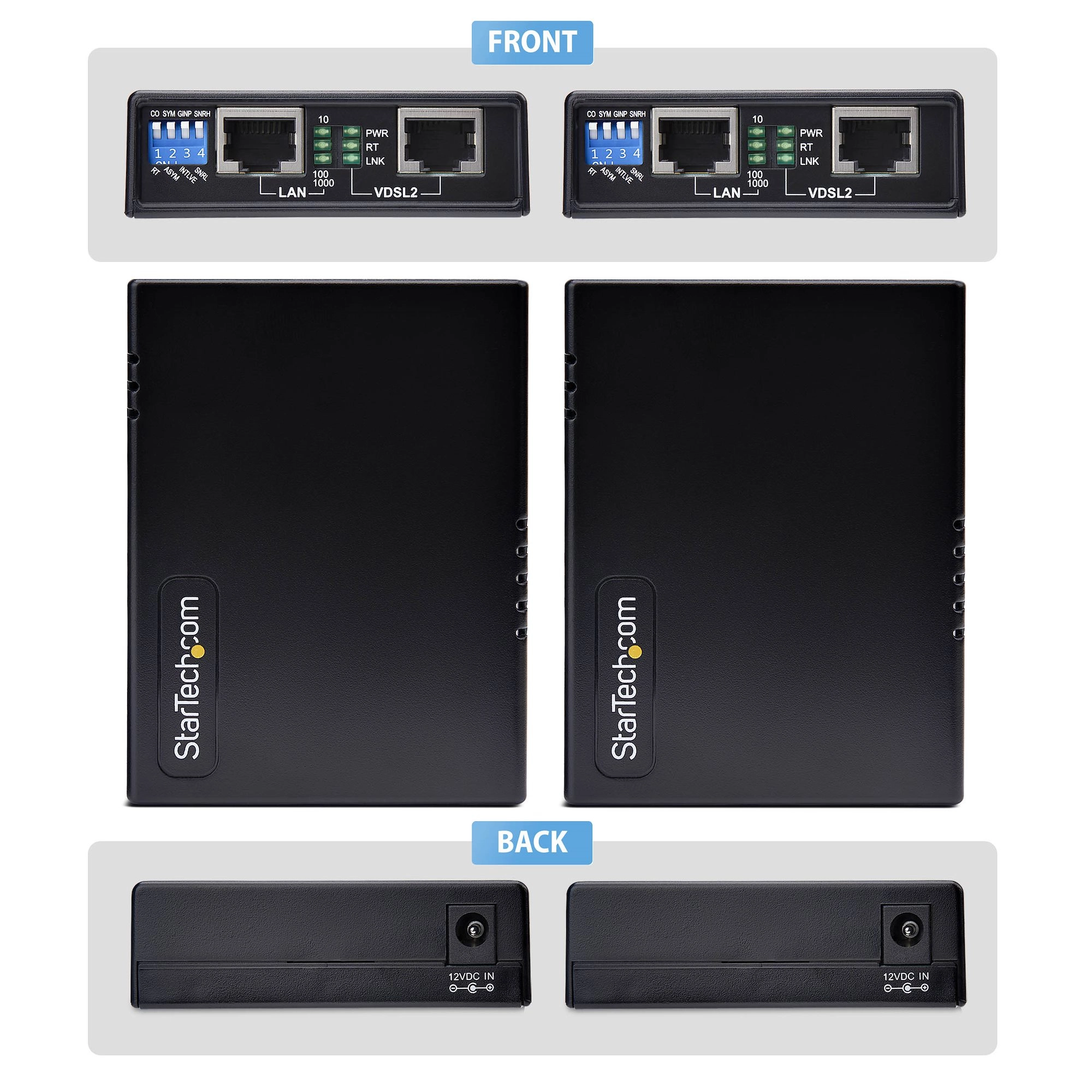

The installation can be customized by using DIP switches. Choose between Master or Remote mode, Symmetric or Asymmetric mode, G. INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance. The Gigabit Ethernet Extender has LEDs that provide a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to monitor and assess network connectivity.

Versatile Applications

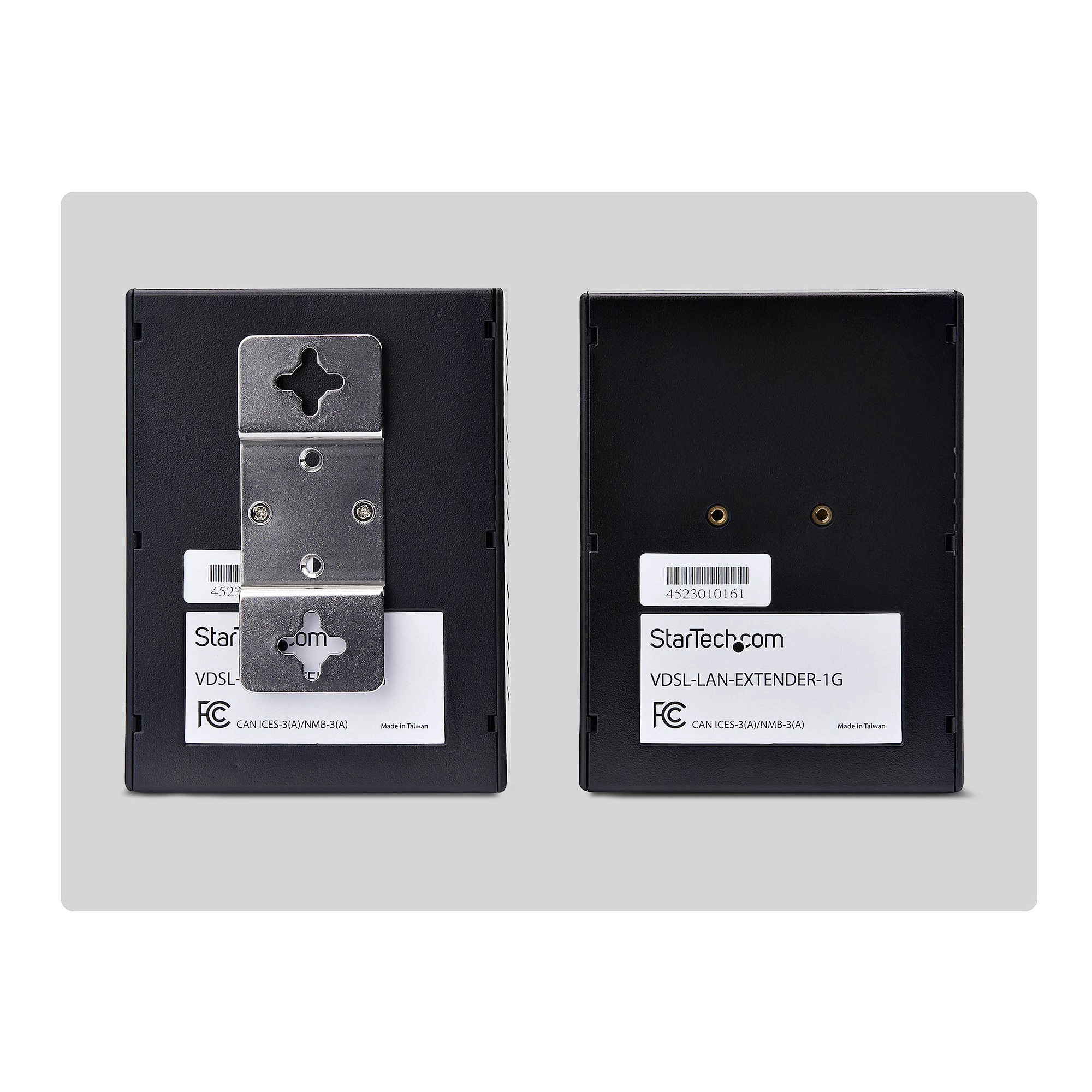

The Long-Range LAN Extender can be mounted on a wall, using the included hardware, or installed on a shelf or other surface. The kit includes two power adapters, one for each VDSL Extender. The extender works with third-party VDSL2 IP DSLAMs in CPE (RT) mode and extends the network for applications such as remote office or branch locations or IP-based video solutions. The 802.1Q VLAN tag transparency preserves VLAN-tagged traffic across the extension.

Specification

Product
Product id	1012750
Brand	StarTech.com
Partnr	VDSL-LAN-EXTENDER-EU
EAN/UPC code	065030916936
Warranty (months)	2 Years
Performance
Type	Network transmitter & receiver
Maximum transfer distance	1000 m
Data transfer rate	300 Mbit/s
Cable types supported	Cat5e, Cat6
Chipset	RTL8685FB-CG
Ethernet LAN data rates	10, 100, 300 Mbit/s
Network
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
DC-in jack	Y
Design
Product colour	Black
Rack mounting	N
Power
AC input voltage	100 - 240 V
Input current	0.5 A
Power consumption (typical)	3.8 W
External power adapter	Y
Output current	1 A
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	0 - 95 procent
Weight & dimensions
Width	72 mm
Weight	110 g
Certificates
Compliance certificates	RoHS, Trade Agreements Act (TAA)
Packaging content
Quick start guide	Y
AC adapter included	Y
Packaging data
Package width	180 mm
Package depth	150 mm
Package height	130 mm
Package weight	700 g
Logistics data
Master (outer) case width	305 mm
Master (outer) case length	425 mm
Master (outer) case height	515 mm
Quantity per master (outer) case	15 stuk(s)
