4x4 Matrix HDMI Switcher with RS-232


Not in stock
€ 473,18
€ 572,54 incl 21% VAT
The VS440HDMI 4x4 HDMI® Audio/Video Matrix Switch/Splitter (with Audio and RS232) lets you share up to 4 distinct HDMI or DVI inputs (using HDMI to DVI adapters - not included), with audio, between 4 independent displays or projectors.

Providing convenient front push-button and RS232 PC software control, this matrix switch allows each input and the corresponding audio to be switched individually, meaning that different A/V sources can be shown on each output, or a single source can be output to several offering maximum flexibility.

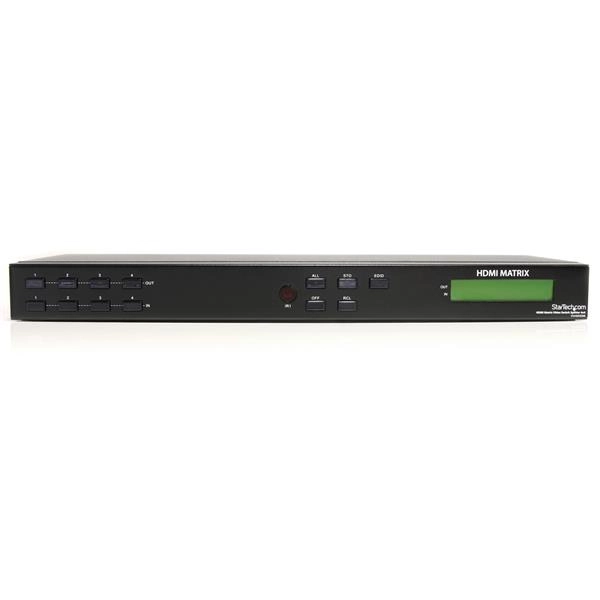

The switcher features a front panel LCD display for easy status monitoring, plus an included remote control and IR extender module for simple control from a distance.

Designed to provide maximum functionality while saving space, the HDMI Video Matrix Switch can be used as a standalone solution or rack-mounted using ear-mounts (included).

Backed by a StarTech. com 2-year warranty and free lifetime technical support.

The StarTech. com Advantage
- Matrix switching functionality gives you full control of the video source displayed on each monitor, at the touch of a button
- Front panel push-buttons, RS-232 PC port and IR remote included for simple control and flexible switching options
- Storage of display configurations allow for convenient recall of preferred combinations


Product id 349833
Brand StarTech.com
Partnr VS440HDMI
EAN/UPC code 065030842105
Warranty (months) 2 Years
Product type AV matrix switcher
Maximum resolution 1920 x 1200 Pixels
Housing colour Black
Rack mounting Y
LED indicators Y
Certification CE, FCC, TAA, REACH
Built-in display Y
Ports & interfaces
HDMI input ports quantity 4
HDMI output ports quantity 4
RS-232 ports 1
Power consumption (typical) 18 W
AC input voltage 100 - 240 V
Input current 0.6 A
Output current 1500 mA
Output voltage 12 V
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -20 - 85 °C
Operating relative humidity (H-H) 0 - 95 procent
Technical details
Sustainability certificates RoHS
Weight & dimensions
Width 185 mm
Depth 440 mm
Height 42 mm
Weight 2400 g
Package width 263 mm
Package depth 581 mm
Package height 90 mm
Package weight 3100 g
Packaging content
Cables included RS-232
Rack mount kit Y
Manual Y
Mounting brackets included Y
AC adapter included Y
Screws included Y
Number of screws 6
Included power plug types AU, EU, UK, US
IR extender included Y
