TP-Link Omada DR3220v-4G. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), WLAN data transfer rate (max): 2402 Mbit/s, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10, 100, 1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal. Voice codecs: G.711a, G.711ulaw, G.722, G.726, G.729ab

Specification

Product
Product id	992673
Brand	TP-Link
Partnr	DR3220V-4G
EAN/UPC code	8885020626797
WAN connection
Ethernet WAN	Y
DSL WAN	Y
SIM card slot	N
3G/4G USB modem compatibility	Y
WAN connection type	RJ-45
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	2402 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s
Network
Ethernet LAN	Y
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Port triggering	Y
Load balancing system	Y
Dynamic DNS (DDNS)	Y
Policy-based routing	Y
Static route	Y
Built-in FTP server	Y
VPN support	IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE, SSL VPN
DSL features
ADSL	Y
ADSL2	Y
ADSL2+	Y
VDSL2	Y
Ports & interfaces

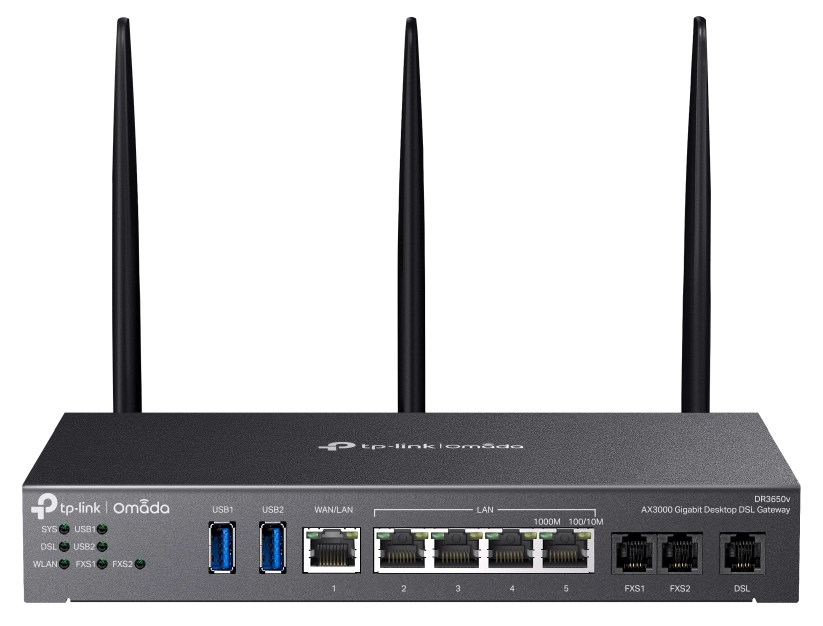

Ethernet LAN (RJ-45) ports	4
USB port	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
RJ-11 ports quantity	3
DC-in jack	Y
Management features
Web-based management	Y
Quality of Service (QoS) support	Y

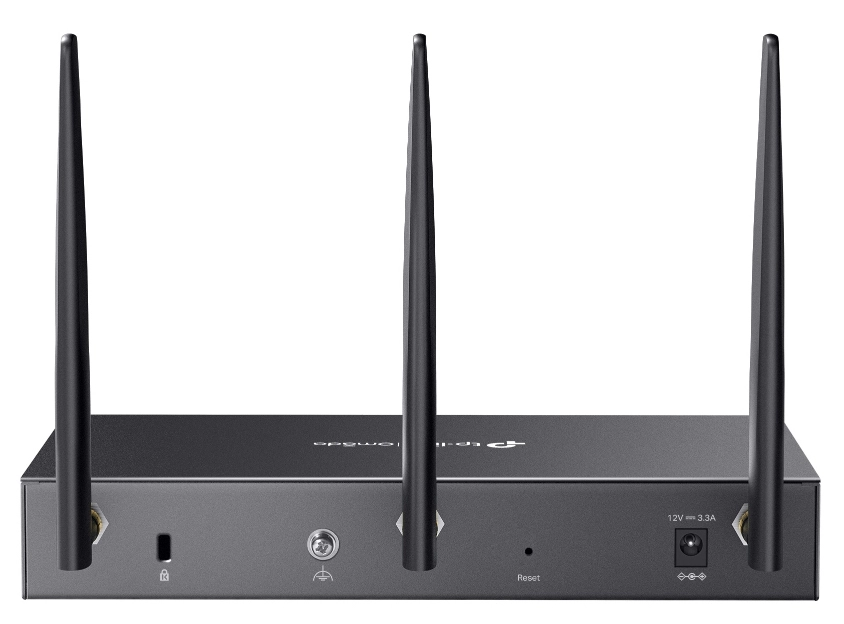

Reset button	Y
MU-MIMO technology	Y
Security
Security algorithms	WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Guest access	Y
Access Control List (ACL)	Y
URL filtering	Y
System event log	Y
DMZ support	Y
Network address translation (NAT)	Y
Protocols
DHCP client	Y
DHCP server	Y
Universal Plug and Play (UPnP)	Y
Voice codecs	G.711a, G.711ulaw, G.722, G.726, G.729ab
Design
Product type	Tabletop router
Product colour	Black

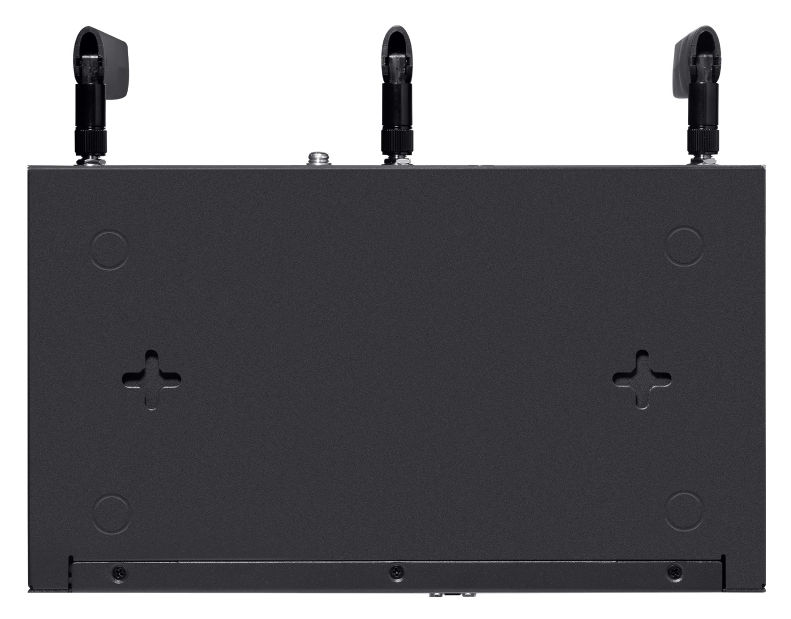

Wall mountable	Y
Indication light	Y
LED indicators	DSL, LAN, USB, WLAN
Antenna
Antenna design	External
Antenna gain level (max)	4.5 dBi
Antennas quantity	3
Detachable antenna(s)	Y
Power
Power source type	AC
Output voltage	12 V
Output current	3.3 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	5 - 90 procent
Weight & dimensions
Width	226 mm
Depth	131 mm
Height	35 mm
Packaging data
Cables included	LAN (RJ-45), Phone
AC adapter included	Y
Antenna included	Y
Package type	Box
Number of products included	1 stuk(s)
