Power up Your Business with New-Era Business WiFi 6
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

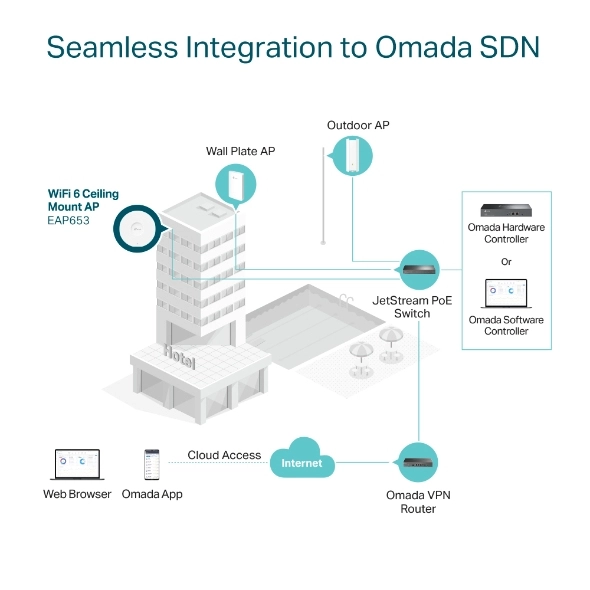

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Auto Channel Selection and Power Adjustment
to Optimize Overall Performance*
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

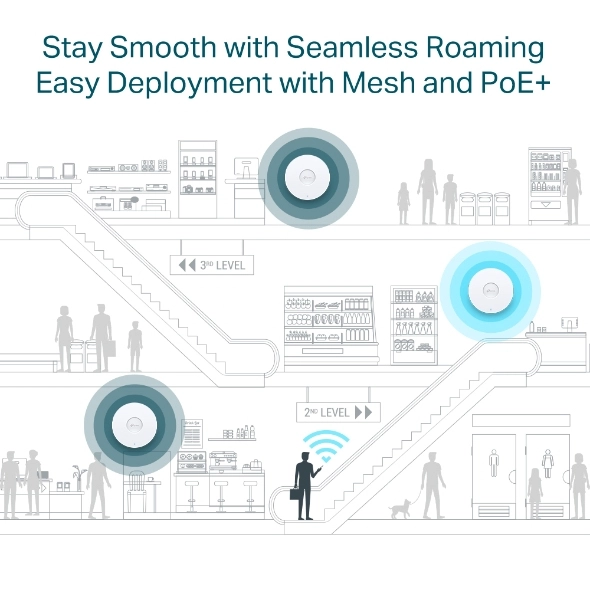

Easy Deployment & Higher Performance by Omada Mesh§
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming§
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

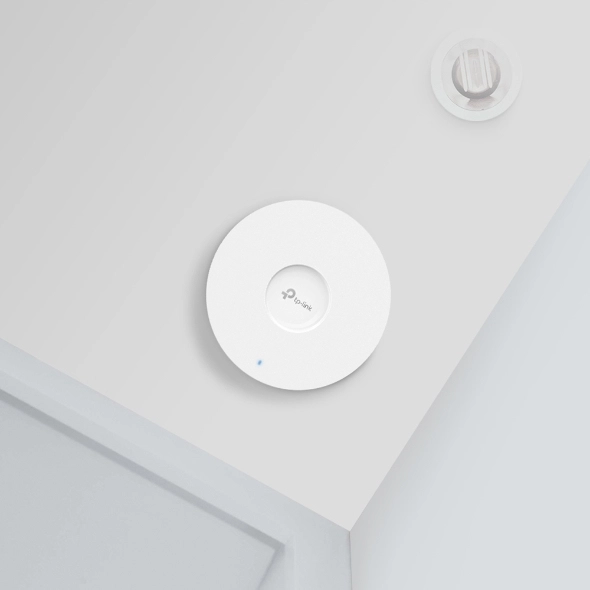

Ultra-Slim Design Brings More Agility

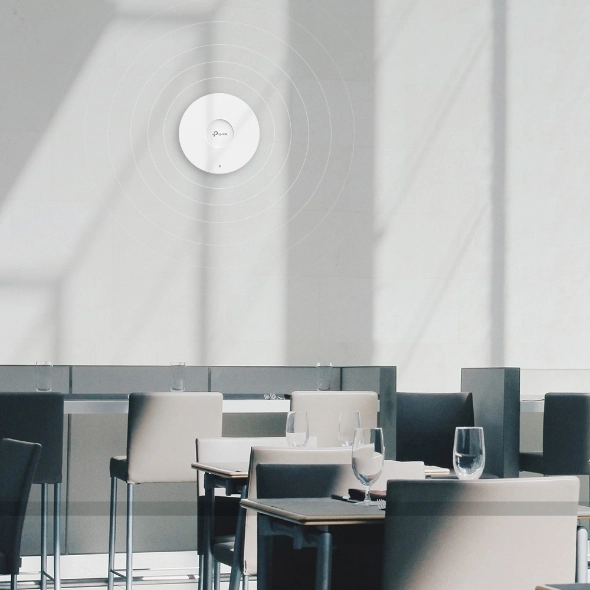

Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP653 perfectly blend into any modern office, hotel, classroom, or café.

Specification

Product
Product id	863140
Brand	TP-Link
Partnr	EAP653
EAN/UPC code	4897098685235
Warranty (months)	3 year limited warranty
Management features
Web-based management	Y
Syslog	Y
Firmware upgradeable	Y
Packaging data
Number of products included	1 stuk(s)
Mounting kit	Y
Quick start guide	Y
Package type	Box
Features
2.4 GHz	Y
5 GHz	Y
Maximum data transfer rate	2976 Mbit/s
6 GHz	N
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	2402 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h
Cabling technology	10/100/1000Base-T(X)
Number of users	250 gebruiker(s)
Channel bandwidth	160 MHz
Automatic channel selection	Y
Automatic channel scanning	Y
MIMO	Y
MIMO type	Multi User MIMO
Spread spectrum method	OFDMA
Fit AP mode features	Mesh networking
VLAN support	Y
Virtual LAN features	VLAN mapping
Rate limiting	Y
Flow control support	Y
Band steering	Y
Airtime Fairness (ATF)	Y
Quality of Service (QoS) support	Y
Transmitting power (CE)	27 dBm
Transmitting power (FCC)	22 dBm
BeamForming	Y
Security
Security algorithms	HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA, WPA2, WPA3
MAC address filtering	Y
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Y
Power
Power over Ethernet (PoE)	Y
DC voltage range	12 V
Design
Placement	Ceiling, Wall
Product colour	White
Reset button	Y
LED indicators	Y
Antenna
Antenna type	Internal
Antennas quantity	4
Antenna gain level (max)	5 dBi
Performance
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Operational conditions
Operating relative humidity (H-H)	10 - 90 procent
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 procent
Technical details
Sustainability certificates	RoHS
Weight & dimensions
Width	160 mm
Depth	160 mm
Height	33.6 mm
