Ultra-High Capacity
Powered by a high-performance multi-core CPU and advanced QoS, the EAP668-Outdoor HD delivers optimal WiFi performance to support 1000+ connected devices.

Industry-Leading IP68 Weatherproof Design
The fully sealed EAP668-Outdoor HD surpasses IP67 standards, providing total dustproof protection and enduring prolonged submersion in water—ideal for even the harsh outdoor conditions.

Seamless Connectivity with Mesh and Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Easy and Quick Setup

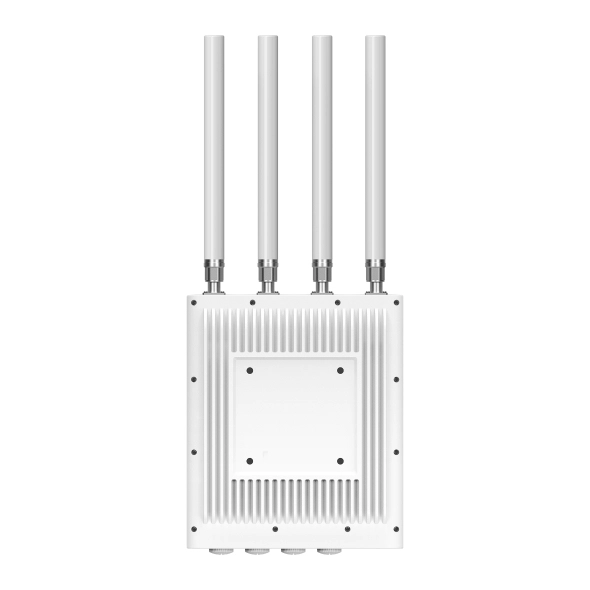

Easy Installation through Wall and Pole Mount

Works with Omada SDN for One-Click Setup
Omada SDN allows users to quickly set up the EAP668-Outdoor HD through automatic device identification and one-click adoption.

Empowering Businesses with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.

Specification

Product
Product id	998823
Brand	TP-Link
Partnr	EAP668-OUTDOOR HD
EAN/UPC code	1210002602587
Warranty (months)	3 year limited warranty
Management features
Web-based management	Y
Cloud-managed	Y
Firmware upgradeable	Y
Packaging data
Mounting kit	Y
Features
2.4 GHz	Y
5 GHz	Y
Maximum data transfer rate	3500 Mbit/s
6 GHz	N
Maximum data transfer rate (2.4 GHz)	1148 Mbit/s
Maximum data transfer rate (5 GHz)	2402 Mbit/s
Bluetooth	Y
Security
Security algorithms	WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Protocols
DHCP client	Y

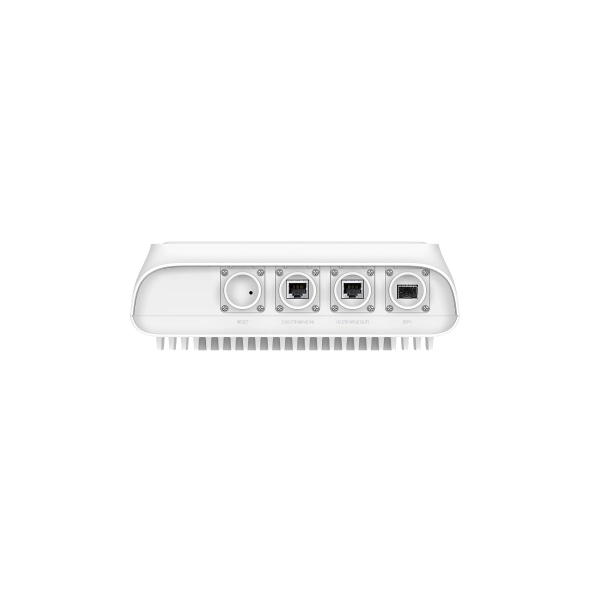

Ports & interfaces
Ethernet LAN (RJ-45) ports	3
Power
Power over Ethernet (PoE)	Y
Design
Placement	Pole
Product colour	White
Reset button	Y
Certification	CE, FCC, RoHS

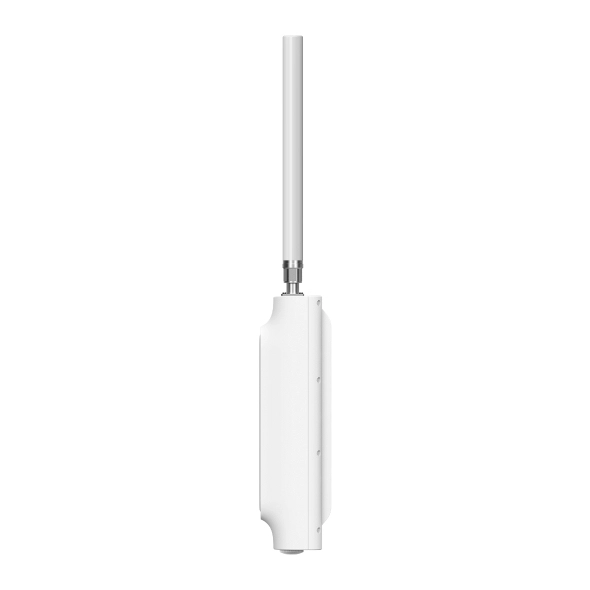

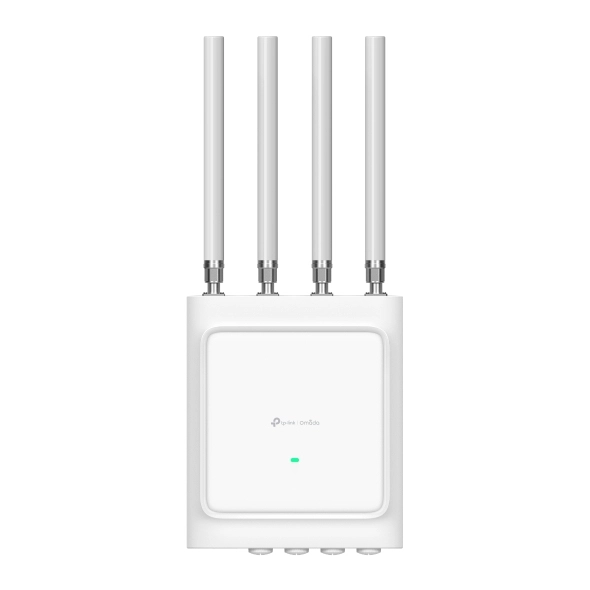

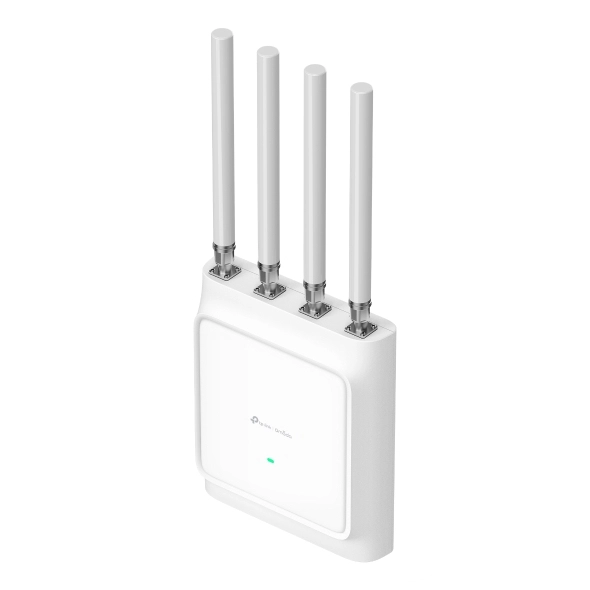

Antenna
Antenna type	External
Antenna direction type	Omni-directional
Antennas quantity	4
Antenna gain level (max)	6 dBi
Operational conditions
Operating relative humidity (H-H)	10 - 90 procent
Operating temperature (T-T)	-40 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 procent
Packaging content
Quantity per pack	1 stuk(s)
Weight & dimensions
Width	240 mm
Depth	80 mm
Height	315 mm
