Dedicated and Complete, Private WiFi Networks for Every Room

Optimized Wired Performance with 2.5G PoE Ports

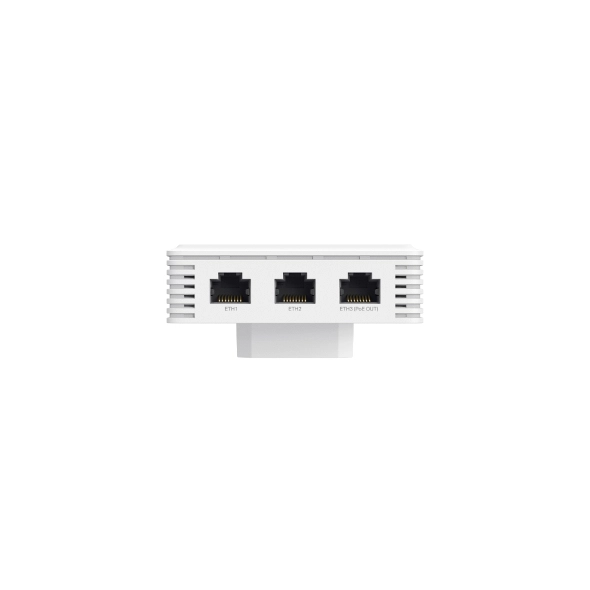

With 2.5G PoE input and pass-through ports, along with two Gigabit RJ45 ports, enjoy high-speed data transfers and connect multiple devices to your gigabit network. Wired devices, such as IP Phones, can be powered without the need for additional electrical cables.

Seamless Integration into the Omada SDN
Remotely manage your access points, switches, and routers across multiple sites — all from a single interface.

Specification

Product
Product id	978683
Brand	TP-Link
Partnr	EAP725-WALL
EAN/UPC code	8885020626353
Warranty (months)	3 year limited warranty
Packaging data
Mounting kit	Y
Package type	Box
Features
2.4 GHz	Y
5 GHz	Y
Maximum data transfer rate	5012 Mbit/s
6 GHz	N
Maximum data transfer rate (2.4 GHz)	688 Mbit/s
Maximum data transfer rate (5 GHz)	4324 Mbit/s
VLAN support	Y
Security
MAC address filtering	Y
Number of SSID supported	16
Remote Authentication Dial-In User Service (RADIUS)	Y
Access Control List (ACL)	Y
Ports & interfaces
Ethernet LAN (RJ-45) ports	3
Power
Power over Ethernet (PoE)	Y
Design
Reset button	Y
LED indicators	Y
Certification	FCC, RoHS
Antenna
Antenna type	Internal
Antennas quantity	4
Antenna gain level (max)	5 dBi
Performance
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Operational conditions
Operating relative humidity (H-H)	10 - 90 procent
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 procent
Packaging content
Quantity per pack	1 stuk(s)
Weight & dimensions
Width	86 mm
Depth	40 mm
Height	143 mm
