High-End Business WiFi 6 to Power Up Your Business

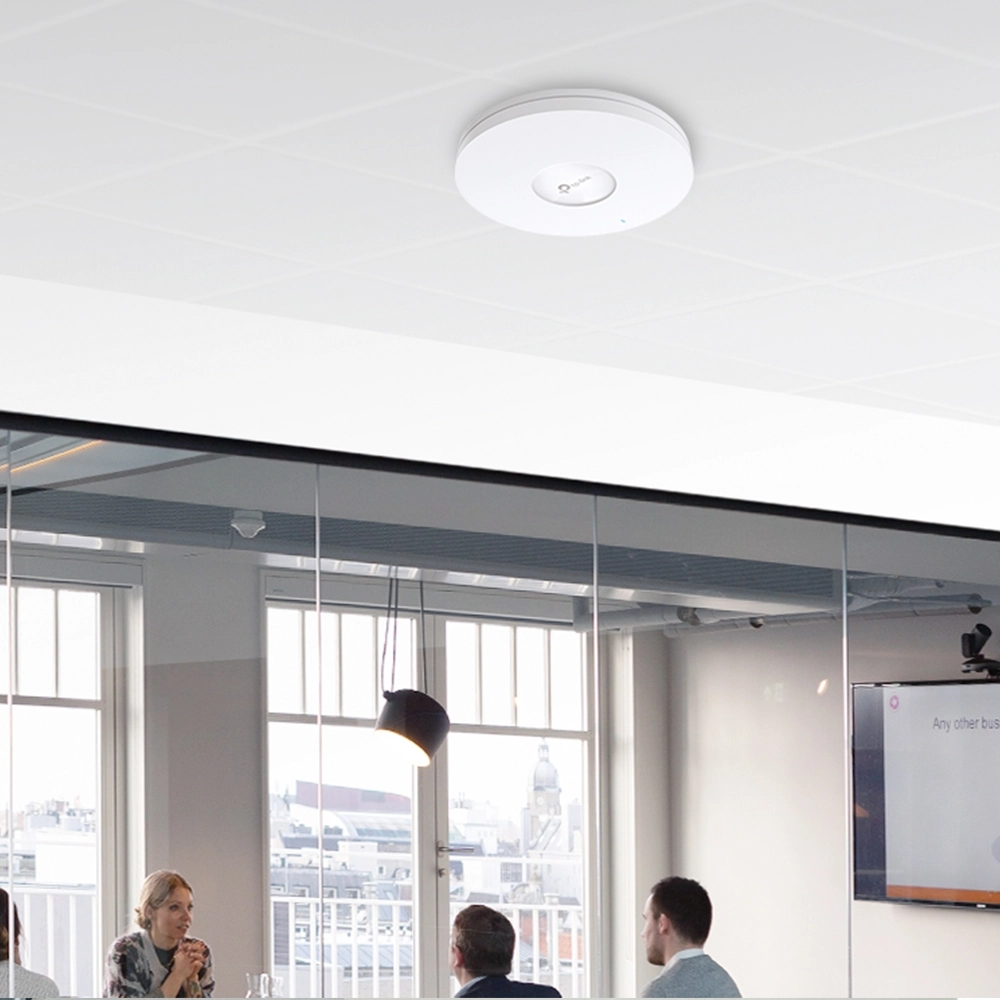

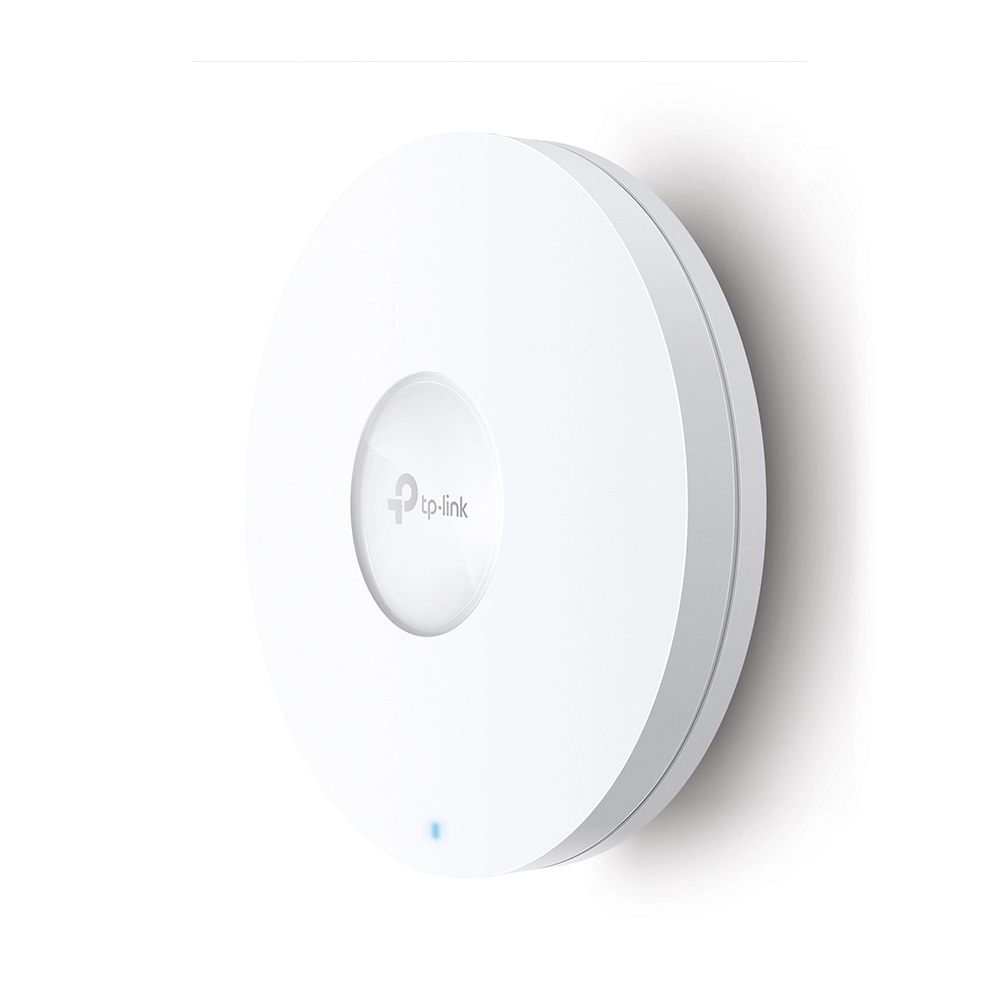

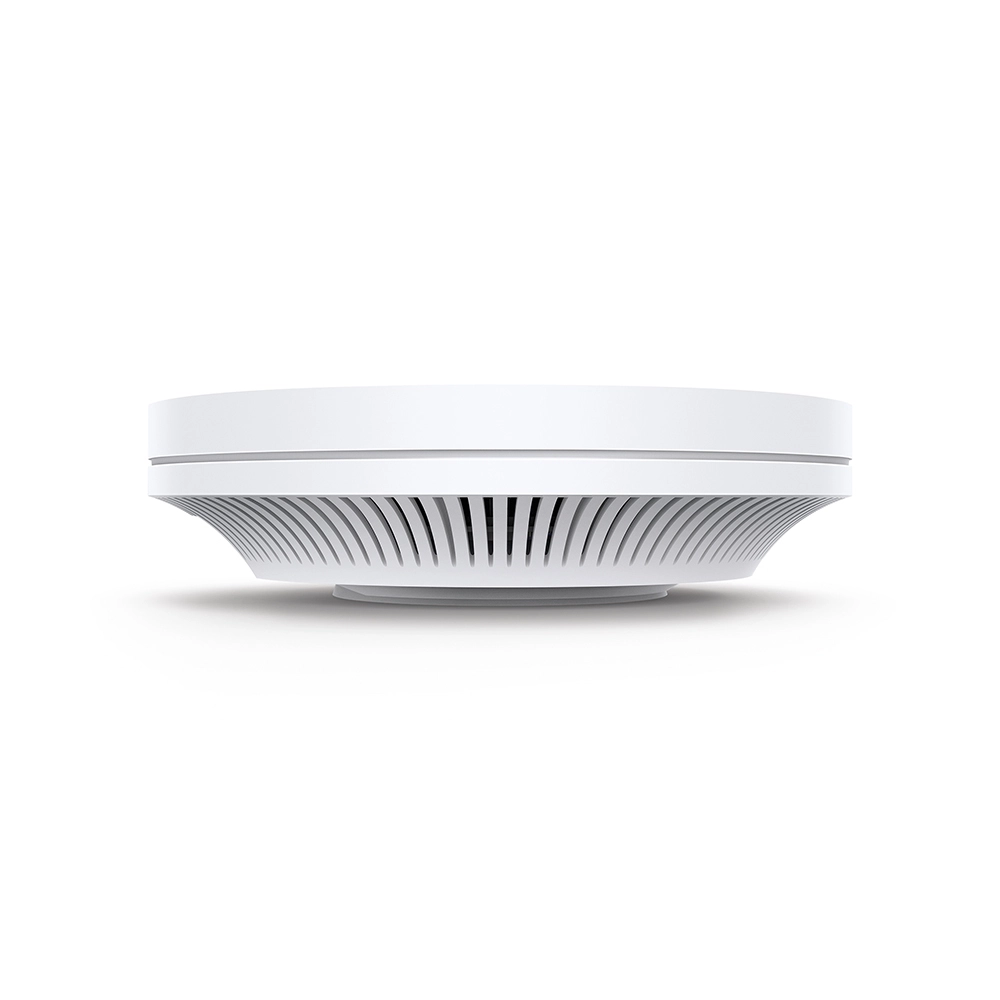

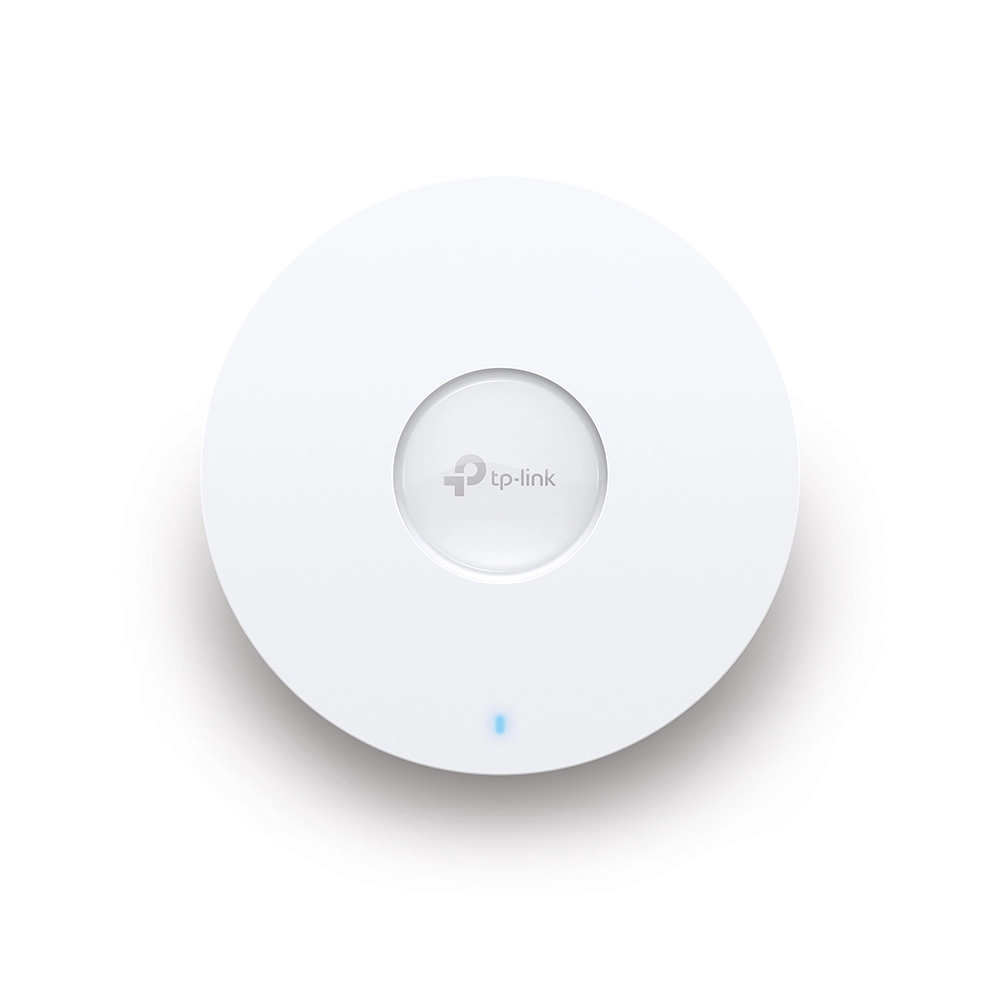

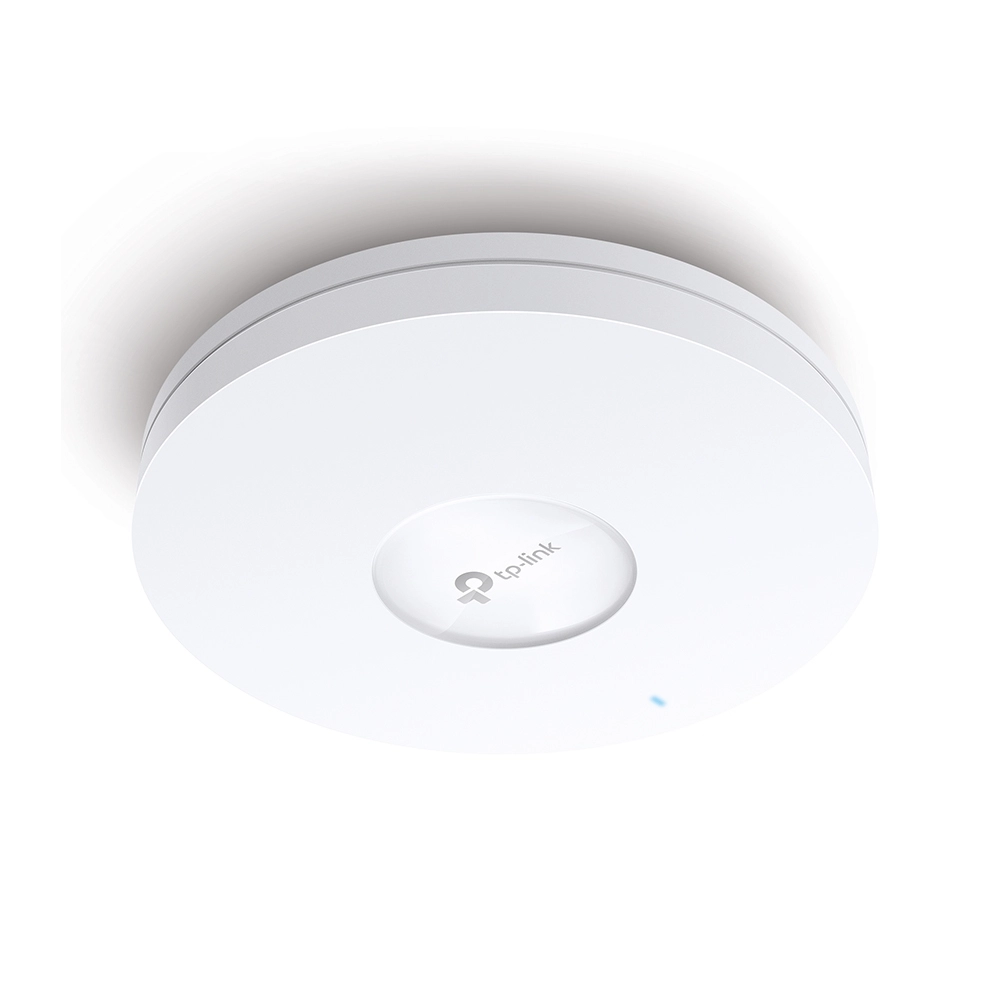

AX5400 Ceiling Mount Wi-Fi 6 Access Point

AX5400 WiFi 6 Speed
4804 Mbps on 5 GHz + 574 Mbps on 2.4 GHz

High-Efficiency WiFi 6
More connected devices can enjoy faster speeds

Centralized Cloud Management
Manage the whole network locally or from the cloud

2.5GE Wired Performance
Boosts overall throughput with a 2.5 Gbps Ethernet port

160 MHz Channel
Double the data at peak transmission times on a single stream with HE160‡

Auto Channel Selection and Power Adjustment
Optimize overall performance by reducing WiFi interference

Omada Mesh Technology
More flexible and convenient wireless deployment§

Seamless Roaming
Uninterrupted streaming when moving between APs§

PoE+ Powered
Supports both DC (adapter included) and 802.3at PoE+ for flexible installations

Designed for Business Environments
Requiring High-Performance WiFi

- Hospitality
High-quality and full coverage Guest WiFi

- Education
High-security WiFi to connect more devices

- Shopping Mall
Seamless marketing WiFi coverage to boost business

- Office
Stable, seamless, and high-security WiFi coverage

- Meeting Room
Faster streaming, downloading, video conferencing, and more

High-End Business Wi-Fi 6 Bring Real Power to Your Business
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

Blazing-Fast AX5400 Wi-Fi 6 Speeds
High-end business WiFi 6 with speeds up to 5378 Mbps brings 2.6-time speeds than WiFi 5.

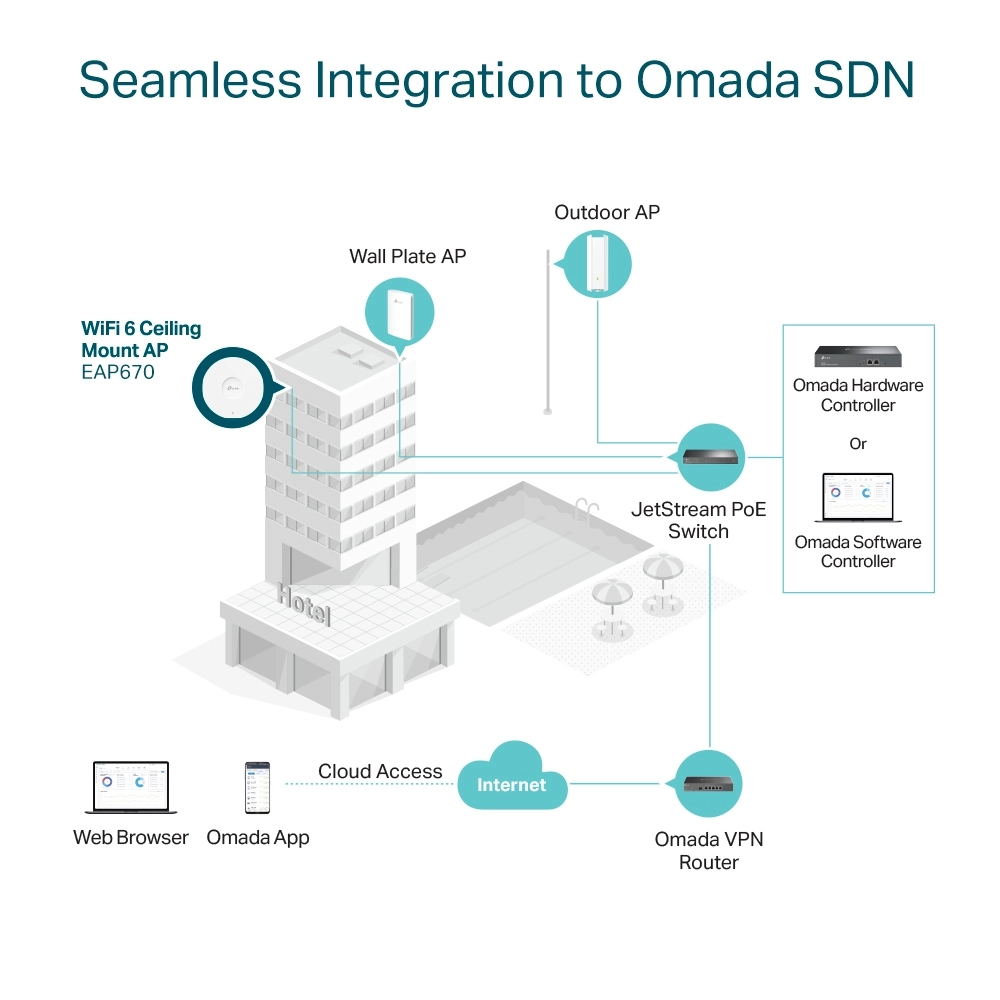

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

Auto Channel Selection and Power Adjustment
to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network

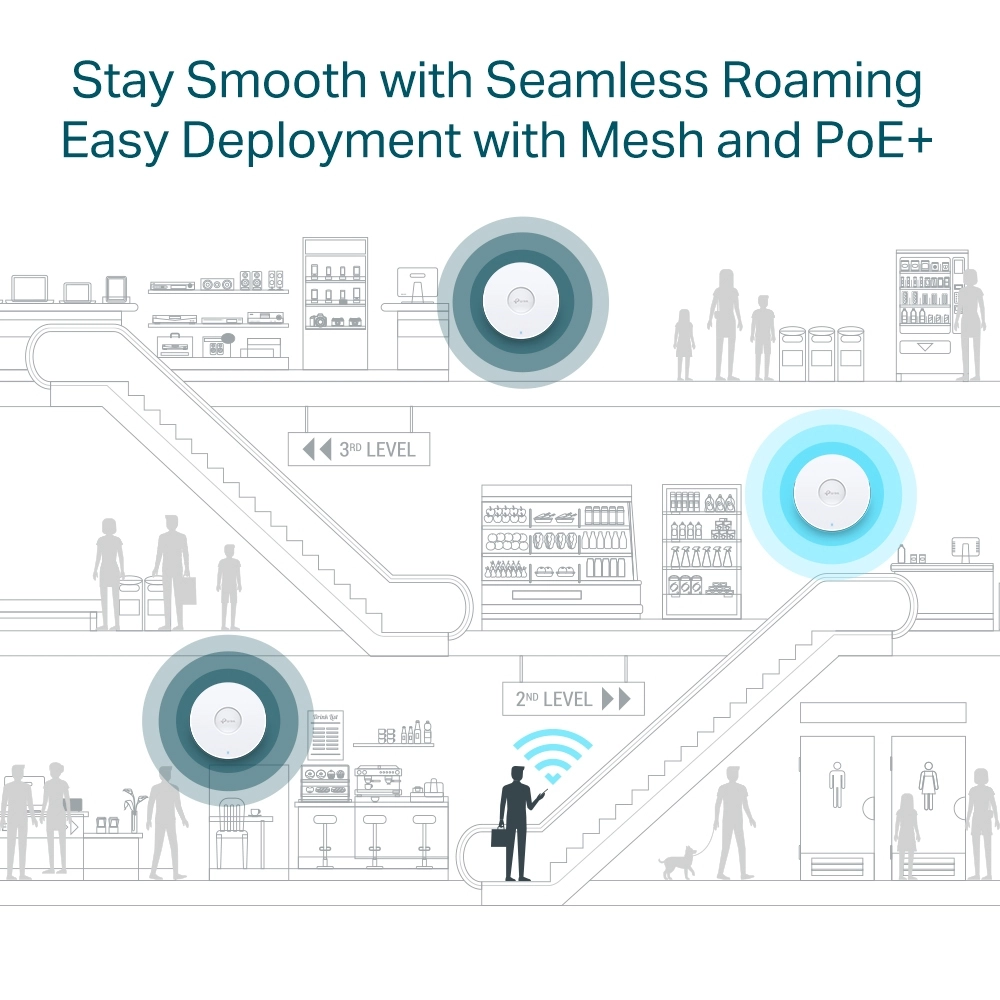

Easy Deployment & Higher Performance by Omada Mesh

Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Boosted Network Security and Efficiency

Secure Guest Network with Up to 16 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

Boost Business with Facebook WiFi and SMS Login
Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.

WPA3 for Worry-Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.

Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.

Load Balance
Ensures large numbers of users have smooth network experiences in high-density business networks

Airtime Fairness
Increases average network throughput in heavily congested environments

Specification

Product
Product id	885167
Brand	TP-Link
Partnr	EAP770
EAN/UPC code	1210002608718
Warranty (months)	3 year limited warranty
Management features
Web-based management	Y
Syslog	Y
Firmware upgradeable	Y
Packaging data
Number of products included	1 stuk(s)
Mounting kit	Y
Quick start guide	Y
Package type	Box
Features
2.4 GHz	Y
5 GHz	Y
Maximum data transfer rate	5400 Mbit/s
6 GHz	N
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	4804 Mbit/s
Ethernet LAN data rates	10, 100, 1000, 2500 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Number of users	250 gebruiker(s)
Automatic channel selection	Y
Automatic channel scanning	Y
MIMO	Y
MIMO type	Multi User MIMO
Spread spectrum method	OFDMA
Fit AP mode features	Mesh networking
VLAN support	Y
Rate limiting	Y
Flow control support	Y
Band steering	Y
Airtime Fairness (ATF)	Y
Quality of Service (QoS) support	Y
Transmitting power (CE)	<20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz, , band1 & band2, EIRP); <30 dBm(5 GHz, , band3, EIRP) dBm
Transmitting power (FCC)	<25 dBm (2.4 GHz); <28 dBm (5 GHz) dBm
BeamForming	Y
Security
Security algorithms	SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise
MAC address filtering	Y
Access Control List (ACL)	Y
Ports & interfaces

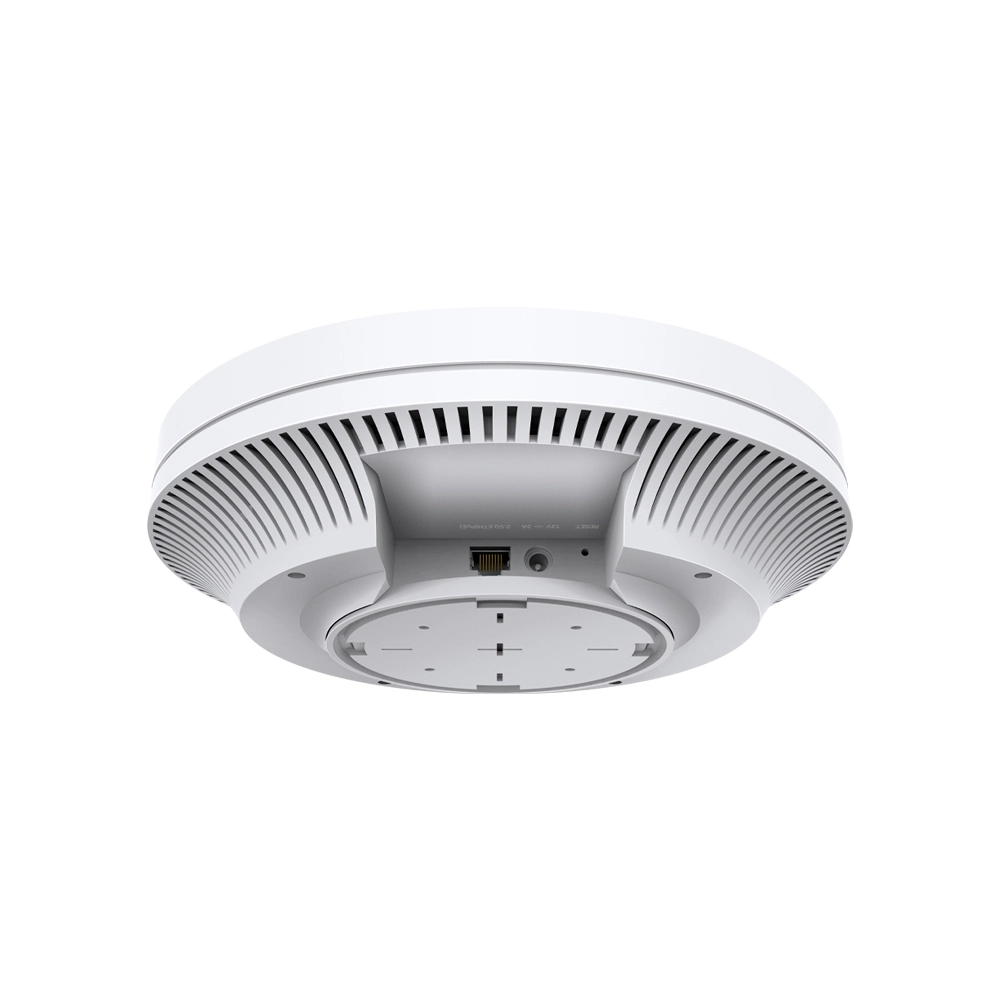

Ethernet LAN (RJ-45) ports	1
DC-in jack	Y
Power
Power over Ethernet (PoE)	Y
DC voltage range	12 V
Design
Placement	Ceiling, Wall
Product colour	White
Reset button	Y
LED indicators	Y
Certification	CE, FCC, RoHS
Antenna
Antenna type	Internal
Operational conditions
Operating relative humidity (H-H)	10 - 90 procent
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 procent
Weight & dimensions
Width	243 mm
Depth	243 mm
Height	64 mm
